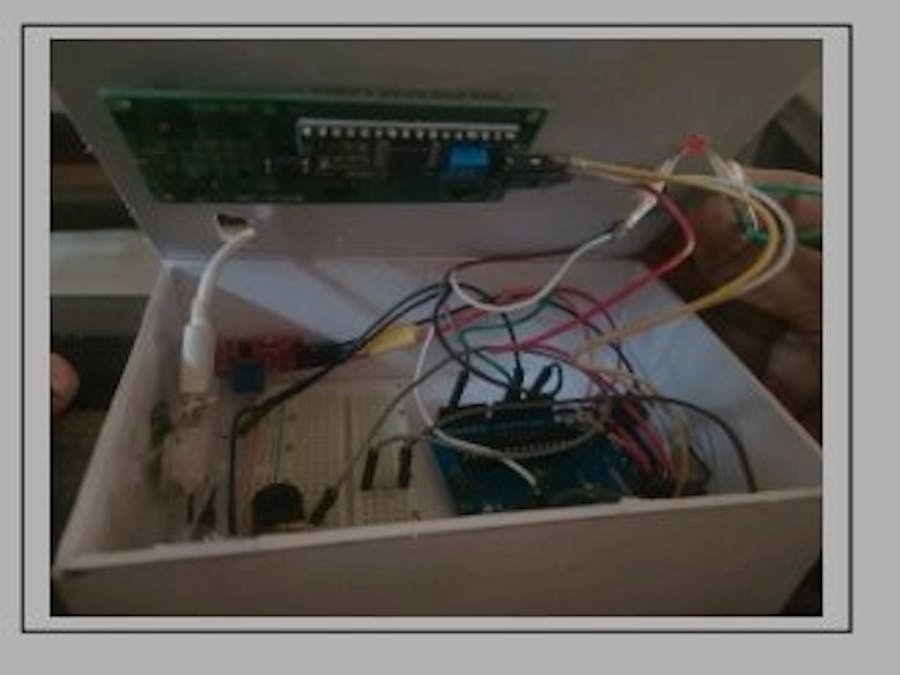

Firescape

#include "esp_camera.h"
#include <WiFi.h>
#include "esp_http_server.h"

// WiFi Credentials
const char *ssid = "realme";
const char *password = "12345678";

// Fire Sensor Pin
#define FIRE_SENSOR_PIN 6  // Change if needed
#define Buzzer_PIN 44
// XIAO ESP32S3 Camera Pins
#define PWDN_GPIO_NUM     -1
#define RESET_GPIO_NUM    -1
#define XCLK_GPIO_NUM      10
#define SIOD_GPIO_NUM      40
#define SIOC_GPIO_NUM      39
#define Y9_GPIO_NUM        48
#define Y8_GPIO_NUM        11
#define Y7_GPIO_NUM        12
#define Y6_GPIO_NUM        14
#define Y5_GPIO_NUM        16
#define Y4_GPIO_NUM        18
#define Y3_GPIO_NUM        17
#define Y2_GPIO_NUM        15
#define VSYNC_GPIO_NUM     38
#define HREF_GPIO_NUM      47
#define PCLK_GPIO_NUM      13

bool camera_initialized = false;
httpd_handle_t camera_httpd = NULL;

// Function Declarations
bool initCamera();
void stopCamera();
void startCameraServer();
void stopCameraServer();
static esp_err_t stream_handler(httpd_req_t *req);

void setup() {
  Serial.begin(115200);
  Serial.setDebugOutput(true);
  Serial.println("\nStarting...");

  pinMode(FIRE_SENSOR_PIN, INPUT);
  pinMode(Buzzer_PIN, OUTPUT);
  // Connect to WiFi
  WiFi.begin(ssid, password);
  WiFi.setSleep(false);
  Serial.print("Connecting to WiFi");
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  Serial.println("\nWiFi connected");
}

void loop() {
  int fire_detected = digitalRead(FIRE_SENSOR_PIN);

  if (fire_detected == HIGH) {  // Fire detected (LOW for active-low sensors)
    Serial.println("🔥 Fire detected! Starting camera stream...");
    digitalWrite(Buzzer_PIN,HIGH);
    if (!camera_initialized) {
      if (initCamera()) {
        camera_initialized = true;
        startCameraServer();
      } else {
        Serial.println("🚨 Camera initialization failed!");
      }
    }
  } else {
    Serial.println("✅ No fire detected.");
    digitalWrite(Buzzer_PIN,LOW);
    if (camera_initialized) {
      Serial.println("Stopping camera stream...");
      stopCameraServer();
      stopCamera();
      camera_initialized = false;
    }
  }

  delay(2000);
}

// Function to initialize the camera
bool initCamera() {
  camera_config_t config;
  config.ledc_channel = LEDC_CHANNEL_0;
  config.ledc_timer = LEDC_TIMER_0;
  config.pin_d0 = Y2_GPIO_NUM;
  config.pin_d1 = Y3_GPIO_NUM;
  config.pin_d2 = Y4_GPIO_NUM;
  config.pin_d3 = Y5_GPIO_NUM;
  config.pin_d4 = Y6_GPIO_NUM;
  config.pin_d5 = Y7_GPIO_NUM;
  config.pin_d6 = Y8_GPIO_NUM;
  config.pin_d7 = Y9_GPIO_NUM;
  config.pin_xclk = XCLK_GPIO_NUM;
  config.pin_pclk = PCLK_GPIO_NUM;
  config.pin_vsync = VSYNC_GPIO_NUM;
  config.pin_href = HREF_GPIO_NUM;
  config.pin_sccb_sda = SIOD_GPIO_NUM;
  config.pin_sccb_scl = SIOC_GPIO_NUM;
  config.pin_pwdn = PWDN_GPIO_NUM;
  config.pin_reset = RESET_GPIO_NUM;
  config.xclk_freq_hz = 20000000;
  config.frame_size = FRAMESIZE_QVGA;
  config.pixel_format = PIXFORMAT_JPEG;
  config.grab_mode = CAMERA_GRAB_WHEN_EMPTY;
  config.fb_location = CAMERA_FB_IN_PSRAM;
  config.jpeg_quality = 10;
  config.fb_count = 2;

  esp_err_t err = esp_camera_init(&config);
  if (err != ESP_OK) {
    Serial.printf("Camera init failed with error 0x%x\n", err);
    return false;
  }

  Serial.println("📷 Camera initialized successfully!");
  return true;
}

// Function to stop the camera
void stopCamera() {
  esp_camera_deinit();
  Serial.println("📷 Camera deinitialized.");
}

// Function to start camera server
void startCameraServer() {
  httpd_config_t config = HTTPD_DEFAULT_CONFIG();
  config.server_port = 80;

  httpd_uri_t uri = {
    .uri = "/",
    .method = HTTP_GET,
    .handler = stream_handler,
    .user_ctx = NULL
  };

  if (httpd_start(&camera_httpd, &config) == ESP_OK) {
    httpd_register_uri_handler(camera_httpd, &uri);
    Serial.print("📡 Camera stream started at: http://");
    Serial.println(WiFi.localIP());
  } else {
    Serial.println("❌ Failed to start camera server!");
  }
}

// Function to stop camera server
void stopCameraServer() {
  if (camera_httpd) {
    httpd_stop(camera_httpd);
    camera_httpd = NULL;
    Serial.println("📡 Camera server stopped.");
  }
}

// Function to handle streaming
static esp_err_t stream_handler(httpd_req_t *req) {
  camera_fb_t *fb = NULL;
  esp_err_t res = ESP_OK;
  size_t _jpg_buf_len = 0;
  uint8_t *_jpg_buf = NULL;

  res = httpd_resp_set_type(req, "multipart/x-mixed-replace; boundary=frame");

  while (res == ESP_OK) {
    fb = esp_camera_fb_get();
    if (!fb) {
      Serial.println("❌ Camera capture failed!");
      res = ESP_FAIL;
      break;
    }

    if (fb->format != PIXFORMAT_JPEG) {
      bool converted = frame2jpg(fb, 80, &_jpg_buf, &_jpg_buf_len);
      esp_camera_fb_return(fb);
      fb = NULL;
      if (!converted) {
        Serial.println("JPEG compression failed");
        res = ESP_FAIL;
        break;
      }
    } else {
      _jpg_buf = fb->buf;
      _jpg_buf_len = fb->len;
    }

    char part_buf[64];
    int len = snprintf(part_buf, sizeof(part_buf),
                       "--frame\r\nContent-Type: image/jpeg\r\nContent-Length: %zu\r\n\r\n",
                       _jpg_buf_len);
    res = httpd_resp_send_chunk(req, part_buf, len);
    if (res == ESP_OK) {
      res = httpd_resp_send_chunk(req, (const char *)_jpg_buf, _jpg_buf_len);
    }
    if (res == ESP_OK) {
      res = httpd_resp_send_chunk(req, "\r\n", 2);
    }

    esp_camera_fb_return(fb);
    fb = NULL;

    if (res != ESP_OK) {
      break;
    }

    delay(100);
  }

  return res;
}
