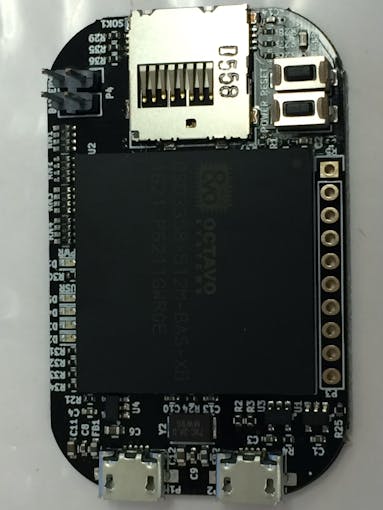

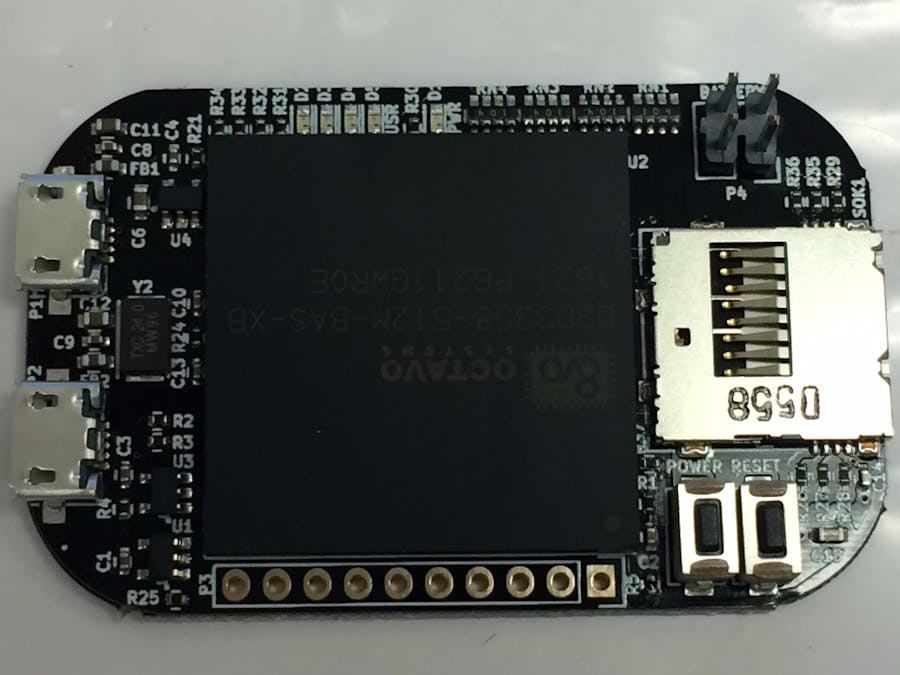

Smalls mint tin-sized BeagleBone (KiCAD version) using Octavo Systems OSD3358 system on package.
Pocketbone is a mini Linux capable computer that is meant to fit into a small mint tin. It is powered by USB or alternatively a 3.7V LiPo*.
The original project was designed in Eagle and this project is the KiCAD incarnation. This version includes many enhancements over the original design including:
- IO expansion header
- Battery input header
- Single sided population
- Sweet silkscreen art
- USB fixes
The project is completely open and community contributions are encouraged.
The source files are hosted on Github: Pocketbone KiCAD Repository
Many thanks to Jason Kridner, Drew Fustini, and Alex Hiam for their support.
* If only a battery is used to power the device USB OTG host functionality will be lost.
