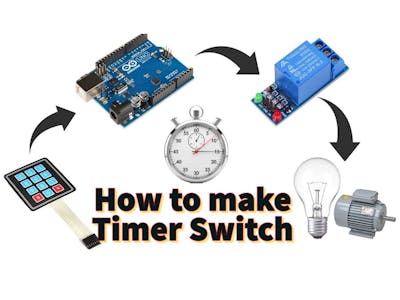

How to make keypad timer Switch

How to make keypad timer Switch

BeginnerFull instructions provided1,035
How to make keypad timer Switch

Things used in this project

Story

Read more

Code

Code

Arduino
#include <Keypad.h>

int relay_pin = A0;

long int timer = 0;

const int ROW_NUM = 4; //four rows
const int COLUMN_NUM = 3; //three columns

char keys[ROW_NUM][COLUMN_NUM] = {
  {'1', '2', '3'},
  {'4', '5', '6'},
  {'7', '8', '9'},
  {'*', '0', '#'}
};

byte pin_rows[ROW_NUM] = {9, 8, 7, 6}; //connect to the row pinouts of the keypad
byte pin_column[COLUMN_NUM] = {5, 4, 3}; //connect to the column pinouts of the keypad

Keypad keypad = Keypad( makeKeymap(keys), pin_rows, pin_column, ROW_NUM, COLUMN_NUM );


String input_value;

void setup() {

  pinMode(relay_pin, OUTPUT);


  Serial.begin(9600);
  input_value.reserve(32); // maximum input characters is 33, change if needed
}

void loop() {
  char key = keypad.getKey();

  if (key) {
    Serial.println(key);

    if (key == '*') {
      input_value = ""; // clear input value
    } else if (key == '#') {

      timer = input_value.toInt();


     timer = timer * 1000; //time in seconds
      //timer = timer * 1000 * 60; //time in minuts
     // timer = timer * 1000 * 60 * 60; //time in hours

      digitalWrite(relay_pin, HIGH);
      Serial.println("relay on");

      delay(timer);
      digitalWrite(relay_pin, LOW);
      Serial.println("relay off");

      timer = 0;



      input_value = ""; // clear input value
    } else {
      input_value += key; // append new character to input value string
    }
  }
}
