Laser Based Security System With Arduino

Hi guys in this tutorials we will learn how to make a laser based security system with Arduino.So basically we will use a laser and ldr laser to radiate light in a straight line and ldr to detect the laser light and if someone crosses it which means laser light will be blocked and LDR will not able to detect it then the buzzer will alert us that somebody crossed or blocked the laser.

Step 1: Things You Need

For this tutorials we will need following things :

Arduino UNO Board :

LASER Diode Module KY-008 :

Buzzer : LDR :

Resistors (10k)

Push Button Switch

Bread Board :

Connecting Wires :

Step 2: Schmatics

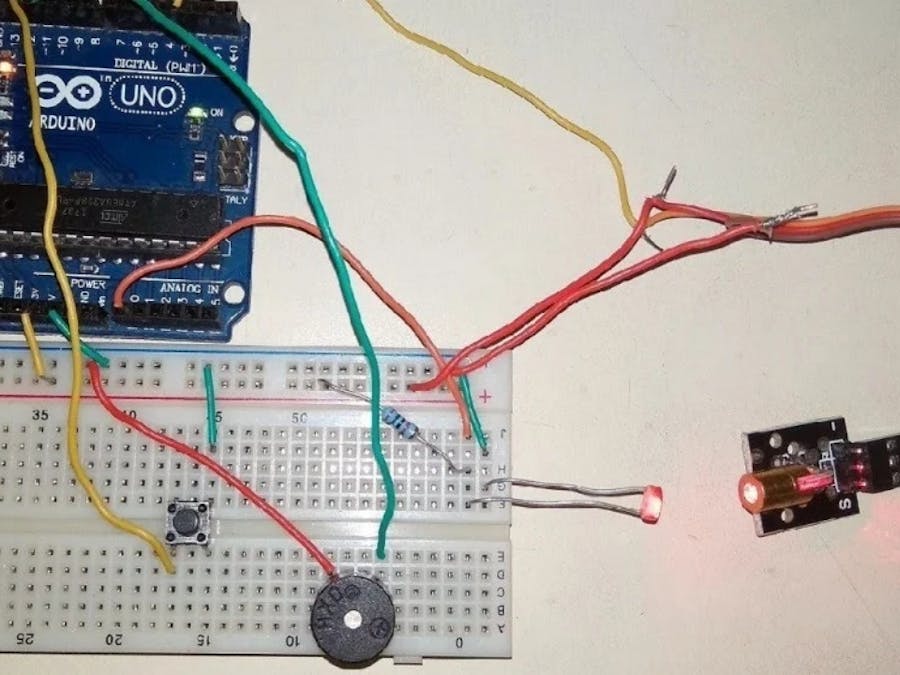

Please connect everything According to the shown schmatics.

Step 3: Code

Please copy the following code and upload it to the arduino Board : int laserPin = 3;int sensorPin = A0;int buttonPin = 12;int buzzerPin = 11;int laserThreshold = 10;void setup() {pinMode(laserPin, OUTPUT);pinMode(buttonPin, INPUT_PULLUP);Serial.begin(9600);}boolean alarmState = false;void loop() {if (! alarmState) {delay(1000);digitalWrite(laserPin, HIGH);delay(10);unsigned long startTime = millis();while (millis() - startTime < 1000) {int sensorValue = analogRead(sensorPin);Serial.println(sensorValue);if (sensorValue > laserThreshold) {alarmState = true;break;}delay(10);}digitalWrite(laserPin, LOW);} else {tone(buzzerPin, 440);if (! digitalRead(buttonPin)) {alarmState = false;noTone(buzzerPin);}delay(10);}}

Step 4: Testing the Security System
