DIY Smart Outlet Plug

Join the Discord Server here.

change language

The smart 220V outlet plug represents a leap forward in home automation technology, seamlessly bridging the gap between traditional electrical appliances and the digital age. With the ability to connect to a dedicated mobile app, this intelligent outlet plug empowers users with unprecedented control and convenience. Whether you're at home or on the go, the app allows you to remotely monitor and manage your connected devices, turning them on or off with just a tap on your smartphone screen. Gone are the days of worrying about whether you left an appliance on or need to physically unplug devices. Additionally, the outlet plug can be programmed to schedule operations, helping you save energy and reduce electricity bills. The smart 220V outlet plug not only enhances your home's efficiency but also brings a new level of convenience and peace of mind to your daily life.

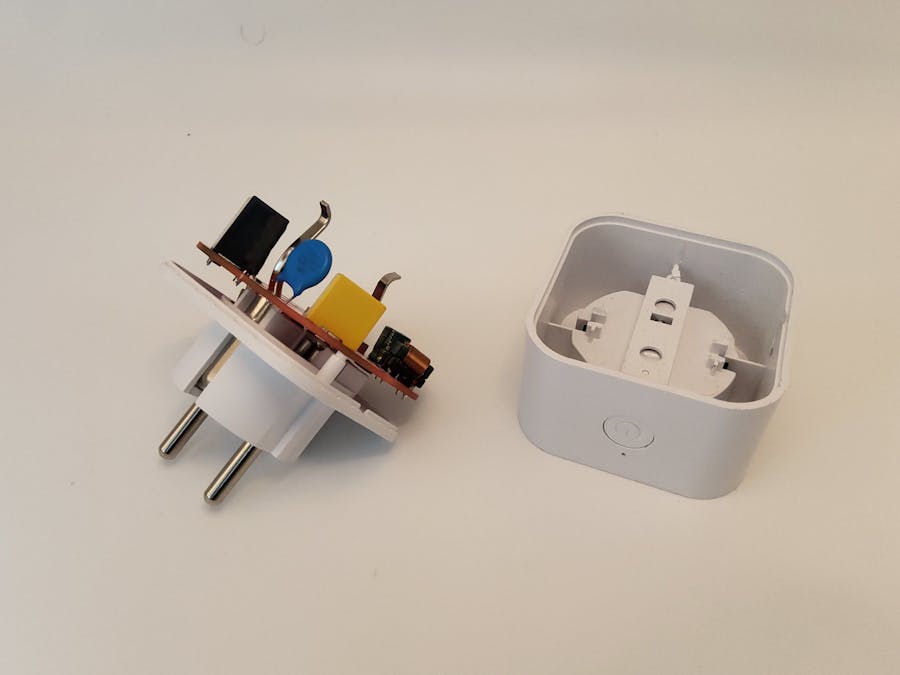

In this project and tutorial, I'm using a Smart Power Outlet Plug Enclosure, the LK-EU01 sold by LK Shiny Enclosure, here. The smart hardware electronics I designed in KiCad, prototyped and tested myself, are available on this GitHub repository. If you like to know more about this DIY enclosure, here's the direct email contact.

PCB Layout

This hardware electronics I ordered fabrication from Seed Studio Fusion , who are supporting this project by providing their hardware fabrication services cost-free,

Circuit Schematic

Hardware Specifications

• ExpressIF single core XTensa LX7 microcontroller, the ESP32 C3, with 4Mb of storage
• Power consumption meter
• Power Scheduler to take advantage of the lower price of electricity during late night time
• 2.4GHz Wireless Radio (WWIFI, BLutooth and all others)
• Fully compatible and a direct fit and installation with the WR5P module from Tuya

Visit this project repository on my Github. Link below:
https://github.com/aeonSolutions/AeonLabs-HomeAutomation-110-220V-AC-Smart-Power-Outlet-Socket-LK-EU01

✓ 🟡The next iteration of this project will include USB-C to Serial UART connectivity for simple, easy, and for dummies programming of the firmware and also extreme low power consumption when in sleep mode. only ~320nA !

If you want to know more about this smart device, for instance, to know how to install one, send me a message on GitHub, or the Discord server. Links above and below.

Buy the Smart Outlet Plug
The Smart Outlet Plug for Power Scheduling and Power Consumption Monitoring can be found on one of the many repositories I maintain on GitHub, named "Home Automation", and it can be bought on Tindie.com. Click here to buy one.

#openInnovation #DIY
