DHT Sensor

DHT22 sensor connected to photon transmits humidity & temperature values to spreadsheets on Google Drive.

BeginnerFull instructions provided24 hours2,625
DHT Sensor

Things used in this project

Hardware components

Photon
Particle Photon
×1
DHT22 Temperature Sensor
DHT22 Temperature Sensor
×1
Resistor 1k ohm
Resistor 1k ohm
×1

Story

Read more

Schematics

DHT22/Photon Schematic

Code

DHT22_Sensor

C/C++
The code calls upon functions to interpolate data from DHT22 sensor connected to a photon. The data values are then published to partner applications or sites.

Disclaimer: The code contains additional code for additional sensors.
// This #include statement was automatically added by the Particle IDE.
#include "Adafruit_DHT/Adafruit_DHT.h"

 /*                           +-----+
 *                 +----------| USB |----------+
 *                 |          +-----+       *  |
 *                 | [ ] VIN           3V3 [ ] |
 *                 | [ ] GND           RST [ ] |
 *                 | [ ] TX           VBAT [ ] |
 *                 | [ ] RX  [S]   [R] GND [ ] |
 *                 | [ ] WKP            D7 [ ] |
 *                 | [ ] DAC +-------+  D6 [ ] |
 *   Opensensor -->| [*] A5  |   *   |  D5 [ ] |
 * Closedsensor -->| [*] A4  |Photon |  D4 [*] |<-- DHT22 AM2302 Sensor (1K pullup)
 *                 | [*] A3  |       |  D3 [ ] |
 *                 | [ ] A2  +-------+  D2 [ ] |
 *                 | [ ] A1             D1 [ ] |
 *  Analog0     -->| [ ] A0             D0 [*] |<-- Garage Door Switch
 *                 |                           |
 *                  \    []         [______]  /
 *                   \_______________________/
 *
 *
 */
// This #include statement was automatically added by the Particle IDE.
#include "HttpClient/HttpClient.h"
#include "application.h"

// This #include statement was automatically added by the Spark IDE.
#include "elapsedMillis/elapsedMillis.h"

//-------------Begin UBIDOTS---------------
    #define VARIABLE_ID_DOORSTATUS "Your_ID"
    #define VARIABLE_ID_VOLTAGE "Your_ID"
    #define TOKEN "Your_Token"

    HttpClient http;
    int lightLevel = 0;
    unsigned int nextTime = 0;    // Next time to contact the server

    // Headers currently need to be set at init, useful for API keys etc.
    http_header_t headers[] = {
        { "Content-Type", "application/json" },
        { NULL, NULL } // NOTE: Always terminate headers will NULL
    };

    http_request_t request;
    http_response_t response;
//--------------End UBIDOTS----------------

//--------------Begin DHT------------------
// Example testing sketch for various DHT humidity/temperature sensors
// Written by ladyada, public domain

#define DHTPIN D4     // what pin we're connected to

// Uncomment whatever type you're using!
//#define DHTTYPE DHT11  // DHT 11
#define DHTTYPE DHT22  // DHT 22 (AM2302)
//#define DHTTYPE DHT21  // DHT 21 (AM2301)

// Connect pin 1 (on the left) of the sensor to +5V
// Connect pin 2 of the sensor to whatever your DHTPIN is
// Connect pin 4 (on the right) of the sensor to GROUND
// Connect a 10K resistor from pin 2 (data) to pin 1 (power) of the sensor

DHT dht(DHTPIN, DHTTYPE);
//---------------End DHT-------------------

unsigned int interval = 50;
unsigned int particleinterval = 100;
unsigned int particlefuncinterval = 10000;
unsigned int ubiinterval = 5000;
unsigned int dhtinterval = 30000;

int garageDoorFunction(String command);

int rssival = 0;
int doorstatus = 1;
int doorcounter = 0;
int closedsensorpin = A4;
int opensensorpin = A5;
const int open = 0;
const int closed = 1;

// Define the pins we're going to call pinMode on
int led = D6;  // You'll need to wire an LED to this one to see it blink.
int led2 = D7; // This one is the built-in tiny one to the right of the USB jack


double analog1 = 0;
double analog1raw = 0;
double Temperature = 0;
double Humidity = 0;

elapsedMillis timeElapsed; //declare global if you don't want it reset every time loop runs
elapsedMillis timeElapsed2; //declare global if you don't want it reset every time loop runs
elapsedMillis timeElapsed3;
elapsedMillis timeElapsed4;
elapsedMillis timeElapsed5;


char publishString[40];
char doorpublishstring[40];
char doorstatusstring[40];

SYSTEM_MODE(SEMI_AUTOMATIC); //allows for control of Spark.connect() and Spark.process()

// This routine runs only once upon reset
void setup() {
    timeElapsed = 0;
    pinMode(led, OUTPUT);
    pinMode(led2, OUTPUT);
    pinMode(A0, INPUT);
    Serial1.begin(115200);   // open serial over USB
    //ip = {"IP:", WiFi.localIP()};
    //String ip = WiFi.localIP();

    Particle.function("GarageDoor", garageDoorFunction);
    Particle.variable("analog1", &analog1, DOUBLE);  //variables update automatically. Max 4 per particle
    Particle.variable("doorcounter", doorcounter);
    //Particle.variable("doorstatus", &doorstatus, INT); //variables are viewable on mobicle
    Particle.variable("doorstatus", doorstatusstring, STRING); //variables are viewable on mobicle
    Particle.variable("Temperature", &Temperature, DOUBLE); //variables are viewable on mobicle
    Particle.variable("Humidity", &Humidity, DOUBLE); //variables are viewable on mobicle

    pinMode(opensensorpin, INPUT_PULLUP);
    pinMode(closedsensorpin, INPUT_PULLUP);

    pinMode(D0, OUTPUT);

    //Do DHTINIT
    pinMode(DHTPIN, INPUT_PULLUP); //sensor needs pullup resistor.
 dht.begin();
 //End DHTINIT

//-------------Begin UBIDOTS---------------
//    request.hostname = "things.ubidots.com";
//    request.port = 80;
//    request.path = "/api/v1.6/variables/"VARIABLE_ID"/values?token="TOKEN;
//--------------End UBIDOTS----------------

}

void loop() {
    if (Particle.connected() == false){
            Particle.connect();
    }

    else { //run code every loop even if not connected

        while (Particle.connected()){  //If Connected, run code every loop
            //Spark.process();

            analog1raw = analogRead(A0);
            analog1 = (analog1 *63 +analog1raw *3.3/4095)/64;


            if (timeElapsed> interval)
            {                 //sets up interval timer and fires on interval
                digitalWrite(led, !digitalRead(led));   // Turn ON the LED pins
                digitalWrite(led2, !digitalRead(led2));

             int opensense = digitalRead(opensensorpin);
                int closedsense = digitalRead(closedsensorpin);


                if (opensense == LOW) // high,0 = open door, low,1 = closed door
                {
                    if (doorstatus == closed) //check the previous state, if closed, then generate an event
                    {
                        strcpy(doorpublishstring, "Open");
                        Particle.publish("GARAGEDOOR",doorpublishstring);
                        doorcounter++;
                    }
                    doorstatus = open;
                    strcpy(doorstatusstring, "Open"); //update particle variable.
                }
                else if (closedsense == LOW)
                {
                    if (doorstatus == open) //check the previous state, if closed, then generate an event
                    {
                        strcpy(doorpublishstring, "Closed");
                        Particle.publish("GARAGEDOOR",doorpublishstring);
                        doorcounter++;
                    }

                    doorstatus = closed;
                    strcpy(doorstatusstring, "Closed");  //update particle variable.
                }
                else
                {  //if door is neither closed or open, it is in "limbo"
                    strcpy(doorstatusstring, "Limbo");  //update particle variable.
                }

                timeElapsed = 0;    //resets interval timer.
            }

            if (timeElapsed2>particleinterval)  //Run code every .1 seconds
            {
            Particle.process(); //Process wifi events
            }

            if (timeElapsed3> particlefuncinterval) //Run code every 10 seconds
            {
                rssival = WiFi.RSSI();
                sprintf(publishString,"%d",rssival);

                Particle.publish("RSSI",publishString);
                timeElapsed3 = 0; //reset interval timer
            }

            if (timeElapsed4> ubiinterval) //Run code every 10 seconds
            {
                updateUbidots();
                timeElapsed4 = 0; //reset interval timer
            }

            if (timeElapsed5> dhtinterval) //Run code every 10 seconds
            {
                getDht();
                timeElapsed5 = 0; //reset interval timer
            }

            //delay(2);
        }
    }
 // delay(1000);
}

/*******************************************************************************
 * Function Name  : garageDoor
 * Description    : based on door status, opens or closes the door
 * Input          : analog 5 - digital input.
 * Output         : digital 1 - relay to blip and open or close the door
 * Return         : Value of the pin (0 or 1) in INT type
                    Returns a negative number on failure
 *******************************************************************************/
int garageDoorFunction(String sesame)
{
    if(sesame.startsWith("C"))
 {
  if (doorstatus == open)
  {
         pinMode(0, OUTPUT);
      digitalWrite(0, 1);
      delay(250);
      digitalWrite(0, 0);
  return 1;
  }
 }
 else if (sesame.startsWith("O"))
  {
        if (doorstatus == closed)
  {
         pinMode(0, OUTPUT);
      digitalWrite(0, 1);
      delay(250);
      digitalWrite(0, 0);
  return 2;
  }
 }
 else if (sesame.startsWith("X"))
  {
        if (doorstatus == closed){
            return 999;
        } else
        return 123;
  }
 return -1;

}



/*******************************************************************************
 * Function Name  : updateUbidots
 * Description    : sends variables to ubidots
 * Input          : doorstatus global variables
 * Output         : sends data to ubidots
 * Return         : void

 *******************************************************************************/
void updateUbidots() {
//-------------Begin UBIDOTS---------------
    request.hostname = "things.ubidots.com";
    request.port = 80;
    request.path = "/api/v1.6/variables/"VARIABLE_ID_DOORSTATUS"/values?token="TOKEN;

    Serial.println("Sending ubidots data ...");
    int ubidotsdoorstatus = ~doorstatus&0x01;
    request.body = "{\"value\":" + String(ubidotsdoorstatus) + "}";
    // Post request
    http.post(request, response, headers);
    Serial.println(response.status);
    Serial.println(response.body);



    request.hostname = "things.ubidots.com";
    request.port = 80;
    request.path = "/api/v1.6/variables/"VARIABLE_ID_VOLTAGE"/values?token="TOKEN;

    Serial.println("Sending ubidots data ...");
    request.body = "{\"value\":" + String(analog1) + "}";
    // Post request
    http.post(request, response, headers);
    Serial.println(response.status);
    Serial.println(response.body);

}

/*******************************************************************************
 * Function Name  : getDht
 * Description    : gets temp and humidity
 * Input          :
 * Output         :
 * Return         : void

 *******************************************************************************/
void getDht() {
// Wait at least 2 seconds between measurements.


// Reading temperature or humidity takes about 250 milliseconds!
// Sensor readings may also be up to 2 seconds 'old' (its a
// very slow sensor)
 float h = dht.getHumidity();
// Read temperature as Celsius
 float t = dht.getTempCelcius();
// Read temperature as Farenheit
 float f = dht.getTempFarenheit();

   Temperature = f; //updates spark variable with current temp.
   Humidity = h;

// Check if any reads failed and exit early (to try again).
 if (isnan(h) || isnan(t) || isnan(f)) {
  Serial.println("Failed to read from DHT sensor!");
  return;
 }

// Compute heat index
// Must send in temp in Fahrenheit!
 float hi = dht.getHeatIndex();
 float dp = dht.getDewPoint();
 float k = dht.getTempKelvin();

 Serial.print("Humid: ");
 Serial.print(h);
 Serial.print("% - ");
 Serial.print("Temp: ");
 Serial.print(t);
 Serial.print("*C ");
 Serial.print(f);
 Serial.print("*F ");
 Serial.print(k);
 Serial.print("*K - ");
 Serial.print("DewP: ");
 Serial.print(dp);
 Serial.print("*C - ");
 Serial.print("HeatI: ");
 Serial.print(hi);
 Serial.println("*C");
 Serial.println(Time.timeStr());
}

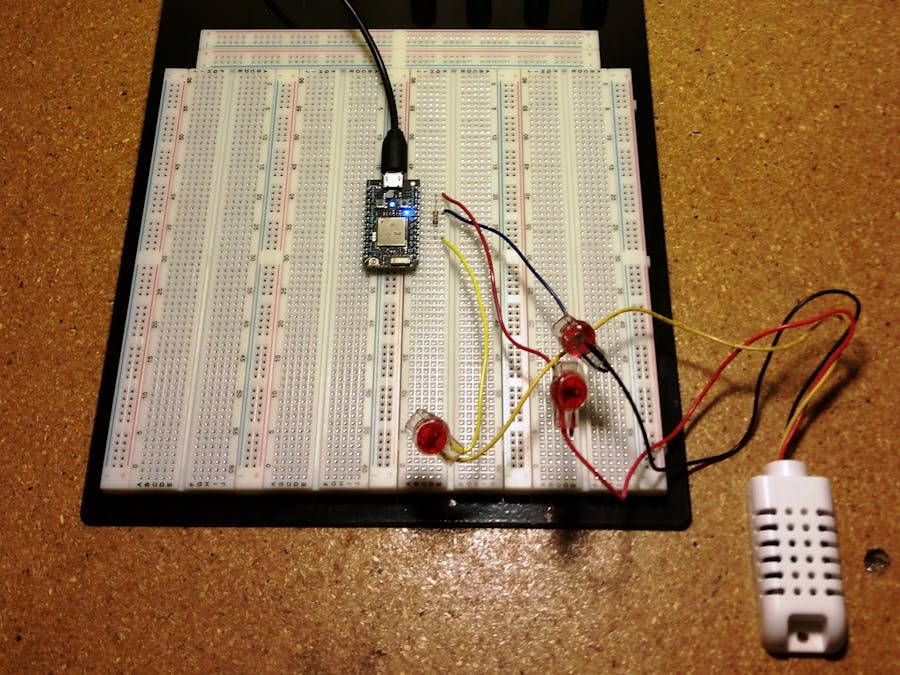

Figure 1: DHT Sensor

D
No preview (download only).

Credits

Branden Angus

Branden Angus

1 project • 1 follower
Thanks to John McAlpine.
