WiFi-Enabled Smart Meter Reader

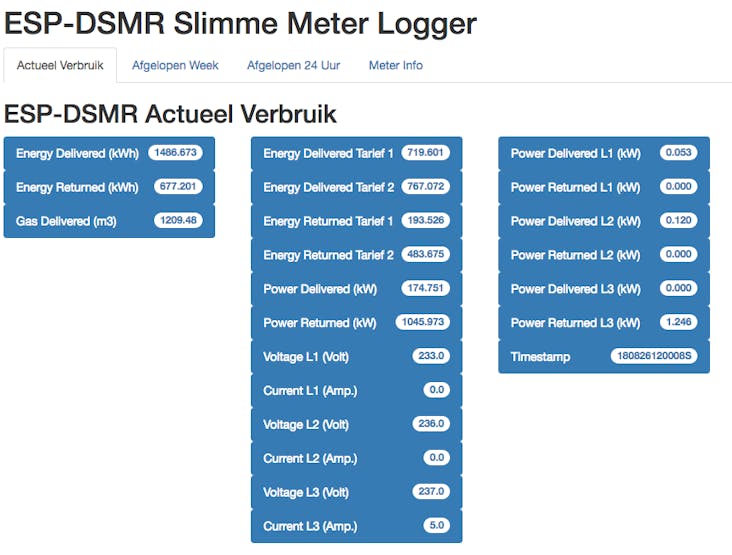

This device will capture the data from the smart (energy) meter and publish the values via a webserver to the user.

IntermediateFull instructions provided2 hours7,483
WiFi-Enabled Smart Meter Reader

Things used in this project

Hardware components

ESP8266 ESP-01
Espressif ESP8266 ESP-01
×1
General Purpose Transistor NPN
General Purpose Transistor NPN
×1
Microchip MCP1702-3v3
×1
elco 1uF
×1
elco 2.2uf
×1
elco 200uf - 1000uf
×1
THL Resisters 10k (3x)
×1
THL resistor 1k
×1
THL Resistor 2.2k (2x)
×1
RJ11/12 connector (6 pins)
×1
socket connector, 2x4-pin
×1

Hand tools and fabrication machines

Soldering iron (generic)
Soldering iron (generic)

Story

Read more

Schematics

DSMRlogger schematic

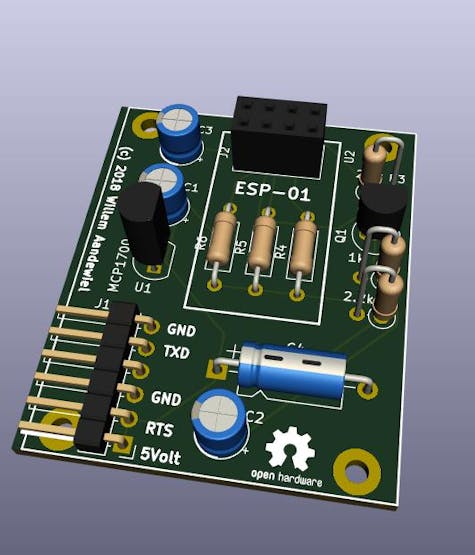

DSMRlogger

Code

DSMRlogger2HTML

The software to program the ESP01 so it will function as a Smart Meter Reader.
