Parking LED Guide

This project is to make a device that indicates when you are close to the perfect spot to park your car without hitting the wall.

BeginnerFull instructions provided205

Things used in this project

Hardware components

5 mm LED: Red

5 mm LED: Yellow

5 mm LED: Green

Resistor 330 ohm

Ultrasonic Sensor - HC-SR04 (Generic)

Jumper wires (generic)

Story

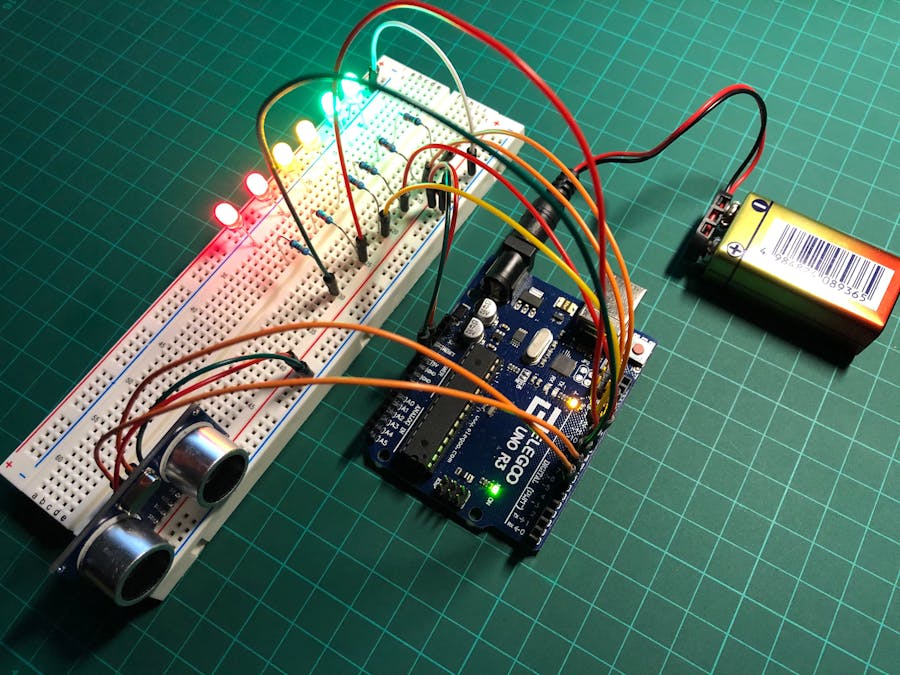

This device is set up so that the LED's are off until it detects an object (car) at 140cm, then when it gets closer, more LED's come on until all them are lit at 40cm.

Once the car reaches 30cm all the LED's turn off, this signals that you have reached the correct parking distance from the wall.
