Start using WIZ750SR

Hi here is show you how I start with the WIZ750SR-TTL-EVB kit. Hope can help you get inspiration.

Preparation

Hardware: Connect board as below picture.

Software:

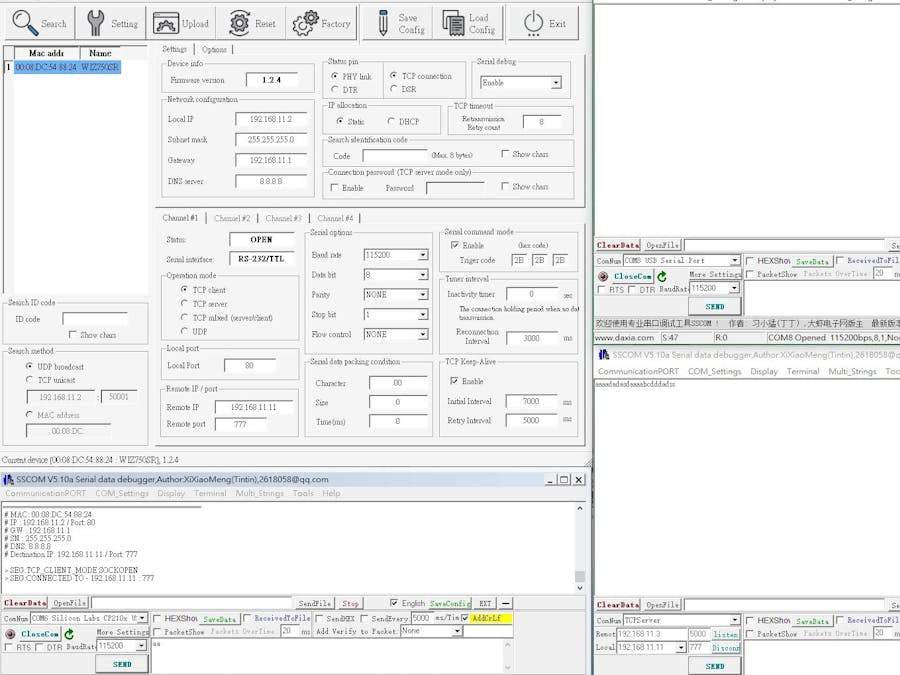

1. download WIZnet S2E Configuration Tool

2. TCP tool and serial terminal. Below I use sscom5.10a.

TCP client mode

In client mode WIZ750SR will try to connect to server Remote IP/port that you setting in WIZnet S2E Configuration Tool.

Once the server listen the port and WIZ750SR connect successfully it can start send / receive data.

TCP server mode

In server mode WIZ750SR will open the port and keep listen.

Once the client connect to the port successfully it can start send / receive data.

TCP mixed mode

In mixed mode WIZ750SR can as client to connect to server and as server listen port wait client to connect.

But they are only one mode at the same time.

UDP mode

In UDP mode WIZ750SR can as server send data fast.

But as I try the data rate was limited by baud rate.
