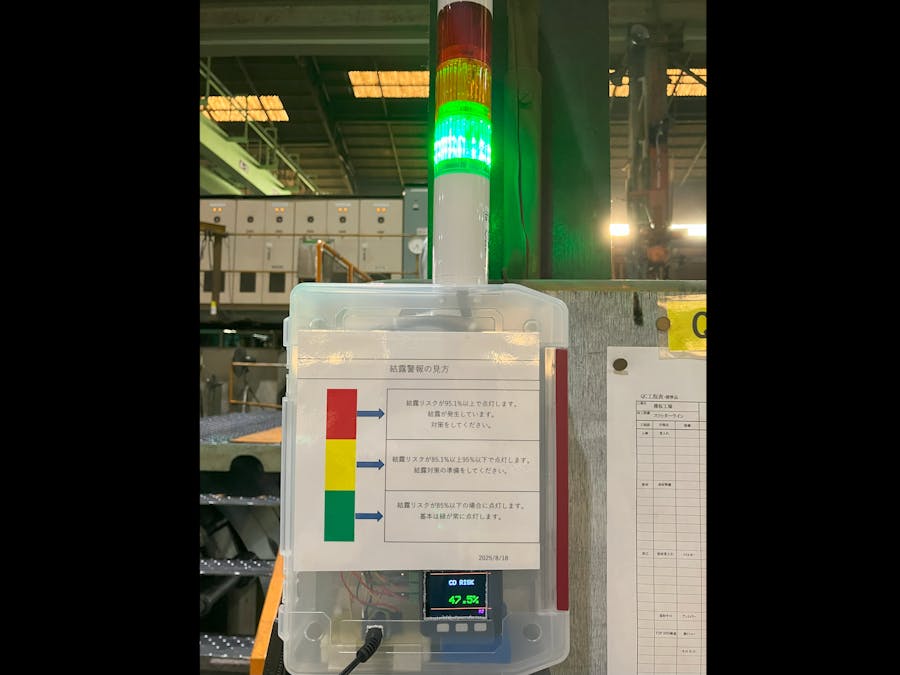

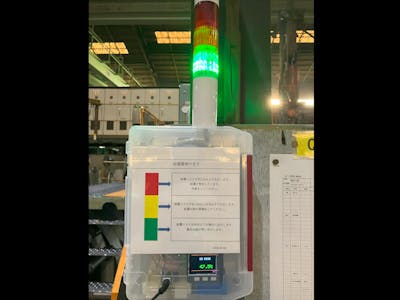

Condensation indicator light

#include <M5Stack.h>
#include <Wire.h>
#include <WiFi.h>
#include <esp_now.h>
#include <esp_wifi.h>
#include <SensirionI2cSht4x.h>

#define WIFI_CHANNEL  1
#ifdef NO_ERROR
#undef NO_ERROR
#endif
#define NO_ERROR 0

SensirionI2cSht4x sensor;

static char errorMessage[64];
static int16_t error;

typedef struct __attribute__((packed)){
  uint8_t id;
  float temp;
  float hum;
}PacketENV;

uint8_t receiverMAC[6] = {0xFF,0xFF,0xFF,0xFF,0xFF,0xFF};

void onSendStatus(const uint8_t *mac, esp_now_send_status_t status) {
  Serial.printf("Send to %02X:%02X:%02X:%02X:%02X:%02X  %s\n",
    mac[0],mac[1],mac[2],mac[3],mac[4],mac[5],
    status==ESP_NOW_SEND_SUCCESS?"OK":"FAILED");
}

void setup(){
  M5.begin();
  Serial.begin(115200);
  Wire.begin();
  sensor.begin(Wire, SHT40_I2C_ADDR_44);

    sensor.softReset();
    delay(10);

  WiFi.mode(WIFI_STA);
  esp_wifi_set_channel(WIFI_CHANNEL, WIFI_SECOND_CHAN_NONE);
  if(esp_now_init() != ESP_OK){
    Serial.println("ESP-NOW init error");
    while(true);
  }

  esp_now_peer_info_t peer = {};
  memcpy(peer.peer_addr, receiverMAC, 6);
  peer.channel = WIFI_CHANNEL;
  peer.encrypt = false;
  esp_now_add_peer(&peer);

 esp_now_register_send_cb(onSendStatus);

}

void loop(){
uint16_t data;
float temp;
float hum;

error = sensor.measureLowestPrecision(temp, hum);
    if (error != NO_ERROR) {
        Serial.print("Error trying to execute measureLowestPrecision(): ");
        errorToString(error, errorMessage, sizeof errorMessage);
        Serial.println(errorMessage);
        return;
    }

PacketENV pkt;
pkt.id =1;
pkt.temp = temp;
pkt.hum = hum;

esp_now_send(receiverMAC, (uint8_t*)&pkt, sizeof(pkt));
Serial.printf("Sent[ENV] ID:%d Temp:%.2f C\n Hum:%.2f\n " , pkt.id, pkt.temp, pkt.hum);
delay(10000);

M5.Lcd.fillScreen(BLACK);
  M5.Lcd.setCursor(0,0);
  M5.Lcd.setTextSize(2);
  M5.Lcd.setTextColor(WHITE);
  M5.Lcd.printf("TempHum keisoku");
  M5.Lcd.setCursor(250,210);
  M5.Lcd.setTextSize(2);
  M5.Lcd.setTextColor(PINK);
  M5.Lcd.printf("MJ");

  M5.Lcd.drawLine(5, 25, 310, 25, RED);
  M5.Lcd.drawLine(5, 200, 310, 200, RED);

  M5.Lcd.setCursor(0, 80);
  M5.Lcd.setTextSize(3);
  M5.Lcd.setTextColor(CYAN);
  M5.Lcd.print("Temp: ");
  M5.Lcd.print(temp);
  M5.Lcd.println(" C");

  M5.Lcd.setCursor(0,110);
  M5.Lcd.setTextSize(3);
  M5.Lcd.setTextColor(CYAN);
  M5.Lcd.print("Hum: ");
  M5.Lcd.print(hum);
  M5.Lcd.println(" %");
}

#include <M5Stack.h>
#include <WiFi.h>
#include <esp_wifi.h>
#include <esp_now.h>

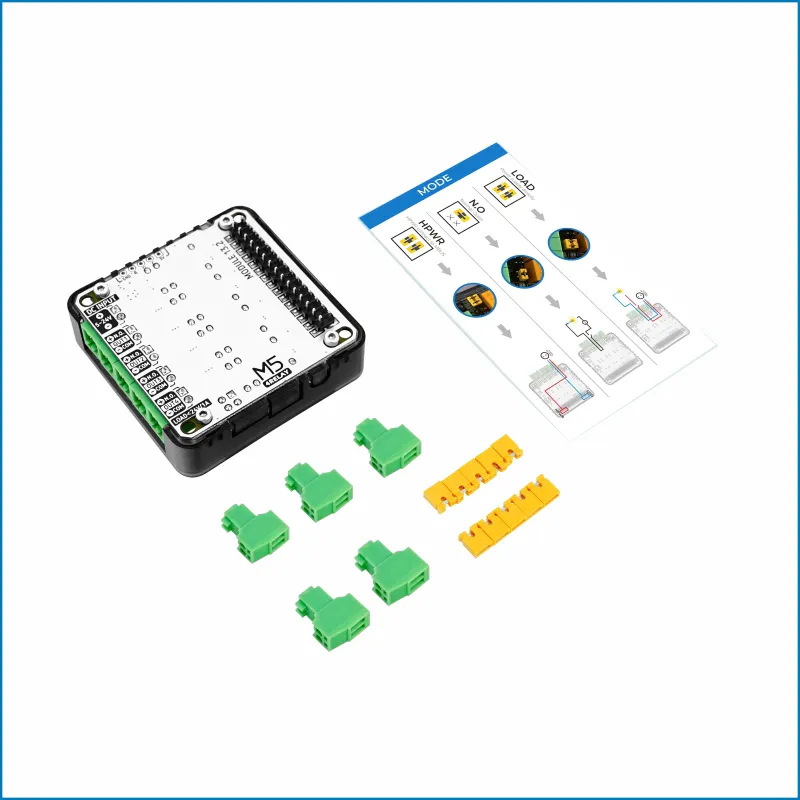

#include "Module_4RELAY.h"


esp_now_peer_info_t slave;

typedef struct __attribute__((packed)) {
  uint8_t id;
  float temp;
  float hum;
} PacketBase;

typedef struct __attribute__((packed)) {
  uint8_t id;
  float sftemp;
} PacketADT;

const int WIFI_CHANNEL = 1;

float latestTemp = 0.0;
float latestHum = 0.0;
float latestSftemp = 0.0;
bool envReceived = false;
bool adtReceived = false;

const float THRESHOLD1 = 85.0; //閾値1
const float THRESHOLD2 = 95.0; //閾値2

MODULE_4RELAY RELAY;

bool setRelayState(uint8_t relayMask) {
  Wire.beginTransmission(0x26);
  Wire.write(relayMask & 0x10);
  uint8_t err = Wire.endTransmission();
  if (err != 0) {
    Serial.printf("Relay I2C error: %d\n", err);
    return false;
  }
  return true;
}



float satVaporPressure(float T) { //飽和水蒸気の計算
  return 6.112 * exp(17.62 * T / (243.12 + T));
}

void onDataRecv(const uint8_t *mac, const uint8_t *buf, int len) {

  if (len == sizeof(PacketBase)) { //ENVのパケット
    PacketBase envPkt;
    memcpy(&envPkt, buf, sizeof(PacketBase));
    latestTemp = envPkt.temp;
    latestHum = envPkt.hum;
    envReceived = true;
    Serial.printf("[ENV] id=%d, T=%.2f, H=%.2f\n",
                  envPkt.id, envPkt.temp, envPkt.hum);
  }

  else if (len == sizeof(PacketADT)) { //ADTのパケット
    PacketADT adtPkt;
    memcpy(&adtPkt, buf, sizeof(PacketADT));
    latestSftemp = adtPkt.sftemp;
    adtReceived = true;
    Serial.printf("[ADT] id=%d, sftemp=%.2f C\n",
                  adtPkt.id, adtPkt.sftemp);
  }


  if (envReceived && adtReceived) {

    float e_air = satVaporPressure(latestTemp) * latestHum / 100.0; //水蒸気圧

    float e_surf = satVaporPressure(latestSftemp); //表面温度の飽和水蒸気圧

    float condRisk = e_air / e_surf * 100.0; //結露リスク

    Serial.printf("e_air(hPa)=%.2f, e_surf(hPa)=%.2f, Risk=%.2f%%\n",
                  e_air, e_surf, condRisk);


    M5.Lcd.fillScreen(BLACK); //画面更新わかりやすいようにあえてGFXは使わない
    M5.Lcd.setTextSize(3);
    M5.Lcd.setTextColor(WHITE);
    M5.Lcd.setCursor(100, 60);
    M5.Lcd.printf("CD RISK");
    M5.Lcd.setCursor(250, 210);
    M5.Lcd.setTextSize(2);
    M5.Lcd.setTextColor(PINK);
    M5.Lcd.printf("MJ");
    M5.Lcd.drawLine(5, 25, 310, 25, RED);
    M5.Lcd.drawLine(5, 200, 310, 200, RED);

    M5.Lcd.setTextSize(5);

    RELAY.setAllRelay(false);
    if (condRisk < THRESHOLD1) {
      M5.Lcd.setTextColor(GREEN);
      RELAY.setRelay(0, true);
    } else if (condRisk < THRESHOLD2) {
      M5.Lcd.setTextColor(YELLOW);
      RELAY.setRelay(1, true);
    } else {
      M5.Lcd.setTextColor(RED);
      RELAY.setRelay(2, true);
    }
    M5.Lcd.setCursor(100, 140);
    M5.Lcd.printf("%.1f%%", condRisk);


    envReceived = adtReceived = false;
  }
}

void setup() {
  M5.begin(true, false, true, true);

  while(!RELAY.begin(&Wire, MODULE_4RELAY_ADDR, 21, 22, 200000L)){
    Serial.println("4RELAY INIT ERROR");
    delay(1000);
  }

  Serial.begin(115200);
  Wire.begin(21, 22);
  Serial.println("I2C Scanner Start");
  for (uint8_t addr = 1; addr < 127; ++addr) {
    Wire.beginTransmission(addr);
    if (Wire.endTransmission() == 0) {
      Serial.printf("Found I2C device at 0x%02X\n", addr);
    }
  }

  WiFi.mode(WIFI_STA);
  WiFi.disconnect();

  if (esp_now_init() != ESP_OK) {
    Serial.println("ESPNow Init Failed");
    ESP.restart();
  }
  Serial.println("ESPNow Init Success");

  memset(&slave, 0, sizeof(slave));
  memset(slave.peer_addr, 0xFF, 6);
  if (esp_now_add_peer(&slave) == ESP_OK) {
    Serial.println("Peer added");
  }
  esp_now_register_recv_cb(onDataRecv);
}

void loop() {
  delay(1000);
}
