A person's heart rate changes depending on the situation.
For example, your heart rate increases after running.
At times like that, you might want to listen to some soothing music to calm you down.
So I thought it would be fun to have a cute character that plays soothing music based on your heart rate.

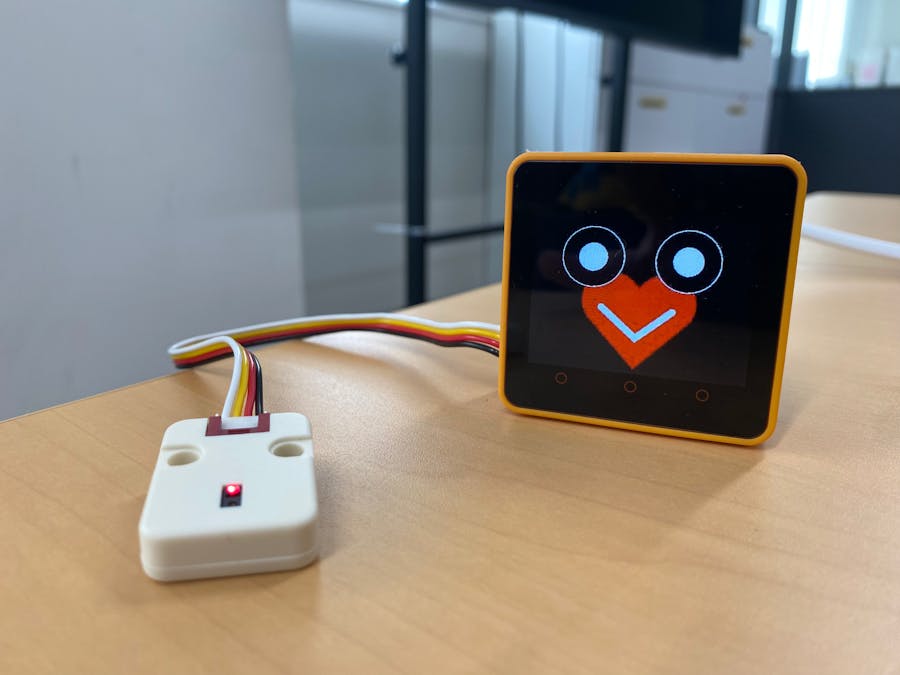

With that in mind, I decided to create PulPulsey.
【PulPulsey Instructions】Seeing is believing! So let's take a look at the poster on how to use it.
…or rather, I’ve only ever glanced at it before.
• The sound changes based on your heart rate, allowing you to enjoy music that's unique to that moment (randomness)
• Visualizes your current heart rate
• A new experience that combines heart rate monitoring with comfort
• An endearing face design
#include <M5Core2.h>
#include <Wire.h>
#include "MAX30100_PulseOximeter.h"
#include <SD.h>
// --- 定数定義 ---
#define REPORTING_PERIOD_MS 300 // 更新周期 (0.5秒)
#define TIMEOUT_PERIOD_MS 5000 // タイムアウト時間 (5秒)
// グラフ描画エリアの定義
#define GRAPH_X 0
#define GRAPH_Y 120
#define GRAPH_W 320 // グラフの幅 (M5Core2の画面幅)
#define GRAPH_H 120 // グラフの高さ
// --- グローバル変数 ---
PulseOximeter pox;
uint8_t Heart_rate = 0;
uint32_t tsLastReport = 0;
// 表示モード管理 (false: 初期画像, true: 心拍数・グラフ表示)
bool showHeartRate = false;
// 最後に有効な心拍数を検出した時刻
uint32_t lastValidHeartRateTime = 0;
// 心拍数の履歴を保存する配列 (画面の幅と同じサイズ)
int heartRateHistory[GRAPH_W];
// --- 関数のプロトタイプ宣言 ---
void drawGraph();
// --- 初期設定 ---
void setup() {
Serial.begin(115200);
M5.begin();
// SDカードから初期画像を表示
// この処理はSDカードが接続され、"/s.jpeg"が存在する場合に機能します。
if (SD.begin()) {
M5.Lcd.drawJpgFile(SD, "/s.jpeg");
} else {
M5.Lcd.setTextSize(2);
M5.Lcd.println("SD Card failed or not present.");
delay(2000);
}
// センサーの初期化
if (!pox.begin()) {
M5.Lcd.fillScreen(BLACK);
M5.Lcd.setTextSize(3);
M5.Lcd.println("Sensor FAILED!");
for(;;);
}
pox.setIRLedCurrent(MAX30100_LED_CURR_7_6MA);
// 心拍数履歴配列を初期化 (すべて0で埋める)
memset(heartRateHistory, 0, sizeof(heartRateHistory));
}
// --- メインループ ---
void loop() {
M5.update();
pox.update();
// 心拍数が30を超えたら、心拍数・グラフ表示モードに切り替える
if (Heart_rate > 30 && showHeartRate == false) {
showHeartRate = true; // モードを切り替え
lastValidHeartRateTime = millis(); // タイマーをリセット
// --- 画面レイアウトの初期化 (モード切替時に一度だけ実行) ---
M5.Lcd.fillScreen(BLACK); // 画面を黒でクリア
// 上部にタイトルを表示
M5.Lcd.setTextColor(WHITE);
M5.Lcd.setTextSize(4);
M5.Lcd.setCursor(70, 20);
M5.Lcd.print("DOKIDOKI");
// グラフの枠線を描画
M5.Lcd.drawRect(GRAPH_X, GRAPH_Y, GRAPH_W, GRAPH_H, DARKGREY);
}
// REPORTING_PERIOD_MS ごとにデータを更新
if (millis() - tsLastReport > REPORTING_PERIOD_MS) {
tsLastReport = millis();
Heart_rate = (int)pox.getHeartRate();
// シリアルモニターに常に心拍数を送信
Serial.println(Heart_rate);
// 心拍数・グラフ表示モードの場合の処理
if (showHeartRate == true) {
// 有効な心拍数が取得できた場合 (ノイズを避けるため閾値を設ける)
if (Heart_rate > 30) {
lastValidHeartRateTime = millis(); // タイマーを現在時刻で更新
// --- 心拍数の数値を更新 ---
M5.Lcd.fillRect(40, 65, 240, 50, BLACK); // 古い数値の部分をクリア
M5.Lcd.setTextColor(RED);
M5.Lcd.setTextSize(7);
M5.Lcd.setCursor(75, 65);
M5.Lcd.printf("%3d", Heart_rate); // 3桁で表示（桁がずれないように）
// --- グラフデータを更新 ---
// 履歴データを1つ左にスクロール
memmove(&heartRateHistory[0], &heartRateHistory[1], (GRAPH_W - 1) * sizeof(int));
// 配列の末尾に新しい心拍数を追加
heartRateHistory[GRAPH_W - 1] = Heart_rate;
// --- グラフを描画 ---
drawGraph();
} else { // 有効な心拍数が取得できなかった場合
// 最後に有効な値を取得してからタイムアウト時間が経過した場合
if (millis() - lastValidHeartRateTime > TIMEOUT_PERIOD_MS) {
M5.Lcd.fillScreen(WHITE);
M5.Lcd.setTextColor(BLUE);
M5.Lcd.setTextSize(5);
M5.Lcd.setCursor(25, 100);
M5.Lcd.print("OGENKIDE!");
delay(2000);
ESP.restart(); // M5Core2を再起動
}
}
}
}
}
// --- グラフを描画する関数 ---
void drawGraph() {
// グラフエリアをクリア (枠線は残す)
M5.Lcd.fillRect(GRAPH_X + 1, GRAPH_Y + 1, GRAPH_W - 2, GRAPH_H - 2, BLACK);
// 履歴データを元に線を描画
for (int i = 1; i < GRAPH_W; i++) {
int hr1 = heartRateHistory[i - 1];
int hr2 = heartRateHistory[i];
// 有効なデータポイント(hr > 30)間のみ線を描画
if (hr1 > 30 && hr2 > 30) {
// 心拍数の範囲(例: 40-180bpm)をグラフの高さ(Y座標)にマッピング
// map(value, fromLow, fromHigh, toLow, toHigh)
// Y座標は画面の上が0なので、toLowとtoHighを逆に設定してグラフの上下を直感的にします
int y1 = map(hr1, 40, 130, GRAPH_Y + GRAPH_H - 2, GRAPH_Y + 2);
int y2 = map(hr2, 40, 130, GRAPH_Y + GRAPH_H - 2, GRAPH_Y + 2);
// グラフが描画エリアからはみ出さないように値を丸める
y1 = constrain(y1, GRAPH_Y + 2, GRAPH_Y + GRAPH_H - 2);
y2 = constrain(y2, GRAPH_Y + 2, GRAPH_Y + GRAPH_H - 2);
// 2点間に緑色の線を引く
M5.Lcd.drawLine(i - 1, y1, i, y2, YELLOW);
}
}
}
{
"patcher" : {
"fileversion" : 1,
"appversion" : {
"major" : 8,
"minor" : 6,
"revision" : 1,
"architecture" : "x64",
"modernui" : 1
}
,
"classnamespace" : "box",
"rect" : [ 81.0, 97.0, 1010.0, 783.0 ],
"bglocked" : 0,
"openinpresentation" : 0,
"default_fontsize" : 12.0,
"default_fontface" : 0,
"default_fontname" : "Arial",
"gridonopen" : 1,
"gridsize" : [ 15.0, 15.0 ],
"gridsnaponopen" : 1,
"objectsnaponopen" : 1,
"statusbarvisible" : 2,
"toolbarvisible" : 1,
"lefttoolbarpinned" : 0,
"toptoolbarpinned" : 0,
"righttoolbarpinned" : 0,
"bottomtoolbarpinned" : 0,
"toolbars_unpinned_last_save" : 0,
"tallnewobj" : 0,
"boxanimatetime" : 200,
"enablehscroll" : 1,
"enablevscroll" : 1,
"devicewidth" : 0.0,
"description" : "",
"digest" : "",
"tags" : "",
"style" : "",
"subpatcher_template" : "",
"assistshowspatchername" : 0,
"boxes" : [ {
"box" : {
"bgmode" : 0,
"border" : 0,
"clickthrough" : 0,
"enablehscroll" : 0,
"enablevscroll" : 0,
"extract" : 1,
"id" : "obj-46",
"lockeddragscroll" : 0,
"lockedsize" : 0,
"maxclass" : "bpatcher",
"name" : "bp.Sync Delay.maxpat",
"numinlets" : 2,
"numoutlets" : 2,
"offset" : [ 0.0, 0.0 ],
"outlettype" : [ "signal", "signal" ],
"patching_rect" : [ 200.0, 227.0, 265.0, 116.0 ],
"varname" : "bp.Sync Delay",
"viewvisibility" : 1
}
}
, {
"box" : {
"id" : "obj-9",
"maxclass" : "ezdac~",
"numinlets" : 2,
"numoutlets" : 0,
"patching_rect" : [ 186.0, 583.0, 119.0, 119.0 ]
}
}
, {
"box" : {
"id" : "obj-7",
"lastchannelcount" : 0,
"maxclass" : "live.gain~",
"numinlets" : 2,
"numoutlets" : 5,
"outlettype" : [ "signal", "signal", "", "float", "list" ],
"parameter_enable" : 1,
"patching_rect" : [ 194.0, 392.0, 48.0, 136.0 ],
"saved_attribute_attributes" : {
"valueof" : {
"parameter_longname" : "live.gain~",
"parameter_mmax" : 6.0,
"parameter_mmin" : -70.0,
"parameter_modmode" : 3,
"parameter_shortname" : "live.gain~",
"parameter_type" : 0,
"parameter_unitstyle" : 4
}
}
,
"varname" : "live.gain~"
}
}
, {
"box" : {
"id" : "obj-24",
"maxclass" : "newobj",
"numinlets" : 1,
"numoutlets" : 2,
"outlettype" : [ "signal", "signal" ],
"patcher" : {
"fileversion" : 1,
"appversion" : {
"major" : 8,
"minor" : 6,
"revision" : 1,
"architecture" : "x64",
"modernui" : 1
}
,
"classnamespace" : "box",
"rect" : [ 482.0, 97.0, 980.0, 797.0 ],
"bglocked" : 0,
"openinpresentation" : 0,
"default_fontsize" : 12.0,
"default_fontface" : 0,
"default_fontname" : "Arial",
"gridonopen" : 1,
"gridsize" : [ 15.0, 15.0 ],
"gridsnaponopen" : 1,
"objectsnaponopen" : 1,
"statusbarvisible" : 2,
"toolbarvisible" : 1,
"lefttoolbarpinned" : 0,
"toptoolbarpinned" : 0,
"righttoolbarpinned" : 0,
"bottomtoolbarpinned" : 0,
"toolbars_unpinned_last_save" : 0,
"tallnewobj" : 0,
"boxanimatetime" : 200,
"enablehscroll" : 1,
"enablevscroll" : 1,
"devicewidth" : 0.0,
"description" : "",
"digest" : "",
"tags" : "",
"style" : "",
"subpatcher_template" : "",
"assistshowspatchername" : 0,
"boxes" : [ {
"box" : {
"id" : "obj-30",
"maxclass" : "message",
"numinlets" : 2,
"numoutlets" : 1,
"outlettype" : [ "" ],
"patching_rect" : [ 565.0, 792.0, 29.5, 22.0 ],
"text" : "0"
}
}
, {
"box" : {
"id" : "obj-32",
"maxclass" : "newobj",
"numinlets" : 1,
"numoutlets" : 1,
"outlettype" : [ "signal" ],
"patching_rect" : [ 565.0, 827.0, 31.0, 22.0 ],
"text" : "sig~"
}
}
, {
"box" : {
"id" : "obj-28",
"maxclass" : "button",
"numinlets" : 1,
"numoutlets" : 1,
"outlettype" : [ "bang" ],
"parameter_enable" : 0,
"patching_rect" : [ 599.0, 919.0, 24.0, 24.0 ]
}
}
, {
"box" : {
"basictuning" : 440,
"data" : {
"clips" : [ {
"absolutepath" : "konchiwa.wav",
"filename" : "konchiwa.wav",
"filekind" : "audiofile",
"id" : "u107004225",
"loop" : 0,
"content_state" : {
}
}
]
}
,
"followglobaltempo" : 0,
"formantcorrection" : 0,
"id" : "obj-26",
"maxclass" : "playlist~",
"mode" : "basic",
"numinlets" : 1,
"numoutlets" : 5,
"originallength" : [ 0.0, "ticks" ],
"originaltempo" : 120.0,
"outlettype" : [ "signal", "signal", "signal", "", "dictionary" ],
"parameter_enable" : 0,
"patching_rect" : [ 515.0, 864.0, 150.0, 30.0 ],
"pitchcorrection" : 0,
"quality" : "basic",
"timestretch" : [ 0 ]
}
}
, {
"box" : {
"id" : "obj-76",
"maxclass" : "button",
"numinlets" : 1,
"numoutlets" : 1,
"outlettype" : [ "bang" ],
"parameter_enable" : 0,
"patching_rect" : [ 851.0, 890.0, 24.0, 24.0 ]
}
}
, {
"box" : {
"id" : "obj-74",
"maxclass" : "message",
"numinlets" : 2,
"numoutlets" : 1,
"outlettype" : [ "" ],
"patching_rect" : [ 753.0, 752.0, 29.5, 22.0 ],
"text" : "0"
}
}
, {
"box" : {
"id" : "obj-75",
"maxclass" : "newobj",
"numinlets" : 1,
"numoutlets" : 1,
"outlettype" : [ "signal" ],
"patching_rect" : [ 753.0, 787.0, 31.0, 22.0 ],
"text" : "sig~"
}
}
, {
"box" : {
"id" : "obj-73",
"maxclass" : "button",
"numinlets" : 1,
"numoutlets" : 1,
"outlettype" : [ "bang" ],
"parameter_enable" : 0,
"patching_rect" : [ 846.25, 724.0, 24.0, 24.0 ]
}
}
, {
"box" : {
"id" : "obj-71",
"maxclass" : "message",
"numinlets" : 2,
"numoutlets" : 1,
"outlettype" : [ "" ],
"patching_rect" : [ 751.0, 579.0, 29.5, 22.0 ],
"text" : "0"
}
}
, {
"box" : {
"id" : "obj-72",
"maxclass" : "newobj",
"numinlets" : 1,
"numoutlets" : 1,
"outlettype" : [ "signal" ],
"patching_rect" : [ 751.0, 614.0, 31.0, 22.0 ],
"text" : "sig~"
}
}
, {
"box" : {
"id" : "obj-70",
"maxclass" : "button",
"numinlets" : 1,
"numoutlets" : 1,
"outlettype" : [ "bang" ],
"parameter_enable" : 0,
"patching_rect" : [ 846.25, 555.0, 24.0, 24.0 ]
}
}
, {
"box" : {
"id" : "obj-68",
"maxclass" : "message",
"numinlets" : 2,
"numoutlets" : 1,
"outlettype" : [ "" ],
"patching_rect" : [ 750.25, 414.0, 29.5, 22.0 ],
"text" : "0"
}
}
, {
"box" : {
"id" : "obj-69",
"maxclass" : "newobj",
"numinlets" : 1,
"numoutlets" : 1,
"outlettype" : [ "signal" ],
"patching_rect" : [ 750.25, 449.0, 31.0, 22.0 ],
"text" : "sig~"
}
}
, {
"box" : {
"id" : "obj-67",
"maxclass" : "button",
"numinlets" : 1,
"numoutlets" : 1,
"outlettype" : [ "bang" ],
"parameter_enable" : 0,
"patching_rect" : [ 846.25, 359.0, 24.0, 24.0 ]
}
}
, {
"box" : {
"id" : "obj-65",
"maxclass" : "message",
"numinlets" : 2,
"numoutlets" : 1,
"outlettype" : [ "" ],
"patching_rect" : [ 749.5, 239.0, 29.5, 22.0 ],
"text" : "0"
}
}
, {
"box" : {
"id" : "obj-66",
"maxclass" : "newobj",
"numinlets" : 1,
"numoutlets" : 1,
"outlettype" : [ "signal" ],
"patching_rect" : [ 749.5, 274.0, 31.0, 22.0 ],
"text" : "sig~"
}
}
, {
"box" : {
"id" : "obj-64",
"maxclass" : "message",
"numinlets" : 2,
"numoutlets" : 1,
"outlettype" : [ "" ],
"patching_rect" : [ 748.0, 111.0, 29.5, 22.0 ],
"text" : "0"
}
}
, {
"box" : {
"id" : "obj-63",
"maxclass" : "newobj",
"numinlets" : 1,
"numoutlets" : 1,
"outlettype" : [ "signal" ],
"patching_rect" : [ 748.0, 146.0, 31.0, 22.0 ],
"text" : "sig~"
}
}
, {
"box" : {
"id" : "obj-62",
"maxclass" : "button",
"numinlets" : 1,
"numoutlets" : 1,
"outlettype" : [ "bang" ],
"parameter_enable" : 0,
"patching_rect" : [ 847.0, 229.0, 24.0, 24.0 ]
}
}
, {
"box" : {
"id" : "obj-60",
"maxclass" : "message",
"numinlets" : 2,
"numoutlets" : 1,
"outlettype" : [ "" ],
"patching_rect" : [ 515.0, 805.0, 29.5, 22.0 ],
"text" : "1"
}
}
, {
"box" : {
"id" : "obj-61",
"maxclass" : "button",
"numinlets" : 1,
"numoutlets" : 1,
"outlettype" : [ "bang" ],
"parameter_enable" : 0,
"patching_rect" : [ 515.0, 765.0, 24.0, 24.0 ]
}
}
, {
"box" : {
"id" : "obj-59",
"maxclass" : "newobj",
"numinlets" : 1,
"numoutlets" : 1,
"outlettype" : [ "" ],
"patching_rect" : [ 515.0, 725.0, 131.0, 22.0 ],
"text" : "if $i1 == 100 then bang"
}
}
, {
"box" : {
"id" : "obj-48",
"maxclass" : "message",
"numinlets" : 2,
"numoutlets" : 1,
"outlettype" : [ "" ],
"patching_rect" : [ 42.5, 679.0, 29.5, 22.0 ],
"text" : "1"
}
}
, {
"box" : {
"id" : "obj-47",
"maxclass" : "message",
"numinlets" : 2,
"numoutlets" : 1,
"outlettype" : [ "" ],
"patching_rect" : [ 277.25, 679.0, 29.5, 22.0 ],
"text" : "1"
}
}
, {
"box" : {
"basictuning" : 440,
"data" : {
"clips" : [ {
"absolutepath" : "22.aif",
"filename" : "22.aif",
"filekind" : "audiofile",
"id" : "u562007713",
"selection" : [ 0.947368421052632, 0.021052631578947 ],
"loop" : 0,
"content_state" : {
}
}
]
}
,
"followglobaltempo" : 0,
"formantcorrection" : 0,
"id" : "obj-46",
"maxclass" : "playlist~",
"mode" : "basic",
"numinlets" : 1,
"numoutlets" : 5,
"originallength" : [ 0.0, "ticks" ],
"originaltempo" : 120.0,
"outlettype" : [ "signal", "signal", "signal", "", "dictionary" ],
"parameter_enable" : 0,
"patching_rect" : [ 753.0, 828.0, 150.0, 30.0 ],
"pitchcorrection" : 0,
"quality" : "basic",
"timestretch" : [ 0 ]
}
}
, {
"box" : {
"id" : "obj-44",
"maxclass" : "message",
"numinlets" : 2,
"numoutlets" : 1,
"outlettype" : [ "" ],
"patching_rect" : [ 52.0, 537.0, 29.5, 22.0 ],
"text" : "1"
}
}
, {
"box" : {
"id" : "obj-43",
"maxclass" : "message",
"numinlets" : 2,
"numoutlets" : 1,
"outlettype" : [ "" ],
"patching_rect" : [ 48.25, 372.0, 29.5, 22.0 ],
"text" : "1"
}
}
, {
"box" : {
"id" : "obj-42",
"maxclass" : "message",
"numinlets" : 2,
"numoutlets" : 1,
"outlettype" : [ "" ],
"patching_rect" : [ 444.25, 378.0, 29.5, 22.0 ],
"text" : "1"
}
}
, {
"box" : {
"id" : "obj-41",
"maxclass" : "message",
"numinlets" : 2,
"numoutlets" : 1,
"outlettype" : [ "" ],
"patching_rect" : [ 245.0, 378.0, 29.5, 22.0 ],
"text" : "1"
}
}
, {
"box" : {
"basictuning" : 440,
"data" : {
"clips" : [ {
"absolutepath" : "26.aif",
"filename" : "26.aif",
"filekind" : "audiofile",
"id" : "u477006653",
"selection" : [ 0.094736842105263, 0.778947368421053 ],
"loop" : 0,
"content_state" : {
}
}
]
}
,
"followglobaltempo" : 0,
"formantcorrection" : 0,
"id" : "obj-40",
"maxclass" : "playlist~",
"mode" : "basic",
"numinlets" : 1,
"numoutlets" : 5,
"originallength" : [ 0.0, "ticks" ],
"originaltempo" : 120.0,
"outlettype" : [ "signal", "signal", "signal", "", "dictionary" ],
"parameter_enable" : 0,
"patching_rect" : [ 753.0, 657.0, 150.0, 30.0 ],
"pitchcorrection" : 0,
"quality" : "basic",
"timestretch" : [ 0 ]
}
}
, {
"box" : {
"id" : "obj-38",
"maxclass" : "message",
"numinlets" : 2,
"numoutlets" : 1,
"outlettype" : [ "" ],
"patching_rect" : [ 248.0, 528.0, 29.5, 22.0 ],
"text" : "1"
}
}
, {
"box" : {
"id" : "obj-37",
"maxclass" : "message",
"numinlets" : 2,
"numoutlets" : 1,
"outlettype" : [ "" ],
"patching_rect" : [ 447.0, 528.0, 29.5, 22.0 ],
"text" : "1"
}
}
, {
"box" : {
"id" : "obj-36",
"maxclass" : "message",
"numinlets" : 2,
"numoutlets" : 1,
"outlettype" : [ "" ],
"patching_rect" : [ 48.25, 204.0, 29.5, 22.0 ],
"text" : "1"
}
}
, {
"box" : {
"id" : "obj-35",
"maxclass" : "message",
"numinlets" : 2,
"numoutlets" : 1,
"outlettype" : [ "" ],
"patching_rect" : [ 248.0, 200.0, 29.5, 22.0 ],
"text" : "1"
}
}
, {
"box" : {
"comment" : "",
"id" : "obj-34",
"index" : 2,
"maxclass" : "outlet",
"numinlets" : 1,
"numoutlets" : 0,
"patching_rect" : [ 727.0, 948.0, 30.0, 30.0 ]
}
}
, {
"box" : {
"id" : "obj-33",
"maxclass" : "message",
"numinlets" : 2,
"numoutlets" : 1,
"outlettype" : [ "" ],
"patching_rect" : [ 447.0, 200.0, 29.5, 22.0 ],
"text" : "1"
}
}
, {
"box" : {
"basictuning" : 440,
"data" : {
"clips" : [ {
"absolutepath" : "Macintosh HD:/Users/miyakou/Music/Logic/tact_ongen/Bounces//Vintage Sci-Fi Ambience.wav",
"filename" : "Vintage Sci-Fi Ambience.wav",
"filekind" : "audiofile",
"id" : "u701008815",
"loop" : 0,
"content_state" : {
}
}
]
}
,
"followglobaltempo" : 0,
"formantcorrection" : 0,
"id" : "obj-31",
"maxclass" : "playlist~",
"mode" : "basic",
"numinlets" : 1,
"numoutlets" : 5,
"originallength" : [ 0.0, "ticks" ],
"originaltempo" : 120.0,
"outlettype" : [ "signal", "signal", "signal", "", "dictionary" ],
"parameter_enable" : 0,
"patching_rect" : [ 748.0, 177.0, 150.0, 30.0 ],
"pitchcorrection" : 0,
"quality" : "basic",
"timestretch" : [ 0 ]
}
}
, {
"box" : {
"basictuning" : 440,
"data" : {
"clips" : [ {
"absolutepath" : "Macintosh HD:/Users/miyakou/Music/Logic/tact_ongen/Bounces//Vintage Sci-Fi Ambience_2.wav",
"filename" : "Vintage Sci-Fi Ambience_2.wav",
"filekind" : "audiofile",
"id" : "u005002538",
"selection" : [ 0.673684210526316, 0.0 ],
"loop" : 0,
"content_state" : {
}
}
]
}
,
"followglobaltempo" : 0,
"formantcorrection" : 0,
"id" : "obj-29",
"maxclass" : "playlist~",
"mode" : "basic",
"numinlets" : 1,
"numoutlets" : 5,
"originallength" : [ 0.0, "ticks" ],
"originaltempo" : 120.0,
"outlettype" : [ "signal", "signal", "signal", "", "dictionary" ],
"parameter_enable" : 0,
"patching_rect" : [ 748.0, 309.0, 150.0, 30.0 ],
"pitchcorrection" : 0,
"quality" : "basic",
"timestretch" : [ 0 ]
}
}
, {
"box" : {
"basictuning" : 440,
"data" : {
"clips" : [ {
"absolutepath" : "Macintosh HD:/Users/miyakou/Music/Logic/tact_ongen/Bounces//Corroded Mechanism_1.wav",
"filename" : "Corroded Mechanism_1.wav",
"filekind" : "audiofile",
"id" : "u435001478",
"selection" : [ 0.0, 0.0 ],
"loop" : 0,
"content_state" : {
}
}
]
}
,
"followglobaltempo" : 0,
"formantcorrection" : 0,
"id" : "obj-27",
"maxclass" : "playlist~",
"mode" : "basic",
"numinlets" : 1,
"numoutlets" : 5,
"originallength" : [ 0.0, "ticks" ],
"originaltempo" : 120.0,
"outlettype" : [ "signal", "signal", "signal", "", "dictionary" ],
"parameter_enable" : 0,
"patching_rect" : [ 750.25, 493.0, 150.0, 30.0 ],
"pitchcorrection" : 0,
"quality" : "basic",
"timestretch" : [ 0 ]
}
}
, {
"box" : {
"id" : "obj-22",
"maxclass" : "button",
"numinlets" : 1,
"numoutlets" : 1,
"outlettype" : [ "bang" ],
"parameter_enable" : 0,
"patching_rect" : [ 280.0, 628.0, 24.0, 24.0 ]
}
}
, {
"box" : {
"id" : "obj-24",
"maxclass" : "newobj",
"numinlets" : 1,
"numoutlets" : 1,
"outlettype" : [ "" ],
"patching_rect" : [ 280.0, 589.0, 123.0, 22.0 ],
"text" : "if $i1 > 119 then bang"
}
}
, {
"box" : {
"id" : "obj-17",
"maxclass" : "button",
"numinlets" : 1,
"numoutlets" : 1,
"outlettype" : [ "bang" ],
"parameter_enable" : 0,
"patching_rect" : [ 48.0, 628.0, 24.0, 24.0 ]
}
}
, {
"box" : {
"id" : "obj-19",
"maxclass" : "newobj",
"numinlets" : 1,
"numoutlets" : 1,
"outlettype" : [ "" ],
"patching_rect" : [ 48.0, 589.0, 197.0, 22.0 ],
"text" : "if $i1 > 109 && $i1 < 120 then bang"
}
}
, {
"box" : {
"id" : "obj-8",
"maxclass" : "button",
"numinlets" : 1,
"numoutlets" : 1,
"outlettype" : [ "bang" ],
"parameter_enable" : 0,
"patching_rect" : [ 447.0, 485.0, 24.0, 24.0 ]
}
}
, {
"box" : {
"id" : "obj-9",
"maxclass" : "newobj",
"numinlets" : 1,
"numoutlets" : 1,
"outlettype" : [ "" ],
"patching_rect" : [ 447.0, 446.0, 196.0, 22.0 ],
"text" : "if $i1 > 100 && $i1 < 110 then bang"
}
}
, {
"box" : {
"id" : "obj-11",
"maxclass" : "button",
"numinlets" : 1,
"numoutlets" : 1,
"outlettype" : [ "bang" ],
"parameter_enable" : 0,
"patching_rect" : [ 248.0, 485.0, 24.0, 24.0 ]
}
}
, {
"box" : {
"id" : "obj-12",
"maxclass" : "newobj",
"numinlets" : 1,
"numoutlets" : 1,
"outlettype" : [ "" ],
"patching_rect" : [ 248.0, 446.0, 190.0, 22.0 ],
"text" : "if $i1 > 89 && $i1 < 100 then bang"
}
}
, {
"box" : {
"id" : "obj-14",
"maxclass" : "button",
"numinlets" : 1,
"numoutlets" : 1,
"outlettype" : [ "bang" ],
"parameter_enable" : 0,
"patching_rect" : [ 48.0, 485.0, 24.0, 24.0 ]
}
}
, {
"box" : {
"id" : "obj-16",
"maxclass" : "newobj",
"numinlets" : 1,
"numoutlets" : 1,
"outlettype" : [ "" ],
"patching_rect" : [ 48.0, 446.0, 183.0, 22.0 ],
"text" : "if $i1 > 79 && $i1 < 90 then bang"
}
}
, {
"box" : {
"id" : "obj-5",
"maxclass" : "button",
"numinlets" : 1,
"numoutlets" : 1,
"outlettype" : [ "bang" ],
"parameter_enable" : 0,
"patching_rect" : [ 447.0, 322.0, 24.0, 24.0 ]
}
}
, {
"box" : {
"id" : "obj-6",
"maxclass" : "newobj",
"numinlets" : 1,
"numoutlets" : 1,
"outlettype" : [ "" ],
"patching_rect" : [ 447.0, 283.0, 183.0, 22.0 ],
"text" : "if $i1 > 69 && $i1 < 80 then bang"
}
}
, {
"box" : {
"id" : "obj-3",
"maxclass" : "button",
"numinlets" : 1,
"numoutlets" : 1,
"outlettype" : [ "bang" ],
"parameter_enable" : 0,
"patching_rect" : [ 248.0, 322.0, 24.0, 24.0 ]
}
}
, {
"box" : {
"id" : "obj-4",
"maxclass" : "newobj",
"numinlets" : 1,
"numoutlets" : 1,
"outlettype" : [ "" ],
"patching_rect" : [ 248.0, 283.0, 183.0, 22.0 ],
"text" : "if $i1 > 59 && $i1 < 70 then bang"
}
}
, {
"box" : {
"id" : "obj-18",
"maxclass" : "button",
"numinlets" : 1,
"numoutlets" : 1,
"outlettype" : [ "bang" ],
"parameter_enable" : 0,
"patching_rect" : [ 48.0, 322.0, 24.0, 24.0 ]
}
}
, {
"box" : {
"id" : "obj-20",
"maxclass" : "newobj",
"numinlets" : 1,
"numoutlets" : 1,
"outlettype" : [ "" ],
"patching_rect" : [ 48.0, 283.0, 183.0, 22.0 ],
"text" : "if $i1 > 49 && $i1 < 60 then bang"
}
}
, {
"box" : {
"id" : "obj-21",
"maxclass" : "button",
"numinlets" : 1,
"numoutlets" : 1,
"outlettype" : [ "bang" ],
"parameter_enable" : 0,
"patching_rect" : [ 447.0, 161.0, 24.0, 24.0 ]
}
}
, {
"box" : {
"id" : "obj-23",
"maxclass" : "newobj",
"numinlets" : 1,
"numoutlets" : 1,
"outlettype" : [ "" ],
"patching_rect" : [ 447.0, 122.0, 183.0, 22.0 ],
"text" : "if $i1 > 39 && $i1 < 50 then bang"
}
}
, {
"box" : {
"id" : "obj-13",
"maxclass" : "button",
"numinlets" : 1,
"numoutlets" : 1,
"outlettype" : [ "bang" ],
"parameter_enable" : 0,
"patching_rect" : [ 248.0, 161.0, 24.0, 24.0 ]
}
}
, {
"box" : {
"id" : "obj-15",
"maxclass" : "newobj",
"numinlets" : 1,
"numoutlets" : 1,
"outlettype" : [ "" ],
"patching_rect" : [ 248.0, 122.0, 183.0, 22.0 ],
"text" : "if $i1 > 29 && $i1 < 40 then bang"
}
...
This file has been truncated, please download it to see its full contents.
Comments
