The CH341 is a USB bus adapter chip that provides UART, print, and parallel ports as well as commonly used synchronous serial interfaces such as 2-wire and 4-wire via the USB bus.In the UART mode, the CH341 provides interactive rate control signals such as serial transmit enable and serial receive ready, as well as the commonly used MODEM contact signals, which can be used to extend UART for computers, or to upgrade ordinary serial devices directly to the USB bus.In the print port mode, the CH341 provides a standard USB print port compatible with USB-related specifications and the Windows operating system, which is used to upgrade ordinary parallel-port printers directly to the USB bus.In parallel port mode, the CH341 provides an 8-bit parallel interface in EPP mode or MEM mode for direct input and output data in environments where a microcontroller/DSP/MCU is not required.In addition, the CH341B/F/A chip supports some common synchronous serial interfaces, such as 2-wire interface (SCL line, SDA line) and 4-wire interface (CS line, SCK/CLK line, MISO/SDI/DIN line, MOSI/SDO/DOUT line).
- Full-speed USB device interface, USB 2.0 compatible.
- Optional: customize the vendor ID, product ID, serial number, etc. via an external low-cost serial EEPROM.
- Support 5V and 3.3V power supply voltages.
- Low cost, convert the original serial port peripheral devices, the original parallel port printer, and the original parallel port peripheral devices directly.
- RoHS compliant SOP28, SSOP20 and QFN28 lead-free package.
- Since the interface is converted via USB, it can only be application level compatible and not absolutely identical.
- Emulate standard UART, used to upgrade the original serial devices or expand additional UART via USB.
- Original UART applications are totally compatible without any modification in Windows operating systems.
- Hardware full duplex UART, integrated transmit-receive buffer, supports communication baud rate varies from 50bps to 2Mbps.
- Support 5, 6, 7 or 8 data bits and 1 or 2 stop bits, supports odd, even, space, mark, and no parity.
- Support UART transmit enable, UART receive data set ready etc. rate control signals, and common MODEM interface signals.
- Provide further RS232, RS485, RS422 interface, etc. through external voltage conversion chip.
- Support accessing to the CH341 external serial EEPROM memory in standard UART communication.
- Standard USB printer port for upgrading the original printer port printer, compatible with the relevant USB specifications.
- Compatible with Windows operating systems. No driver required on Windows 2000 and XP, the application is fully compatible.
- Support various standard parallel port printers, optional low speed printing and high speed printing.
- Support bidirectional communication of the IEEE-1284 specification and supports single direction and bidirectional transmission of printers.
- Provide 2 interface modes: EPP mode and MEM mode.
- EPP mode provides signals such as AS#, DS# and WR# etc., similar to EPP V1.7 or EPP V1.9.
- MEM mode provides signals such as A0, RD# and WR# etc., similar to the memory read/write mode.
- FlexWireTM technology, realizes flexible 2-wire to 5-wire synchronous serial ports through software.
- As a Host/Master host-end, supports common synchronous serial ports such as 2-wire and 4-wire.
- The 2-wire interface provides two signal lines SCL and SDA, and supports 4 transmission speeds.
Note:CH341C/T is only used for USB to serial or USB to 2-wire interface.CH341H is only used for USB to 4-wire interface, etc. (e.g. SPI), it is not recommended for new design, CH341B or CH341F is recommended.CH341A, CH341T and CH341H must be connected with external crystal and oscillator capacitor.CH341B, CH341F and CH341C can either be connected to an external crystal and capacitor or use the built-in clock directly without external connection.
Most of the people aware of CH341 based memory programmer which is exclusively used for BIOS update and copying the BIOS etc.,
Recently there are many variants available in the market for different applications and available in different form factors.
The above module is available with almost all the pins available to the user. The user can connect as per the requirements.

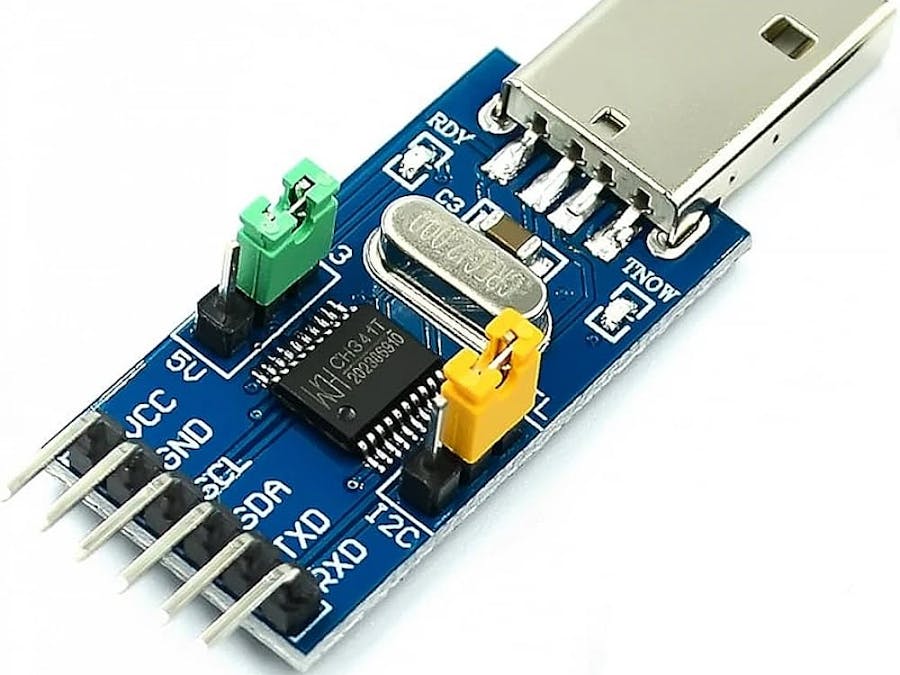

Another variant is dedicated to only UART and I2C. This module can be used as general purpose USB-TTL module. This module comes with voltage selection jumper for 3V3 or 5V0.
This website only deals with CH341 TOOL
There are periodic update available with more device support and bug fix.
There is a Github with all the source files and BIN files available for WINDOWS
Recently Got few modules for USB-I2C bridge applications.
We can find the datasheet, driver and technical documents at WCH website page. We can also use the Github CH341 TOOL page which also contains the driver and DLL for the windows App.
CH341-RDA5807FP or any of the RDA5807 family member ICThe FM Tuner IC can be operated at 3V3. So if we select the 3V3 jumper in CH341 module, then the CH341 module can provide the power as well as SCL, SDA without any level translators.
CH341 - TEA5767 FM TunerWe can also connect the TEA5767 module from Philips or NXP and can be tuned by the CH341 through I2C bus
For backward compatibilty RDA5807 Tuner from RDA microelectronics also supports the same I2C address(0x60) of TEA5767 and can be used with the same setup without any modifications
We can also quick test the LCD and OLED modules without any external power or hardware.
CH341 + HD44780 + PCF7584 LCD MODULEThe GUI supports both HD44780 4 bit parallel or I2C version.
The interesting thing about the GUI which supports only 2 lines. But I have tested with a 4 lines 20 characters LCD with backlight.
The trick is If we exceed 20 characters in the first list, it will automatically appear in 3rd line of the display. Siimilarly the 2nd line overflow will result in the 4th line. That is how the 79 digits and a decimal point is displayed using a two line GUI.
CH341 - SSD1306 OLED 128x64 & 128x32Even if you select the wrong resolution, still the text will appear with a compressed or elongated font
We can also turn on/off the display and adjust the contrast. We do not need any additional power or components to test the OLED module. Just 4 jumpers which takes few seconds to connect.
CH341-LM75A Temperature sensorJust connecting 4 wires between the CH341 I2C and LM75A I2C we can read the temperature. This also helps to check the module or IC.
CH341 - DS1307 RTCWe can easily set and read the DS1307 RTC module without any external power or components.
