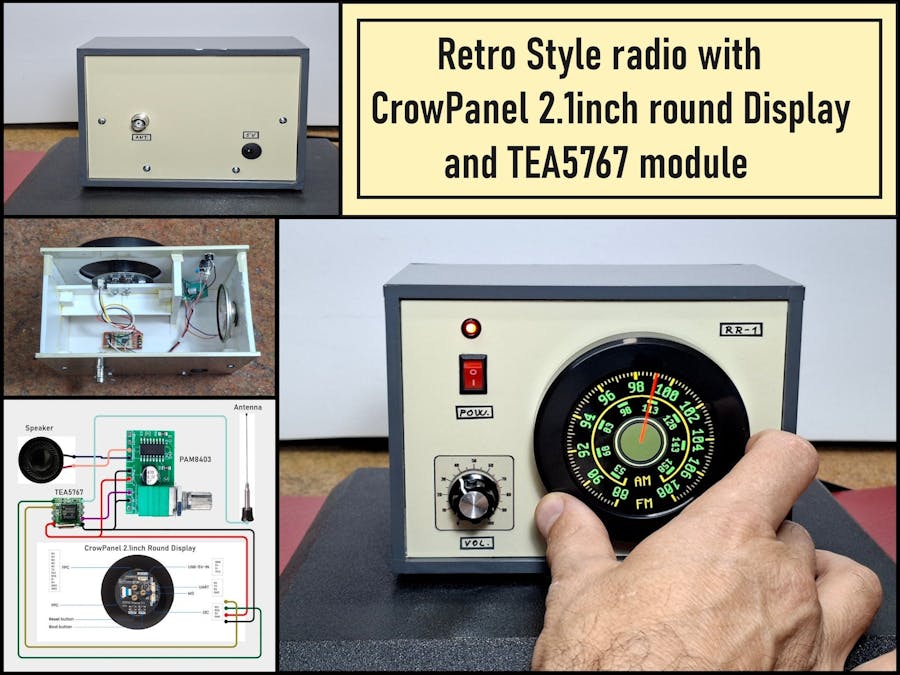

Retro Style radio with CrowPanel 2.1inch round Display

/*==============================================================
   RETRO RADIO DIAL – Tangential FM Labels via 80x40 bitmap
   ESP32-S3 + CrowPanel 2.1" + Arduino_GFX 1.4.4
   V1.6: Retro narrow font + 17px mid tick + inner yellow arc
   + Rotary Encoder Control
   + TEA5767 Radio Module
   + AM/FM Horizontal Labels         by mircemk November 2025
==============================================================*/

#include <Arduino.h>
#include <Arduino_GFX_Library.h>
#include <Wire.h>

#define DISPLAY_WIDTH 480
#define DISPLAY_HEIGHT 480
#define CX 240
#define CY 240

// Panel pins -------
#define TYPE_SEL   7
#define PCLK_NEG   1
#define BL_PIN     6
#define PANEL_CS   16
#define PANEL_SCK  2
#define PANEL_SDA  1
// ------------------

// Rotary Encoder pins
#define ENCODER_CLK 4
#define ENCODER_DT  42
#define ENCODER_SW  41

// I2C pins for TEA5767
#define I2C_SDA     38
#define I2C_SCL     39
#define TEA5767_I2C_ADDRESS 0x60

Arduino_DataBus *panelBus = nullptr;
Arduino_ESP32RGBPanel *rgbpanel = nullptr;
Arduino_RGB_Display *gfx = nullptr;
uint16_t *fb = nullptr;

/* ----------- COLORS ----------- */
const uint16_t COL_BG    = 0x0000;
const uint16_t COL_TICK  = 0xFDA0;  // warm retro yellow
const uint16_t COL_NUM   = 0x07E0;  // green
// ---- Button grayscale colors ----
uint16_t BTN_DARK   = 0x4208;   // darkest
uint16_t BTN_MID    = 0x6b48;   // medium
uint16_t BTN_LIGHT  = 0xb56e;   // light

const int R_AM = 160 - 15;  // = 145

/* ----------- Label bitmap size ----------- */
#define LABEL_W 80
#define LABEL_H 40
uint8_t labelBuf[LABEL_H][LABEL_W];   // 0 = off, 1 = on

// ---------- ARROW (frequency pointer) ----------
float arrowFreq = 97.9;     // starting frequency (example)
const float ARROW_MIN = 88.0;
const float ARROW_MAX = 108.0;

const int ARROW_R_START = 0;     // inner starting radius
const int ARROW_R_END   = 240;    // same as FM ticks outer edge
const int ARROW_THICK   = 8;      // arrow thickness (px)
const uint16_t ARROW_COL = 0xF800; // bright red

// Rotary Encoder variables (from older flawless version)
volatile int lastEncoded = 0;
volatile long encoderValue = 0;
long lastEncoderValue = 0;
int lastMSB = 0;
int lastLSB = 0;

// Radio state
bool radioInitialized = false;

float fmFreqToAngle(float f)
{
    // clamp
    if (f < ARROW_MIN) f = ARROW_MIN;
    if (f > ARROW_MAX) f = ARROW_MAX;

    // linear interpolation from 88..108 MHz → -155..+155 degrees
    float t = (f - 88.0f) / (108.0f - 88.0f);
    return -155.0f + t * (155.0f - (-155.0f));
}

/*==============================================================
   TEA5767 RADIO FUNCTIONS
==============================================================*/

void tea5767_setFrequency(float frequency) {
  unsigned int freqB = 4 * (frequency * 1000000 + 225000) / 32768;
  byte frequencyH = freqB >> 8;
  byte frequencyL = freqB & 0xFF;

  byte data[5] = {
    frequencyH,
    frequencyL,
    0xB0,  // Normal mode, stereo, port1 high, port2 high
    0x10,  // 75µs de-emphasis, 32.768kHz crystal, soft mute off, high side LO
    0x00   // No stereo noise canceling, no search mode
  };

  Wire.beginTransmission(TEA5767_I2C_ADDRESS);
  Wire.write(data, 5);
  Wire.endTransmission();
  delay(100); // Delay for radio to settle
}

bool tea5767_init() {
  Wire.beginTransmission(TEA5767_I2C_ADDRESS);
  byte error = Wire.endTransmission();
  return (error == 0);
}

bool initRadio() {
  Serial.println("Initializing TEA5767 radio...");

  Wire.begin(I2C_SDA, I2C_SCL);
  Wire.setClock(100000);

  if (!tea5767_init()) {
    Serial.println("TEA5767 not detected!");
    return false;
  }

  // Set initial frequency
  tea5767_setFrequency(arrowFreq);

  Serial.println("TEA5767 initialized successfully!");
  return true;
}

/*==============================================================
   BASIC FUNCTIONS
==============================================================*/

static inline void putpix(int x, int y, uint16_t c) {
  if ((unsigned)x < DISPLAY_WIDTH && (unsigned)y < DISPLAY_HEIGHT)
    fb[y * DISPLAY_WIDTH + x] = c;
}

void draw_arrow_pointer(float freq)
{
    float angDeg = fmFreqToAngle(freq);
    float a = angDeg * PI / 180.0f;

    int x1 = CX + (int)(ARROW_R_START * sin(a));
    int y1 = CY - (int)(ARROW_R_START * cos(a));

    int x2 = CX + (int)(ARROW_R_END * sin(a));
    int y2 = CY - (int)(ARROW_R_END * cos(a));

    // draw thickness
    for (int w = -ARROW_THICK/2; w <= ARROW_THICK/2; w++)
    {
        draw_line(
            x1 + (int)(w * cos(a)),
            y1 + (int)(w * sin(a)),
            x2 + (int)(w * cos(a)),
            y2 + (int)(w * sin(a)),
            ARROW_COL
        );
    }
}

void draw_filled_circle(int cx, int cy, int r, uint16_t col)
{
  for(int y = -r; y <= r; y++)
    for(int x = -r; x <= r; x++)
      if(x*x + y*y <= r*r)
        putpix(cx + x, cy + y, col);
}

void draw_ring(int cx, int cy, int rOuter, int thickness, uint16_t col)
{
  int rInner = rOuter - thickness;
  int rOuter2 = rOuter * rOuter;
  int rInner2 = rInner * rInner;

  for(int y = -rOuter; y <= rOuter; y++)
  {
    int yy = y * y;
    for(int x = -rOuter; x <= rOuter; x++)
    {
      int rr = x*x + yy;
      if(rr <= rOuter2 && rr >= rInner2)
        putpix(cx + x, cy + y, col);
    }
  }
}

void draw_line(int x0,int y0,int x1,int y1,uint16_t c){
  int dx=abs(x1-x0), sx=x0<x1?1:-1;
  int dy=-abs(y1-y0), sy=y0<y1?1:-1;
  int err=dx+dy, e2;
  for(;;){
    putpix(x0,y0,c);
    if(x0==x1 && y0==y1) break;
    e2=2*err;
    if(e2>=dy){ err+=dy; x0+=sx; }
    if(e2<=dx){ err+=dx; y0+=sy; }
  }
}

/* ----------- RETRO NARROW 8x12 DIGIT FONT ----------- */
const uint8_t RETRO_DIGIT[10][12] PROGMEM = {
  {0x3C,0x42,0x46,0x4A,0x52,0x62,0x42,0x42,0x42,0x42,0x3C,0x00}, // 0
  {0x08,0x18,0x28,0x48,0x08,0x08,0x08,0x08,0x08,0x08,0x3E,0x00}, // 1
  {0x3C,0x42,0x02,0x02,0x04,0x08,0x10,0x20,0x40,0x40,0x7E,0x00}, // 2
  {0x3C,0x42,0x02,0x02,0x1C,0x02,0x02,0x02,0x02,0x42,0x3C,0x00}, // 3
  {0x04,0x0C,0x14,0x24,0x44,0x44,0x7E,0x04,0x04,0x04,0x1F,0x00}, // 4
  {0x7E,0x40,0x40,0x40,0x7C,0x02,0x02,0x02,0x02,0x42,0x3C,0x00}, // 5
  {0x1C,0x20,0x40,0x40,0x7C,0x42,0x42,0x42,0x42,0x42,0x3C,0x00}, // 6
  {0x7E,0x02,0x04,0x04,0x08,0x08,0x10,0x10,0x20,0x20,0x20,0x00}, // 7
  {0x3C,0x42,0x42,0x42,0x3C,0x42,0x42,0x42,0x42,0x42,0x3C,0x00}, // 8
  {0x3C,0x42,0x42,0x42,0x42,0x3E,0x02,0x02,0x02,0x04,0x38,0x00}  // 9
};

/* ----------- SIMPLE 8x12 LETTER FONT (A, M, F) ----------- */
const uint8_t RETRO_LETTER[3][12] PROGMEM = {
  {0x18,0x24,0x42,0x42,0x7E,0x42,0x42,0x42,0x42,0x42,0x42,0x00}, // A - FIXED
  {0x41,0x63,0x55,0x49,0x41,0x41,0x41,0x41,0x41,0x41,0x41,0x00}, // M - FIXED
  {0x7F,0x40,0x40,0x40,0x7C,0x40,0x40,0x40,0x40,0x40,0x40,0x00}  // F - FIXED (was 0x7E, now 0x7F for full left bar)
};

// ... [REST OF THE DRAWING FUNCTIONS REMAIN THE SAME AS YOUR ORIGINAL WORKING CODE]

/*==============================================================
   Create horizontal label into 80x40 bitmap (using RETRO_DIGIT)
==============================================================*/
void buildLabelBitmap(const char *text, int scale)
{
  for (int y = 0; y < LABEL_H; y++)
    for (int x = 0; x < LABEL_W; x++)
      labelBuf[y][x] = 0;

  int len = strlen(text);
  if (len <= 0) return;

  const int glyphW = 8;
  const int glyphH = 12;

  int digitW = glyphW * scale;
  int digitH = glyphH * scale;
  int gap    = scale;
  int labelW = len * digitW + (len - 1) * gap;

  int startX = (LABEL_W - labelW) / 2;
  int startY = (LABEL_H - digitH) / 2;

  for (int d = 0; d < len; d++) {
    int digit = text[d] - '0';
    if (digit < 0 || digit > 9) continue;
    const uint8_t *glyph = RETRO_DIGIT[digit];

    int x0 = startX + d * (digitW + gap);

    for (int row = 0; row < glyphH; row++) {
      uint8_t bits = pgm_read_byte(&glyph[row]);
      for (int col = 0; col < glyphW; col++) {
        if (bits & (0x80 >> col)) {
          for (int sx = 0; sx < scale; sx++) {
            for (int sy = 0; sy < scale; sy++) {
              int xx = x0 + col * scale + sx;
              int yy = startY + row * scale + sy;
              if (xx >= 0 && xx < LABEL_W && yy >= 0 && yy < LABEL_H)
                labelBuf[yy][xx] = 1;
            }
          }
        }
      }
    }
  }
}

/*==============================================================
   Draw rotated label
   angleDeg = tangential FM angle (0° = top)
==============================================================*/
void blitLabelRotated(const char *text,
                      float angleDeg,
                      int radius,
                      int scale,
                      uint16_t col)
{
  buildLabelBitmap(text, scale);

  float theta = angleDeg * PI / 180.0f;   // screen rotation
  float ct = cos(theta);
  float st = sin(theta);

  // Center position of label on the dial
  float a = angleDeg * PI / 180.0f;
  float cx_label = CX + radius * sin(a);
  float cy_label = CY - radius * cos(a);

  float cxLocal = LABEL_W  / 2.0f;
  float cyLocal = LABEL_H / 2.0f;

  for (int by = 0; by < LABEL_H; by++) {
    for (int bx = 0; bx < LABEL_W; bx++) {
      if (!labelBuf[by][bx]) continue;

      float lx = bx - cxLocal;
      float ly = by - cyLocal;

      float rx = lx*ct - ly*st;
      float ry = lx*st + ly*ct;

      int sx = (int)(cx_label + rx);
      int sy = (int)(cy_label + ry);

      putpix(sx, sy, col);
    }
  }
}

/*==============================================================
   Draw horizontal text (for AM/FM labels) - FIXED VERSION
==============================================================*/
void drawHorizontalText(const char *text, int x, int y, int scale, uint16_t col) {
  int len = strlen(text);
  if (len <= 0) return;

  const int glyphW = 8;
  const int glyphH = 12;

  for (int d = 0; d < len; d++) {
    char c = text[d];
    const uint8_t *glyph;

    // Select appropriate glyph
    switch(c) {
      case 'A': glyph = RETRO_LETTER[0]; break;
      case 'M': glyph = RETRO_LETTER[1]; break;
      case 'F': glyph = RETRO_LETTER[2]; break;
      default: continue;
    }

    int x0 = x + d * (glyphW * scale + scale);

    for (int row = 0; row < glyphH; row++) {
      uint8_t bits = pgm_read_byte(&glyph[row]);
      for (int col_bit = 0; col_bit < glyphW; col_bit++) {
        if (bits & (0x80 >> col_bit)) {
          for (int sx = 0; sx < scale; sx++) {
            for (int sy = 0; sy < scale; sy++) {
              int xx = x0 + col_bit * scale + sx;
              int yy = y + row * scale + sy;
              if (xx >= 0 && xx < DISPLAY_WIDTH && yy >= 0 && yy < DISPLAY_HEIGHT)
                putpix(xx, yy, col);
            }
          }
        }
      }
    }
  }
}

/*==============================================================
   Helper: inner yellow arc with thickness
==============================================================*/

void draw_inner_arc()
{
  const float A0 = -155.0f;
  const float A1 =  155.0f;

  const int R_ARC     = 160;  // radius of the arc (slightly smaller than ticks)
  const int TH_ARC    = 3;    // thickness of the arc

  const int rOuter = R_ARC;
  const int rInner = R_ARC - TH_ARC;

  const float step = 0.2f;   // degrees, smaller = smoother

  for (float angDeg = A0; angDeg <= A1; angDeg += step) {
    float a = angDeg * PI / 180.0f;

    int xOuter = CX + (int)(rOuter * sin(a));
    int yOuter = CY - (int)(rOuter * cos(a));
    int xInner = CX + (int)(rInner * sin(a));
    int yInner = CY - (int)(rInner * cos(a));

    // small radial segment, repeated along the arc → thick band
    draw_line(xInner, yInner, xOuter, yOuter, COL_TICK);
  }
}

//--------------------------------------------------
//  Draw a short arc segment (for AM green arcs)
//--------------------------------------------------
void draw_short_arc(int cx, int cy, int r,
                    float angStart, float angEnd,
                    int thickness, uint16_t col)
{
  float step = 0.5;

  for (int t = 0; t < thickness; t++)
  {
    int rr = r - t;    // inner offset → makes arc thicker

    for (float a = angStart; a <= angEnd; a += step)
    {
      float ang = a * PI / 180.0f;
      int x = cx + rr * sin(ang);
      int y = cy - rr * cos(ang);
      putpix(x, y, col);
    }
  }
}

/*==============================================================
   ROTARY ENCODER FUNCTIONS (from older flawless version)
==============================================================*/

void updateEncoder() {
  int MSB = digitalRead(ENCODER_CLK);
  int LSB = digitalRead(ENCODER_DT);

  int encoded = (MSB << 1) | LSB;
  int sum = (lastEncoded << 2) | encoded;

  if (sum == 0b1101 || sum == 0b0100 || sum == 0b0010 || sum == 0b1011) {
    encoderValue++;
  }
  if (sum == 0b1110 || sum == 0b0111 || sum == 0b0001 || sum == 0b1000) {
    encoderValue--;
  }

  lastEncoded = encoded;
}

void handleEncoder() {
  noInterrupts();
  long currentValue = encoderValue;
  interrupts();

  if (currentValue != lastEncoderValue) {
    // Calculate frequency change (0.1 MHz per step)
    float freqChange = (currentValue - lastEncoderValue) * 0.1;
    arrowFreq += freqChange;

    // Clamp frequency to valid range
    if (arrowFreq < ARROW_MIN) arrowFreq = ARROW_MIN;
    if (arrowFreq > ARROW_MAX) arrowFreq = ARROW_MAX;

    // Update TEA5767 radio module
    if (radioInitialized) {
      tea5767_setFrequency(arrowFreq);
    }

    // Redraw the dial with new arrow position
    draw_dial();
    gfx->draw16bitRGBBitmap(0, 0, fb, DISPLAY_WIDTH, DISPLAY_HEIGHT);

    Serial.printf("Frequency: %.1f MHz\n", arrowFreq);

    lastEncoderValue = currentValue;
  }
}

/*==============================================================
   DRAW FULL FM DIAL
==============================================================*/

void draw_dial()
{
  // Clear framebuffer
  for (int i = 0; i < DISPLAY_WIDTH * DISPLAY_HEIGHT; i++)
    fb[i] = COL_BG;

  // ----- COMMON CONSTANTS -----
  const int   MAJ       = 11;
  const float A0        = -155.0f;
  const float A1        =  155.0f;

  const int R_OUT       = 240;
  const int TICK_LONG   = 25;  // main tick length
  const int TICK_SHORT  = 11;  // short tick length
  const int TICK_MID    = 20;  // mid tick length (5th division)
  const int TH_LONG     = 7;   // main tick thickness
  const int TH_SHORT    = 2;   // short & mid tick thickness

  const int R_TEXT      = R_OUT - 53;
  const int SCALE       = 3;

  // ----- 1) INNER YELLOW ARC -----
  draw_inner_arc();

  // ----- 2) FM TICKS (MAIN + MINOR + MID) -----
  for (int i = 0; i < MAJ; i++)
  {
    float angDeg = A0 + i * (A1 - A0) / (MAJ - 1);
    float a = angDeg * PI / 180.0f;

    int x1 = CX + (int)((R_OUT - TICK_LONG) * sin(a));
    int y1 = CY - (int)((R_OUT - TICK_LONG) * cos(a));
    int x2 = CX + (int)(R_OUT * sin(a));
    int y2 = CY - (int)(R_OUT * cos(a));

    // main thick tick
    for (int w = -TH_LONG / 2; w <= TH_LONG / 2; w++)
    {
      draw_line(
        x1 + (int)(w * cos(a)), y1 + (int)(w * sin(a)),
        x2 + (int)(w * cos(a)), y2 + (int)(w * sin(a)),
        COL_TICK
      );
    }

    // minor ticks + mid (5th) tick
    if (i < MAJ - 1)
    {
      float a0 = angDeg * PI / 180.0f;
      float a1 = (A0 + (i + 1) * (A1 - A0) / (MAJ - 1)) * PI / 180.0f;

      for (int j = 1; j < 10; j++)
      {
        float aj = a0 + (a1 - a0) * (j / 10.0f);

        int tickLen = (j == 5) ? TICK_MID : TICK_SHORT;  // 5th tick longer

        int xi = CX + (int)((R_OUT - tickLen) * sin(aj));
        int yi = CY - (int)((R_OUT - tickLen) * cos(aj));
        int xo = CX + (int)(R_OUT * sin(aj));
        int yo = CY - (int)(R_OUT * cos(aj));

        for (int w = -TH_SHORT / 2; w <= TH_SHORT / 2; w++)
        {
          draw_line(
            xi + (int)(w * cos(aj)), yi + (int)(w * sin(aj)),
            xo + (int)(w * cos(aj)), yo + (int)(w * sin(aj)),
            COL_TICK
          );
        }
      }
    }
  } // <-- end FM ticks loop

  /****************************************************
     AM BORDER TICKS (correct radius at AM arc)
  ****************************************************/
  {
    const float borders[2] = { -155.0f, 155.0f };

    const int R_AM_BORDER = 160;   // <-- THIS radius is used below
    const int AM_TICK_LEN = 25;
    const int AM_TICK_TH  = 7;

    for (int b = 0; b < 2; b++)
    {
      float angDeg = borders[b];
      float a = angDeg * PI / 180.0f;

      // --------- USE R_AM_BORDER HERE (not R_AM) ---------
      int x1 = CX + (int)((R_AM_BORDER - AM_TICK_LEN) * sin(a));
      int y1 = CY - (int)((R_AM_BORDER - AM_TICK_LEN) * cos(a));

      int x2 = CX + (int)(R_AM_BORDER * sin(a));
      int y2 = CY - (int)(R_AM_BORDER * cos(a));
      // ----------------------------------------------------

      for (int w = -AM_TICK_TH/2; w <= AM_TICK_TH/2; w++)
      {
        draw_line(
          x1 + (int)(w * cos(a)), y1 + (int)(w * sin(a)),
          x2 + (int)(w * cos(a)), y2 + (int)(w * sin(a)),
          COL_TICK
        );
      }
    }
  }

  // ----- 4) AM GREEN ARCS (8 PIECES, MEDIUM WIDTH) -----
  {
    const int   AM_ARCS   = 8;
    const float AM_A0     = -140.0f;
    const float AM_A1     =  140.0f;
    const int   AM_TH     = 8;
    const float ARC_WIDTH = 12.0f;

    for (int i = 0; i < AM_ARCS; i++)
    {
      float base = AM_A0 + i * (AM_A1 - AM_A0) / (AM_ARCS - 1);

      float angStart = base - ARC_WIDTH / 2;
      float angEnd   = base + ARC_WIDTH / 2;

      draw_short_arc(
        CX, CY,
        R_AM,       // global const R_AM = 145
        angStart, angEnd,
        AM_TH,
        COL_NUM
      );
    }
  }

  // ----- 5) AM LABELS (TANGENTIAL, RETRO FONT, SCALE 2) -----
  {
    const int   AM_ARCS    = 8;
    const int   AM_FREQ[8] = { 53, 68, 83, 98, 113, 128, 143, 158 };
    const float AM_A0      = -140.0f;
    const float AM_A1      =  140.0f;
    const int   R_AM_TEXT  = 115;  // radius for AM text
    const int   SCALE_AM   = 2;

    for (int i = 0; i < AM_ARCS; i++)
    {
      float angDeg = AM_A0 + i * (AM_A1 - AM_A0) / (AM_ARCS - 1);

      char buf[8];
      sprintf(buf, "%d", AM_FREQ[i]);

      blitLabelRotated(
        buf,
        angDeg,
        R_AM_TEXT,
        SCALE_AM,
        COL_NUM
      );
    }
  }

  /****************************************************
     3–RING GRAY BUTTON  (Customizable)
  ****************************************************/
  {
    // --- Radii (you can adjust anytime) ---
    int R_OUTER   = 90;   // outside radius
    int R_INNER   = 65;   // inner filled disk
    int R_LIGHT   = 82;   // light ring radius (midway)
    int LIGHT_W   = 3;    // light ring thickness
    int OUTER_W   = 20;   // outer ring thickness

    // --- Draw dark outer ring (thick) ---
    draw_ring(CX, CY, R_OUTER, OUTER_W, BTN_DARK);

    // --- Draw light thin ring (for highlight) ---
    draw_ring(CX, CY, R_LIGHT, LIGHT_W, BTN_LIGHT);

    // --- Draw full inner medium disk ---
    draw_filled_circle(CX, CY, R_INNER, BTN_MID);
  }

  // ----- 6) FM LABELS (TANGENTIAL, RETRO FONT, SCALE 3) -----
  {
    const int FM[11] = { 88,90,92,94,96,98,100,102,104,106,108 };

    for (int i = 0; i < MAJ; i++)
    {
      float angDeg = A0 + i * (A1 - A0) / (MAJ - 1);

      char buf[8];
      sprintf(buf, "%d", FM[i]);

      blitLabelRotated(
        buf,
        angDeg,
        R_TEXT,
        SCALE,
        COL_NUM
      );
    }
  }

  // ----- 7) AM/FM HORIZONTAL LABELS (FIXED POSITIONING) -----
  {
    const int LABEL_SCALE = 3; // Larger size for better visibility

    // "AM" label - positioned near the yellow AM arc (top)
    int amX = CX - 30; // Centered horizontally (2 chars * 8px * 4 scale / 2)
    int amY = CY + 120; // Position above center, near AM arc

    // "FM" label - positioned above FM scale numbers (bottom)
    int fmX = CX - 30; // Centered horizontally
    int fmY = CY + 200; // Position below center, above FM numbers

    drawHorizontalText("AM", amX, amY, LABEL_SCALE, COL_TICK);
    drawHorizontalText("FM", fmX, fmY, LABEL_SCALE, COL_TICK);
  }

  // ----- 8) DRAW THE ARROW POINTER (LAST - ON TOP OF EVERYTHING) -----
  draw_arrow_pointer(arrowFreq);
}

/*==============================================================
   DISPLAY INITIALIZATION
==============================================================*/

void init_display() {
  pinMode(BL_PIN, OUTPUT);
  digitalWrite(BL_PIN, HIGH);

  panelBus = new Arduino_SWSPI(
    GFX_NOT_DEFINED, PANEL_CS, PANEL_SCK, PANEL_SDA, GFX_NOT_DEFINED);

  rgbpanel = new Arduino_ESP32RGBPanel(
      40,7,15,41,
      46,3,8,18,17,
      14,13,12,11,10,9,
      5,45,48,47,21,
      1,50,10,50,
      1,30,10,30,
      PCLK_NEG,8000000UL );

#if TYPE_SEL == 7
  gfx = new Arduino_RGB_Display(
    DISPLAY_WIDTH, DISPLAY_HEIGHT, rgbpanel, 0, true,
    panelBus, GFX_NOT_DEFINED,
    st7701_type7_init_operations, sizeof(st7701_type7_init_operations)
  );
#else
  gfx = new Arduino_RGB_Display(
    DISPLAY_WIDTH, DISPLAY_HEIGHT, rgbpanel, 0, true,
    panelBus, GFX_NOT_DEFINED,
    st7701_type5_init_operations, sizeof(st7701_type5_init_operations)
  );
#endif

  gfx->begin(16000000);

  fb = (uint16_t*)ps_malloc(DISPLAY_WIDTH * DISPLAY_HEIGHT * 2);
}

/*==============================================================
   SETUP / LOOP
==============================================================*/

void setup() {
  Serial.begin(115200);

  // Initialize rotary encoder pins
  pinMode(ENCODER_CLK, INPUT_PULLUP);
  pinMode(ENCODER_DT, INPUT_PULLUP);
  pinMode(ENCODER_SW, INPUT_PULLUP);

  // Attach interrupt for encoder (flawless version)
  attachInterrupt(digitalPinToInterrupt(ENCODER_CLK), updateEncoder, CHANGE);
  attachInterrupt(digitalPinToInterrupt(ENCODER_DT), updateEncoder, CHANGE);

  // Initialize display
  init_display();

  // Initialize TEA5767 radio
  radioInitialized = initRadio();

  // Draw initial display
  draw_dial();
  gfx->draw16bitRGBBitmap(0, 0, fb, DISPLAY_WIDTH, DISPLAY_HEIGHT);

  Serial.println("Radio Dial Ready - Rotate encoder to change frequency");
  Serial.printf("Initial frequency: %.1f MHz\n", arrowFreq);
  if (radioInitialized) {
    Serial.println("TEA5767 Radio: INITIALIZED");
  } else {
    Serial.println("TEA5767 Radio: NOT FOUND - Display only mode");
  }
}

void loop() {
  handleEncoder();
  delay(2); // Small delay to debounce
}
