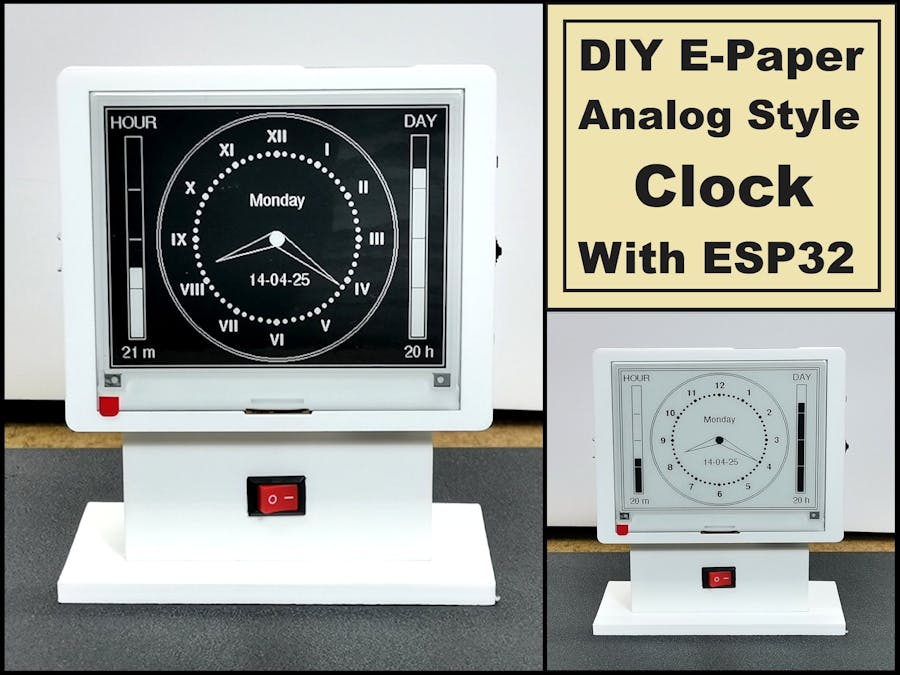

Building an E-Paper Analog Clock with ESP32 - Full Tutorial

/*E-Paper Analog Clock with ESP32
by mircemk, May 2025
*/

#include "GxEPD2_BW.h"
#include "Fonts/FreeSans9pt7b.h"
#include "Fonts/FreeSansBold9pt7b.h"
#include "WiFi.h"
#include "esp_sntp.h"

const char* TIMEZONE = "CET-1CEST,M3.5.0,M10.5.0/3";
const char* SSID = "******";
const char* PWD = "******";

// Pin definitions
#define PWR 7
#define BUSY 48
#define RES 47
#define DC 46
#define CS 45
#define BUTTON_PIN 2
#define INVERT_BUTTON_PIN 1  // IO1 for inversion

RTC_DATA_ATTR bool useRomanNumerals = false;  // Store number style state in RTC memory
RTC_DATA_ATTR bool invertedDisplay = false;   // Store display inversion state

// Helper function to convert number to Roman numeral
const char* toRoman(int number) {
    static char roman[10];
    const char* romanNumerals[] = {"I", "II", "III", "IV", "V", "VI", "VII", "VIII", "IX", "X", "XI", "XII"};
    if (number >= 1 && number <= 12) {
        strcpy(roman, romanNumerals[number - 1]);
        return roman;
    }
    return "";
}

const char* DAYSTR[] = {
  "Sunday", "Monday", "Tuesday", "Wednesday", "Thursday", "Friday", "Saturday"
};

// W, H flipped due to setRotation(1)
const int H = GxEPD2_420_GDEY042T81::HEIGHT;  // Note: Using HEIGHT first
const int W = GxEPD2_420_GDEY042T81::WIDTH;   // Using WIDTH second

const int CW = W / 2;   // Center Width
const int CH = H / 2;   // Center Height
const int R = min(W, H) / 2 - 10;  // Radius with some margin

const int BAR_WIDTH = 20;
const int BAR_HEIGHT = GxEPD2_420_GDEY042T81::HEIGHT/1.3;  // Half of display height
const int BAR_MARGIN = 25;   // Distance from clock edge

const uint16_t WHITE = GxEPD_WHITE;
const uint16_t BLACK = GxEPD_BLACK;

RTC_DATA_ATTR uint16_t wakeups = 0;
GxEPD2_BW<GxEPD2_420_GYE042A87, GxEPD2_420_GYE042A87::HEIGHT> epd(GxEPD2_420_GYE042A87(CS, DC, RES, BUSY));

uint16_t getFgColor() {
    return invertedDisplay ? WHITE : BLACK;
}

uint16_t getBgColor() {
    return invertedDisplay ? BLACK : WHITE;
}

void drawDisplayFrame() {
    // Outer frame
    epd.drawRect(0, 0, W, H, getFgColor());

    // Inner frame (3 pixels gap)
    epd.drawRect(4, 4, W-8, H-8, getFgColor());
}

void epdPower(int state) {
  pinMode(PWR, OUTPUT);
  digitalWrite(PWR, state);
}

void initDisplay() {
  bool initial = wakeups == 0;
  epd.init(115200, initial, 50, false);
  epd.setRotation(0);  // Set rotation to 0 (90 degrees)
  epd.setTextSize(1);
  epd.setTextColor(getFgColor());
}

void setTimezone() {
  setenv("TZ", TIMEZONE, 1);
  tzset();
}

void syncTime() {
  if (wakeups % 50 == 0) {
    WiFi.begin(SSID, PWD);
    while (WiFi.status() != WL_CONNECTED)
      ;
    configTzTime(TIMEZONE, "pool.ntp.org");
  }
}

void printAt(int16_t x, int16_t y, const char* text) {
  int16_t x1, y1;
  uint16_t w, h;
  epd.getTextBounds(text, x, y, &x1, &y1, &w, &h);
  epd.setCursor(x - w / 2, y + h / 2);
  epd.print(text);
}

void printfAt(int16_t x, int16_t y, const char* format, ...) {
  static char buff[64];
  va_list args;
  va_start(args, format);
  vsnprintf(buff, 64, format, args);
  printAt(x, y, buff);
}

void polar2cart(float x, float y, float r, float alpha, int& cx, int& cy) {
  alpha = alpha * TWO_PI / 360;
  cx = int(x + r * sin(alpha));
  cy = int(y - r * cos(alpha));
}

void checkButton() {
    pinMode(BUTTON_PIN, INPUT_PULLUP);
    if (digitalRead(BUTTON_PIN) == LOW) {
        delay(50); // Debounce
        if (digitalRead(BUTTON_PIN) == LOW) {
            useRomanNumerals = !useRomanNumerals;
            redrawDisplay();
            while(digitalRead(BUTTON_PIN) == LOW); // Wait for button release
        }
    }
}

void checkInversionButton() {
    pinMode(INVERT_BUTTON_PIN, INPUT_PULLUP);
    if (digitalRead(INVERT_BUTTON_PIN) == LOW) {
        delay(50); // Debounce
        if (digitalRead(INVERT_BUTTON_PIN) == LOW) {
            invertedDisplay = !invertedDisplay;
            redrawDisplay();
            while(digitalRead(INVERT_BUTTON_PIN) == LOW); // Wait for button release
        }
    }
}

void redrawDisplay() {
    epd.setFullWindow();
    epd.fillScreen(getBgColor());
    drawDisplayFrame();
    drawProgressBars();
    drawClockFace();
    drawClockHands();
    drawDateDay();
    epd.display(false);
}

void drawClockFace() {
    int cx, cy;
    epd.setFont(&FreeSansBold9pt7b);
    epd.setTextColor(getFgColor());

    const int FRAME_THICKNESS = 1;    // Outer frame thickness
    const int FRAME_GAP = 3;          // Gap between outer and inner circles

    // Draw outer thick frame
    for(int i = 0; i < FRAME_THICKNESS; i++) {
        epd.drawCircle(CW, CH, R + i, getFgColor());
    }

    // Draw inner circle after the gap
    epd.drawCircle(CW, CH, R - FRAME_GAP, getFgColor());

    // Center dot
    epd.fillCircle(CW, CH, 8, getFgColor());

    // Draw hour markers and numbers
    for (int h = 1; h <= 12; h++) {
        float alpha = 360.0 * h / 12;

        // Move numbers slightly inward to accommodate new frame
        polar2cart(CW, CH, R - 25, alpha, cx, cy);

        if (useRomanNumerals) {
            const char* romanNumeral = toRoman(h);
            printfAt(cx, cy, "%s", romanNumeral);
        } else {
            printfAt(cx, cy, "%d", h);
        }

        polar2cart(CW, CH, R - 45, alpha, cx, cy);
        epd.fillCircle(cx, cy, 3, getFgColor());

        // Draw minute markers
        for (int m = 1; m <= 12 * 5; m++) {
            float alpha = 360.0 * m / (12 * 5);
            polar2cart(CW, CH, R - 45, alpha, cx, cy);
            epd.fillCircle(cx, cy, 2, getFgColor());
        }
    }
}

void drawTriangle(float alpha, int width, int len) {
  int x0, y0, x1, y1, x2, y2;
  polar2cart(CW, CH, len, alpha, x2, y2);
  polar2cart(CW, CH, width, alpha - 90, x1, y1);
  polar2cart(CW, CH, width, alpha + 90, x0, y0);
  epd.drawTriangle(x0, y0, x1, y1, x2, y2, getFgColor());
}

void drawClockHands() {
  struct tm t;
  getLocalTime(&t);

  // Calculate minute angle
  float alphaM = 360.0 * (t.tm_min / 60.0);

  // Calculate hour angle with smooth movement
  float hourAngle = (t.tm_hour % 12) * 30.0;
  float minuteContribution = (t.tm_min / 60.0) * 30.0;
  float alphaH = hourAngle + minuteContribution;

  // Draw the hands
  drawTriangle(alphaM, 8, R - 50);  // Minute hand
  drawTriangle(alphaH, 8, R - 65);  // Hour hand
  epd.fillCircle(CW, CH, 8, getFgColor()); // Center dot
}

void drawDateDay() {
  struct tm t;
  getLocalTime(&t);

  epd.setFont(&FreeSans9pt7b);
  epd.setTextColor(getFgColor());

  printfAt(CW, CH+R/3, "%02d-%02d-%02d",
          t.tm_mday, t.tm_mon + 1, t.tm_year -100);
  printfAt(CW, CH-R/3, "%s", DAYSTR[t.tm_wday]);
}

void drawProgressBar(int x, int y, int width, int height, float percentage, const char* label) {
    // Draw outer rectangle
    epd.drawRect(x, y, width, height, getFgColor());

    // Calculate inner area with margin
    int innerX = x + 3;
    int innerY = y + 3;
    int innerWidth = width - 6;
    int innerHeight = height - 6;

    // Calculate fill height
    int fillHeight = (int)(innerHeight * percentage);
    int fillTop = innerY + innerHeight - fillHeight;

    // First draw the filled portion
    epd.fillRect(innerX, fillTop, innerWidth, fillHeight, getFgColor());

    // Now draw the ticks - they'll appear correctly in both filled and empty areas
    for(int i = 1; i < 4; i++) {
        int tickY = innerY + (innerHeight * i / 4);

        // For each pixel in the tick line
        for(int px = innerX; px < innerX + innerWidth; px++) {
            // If this pixel is in the filled area, use bg color, else use fg color
            uint16_t color = (tickY >= fillTop) ? getBgColor() : getFgColor();
            epd.drawPixel(px, tickY, color);
        }
    }

    // Draw label above the bar
    epd.setFont(&FreeSans9pt7b);
    epd.setTextColor(getFgColor());
    int16_t x1, y1;
    uint16_t w, h;
    epd.getTextBounds(label, 0, 0, &x1, &y1, &w, &h);
    epd.setCursor(x + (width - w)/2, y - 10);
    epd.print(label);
}
void drawProgressBars() {
    struct tm t;
    getLocalTime(&t);

    float hourProgress = (t.tm_min * 60.0f + t.tm_sec) / (60.0f * 60.0f);
    float dayProgress = (t.tm_hour * 3600.0f + t.tm_min * 60.0f + t.tm_sec) / (24.0f * 3600.0f);

    int leftX = BAR_MARGIN;
    int leftY = (H - BAR_HEIGHT)/2;

    int rightX = W - BAR_MARGIN - BAR_WIDTH;
    int rightY = (H - BAR_HEIGHT)/2;

    // Draw the progress bars
    drawProgressBar(leftX, leftY, BAR_WIDTH, BAR_HEIGHT, hourProgress, "HOUR");
    drawProgressBar(rightX, rightY, BAR_WIDTH, BAR_HEIGHT, dayProgress, "DAY");

    // Add elapsed time information below the bars
    epd.setFont(&FreeSans9pt7b);
    epd.setTextColor(getFgColor());

    // Minutes elapsed
    char minuteStr[10];
    sprintf(minuteStr, "%d m", t.tm_min);
    int16_t x1, y1;
    uint16_t w, h;
    epd.getTextBounds(minuteStr, 0, 0, &x1, &y1, &w, &h);
    epd.setCursor(leftX + (BAR_WIDTH - w)/2, leftY + BAR_HEIGHT + 20);
    epd.print(minuteStr);

    // Hours elapsed
    char hourStr[10];
    sprintf(hourStr, "%d h", t.tm_hour);
    epd.getTextBounds(hourStr, 0, 0, &x1, &y1, &w, &h);
    epd.setCursor(rightX + (BAR_WIDTH - w)/2, rightY + BAR_HEIGHT + 20);
    epd.print(hourStr);
}

void drawClock(const void* pv) {
  static int lastMinute = -1;

  struct tm t;
  getLocalTime(&t);

  // Full refresh every minute
  if (lastMinute != t.tm_min || wakeups == 0) {
    epd.setFullWindow();
    epd.fillScreen(getBgColor());

    // Draw the display frame first
    drawDisplayFrame();

    // Draw progress bars first (behind clock)
    drawProgressBars();

    // Draw clock elements
    drawClockFace();
    drawClockHands();
    drawDateDay();

    lastMinute = t.tm_min;
  }
}

void setup() {
    epdPower(HIGH);
    initDisplay();
    setTimezone();
    syncTime();

    esp_sleep_wakeup_cause_t wakeup_reason = esp_sleep_get_wakeup_cause();

    if (wakeup_reason == ESP_SLEEP_WAKEUP_EXT0) {
        checkButton();
    }

    if (wakeup_reason == ESP_SLEEP_WAKEUP_EXT1) {
        uint64_t wakeup_pin_mask = esp_sleep_get_ext1_wakeup_status();
        if (wakeup_pin_mask & (1ULL << INVERT_BUTTON_PIN)) {
            checkInversionButton();
        }
    }

    drawClock(0);

    wakeups = (wakeups + 1) % 1000;

    epd.display(false);
    epd.hibernate();

    // Enable wakeup from both buttons
    esp_sleep_enable_ext0_wakeup((gpio_num_t)BUTTON_PIN, LOW);
    esp_sleep_enable_ext1_wakeup((1ULL << INVERT_BUTTON_PIN), ESP_EXT1_WAKEUP_ANY_LOW);

    struct tm t;
    getLocalTime(&t);
    uint64_t sleepTime = (60 - t.tm_sec) * 1000000ULL;

    esp_sleep_enable_timer_wakeup(sleepTime);
    esp_deep_sleep_start();
}

void loop() {
}
