Freedom Joystick

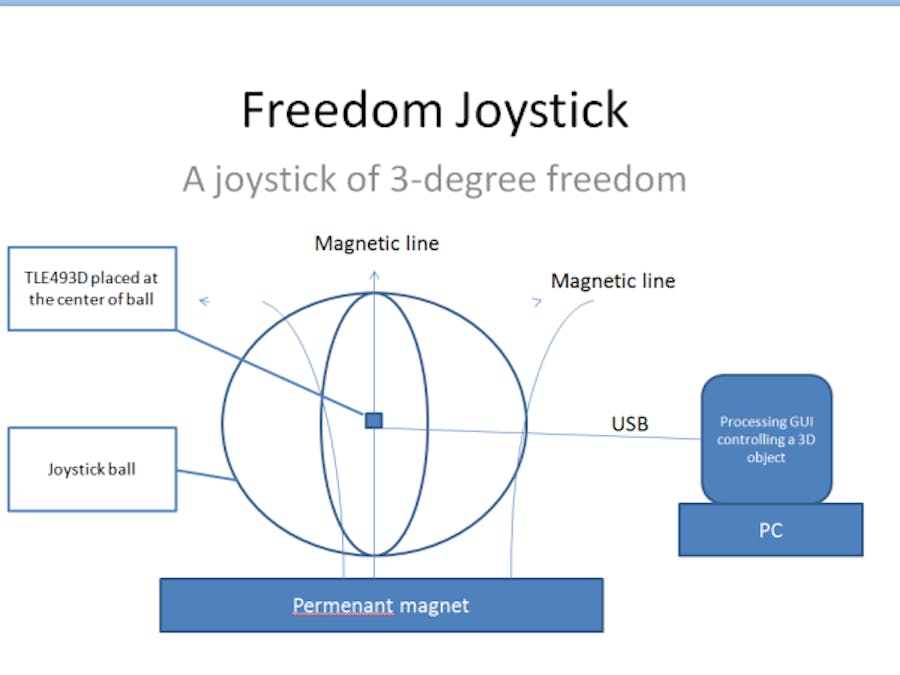

A joystick with 3-degrees of freedom.

IntermediateShowcase (no instructions)16 hours709
Freedom Joystick

Story

Read more

Schematics

Prototype using TLE493D EVM and a Christmas ball

Prototype using TLE493D EVM and a Christmas ball

Prototype using TLE493D EVM and a Christmas ball

Code

Processing GUI interacting with (TLE493D) Freedom Joystick

Processing
The PC software, or GUI, runs on host PC and dialog with TLE493D through the Arduino serial link over USB. It is programmed in Processing language and is directly based on code example https://github.com/Infineon/TLV493D-A1B6-3DMagnetic-Sensor/blob/master/processing/standard/standard.pde

"earth.png" referenced in the code is included in the following zip file
//This example is designed for XMC example MagneticSensor3D -> spherical_fast

import processing.serial.*;
import java.util.Scanner;



ComPortMenu portSelect;
String inString;
boolean serialEventTrue = false; // set true on each serialEvent
float[] meas = new float[6]; //measurement x,y,z, amplitude, azimuth and polar angle in radian
PImage img;
PShape ball;

void setup()
{
  size(640, 480,P3D);
  background(0);
  lights();
  textFont(createFont("Arial", 16, true));
  portSelect = new ComPortMenu();
  portSelect.drawMenu();
  //img = loadImage( "http://previewcf.turbosquid.com/Preview/2014/08/01__15_41_30/Earth.JPG5a55ca7f-1d7c-41d7-b161-80501e00d095Larger.jpg");
  img = loadImage( "earth.jpg");
  ball = createShape(SPHERE, height/3);
  ball.setTexture(img);
}


void draw()
{
  Serial comPort = portSelect.getComPort();
  float s;
  int i;
  if(comPort != null)
  {
    try
    {
      comPort.bufferUntil('\n'); // serialEvent is triggered only once per complete line
      if (serialEventTrue) {
        Scanner comInput = new Scanner(inString);
        comInput.useLocale(java.util.Locale.US);
        i = 0;
        for (int k=0;k<6; k++) {
          if (!comInput.hasNextFloat())
            comInput.next();
          if (comInput.hasNextFloat())
            meas[i++] = comInput.nextFloat();
        }
        if (i == 6) {
          background(0); // erase beafore redrawing
          // because of the prototype is wired and the TLE493D board is oriented USB up,
          // TLE493D X point to ball's top, TLE493D Y => ball's right (depends on how you hold it), TLE493D Z => away from you
          viewSphere(meas[0], meas[1], meas[2]);
          portSelect.drawMenu();
          println(inString);
        } else {
          println("bug: only received ",i," floats in ",inString );
        }
        serialEventTrue = false; // consume this serialEvent
        inString = "";
        comInput.close();
      }
    }
    catch(Exception e)
    {
      System.err.print("Invalid COM input: ");
      System.err.println(inString);
      System.err.print("Original message: ");
      System.err.println(e.getMessage());
    }
  }
}

// visualize the meaured magnetic B vector with a Processing built-in 3D ball
// Axis alignement:
//   ball to-bottom axis (Processing Y)  = -Bx
//   ball to-right axis (Processing X) = By
//   ball to-viewer axis (Processing Z) = Bz
//to-viewer means coming out of the screen. ball's to-right/to-bottom is from viewer's point of view

// memorize previous angle around Processing x-axis, Processing y-axis, and Processing z-axis
float xAlpha_prev=0,yAlpha_prev=0,zAlpha_prev=0;
void viewSphere(float Bx, float By, float Bz)
{
  float c_x = width/2, c_y = height/2; // center in the display window
  float xAlpha = xAlpha_prev,yAlpha = yAlpha_prev,zAlpha = zAlpha_prev;
  float E_THR = 1.2f; // minimum magnetic strenth for the angle measurement to be meaningful

  if (sq(-Bx)+sq(By) > E_THR) {
    zAlpha = atan2(-By,Bx); // rotation around Processing Z-axis
  }
  if (sq(Bz)+sq(-Bx) > E_THR) {
    xAlpha = atan2( -Bz,Bx); // rotation around Processing X-axis = atan2(ProcessingZ, ProcessingY)
  }
  //if (sq(By)+sq(Bz) > E_THR) { // 3rd degree of freedom not working as expected
  //  yAlpha = atan2( Bz,By); // rotation around Processing Y-axis = atan2(ProcessingX, ProcessingZ)
  //}
  xAlpha_prev = xAlpha; yAlpha_prev = yAlpha; zAlpha_prev = zAlpha;
  println("in degrees: xAlpha",degrees(xAlpha),"yAlpha",degrees(yAlpha),"zAlpha",degrees(zAlpha) );

  pushMatrix();
  translate(c_x,c_y); // center the sphere on screen
  rotateX(-xAlpha); // '-' is empirique, don'tknow why
  rotateY(yAlpha);
  rotateZ(zAlpha);
  shape(ball);
  popMatrix();
}


////////////////////////////////////////////////


Serial createSerial(String name)
{
  try
  {
    //return new Serial(this, name, 9600);
    return new Serial(this, name, 1000000);
  }
  catch(Exception e)
  {
    System.err.print("err createSerial: ");
    System.err.println(e.getMessage());
    return null;
  }
}

void serialEvent(Serial port)
{
  inString = port.readString();
  //println("serialEvent: ", inString);
  serialEventTrue = true;
}


void mousePressed()
{
  portSelect.clickHandler();
}


class ComPortMenuButton
{
  private int mX;
  private int mY;
  private int mWidth;
  private int mHeight;
  private String mName;
  private boolean mIsActive;

  public ComPortMenuButton(int btnX, int btnY, int btnWidth, int btnHeight, String btnName)
  {
    mX = btnX;
    mY = btnY;
    mWidth = btnWidth;
    mHeight = btnHeight;
    mName = btnName;
    mIsActive = false;
  }

  boolean mouseOverBtn()
  {
    return (mouseX>mX && mouseX<mX+mWidth && mouseY>mY && mouseY<mY+mHeight);
  }

  public void drawButton()
  {
    fill(70);
    if(mIsActive)
    {
      fill(120,80,0);
    }
    if(mouseOverBtn())
    {
      fill(180,120,0);
    }
    rect(mX, mY, mWidth, mHeight);
    fill(255);
    textAlign(CENTER);
    text(mName, mX+mWidth/2,mY+mHeight/2+8);
  }

  void setInActive()
  {
    mIsActive = false;
  }

  Serial setActive()
  {
    mIsActive = true;
    return createSerial(this.mName);
  }

}


class ComPortMenu
{
  private ArrayList<ComPortMenuButton> mButtons;
  private ComPortMenuButton mActiveBtn = null;
  private Serial mComPort = null;

  public ComPortMenu()
  {
    int i = 0;
    mButtons = new ArrayList();
    // for (String current : Serial.list()) println("serial ele: ", current);
    for(String current : Serial.list())
    {
      int x = i % 5;
      int y = i / 5;
      mButtons.add(new ComPortMenuButton(100*x+5, 50*y+5, 90, 40, current));
      i++;
    }

  }

  public void drawMenu()
  {
    for(ComPortMenuButton current : mButtons)
    {
      current.drawButton();
    }
  }

  public void clickHandler()
  {
    for(ComPortMenuButton current : mButtons)
    {
      if(current.mouseOverBtn())
      {
        if(mActiveBtn != null)
          mActiveBtn.setInActive();
        mActiveBtn = current;
        mComPort = current.setActive();
      }
    }
  }

  public Serial getComPort()
  {
    return mComPort;
  }

}

TLE493D firmware in Arduino

Arduino
The firmware running on TLE393D is programmed in Arduino using Infineon XMC-for-Arduino (https://github.com/Infineon/XMC-for-Arduino). This project is based on TLE493D-W2B6-3DMagnetic-Sensor by mhoechner (https://github.com/Infineon/TLE493D-W2B6-3DMagnetic-Sensor).
#include <Tle493d_w2b6.h>

Tle493d_w2b6 Tle493dMagnetic3DSensor = Tle493d_w2b6(Tle493d_w2b6::FASTMODE);
float x = 0.0f, y = 0.0f, z = 0.0f;
float r,theta,phi; // phi - azimuth, theta - polar
const float beta = 0.995f, alpha = 1-beta;

void setup() {
  Serial.begin(1000000);
  while (!Serial);
  Tle493dMagnetic3DSensor.begin();
  //prtReg();
}

void loop() {
  for (int i=0;i<50;i++) {
    getMeas();
  }
  getAngle();
  Serial.print(x);Serial.print(" ");
  Serial.print(y);Serial.print(" ");
  Serial.print(z);Serial.print(" ");
  Serial.print(r);Serial.print(" ");
  Serial.print(theta);Serial.print(" ");
  Serial.print(phi);Serial.print(" ");
  Serial.println();
}

void getMeas() { // output in x,y,z,r,theta,phi
  Tle493dMagnetic3DSensor.updateData();
  x = beta*x + alpha*Tle493dMagnetic3DSensor.getX();
  y = beta*y + alpha*Tle493dMagnetic3DSensor.getY();
  z = beta*z + alpha*Tle493dMagnetic3DSensor.getZ();
}
void getAngle() {
  r = sqrt(x*x + y*y + z*z); // sqrt(x^2 + y^2 + z^2)
  theta = 1.57f - atan2(z,sqrt(sq(x)+sq(y)));
  phi = atan2(y,x);
}

void prtReg() { // modify Tle493d_w2b6 class and make mInterface public
  tle493d_w2b6::BusInterface_t& bus = Tle493dMagnetic3DSensor.mInterface;
  Serial.print("bus addr=");
  Serial.print(bus.adress, HEX);
  Serial.print(",reg10=");
  Serial.print(bus.regData[0x10],BIN);
  Serial.print(",reg11=");
  Serial.print(bus.regData[0x11],BIN);
  Serial.print(",reg13=");
  Serial.print(bus.regData[0x13],BIN);
  Serial.print(",reg06=");
  Serial.print(bus.regData[0x06],BIN);
  Serial.println("");
}

Processing GUI interacting with Freedom Joystick

Processing
zip contains Processing code and a image file loaded by the Processing code
No preview (download only).
