MicroCode for micro:bit

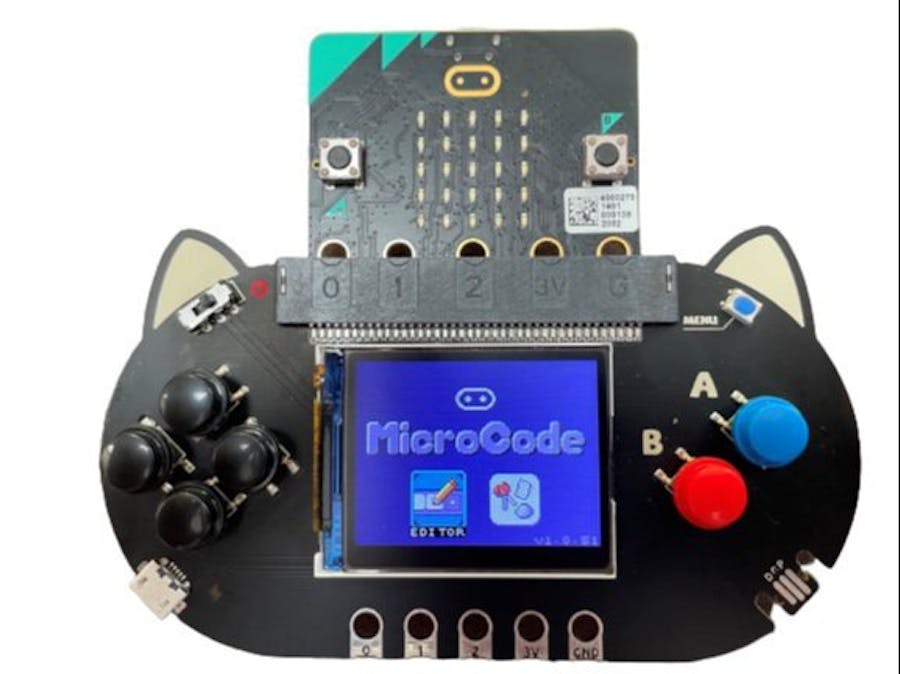

A code editor running on the micro:bit V2

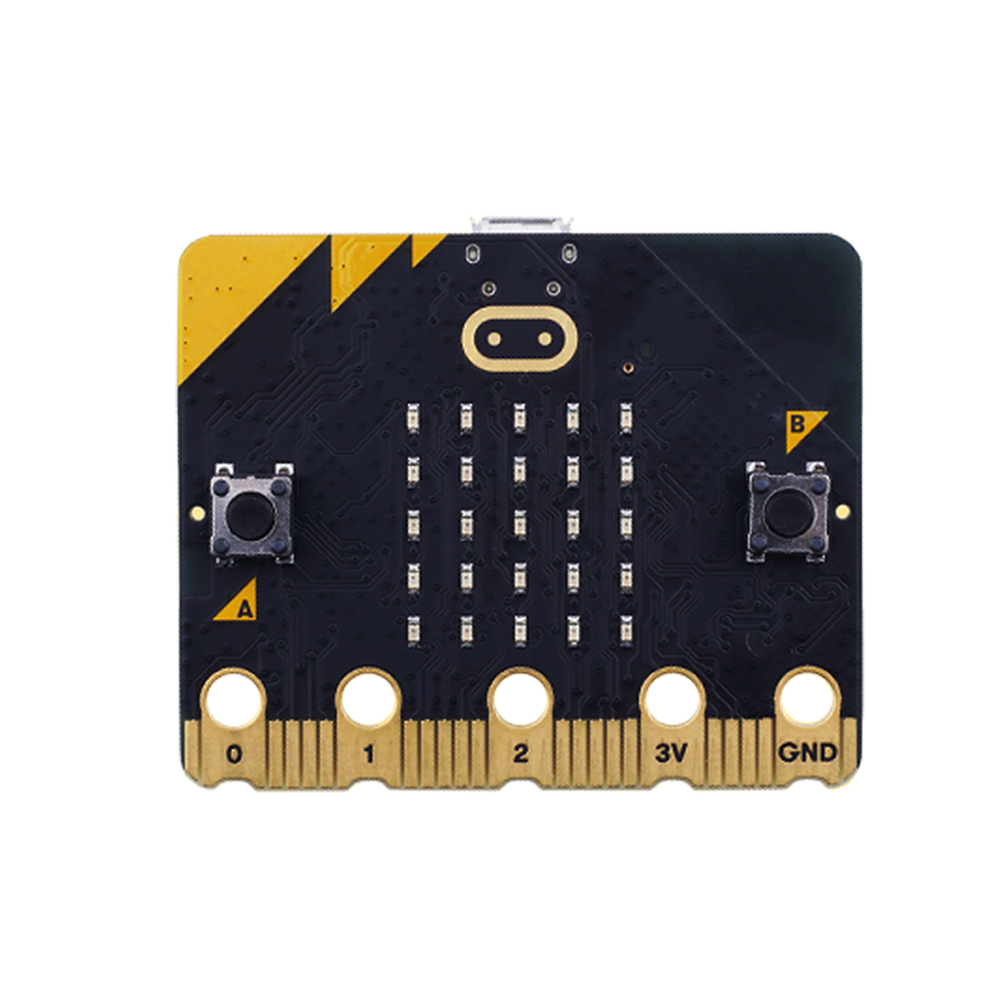

MicroCode is a icon-based (text-free), keyboard friendly editor for the micro:bit V2. It is suitable for younger learners and users with variable accessibility needs.

• Kid-friendly, icon-based, structured code editor
• Runs in the browser or on the micro:bit itself!
• Live, the code is downloaded to the micro:bit on every edit
• Cursor based navigation with keyboard (switch access compatible), mouse, touch, screen reader support
• Accessories (LEDs, servos,...) supported via Jacdac

MicroCode is open source at https://github.com/microsoft/microcode.

First program

Here is a screenshot of one the first examples in MicroCode: smiley buttons.

The goal of this program is to show a smiley and plays a happy sound when pressing A, and a frowney animation and unhappy sound when B is pressed.

The MicroCode language, is defined in terms of pages, where a page has a list of rules, and each rule consists of a When section and a Do section, each with a list of programming tiles. For this example, we have 4 rules.

The first rule tells MicroCode to show an image when 'A' is pressed on the micro:bit.

You will find more samples in the MicroCode documentation.

• when 📷 press 📷 button A, do📷 show image smiley.

The next rule tells MicroCode to play a sound when 'A' is pressed as well. All rules run at the same time.

• when 📷 press 📷 button A, do📷 play sound emoji 📷 happy.

The next two rules are similar but for button 'B'.

Under the hood: Jacdac and Jacscript

MicroCode is written as a MakeCode Arcade application targetting the micro:bit V2. It packs a full compiler and assembler (written in Static TypeScript) that generates Jacscript bytecode. Jacscript is a small embedded VM (written in C) designed to execute programs using Jacdac services, it is compiled along side the editor. The on-board sensors and screen of the micro:bit are exposed as Jacdac services and used through the Jacscript virtual machine.

The editor is also compiled in JavaScript and executed in the browser to provide a browser-based experience.

Web Editor

The MicroCode web editor is at aka.ms/m9. It requires a browser with WebUSB support.

• Left, Right, Up, Down moves the cursor
• the Left and Right keys will wrap around in the editor on the same page
• the Up key on top of the screen will act as back. It will go back the pages until page 1 is in focus, then pressing up will go back to the start screen.
• the Down key will wrap around the pages
• Enter or Space for A button
• Backspace for B button
• ] or Page Up to go to the next page, [ or Page Down to go to the previous page
• Copy the URL to share your program.

Automatic download to micro:bit V2

When the editor does not detect a micro:bit connected to the computer, it will automatically prompt you with instructions on how to connect (requires WebUSB).

Once your micro:bit V2 is paired, the web editor will be able to download your MicroCode program to your micro:bit. This happens on every edit, so your program is always up-to-date (and running)!

If your micro:bit disconnects, you will see a micro:bit icon show up on the upper left corner of the editor. Click on that button to reconnect again.

Accessibility

MicroCode has a lot of accessibility goodness:

• fully keyboard enabled, and switch panel friendly. Only 3 keys are need to use MicroCode.
• tooltip read aloud and screen reader support
• game console support (XBox,...)

Accessories

Additional sensors and actuators can be add as Jacdac modules. MicroCode automatically detect additional hardware and will show the additional tiles if supported.

The railroad crossing sample shows a program using a servo and a LED ring Jacdac module.

The servo uses a servo motor move to move an physical arm. The servo arm orientation is mapped to the wall clock hours: 0 (or 12) is on rotated 90 degree from the resting position to the left, 6 is rotated 90 degree right from the rest position. There is also a secret animation mode when you press the micro:bit logo button.

• when press button A, do servo set arm to 1 o'clock.

The LED uses a programmable LED ring module to display blue and red colors.

• when press button A, do LED set all color to red, black and repeat.
