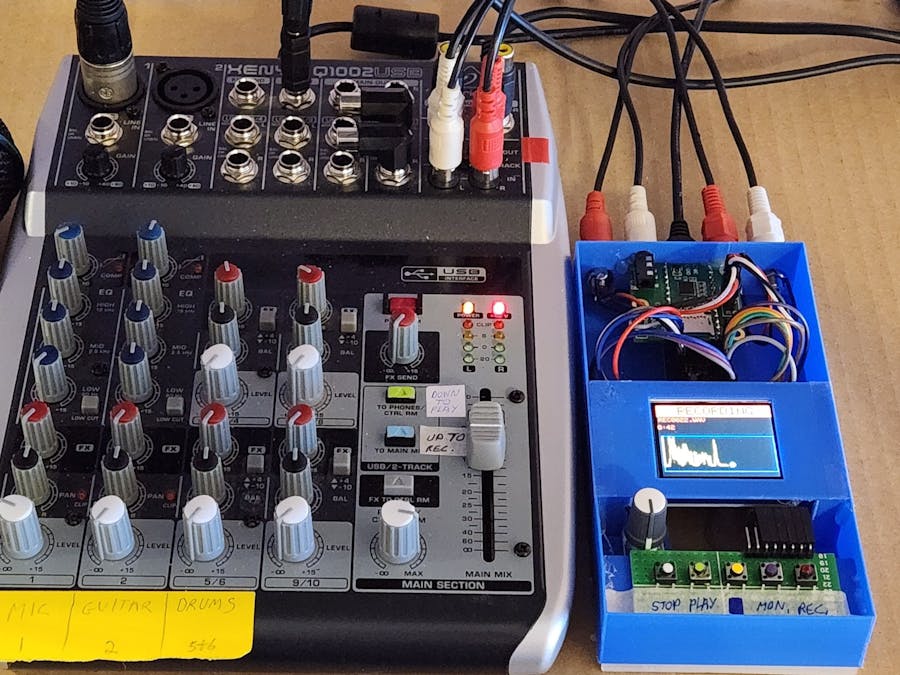

Teensy Stereo Audio Recorder

// feb 12 1215am 2026

// added file overflow protection
//


#include <Audio.h>
#include <Wire.h>
#include <SPI.h>
#include <SD.h>
#include <SerialFlash.h>
#include <Adafruit_GFX.h>
#include <Adafruit_ST7735.h>

// ---------------- AUDIO ----------------
AudioPlaySdWav playWav;
AudioRecordQueue recordQueueL;
AudioRecordQueue recordQueueR;
AudioOutputI2S i2s_out;
AudioInputI2S i2s_in;
AudioControlSGTL5000 sgtl5000;
AudioAnalyzePeak peakL;
AudioAnalyzePeak peakR;
AudioAnalyzeFFT1024 fft1;
AudioMixer4 mixerL;
AudioMixer4 mixerR;

// Audio connections
////AudioConnection patch1(playWav, 0, i2s_out, 0); // for playing
////AudioConnection patch2(playWav, 1, i2s_out, 1);
AudioConnection patch5(i2s_in, 0, recordQueueL, 0); // for recording
AudioConnection patch6(i2s_in, 1, recordQueueR, 0);

AudioConnection patchPeakL(i2s_in, 0, peakL, 0);
AudioConnection patchPeakR(i2s_in, 1, peakR, 0);

// playback to mixer
AudioConnection patchPlayL(playWav, 0, mixerL, 0);
AudioConnection patchPlayR(playWav, 1, mixerR, 0);

// mixer  output
AudioConnection patchOutL(mixerL, 0, i2s_out, 0);
AudioConnection patchOutR(mixerR, 0, i2s_out, 1);

// mixer  FFT
AudioConnection patchFFT(mixerL, 0, fft1, 0);

// ---------------- STATES ----------------
enum PlayerState { STOPPED,
                   PLAY,
                   SETTINGS,
                   MONITOR,
                   RECORD
                 };
PlayerState state = STOPPED;
PlayerState lastState = STOPPED; //// is this needed?

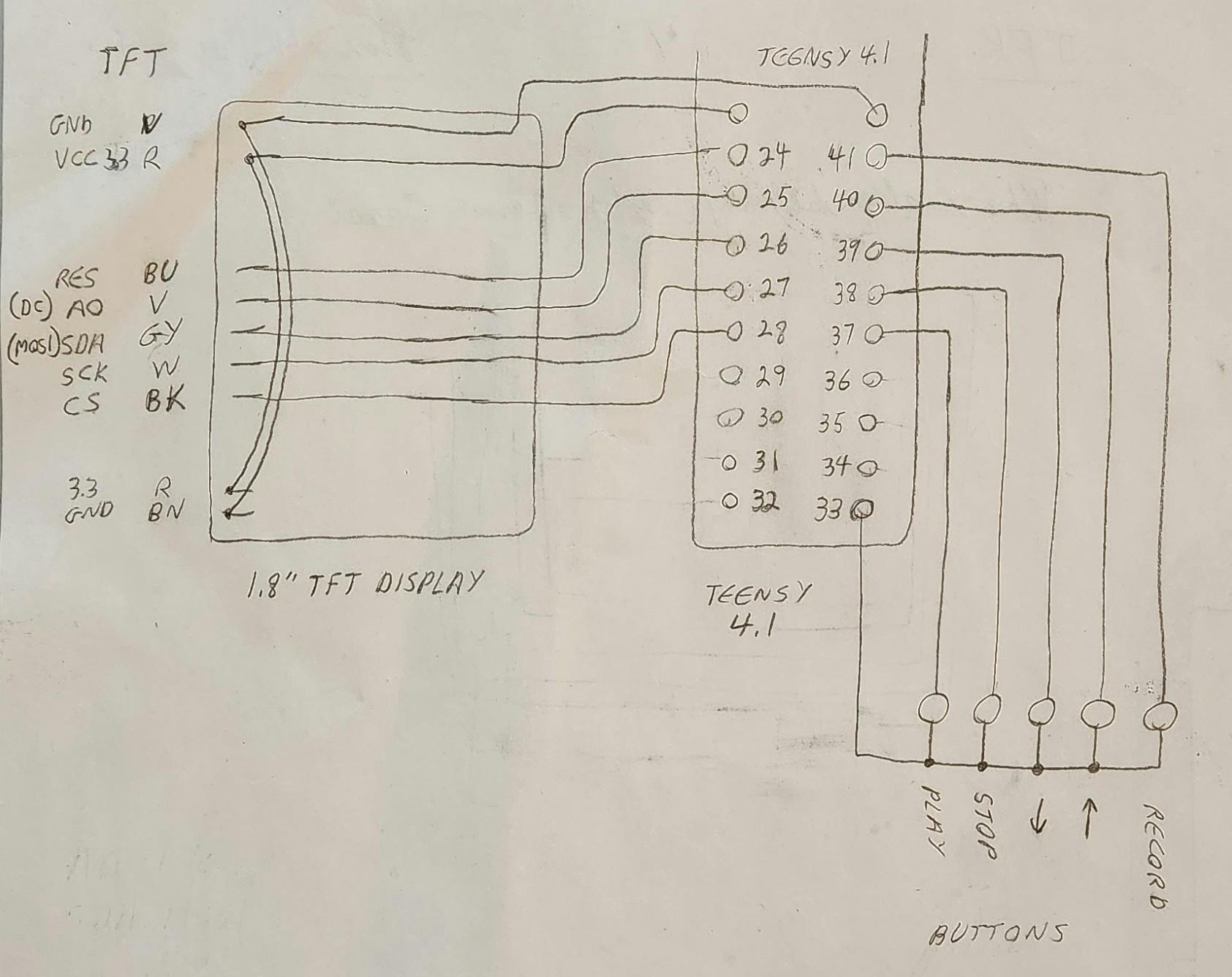

// ---------------- BUTTONS ----------------
#define BTN_STOP 37
#define BTN_PLAY 38
#define BTN_SETTINGS 39
#define BTN_MONITOR 40
#define BTN_RECORD 41
#define ENCODER_A  33
#define ENCODER_B  35

unsigned long lastPress[5] = { 0, 0, 0, 0, 0 };
const unsigned long debounce = 100;

//------------------ TFT ------------------
#define TFT_CS 28
#define TFT_DC 25
#define TFT_RST 24
#define SCREEN_WIDTH 160
#define SCREEN_HEIGHT 128
#define STATUS_HEIGHT 20
#define ST7735_PURPLE 0x780F
// 0x780F deep purple (good for status bar)
// 0x981F brighter purple
// 0x7016 darker purple
// 0xA0BF magenta-purple

// ---------------- SD & FILES ----------------
////#define SD_CS_PIN 10
#define MAX_FILES 200

char fileList[MAX_FILES][13];
int numFiles = 0;
int currentFile = -1;

bool isRecording = false;
File recordFile;

// Use SPI1 (pins 26 = MOSI, 27 = SCK)
Adafruit_ST7735 tft = Adafruit_ST7735(&SPI1, TFT_CS, TFT_DC, TFT_RST);

// ---------------- SD WRITE TIMING DEBUG ----------------
unsigned long sdWriteStart = 0;
unsigned long sdWriteMaxUs = 0;
unsigned long sdWriteTotalUs = 0;
unsigned long sdWriteCount = 0;

// block tracking
elapsedMicros timer;  // recording elapsed time. to keep track of how many blocks should have come in
unsigned long blocksReceived = 0;
unsigned long blocksWritten = 0;


#define SWEEP_SECONDS 10
#define SWEEP_SAMPLES (SWEEP_SECONDS * 34)  // ~34 peak updates per second at 44.1kHz

float peakSweep[SWEEP_SAMPLES];  // Stores combined L/R peak history
int sweepIndex = 0;
bool sweepFull = false;
unsigned long lastSweepUpdate = 0;


// ------------------FFT ----------------------
const int FFT_BARS   = 128;
const int FFT_HEIGHT = 77;
const int FFT_Y      = 52;

float fftFall[FFT_BARS];
float fftPeak[FFT_BARS];


// ---------------- PROTOTYPES ----------------
void stateStopped();
void statePlay();
void stateSettings();
void stateMonitor();
void stateRecord();

void scanFiles();
void listFiles(void);
void showStoppedUI(void);
void saveRecording();
void displayStatusLine(const char* prefix, const char* name);
void printNoExt(const char* n);
void createWavPlaceholder(File& f);
void finalizeWav(File& f);
int findNextRecNumber();
void drawPeakSweepMeter();
void updatePeakSweep();
int readEncoder();
void displayHeader();
void applySetting(int);
void drawInputBadge();
void drawInputParameter();

// ------- MISC. GLOBAL VARIABLES ---------
volatile uint32_t recordedSamples = 0;
bool useMic = false;  // starts as Line In
bool bassBoostOn = false;
bool eqSmileyOn = false;
bool hpfOn       = false;
bool autoVolOn   = false;
int micGainLevel = 25;   // Initial gain for AOM-6738P-R
bool micBiasOn = true;   // Electret mics need this ON


// ---------------- SETUP ----------------
void setup() {
  Serial.begin(115200);

  // Audio
  AudioMemory(1000);
  sgtl5000.enable();
  delay(100);  // Critical: give codec time to initialize
  sgtl5000.adcHighPassFilterDisable();
  sgtl5000.volume(0.6);
  //sgtl5000.lineInLevel(5);  // Range 015 (0 = max gain ~+30 dB, 15 = min gain 0 dB, default is 5)
  sgtl5000.lineInLevel(13);
  sgtl5000.unmuteHeadphone();
  ////sgtl5000.volume(0.8);
  ////sgtl5000.dacVolume(1.0);           // Full DAC level
  ////sgtl5000.lineOutLevel(13);         // Loudest line out (13 = max)
  sgtl5000.inputSelect(AUDIO_INPUT_LINEIN);
  mixerL.gain(0, 1.0);  // full volume for left channel
  fft1.windowFunction(AudioWindowHanning1024);
  // or AudioWindowBlackmanNuttall1024 for sharper peaks

  // I2C
  Wire.setSDA(18);
  Wire.setSCL(19);

  // TFT
  SPI1.begin();  // Start SPI1 explicitly
  tft.initR(INITR_BLACKTAB);
  tft.setRotation(3);

  // Common ground pin for the buttons
  pinMode(36, OUTPUT);
  digitalWrite(36, LOW);  // Set to ground for the buttons
  pinMode(34, OUTPUT);
  digitalWrite(34, LOW);  // Pin 35 becomes GND for the encoder

  // Button pins with internal pull-up resistors
  pinMode(BTN_STOP, INPUT_PULLUP);
  pinMode(BTN_PLAY, INPUT_PULLUP);
  pinMode(BTN_SETTINGS, INPUT_PULLUP);
  pinMode(BTN_MONITOR, INPUT_PULLUP);
  pinMode(BTN_RECORD, INPUT_PULLUP);
  pinMode(ENCODER_A, INPUT_PULLUP);
  pinMode(ENCODER_B, INPUT_PULLUP);


  // blink LED twice on startup
  pinMode(LED_BUILTIN, OUTPUT);  // Built-in LED on pin 13
  for (int i = 0; i < 2; i++) {
    digitalWrite(LED_BUILTIN, HIGH);
    delay(200);  // On for 200ms
    digitalWrite(LED_BUILTIN, LOW);
    delay(200);  // Off for 200ms
  }

  // SD card
  if (!SD.begin(BUILTIN_SDCARD)) {
    Serial.println("SD card failed");
    tft.fillScreen(ST7735_BLACK);
    tft.setTextColor(ST7735_RED);
    tft.setTextSize(2);
    tft.setCursor(0, 40);
    tft.println("   NO CARD");
    while (1)
      ;
  }
  Serial.println("SD is OK");  ////

}

// ---------------- LOOP ----------------
void loop() {
  switch (state) {
    case STOPPED: stateStopped(); break;
    case PLAY: statePlay(); break;
    case SETTINGS: stateSettings(); break;
    case MONITOR: stateMonitor(); break;
    case RECORD: stateRecord(); break;
  }
}

// ---------------- STATES ----------------
void stateStopped() {

  Serial.println("Stopped");
  displayHeader();

  // Scan files at entry
  scanFiles();  // determines number of files (numFiles)
  // Ensure there is a valid selection
  if (currentFile < 0 && numFiles > 0) currentFile = 0;
  tft.setTextColor(ST7735_YELLOW);
  tft.setTextSize(1);
  showStoppedUI();  // show list on TFT at entry


// Warn if running low on filespace
if (numFiles >= MAX_FILES-20 && MAX_FILES > 20) {
    tft.setTextColor(ST7735_YELLOW);
    tft.setCursor(80, 26);
    tft.print(MAX_FILES - numFiles);
    tft.setCursor(80, 36);
    tft.print("RECORDINGS");
    tft.setCursor(80, 46);
    tft.print("LEFT");
}

  // stopped loop
  while (1) {
    unsigned long now = millis();

    // CHECK THE BUTTONS
    if (digitalRead(BTN_PLAY) == LOW && now - lastPress[1] > debounce) {
      lastPress[1] = now;
      if (numFiles > 0) {
        state = PLAY;
        return;
      }
    }

    if (digitalRead(BTN_SETTINGS) == LOW && now - lastPress[2] > debounce) {
      lastPress[2] = now;
      state = SETTINGS;
      return;
    }
    if (digitalRead(BTN_MONITOR) == LOW && now - lastPress[3] > debounce) {
      lastPress[3] = now;
      state = MONITOR;
      return;
    }

    if (digitalRead(BTN_RECORD) == LOW && now - lastPress[4] > debounce) {
      lastPress[4] = now;
      state = RECORD;
      return;
    }

    int step = readEncoder();

    if (step != 0) {
      if (step > 0) {
        // Clockwise  scroll down
        if (currentFile < numFiles - 1) {
          currentFile++;
        }
      } else {
        // Counter-clockwise  scroll up
        if (currentFile > 0) {
          currentFile--;
        }
      }
      showStoppedUI();  // Redraw list
    }

    // SERIAL
    if (Serial.available()) {
      String s = Serial.readStringUntil('\n');
      s.trim();
      if (s == "l") {
        listFiles();
      } else if (s == "v") {
        verifyWav();
      } else
      {
        int n = s.toInt();
        if (n > 0 && n <= numFiles) {
          currentFile = n - 1;
          state = PLAY;
          return;
        }  // file count check
      }    // play command
    }      // serial commands
  }        // loop
}  // function

// -----------------------------------------------------------


void statePlay() {

  // ENTRY (runs once)

  displayHeader();

  if (playWav.isPlaying()) playWav.stop();
  playWav.play(fileList[currentFile]);
  delay(5); // A brief delay for the library to read WAV header

  // display file name
  tft.setTextColor(ST7735_GREEN);
  tft.setTextSize(1);
  tft.setCursor(0, 26);
  //tft.print(prefix);
  printNoExt(fileList[currentFile]);

  Serial.print("Playing ");
  Serial.println(fileList[currentFile]);

  // Get total length in milliseconds (WAV header has it)
  unsigned long totalMs = playWav.lengthMillis();
  unsigned long totalSec = totalMs / 1000;
  unsigned long totalMin = totalSec / 60;
  unsigned long totalS = totalSec % 60;

  unsigned long startTime = millis();   // record starting time
  unsigned long lastElapsedUpdate = 0;  // tracks when we last updated time

  // play loop
  while (1) {
    unsigned long now = millis();

    // auto-exit when playback ends
    if (!playWav.isPlaying()) {
      playWav.stop();
      Serial.println("end of song ");
      state = STOPPED;
      return;
    }

    // Check buttons and commands

    // STOP
    if (digitalRead(BTN_STOP) == LOW && now - lastPress[1] > debounce) {
      lastPress[1] = now;
      playWav.stop();
      state = STOPPED;
      return;
    }

    // SERIAL
    if (Serial.available()) {
      String s = Serial.readStringUntil('\n');
      s.trim();
      if (s == "s") {
        playWav.stop();
        state = STOPPED;
        return;
      }
    }


    // ---------- UPDATE ELAPSED TIME EVERY SECOND ----------
    if (now - lastElapsedUpdate >= 100) {
      lastElapsedUpdate = now;
      uint32_t elapsedSec = (now - startTime) / 1000;
      ;
      uint32_t min = elapsedSec / 60;
      uint32_t sec = elapsedSec % 60;

      tft.fillRect(0, 36, SCREEN_WIDTH, 20, ST7735_BLACK);  // clear previous time line
      tft.setCursor(0, 38);
      tft.print(min);
      tft.print(":");
      if (sec < 10) tft.print("0"); // 2 digits
      tft.print(sec);

      tft.print(" / ");
      tft.print(totalMin);
      tft.print(":");
      if (totalS < 10) tft.print("0"); // 2 digits
      tft.println(totalSec % 60);

      delay(5); // yield to background processes

    }

    static unsigned long lastAvailable = 0;
    static int countAvailable = 0;

    if (fft1.available()) {
      countAvailable++;
      unsigned long now = millis();
      if (now - lastAvailable > 0) {
        Serial.print("FFT available after ");
        Serial.print(now - lastAvailable);
        Serial.print(" ms  (count: ");
        Serial.print(countAvailable);
        Serial.println(")");
        lastAvailable = now;
      }
      drawFFT();
    }
  }
}

//-----------------------------------------------------------------------


void stateMonitor() {

  displayHeader();
  Serial.println("Monitor Mode");
  drawInputBadge();
  tft.setTextSize(1);
  tft.setCursor(0, 25);

  // Reset sweep for fresh graph
  sweepIndex = 0;
  sweepFull = false;
  memset(peakSweep, 0, sizeof(peakSweep));

  unsigned long lastDraw = 0;

  while (true) {
    updatePeakSweep();

    if (millis() - lastDraw > 100) {
      lastDraw = millis();
      drawPeakSweepMeter();
    }

    if (digitalRead(BTN_STOP) == LOW) {
      delay(200);
      state = STOPPED;
      return;
    }
    if (digitalRead(BTN_PLAY) == LOW) {
      delay(200);
      state = PLAY;
      return;
    }

    if (digitalRead(BTN_RECORD) == LOW) {
      delay(200);
      state = RECORD;
      return;
    }

    delay(10);
  }
}

//-------------------------------------------------------------------------

void stateRecord() {

  // ---------- ENTRY ----------

  displayHeader();

  // Make sure the system doesn't crash
  if (numFiles >= MAX_FILES) {
    tft.setTextColor(ST7735_RED);
    tft.setTextSize(1);
    tft.setCursor(0, 26);
    tft.print("FILE LIMIT REACHED");
    Serial.println("FILE LIMIT REACHED");
    delay(5000);
    state = STOPPED;
    return;
  }

  drawInputBadge();
  int n = findNextRecNumber();
  if (n == 0) {
    Serial.println("No free filenames!");
    state = STOPPED;
    return;
  }

  char name[13];
  sprintf(name, "REC%04d.WAV", n);

  tft.setTextColor(ST7735_RED);
  tft.setTextSize(1);
  tft.setCursor(2, 22);
  tft.print(name);

  Serial.print("Recording ");
  Serial.println(name);

  recordFile = SD.open(name, FILE_WRITE);
  createWavPlaceholder(recordFile);

  unsigned long startTime = millis();   // record starting time
  unsigned long lastElapsedUpdate = 0;  // tracks when we last updated time

  recordQueueL.begin();
  recordQueueR.begin();
  timer = 0;
  isRecording = true;

  sdWriteMaxUs = 0;
  sdWriteTotalUs = 0;
  sdWriteCount = 0;

  // ---------- RUN ----------
  while (1) {
    unsigned long now = millis();

    saveRecording();

    // ---------- UPDATE ELAPSED TIME EVERY SECOND ----------
    if (now - lastElapsedUpdate >= 200) {
      lastElapsedUpdate = now;
      uint32_t elapsedSec = (millis() - startTime) / 1000;
      ;
      uint32_t min = elapsedSec / 60;
      uint32_t sec = elapsedSec % 60;

      tft.fillRect(0, 35, 50, 10, ST7735_BLACK);  // clear previous time line
      tft.setCursor(0, 36);
      tft.print(min);
      tft.print(":");
      if (sec < 10) tft.print("0");
      tft.println(sec);

      updatePeakSweep();
      drawPeakSweepMeter();
    }

    // Check buttons and serial to end recording and determine next state

    // STOP button
    if (digitalRead(BTN_STOP) == LOW && now - lastPress[1] > debounce) {
      lastPress[1] = now;
      state = STOPPED;
      break;

    } // PLAY button
    if (digitalRead(BTN_PLAY) == LOW && now - lastPress[2] > debounce) {
      lastPress[1] = now;
      state = PLAY;
      break;
    }

    // MONITOR button
    if (digitalRead(BTN_MONITOR) == LOW && now - lastPress[3] > debounce) {
      lastPress[3] = now;
      state = MONITOR;
      break;
    }

    // SERIAL stop
    if (Serial.available()) {
      String s = Serial.readStringUntil('\n');
      s.trim();
      if (s == "s") {
        state = STOPPED;
        break;
      }
    }
  }
  // ---------- EXIT ----------

  recordQueueL.end();
  recordQueueR.end();
  saveRecording();

  finalizeWav(recordFile);
  uint32_t size = recordFile.size();
  recordFile.close();
  isRecording = false;

  Serial.print("Recording stopped. Bytes: ");
  Serial.println(size);

  if (sdWriteCount > 0) {
    float avg = (float)sdWriteTotalUs / sdWriteCount;
    Serial.print("SD write max: ");
    Serial.print(sdWriteMaxUs);
    Serial.print(" us, avg: ");
    Serial.println(avg, 1);
  }


  //// TEST
  scanFiles();  // Refresh the list to include the new file
  //currentFile = 0;  // Default to first file if not found (safety)
  for (int i = 0; i < numFiles; i++) {
    if (strcmp(fileList[i], name) == 0) {
      currentFile = i;
      break;
    }
  }

  // state = STOPPED;
  return;
}

//---------------------------------------------------------

void listFiles(void) {
  scanFiles();

  Serial.println("\nFiles:");
  for (int i = 0; i < numFiles; i++) {
    File f = SD.open(fileList[i]);
    Serial.print(i + 1);
    Serial.print(": ");
    Serial.print(fileList[i]);
    Serial.print(" ");
    Serial.println(f.size());
    f.close();
  }
}


//-------------------------------------------------------------------

void saveRecording() {
  static uint8_t sdBuffer[512];
  static uint16_t sdIndex = 0;

  unsigned long startTime = millis();

  while (recordQueueL.available() && recordQueueR.available()) {

    int16_t* l = recordQueueL.readBuffer();
    int16_t* r = recordQueueR.readBuffer();
    recordQueueL.freeBuffer();
    recordQueueR.freeBuffer();
    blocksWritten++;

    for (int i = 0; i < 128; i++) {
      // interleave L/R samples (16-bit each)
      sdBuffer[sdIndex++] = l[i] & 0xFF;
      sdBuffer[sdIndex++] = (l[i] >> 8) & 0xFF;
      sdBuffer[sdIndex++] = r[i] & 0xFF;
      sdBuffer[sdIndex++] = (r[i] >> 8) & 0xFF;

      // write full SD block
      if (sdIndex >= 512) {
        recordFile.write(sdBuffer, 512);
        sdIndex = 0;
      }
    }

    //if(digitalReadFast(BTN_STOP) == LOW) return; // this seems to work
    if (millis() > startTime + 200) return;  // solves both problems
  }
}


// ---------------- FILES & UI ----------------
void scanFiles() {
  numFiles = 0;
  File root = SD.open("/");
  while (true) {
    File f = root.openNextFile();
    if (!f) break;


    if (!f.isDirectory() && f.size() >= 44) strncpy(fileList[numFiles++], f.name(), 12);
    f.close();
  }
  root.close();
}

//------------------------------------------------

void printNoExt(const char* n) {
  char b[13];
  strncpy(b, n, 12);
  b[12] = 0;
  char* d = strrchr(b, '.');
  if (d) *d = 0;
  tft.print(b);
}



// ---------------- WAV ----------------
void createWavPlaceholder(File & f) {
  uint8_t h[44] = { 'R', 'I', 'F', 'F', 0, 0, 0, 0, 'W', 'A', 'V', 'E', 'f', 'm', 't', ' ', 16, 0, 0, 0, 1, 0, 2, 0, 0x44, 0xAC, 0, 0, 0x10, 0xB1, 2, 0, 4, 0, 16, 0, 'd', 'a', 't', 'a', 0, 0, 0, 0 };
  f.write(h, 44);
}



//--------------------------------------
void finalizeWav(File & f) {
  uint32_t size = f.size();
  uint32_t data = size - 44;
  uint32_t riff = size - 8;
  f.seek(4);
  f.write((uint8_t*)&riff, 4);
  f.seek(40);
  f.write((uint8_t*)&data, 4);
}


//-------------------------------------
int findNextRecNumber() {
  for (int i = 1; i <= 9999; i++) {
    char n[13];
    sprintf(n, "REC%04d.WAV", i);
    if (!SD.exists(n)) return i;
  }
  return 0;
}

//------------------------------------


void verifyWav() {
  Serial.println("\n=== WAV Header Verification ===");

  String input = Serial.readStringUntil('\n');
  input.trim();

  int fileIndex = -1;
  bool useCurrent = (input.length() == 0 || input == "v");

  if (!useCurrent) {
    fileIndex = input.toInt() - 1;
    if (fileIndex < 0 || fileIndex >= numFiles) {
      Serial.println("Invalid file number.");
      return;
    }
  } else {
    if (currentFile < 0 || currentFile >= numFiles) {
      Serial.println("No file selected.");
      return;
    }
    fileIndex = currentFile;
  }

  const char* filename = fileList[fileIndex];
  Serial.print("File: ");
  Serial.println(filename);

  File file = SD.open(filename);
  if (!file) {
    Serial.println("ERROR: Cannot open file.");
    return;
  }

  unsigned long fileSize = file.size();
  Serial.print("Reported file size (SD): ");
  Serial.print(fileSize);
  Serial.println(" bytes");

  if (fileSize < 44) {
    Serial.println("ERROR: File too small for WAV header.");
    file.close();
    return;
  }

  uint8_t header[44];
  file.read(header, 44);
  file.close();

  bool valid = true;

  if (memcmp(header, "RIFF", 4) != 0) {
    valid = false;
    Serial.println("FAIL: Missing 'RIFF'");
  }
  else Serial.println("OK: 'RIFF' chunk");

  uint32_t riffSize = header[4] | (header[5] << 8) | (header[6] << 16) | (header[7] << 24);
  Serial.print("RIFF size field: ");
  Serial.print(riffSize);
  Serial.print(" (0x");
  Serial.print(riffSize, HEX);
  Serial.println(")  implied total file size = RIFF + 8");

  if (memcmp(header + 8, "WAVE", 4) != 0) {
    valid = false;
    Serial.println("FAIL: Missing 'WAVE'");
  }
  else Serial.println("OK: 'WAVE' format");

  // Skip fmt checks for brevity (keep your existing ones)

  if (memcmp(header + 36, "data", 4) != 0) {
    valid = false;
    Serial.println("FAIL: Missing 'data' chunk");
  }
  else Serial.println("OK: 'data' chunk present");

  uint32_t dataSize = header[40] | (header[41] << 8) | (header[42] << 16) | (header[43] << 24);
  Serial.print("Data size field: ");
  Serial.print(dataSize);
  Serial.print(" (0x");
  Serial.print(dataSize, HEX);
  Serial.println(")  implied audio bytes");

  // Compare sizes
  long diff = riffSize - dataSize;
  Serial.print("Difference (RIFF - data): ");
  Serial.print(diff);
  Serial.print(" bytes");
  if (diff == 36) {
    Serial.println("  EXACTLY 36 (standard, no extra chunks)");
  } else {
    Serial.print("  NOT 36 (");
    if (diff > 36) Serial.print("extra chunks or padding");
    else Serial.print("data field too small");
    Serial.println(")");
  }

  if (fileSize == 44) {
    Serial.println("ERROR: No audio data. Header only");
  }

  Serial.print("\n=== RESULT: ");
  if (valid) {
    Serial.println("VALID CD-QUALITY WAV HEADER ===");
  } else {
    Serial.println("INVALID HEADER ===");
  }

}



//-----------------------------------------
void updatePeakSweep() {
  unsigned long now = millis();
  if (now - lastSweepUpdate < 29) return;  // ~34 Hz update
  lastSweepUpdate = now;

  if (peakL.available() && peakR.available()) {
    float linear = max(peakL.read(), peakR.read());  // 0.01.0

    // Convert to dB (-60 dB to 0 dB range)
    float db = (linear > 0.0001) ? 20.0 * log10(linear) : -60.0;

    // Normalize to 0.0 (quiet) to 1.0 (0 dB)
    float normalized = max(0.0, (db + 60.0) / 60.0);

    ////float normalized = 0.0;  // TEST: Force absolute zero  line at bottom////

    peakSweep[sweepIndex] = normalized;

    sweepIndex++;
    if (sweepIndex >= SWEEP_SAMPLES) {
      sweepIndex = 0;
      sweepFull = true;
    }
  }
}

// --- Draw with clipping highlight ---
void drawPeakSweepMeter() {
  const int x = 4;
  const int y = 60;          // Start lower to leave room for text above
  const int w = SCREEN_WIDTH - 8;
  const int h = 60;          // Height fits below text

  // Clear only the graph area
  tft.fillRect(x, y - 5, w, h, ST7735_BLACK);

  // Draw blue border box
  // tft.drawRect(x, y, w, h, ST7735_BLUE);

  // Draw blue border OUTSIDE the graphing area
  tft.drawRect(x - 1, y - 4, w + 4, h + 4, ST7735_BLUE);
  ////tft.drawRect(x - 1, y - 1, w + 2, h + 2, ST7735_BLUE);  // Border outside graphing area

  int samples = sweepFull ? SWEEP_SAMPLES : sweepIndex;
  int start = sweepFull ? sweepIndex : 0;

  for (int i = 1; i < samples; i++) {
    int idx1 = (start + i - 1) % SWEEP_SAMPLES;
    int idx2 = (start + i)     % SWEEP_SAMPLES;

    int px1 = x + (i - 1) * w / SWEEP_SAMPLES;
    int px2 = x + i       * w / SWEEP_SAMPLES;

    // Pull quiet line 2 pixels above bottom
    int py1 = y + h - (int)(peakSweep[idx1] * h) - 2;
    int py2 = y + h - (int)(peakSweep[idx2] * h) - 2;

    uint16_t color = ST7735_YELLOW;
    if (peakSweep[idx2] >= 0.95) color = ST7735_RED;

    tft.drawLine(px1, py1, px2, py2, color);
  }

  // Current peak marker  erase old, draw new (no trail)
  if (samples > 0) {
    static int lastX = -1;
    static int lastY = -1;

    int currentIdx = (start + samples - 1) % SWEEP_SAMPLES;
    int currentX = x + (samples - 1) * w / SWEEP_SAMPLES;
    int currentY = y + h - (int)(peakSweep[currentIdx] * h) - 2;

    // Keep marker inside graph
    currentX = constrain(currentX, x + 4, x + w - 4);
    currentY = constrain(currentY, y + 4, y + h - 4);

    // Erase previous marker
    if (lastX != -1) {
      tft.fillCircle(lastX, lastY, 5, ST7735_BLACK);  // Slightly larger erase
    }

    // Draw new marker
    uint16_t markerColor = (peakSweep[currentIdx] >= 0.95) ? ST7735_RED : ST7735_CYAN;
    tft.fillCircle(currentX, currentY, 3, markerColor);

    lastX = currentX;
    lastY = currentY;
  }
}

//-------------------------------------------

void showStoppedUI() {
  const int MAX_VISIBLE = 9;
  const int LINE_HEIGHT = 12;
  const int START_Y = 22;

  // Auto-center selection
  int idealOffset = currentFile - MAX_VISIBLE / 2;
  idealOffset = max(0, min(idealOffset, numFiles - MAX_VISIBLE));
  int scrollOffset = idealOffset;

  tft.fillRect(0, START_Y, SCREEN_WIDTH, SCREEN_HEIGHT - START_Y, ST7735_BLACK);

  tft.setTextSize(1);
  tft.setTextColor(ST7735_WHITE);

  int y = START_Y;
  int startIdx = scrollOffset;
  int endIdx = min(numFiles, scrollOffset + MAX_VISIBLE);

  for (int i = startIdx; i < endIdx; i++) {
    tft.setCursor(4, y);

    if (i == currentFile) {
      tft.setTextColor(ST7735_GREEN);
      tft.print("> ");
    } else {
      tft.setTextColor(ST7735_WHITE);
      tft.print("  ");
    }

    printNoExt(fileList[i]);
    tft.println();

    y += LINE_HEIGHT;
  }

  // Scroll indicators
  if (scrollOffset > 0) {
...

This file has been truncated, please download it to see its full contents.
