Flipcard for M5Stack PaperS3

Flipcard - A Single-purpose E-paper Learning Device

In today's digital world, our most common learning tools, like smartphones and tablets, are also our biggest sources of distraction. Just when you're focused on studying, a notification pops up, and your concentration is broken. This constant battle for focus, combined with eye strain from bright screens and batteries that die in hours, makes effective learning a real struggle.

This project was born from a simple question: What if I built a tool designed purely for learning?. I created Flipcard, a single-purpose e-paper flashcard device dedicated to helping you master languages and concepts through focused, uninterrupted study.

The Hardware: A Compact and Complete IoT Platform

This project is built around the M5Stack PaperS3, a self-contained development kit. I chose this platform because it provides all the necessary components in one compact package, simplifying the development process significantly.

Key integrated features include:

• ESP32-S3 Microcontroller: A powerful core that handles all the logic. It also includes built-in Wi-Fi and Bluetooth, providing powerful connectivity options for future features.
• E-Paper Display: The 4.7" screen is easy on the eyes and extremely power-efficient.
• Integrated SD Card Slot: Allows for easy management and swapping of flashcard content.
• Built-in Buttons & Battery: The device is ready to use out of the box for user input and portability.

Essentially, the M5Stack PaperS3 is a complete and compact IoT platform, making it the perfect foundation for this focused learning device.

How It Works: Smart and Flexible Software

Flipcard's software is designed to be both powerful and easy to use, giving the user full control over their learning experience.

• Fully Customizable via SD Card: The entire device experience is controlled by files on the SD card, making it highly customizable. The structure is managed from a main ./flipcard directory which points to the individual flashcard folders. Each folder contains its own JSON data file and all associated content—including the main image, thumbnail, and even the text and pronunciation guides—stored as separate images. This customizability also extends to the user interface; core images for the main menu and the screensaver can be easily changed by simply replacing the image files on the SD card.

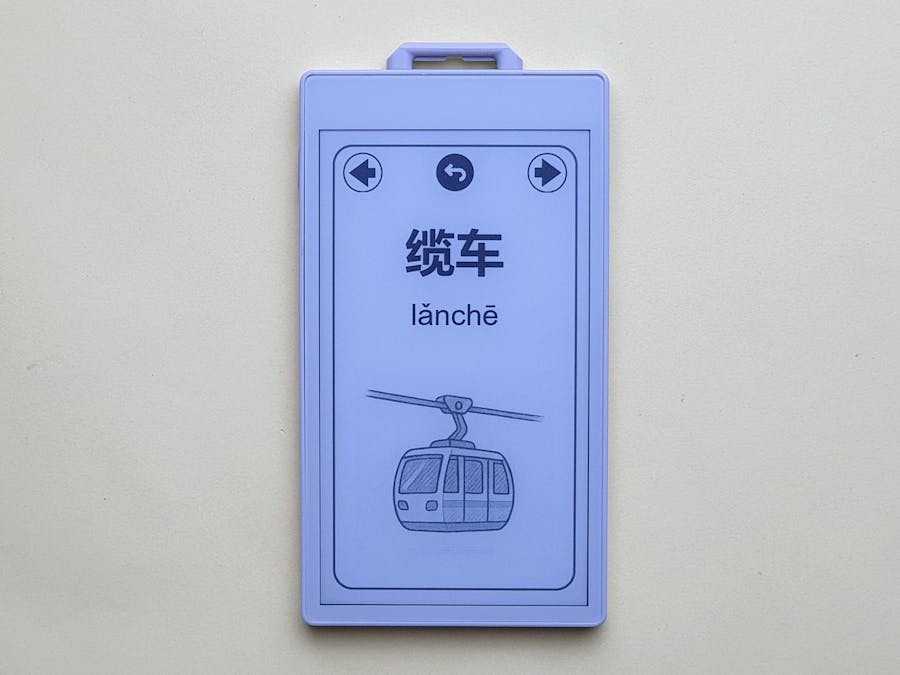

• Intuitive Navigation: Upon startup, the user can browse different categories of flashcards. After selecting a category, they choose a starting image and can then navigate through the cards using "next" and "previous" buttons.
• Interactive and Personalized Learning:
• -Tap-to-Switch Language: While viewing a card, a single tap on the text instantly switches it to the next language in the sequence, allowing for active self-quizzing.
• -Default Language Setting: The user can set a default language to streamline their study sessions.
• Random Mode: For a more challenging practice, a random mode is available to test knowledge in a non-sequential order.
• Power Saving: The software includes a deep sleep feature. The device automatically enters a low-power mode after five minutes of inactivity, extending the battery life significantly.

The Core Philosophy: One Job, Done Perfectly

The single most important design choice is its simplicity. The device runs only one application. It has only one job: to help you learn as effectively as possible. By removing all digital distractions, Flipcard allows for a return to a more intentional and powerful way of learning.

Future Possibilities

The M5Stack PaperS3 is a highly capable platform, and I chose it with future expansion in mind.

• Multi-App Functionality: The ESP32-S3 supports multiple partitions. In the future, this device could be transformed into a multi-app tool. I have already experimented with a root menu that would allow users to switch between different applications—like a bible app, pomodoro timer, calendar, or this Flipcard app—all on the same device. (I attach the demo for multiple apps below).
• Online Connectivity & OTA Updates: While the current version of Flipcard is intentionally offline, the built-in Wi-Fi is a key feature for future development. It could be used to download new flashcard sets from an online service or sync learning progress to a cloud account. Crucially, it would also enable Over-the-Air (OTA) firmware updates, allowing users to get the latest features and bug fixes seamlessly without connecting the device to a computer.
• Deeper Learning Features: The experience could be enhanced with more in-depth content. For example, a "click for more info" feature could be implemented to display contextual details about a card, such as how a Chinese character is formed or used in a sentence. Additionally, a QR code could be generated for each card, linking to a website to hear the correct audio pronunciation.
