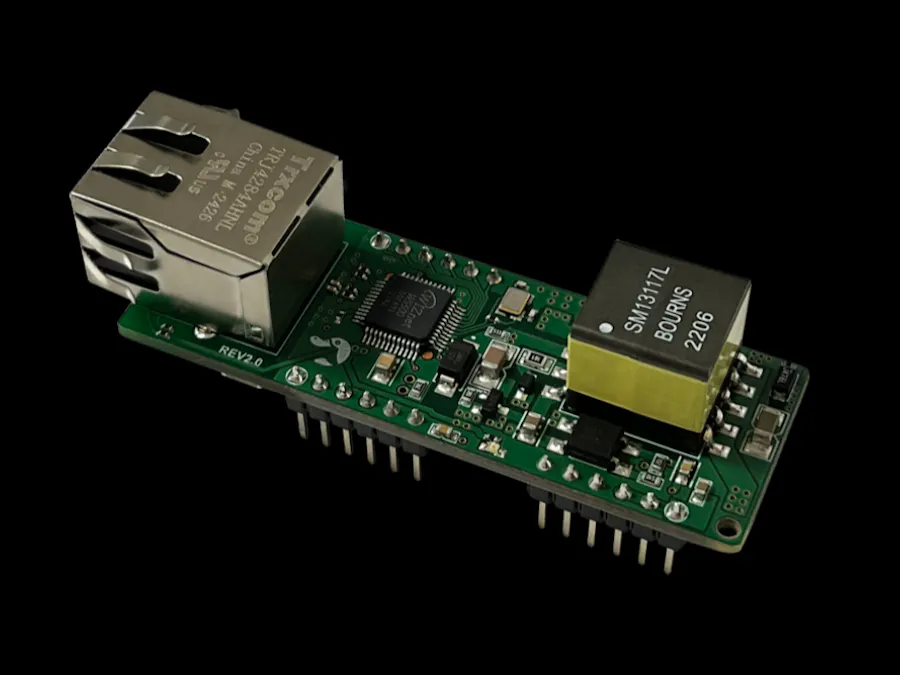

W5500 PoE Ethernet Module for Embedded IoT Projects

Why I built this board

Adding wired Ethernet to an embedded project is not always the hardest part by itself.In real product design, the bigger challenge is integrating networking, power delivery, protection, isolation, and limited PCB space into one practical system.

I created the PP-W5500-POE to reduce that integration effort.The goal was to build a compact Ethernet module that can be added to embedded systems without forcing developers to redesign the power stage or spend too much board area on networking.

This board combines a W5500 Ethernet controller with PoE support, allowing both power and data to be delivered through a single Ethernet cable when deployment simplicity matters.

What it is

This module is based on the WIZnet W5500, which provides hardwired TCP/IP capability for embedded applications.It supports 8 independent hardware sockets, includes 32 KB of TX/RX buffer memory, and connects to a host MCU through SPI.

On the power side, it supports PoE, making it easier to integrate both wired networking and power delivery in compact embedded devices.

Design goals

The main design goals were simple:

• Make wired Ethernet easier to add to embedded devices
• Support PoE so power and data can share one cable
• Keep the module compact for space-constrained products
• Make integration more practical in real applications
• Reduce the need for extra external circuitry

Because of these goals, this is not just an Ethernet board.It is better described as a practical W5500 PoE module for embedded network integration.

Why wired Ethernet still matters

Wireless connectivity is convenient, but wired Ethernet still makes sense in many embedded applications.Industrial equipment, fixed-location devices, gateways, control terminals, and building automation products often benefit from stable connectivity and simpler maintenance.

PoE makes deployment even easier by reducing wiring complexity.Instead of treating networking and power as separate design tasks, this module helps combine them in one compact implementation.

Typical use cases

This module is well suited for applications such as:

• Industrial monitoring nodes
• Ethernet sensor gateways
• Access control terminals
• Small HMI and controller interfaces
• Building automation devices
• Retrofit projects that need wired network connectivity

Why it is practical for developers

From a developer’s point of view, the biggest advantage is that several required functions are already combined in one module:

• W5500-based Ethernet interface
• PoE input support
• Power integration
• Compact form factor
• Easy connection to embedded systems through SPI

This helps reduce external design effort and can shorten bring-up time in both prototypes and finished products.

Closing thoughts

This board was designed for developers who want a more practical path to wired embedded networking.By combining Ethernet and power in a compact module, it helps simplify integration in real embedded systems where size, wiring simplicity, and reliable connectivity matter.
