Fast IR Game by mgbig V1.0
*/
#include <IRremote.h>
#include <Wire.h>
#include <LiquidCrystal_I2C.h>
char up = 3;
char down = 1;
char ok = 2;
// Define 3 characters for the LCD Display
byte up1[8] = {
B00100,
B01110,
B10101,
B00100,
B00100,
B00100,
B00100,
B00100
};
byte down1[8] = {
B00100,
B00100,
B00100,
B00100,
B00100,
B10101,
B01110,
B00100
};
byte ok1[8] = {
B01110,
B01010,
B01110,
B10000,
B10100,
B11000,
B10100,
B10010
};
int RECV_PIN = 11; // IR Sensor on Pin 11
char* howtoplay[23] = {

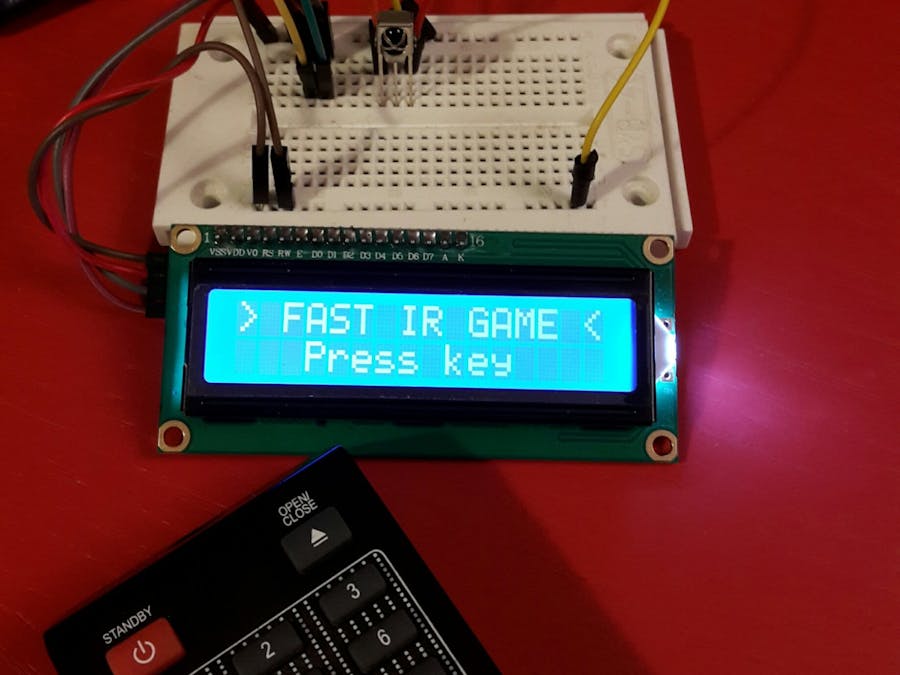

"> FAST IR GAME <",
" Press key ",
"You have to", // if you don't want this howToPlay you can delete from here ...
"press the key,",
"that you see on",
"the screen, when",
"it is beetween",
"the fences (#).",
"It ist getting",
"faster and there",
"will be symbols",
"that you do not",
"have to hit!",
"Try to get to",
"Level 10 and win",
"the game. Before",
"you start, you",
"have to define",
"the keys on your",
"remote control",
"to play the game", // ... until here. Leave the last lines for propper work!
" Have fun !!",
""
};
String keyNames[] = {"up", "down", "right", "left", "ok", "+", "-", "#", "*"};
String keySymb[] = {"", "", "", "", "", "", "", "", ""};
long keys[] = {1, 2, 3, 4, 5, 6, 7, 8, 9};
int keycount = 7;
int lev;
int xpos = 1;
int xadd = 1;
int xleft;
int xright;
int xstart = 0;
int xend = 15;
int actSym = 0;
int score; // All together score
int scorePerLev; // Symbols in actual level
int scoreNextLev = 50; // Symbols until next level
int gameState = -1;
bool pressed = false;
IRrecv irrecv(RECV_PIN);
decode_results results;
LiquidCrystal_I2C lcd(0x27, 16, 2); // set the LCD address to 0x27 for a 16 chars and 2 line display
void setup()
{
Serial.begin(9600);
lcd.init(); // initialize the lcd
lcd.backlight();
lcd.createChar(up, up1);
lcd.createChar(down, down1);
lcd.createChar(ok, ok1);
keySymb[0] = "\3";
keySymb[1] = "\1";
keySymb[2] = "\176";
keySymb[3] = "\177";
keySymb[4] = "\2";
keySymb[5] = "+";
keySymb[6] = "-";
keySymb[7] = "#";
keySymb[8] = "*";
irrecv.enableIRIn(); // Start the receiver
info(); //howtoplay show once at the start, can be removed when you know how to play
randomSeed(analogRead(1));
}
void loop()
{
// define keys only once
// gameState= -1
// ################################
if (gameState == -1) {
lcd.clear();
lcd.setCursor(0, 0);
lcd.print("Define Keys to");
lcd.setCursor(0, 1);
lcd.print("play the game...");
delay(3000);
pressed = false;
for (int i = 0; i < keycount; i++) { // 0 und 5
pressed = false;
lcd.clear();
lcd.setCursor(0, 0);
lcd.print("Key for:");
lcd.print(keyNames[i]);
while (pressed != true) {
if (irrecv.decode(&results)) {
keys[i] = results.value;
lcd.setCursor(0, 1);
lcd.print(" ok!");
Serial.println(keys[i]);
delay(500);
irrecv.resume(); // Receive the next value
pressed = true;
}
}
pressed = false;
lcd.clear();
lcd.setCursor(0, 0);
lcd.print("Repaet key!");
lcd.print(keyNames[i]);
irrecv.resume();
while (pressed != true) {
if (irrecv.decode(&results)) {
if (keys[i] == results.value) {
lcd.setCursor(0, 1);
lcd.print("is the same!");
delay(500);
pressed = true;
} else {
lcd.setCursor(0, 1);
lcd.print("wrong!");
delay(500);
lcd.setCursor(0, 1);
lcd.print(" ");
}
irrecv.resume();
}
}
}
gameState = 0; // ok to select level
lcd.clear();
lcd.setCursor(0, 0);
lcd.print("Keys done!");
delay(2000);
}
// Select Level
// gameState=0
//###########################
if (gameState == 0) {
lev = 1;
lcd.clear();
lcd.setCursor(0, 0);
lcd.print("Select Level+ok");
lcd.setCursor(0, 1);
lcd.print("Level: ");
lcd.print(lev);
irrecv.resume();
pressed = false;
Serial.println("Level");
Serial.println(pressed);
while (pressed != true) {
if (irrecv.decode(&results)) {
Serial.println(results.value);
if (results.value == keys[0]) lev++;
if (results.value == keys[1]) lev--;
if (results.value == keys[4]) pressed = true;
if (lev < 1) lev = 1;
if (lev > 10) lev = 10;
lcd.setCursor(7, 1);
lcd.print(lev);
lcd.print(" ");
irrecv.resume();
}
delay(250);
}
lcd.setCursor(0, 0);
lcd.print("Ok! Play in ");
delay(2000);
lcd.clear();
gameState = 1; // Main gameplay
score = 0;
scorePerLev = 0;
keycount = 7;
xleft = 4;
xright = 11;
drawField("");
irrecv.resume();
Serial.println("Level Set");
}
// Main Game
// gameState=1
//###############################
if (gameState == 1) {
xpos = 0;
xadd = 1;
int k = 0;
bool rightkey = false;
pressed = false;
actSym = floor(random(0, keycount));
while (pressed != true) {
Serial.println(xpos);
if (irrecv.decode(&results)) {
for (int i = 0; i < keycount; i++) {
if (results.value == keys[i]) {
rightkey = true;
k = i;
}
}
if (rightkey == true) {
scorePerLev++;
if (xpos <= xleft || xpos >= xright) {
score = score - (4 + lev);
// negativ sound
}
if (actSym == k) {
lcd.setCursor(xpos, 1);
lcd.print(" ");
score++;
drawField("");
changeDirection();
} else {
score = score - (2 + lev);
drawField(" :( ");
// negativ sound
}
actSym = floor(random(0, keycount));
rightkey = false;
}
delay(10);
irrecv.resume();
if (scorePerLev == scoreNextLev) {
scorePerLev = 0;
lev++;
drawField("");
if (lev < 11) {
lcd.setCursor(0, 1);
lcd.print("Next level!");
waitForOK();
// Check for score and display message here later
lcd.setCursor(0, 1);
lcd.print(" ");
} else {
gameState = 5;
pressed = true;
}
}
}
lcd.setCursor(xpos, 1);
lcd.print(" ");
xpos = xpos + xadd;
if (xpos == xend + 1 || xpos == xstart - 1) {
if (actSym < 7) {
score = score - (2 * (lev + 5));
drawField(" :( ");
} else {
drawField("");
}
changeDirection();
actSym = floor(random(0, keycount));
// negativ sound
}
lcd.setCursor(xpos, 1);
lcd.print(keySymb[actSym]);
delay(200 - (lev * 10));
if (score < 0) {
gameState = 9;
pressed = true;
}
} // Main Game loop End
}
// Win
// ##################
if (gameState == 5) {
// positiv sound
lcd.setCursor(0, 1);
lcd.print("You win the Game");
lcd.setCursor(0, 0);
lcd.print("Bravo! ");
waitForOK();
gameState = 0;
}
// Game Over
// ##################
if (gameState == 9) {
// negativ sound
for (int i = 0; i < 5; i++) {
lcd.setCursor(0, 1);
lcd.print(" ");
delay(200);
lcd.setCursor(0, 1);
lcd.print(" Game over! ");
delay(300);
}
waitForOK();
gameState = 0;
}
}
void info () {
int i = 0;
while (howtoplay[i] != "") {
lcd.clear();
lcd.setCursor(0, 0);
lcd.print(howtoplay[i]);
lcd.setCursor(0, 1);
lcd.print(howtoplay[i + 1]);
delay(300);
waitForKey();
i++;
}
irrecv.resume();
}
void drawField(String empty) {
Serial.println("drawField");
int SCur;
if (empty == "") empty = " ";
lcd.setCursor(0, 0);
lcd.print("################");
if (lev > 3) {
xleft = floor(random(4, 7));
xright = xleft + 7;
if (lev > 6) xright = xleft + 6;
if (lev > 9) xright = xleft + 5;
}
if (lev > 4) keycount = 8;
if (lev > 6) keycount = 9;
lcd.setCursor(xleft + 1, 0);
lcd.print(empty.substring(0, xright - xleft - 1));
lcd.setCursor(0, 0);
lcd.print("L");
lcd.print(lev);
if (score < 1000) SCur = 13;
if (score < 100) SCur = 14;
if (score < 10) SCur = 15;
if (score < 0) SCur = 14;
lcd.setCursor(SCur, 0);
lcd.print(score);
}
void changeDirection() {
xpos = xstart;
xadd = 1;
if (lev > 3) {
int dir = floor(random(0, 2));
if (dir == 1) {
xpos = xend;
xadd = -1;
}
}
}
void waitForKey () {
bool press = false;
irrecv.resume();
while (press == false) {
if (irrecv.decode(&results)) {
if (results.value != 0) press = true;
irrecv.resume();
delay(200);
}
}
}
void waitForOK() {
delay(1000);
bool press = false;
irrecv.resume();
while (press == false) {
if (irrecv.decode(&results)) {
if (results.value == keys[4]) press = true;
irrecv.resume();
delay(200);
}
}
}
