Temperature and Humidity Sensing System

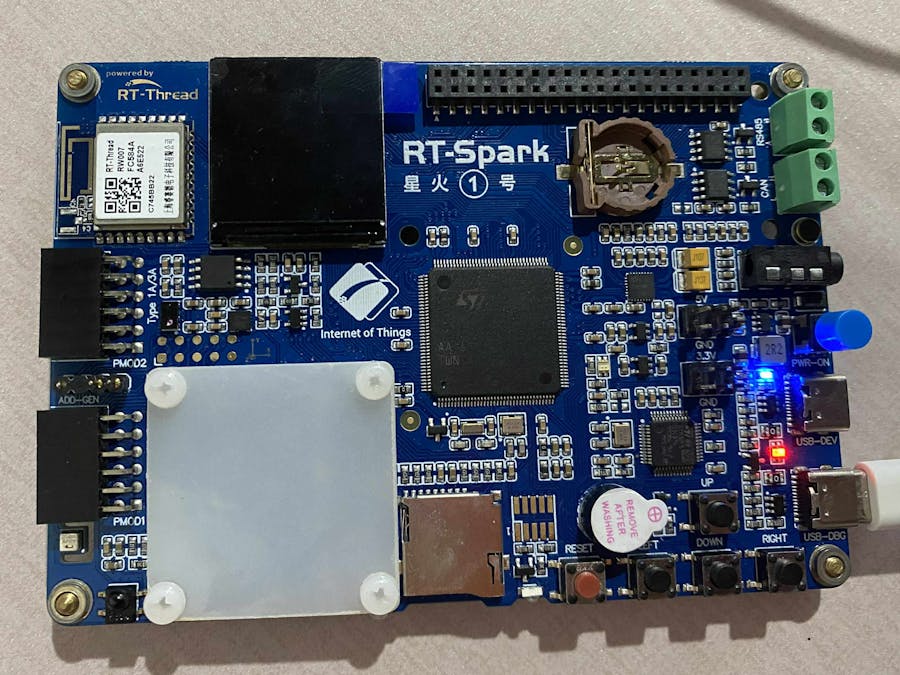

This project focuses on building a simple yet functional embedded system that measures environmental conditions and displays them in real time. Using the RT‑Spark Development Board as the main controller, the system reads temperature and humidity data from an AHT21 digital sensor and outputs the results to the board’s LCD module.

📘How does it work?

1. Configuring the microcontroller pins and peripherals

First, set up all the hardware needed for the system:

• GPIO pins for the LCD backlight, LCD reset, and the AHT21 sensor’s I²C lines
• FSMC (Flexible Static Memory Controller) to communicate with the LCD using an 8‑bit data bus
• System clock so the microcontroller runs at a stable frequency

This ensures the RT‑Spark board can physically communicate with both the LCD and the AHT21 sensor.

2. Initialized the LCD and drew the user interface

Using the LCD driver library:

• Turn on and clear the LCD
• Draw borders and labels (“Temp:”, “Hum:”, etc.)
• Prepare the screen for real‑time updates

Through this, the project is now clean and has a readable display layout.

Open the link provided to view the video.

https://drive.google.com/file/d/15B-uErS99z5m-w3o4puS2uvTAZjHZgk7/view?usp=sharing

Summary
