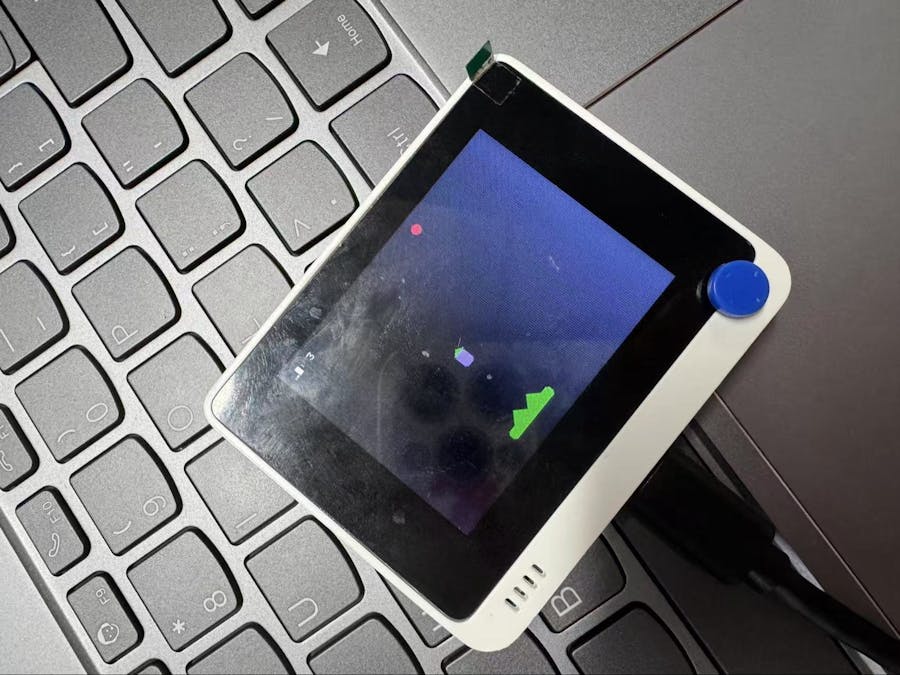

Fruit Harvest Game Using Arduino IDE and Wio Terminal

<TFT_eSPI.h>
#include <Seeed_FS.h>
#include "SD/Seeed_SD.h"
#include "TFT_eSPI.h"

TFT_eSPI tft;

// 游戏变量
int basketX = 100;
int fruitX, fruitY;
int fruitSpeed = 3;
int score = 0;
int lives = 3;
int gameLevel = 1;
bool gameRunning = false;
int fruitType;  // 0=苹果, 1=香蕉, 2=草莓

// 颜色定义
#define FRUIT_RED 0xFB00
#define FRUIT_YELLOW 0xFFE0
#define FRUIT_PINK 0xFDDF

void setup() {
  Serial.begin(115200);
  tft.begin();
  tft.setRotation(3);

  // 初始化摇杆和按钮
  pinMode(WIO_5S_LEFT, INPUT);
  pinMode(WIO_5S_RIGHT, INPUT);
  pinMode(WIO_KEY_A, INPUT);


  // 显示开始界面
  showStartScreen();
}

void loop() {
  if (!gameRunning) {
    if (digitalRead(WIO_KEY_A) == LOW) {
      startGame();
    }
    return;
  }

  // 游戏主循环
  tft.fillScreen(TFT_BLACK);

  // 1. 绘制游戏信息
  drawGameInfo();

  // 2. 绘制篮子
  drawBasket();

  // 3. 绘制水果
  drawFruit();

  // 4. 水果掉落逻辑
  fruitY += fruitSpeed;
  if (fruitY > 240) {
    missFruit();
    createNewFruit();
  }

  // 5. 碰撞检测
  if (fruitY >= 200 && abs(fruitX - basketX) < 30) {
    catchFruit();
    createNewFruit();
  }

  // 6. 控制篮子移动
  if (digitalRead(WIO_5S_LEFT) == LOW && basketX > 0) {
    basketX -= 6;
  }
  if (digitalRead(WIO_5S_RIGHT) == LOW && basketX < 200) {
    basketX += 6;
  }

  // 7. 游戏难度调整
  if (score > gameLevel * 5) {
    gameLevel++;
    fruitSpeed += 1;
  }

  delay(30);
}

// 显示开始界面
void showStartScreen() {
  tft.fillScreen(TFT_BLACK);
  tft.setTextColor(TFT_WHITE);
  tft.drawString("快乐接果果", 60, 50);
  tft.drawString("用摇杆左右移动", 50, 100);
  tft.drawString("接住掉落的水果", 60, 130);
  tft.drawString("按A键开始游戏", 60, 180);
}

// 开始新游戏
void startGame() {
  score = 0;
  lives = 3;
  gameLevel = 1;
  fruitSpeed = 3;
  gameRunning = true;
  createNewFruit();
}

// 创建新水果
void createNewFruit() {
  fruitX = random(20, 220);
  fruitY = 0;
  fruitType = random(0, 3);  // 随机选择水果类型
}

// 绘制游戏信息
void drawGameInfo() {
  tft.setTextColor(TFT_WHITE);
  tft.drawString("分数: " + String(score), 10, 10);

  // 绘制生命值
  for (int i = 0; i < lives; i++) {
    tft.fillCircle(200 + i * 20, 15, 5, TFT_RED);
  }
}

// 绘制篮子
void drawBasket() {
  tft.fillRoundRect(basketX, 210, 60, 10, 3, TFT_GREEN);
  tft.fillTriangle(basketX+10, 210, basketX+20, 200, basketX+30, 210, TFT_GREEN);
  tft.fillTriangle(basketX+30, 210, basketX+40, 200, basketX+50, 210, TFT_GREEN);
}

// 绘制水果
void drawFruit() {
  switch(fruitType) {
    case 0: // 苹果
      tft.fillCircle(fruitX, fruitY, 10, FRUIT_RED);
      tft.fillCircle(fruitX+3, fruitY-8, 3, TFT_GREEN);
      break;
    case 1: // 香蕉
      tft.fillRoundRect(fruitX-8, fruitY-5, 16, 10, 5, FRUIT_YELLOW);
      break;
    case 2: // 草莓
      tft.fillRoundRect(fruitX-6, fruitY-8, 12, 16, 3, FRUIT_PINK);
      tft.fillTriangle(fruitX-6, fruitY-8, fruitX, fruitY-12, fruitX+6, fruitY-8, TFT_GREEN);
      break;
  }
}

// 接住水果
void catchFruit() {
  score++;
}

// 错过水果
void missFruit() {
  lives--;

  if (lives <= 0) {
    gameOver();
  }
}

// 游戏结束
void gameOver() {
  gameRunning = false;
  tft.fillScreen(TFT_BLACK);
  tft.setTextColor(TFT_RED);
  tft.drawString("游戏结束", 70, 80);
  tft.setTextColor(TFT_WHITE);
  tft.drawString("最终分数: " + String(score), 80, 120);
  tft.drawString("按A键重新开始", 60, 160);
}
