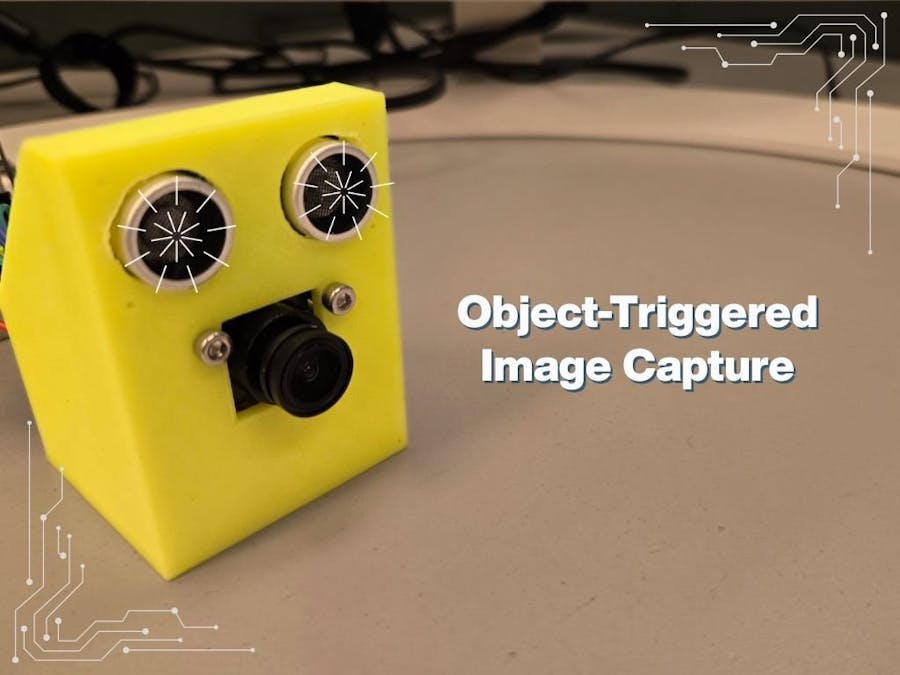

Object-Triggered Image Capture

An object-triggered camera system that automatically captures and serves images over Ethernet when objects are detected within 20 centimeter

Full instructions provided9
Object-Triggered Image Capture

Things used in this project

Hardware components

WIZnet W6300-EVB-PICO2
×1
OV2640 Camera Module
×1
Ultrasonic Sensor - HC-SR04 (Generic)
Ultrasonic Sensor - HC-SR04 (Generic)
×1
Resistor 10k ohm
Resistor 10k ohm
×4
Jumper wires (generic)
Jumper wires (generic)
×1
Breadboard (generic)
Breadboard (generic)
×1
USB Cable, USB Type C Plug
USB Cable, USB Type C Plug
×1

Software apps and online services

Thonny
Circuit Python

Story

Read more

Schematics

Circuit Diagram

Code

Code

Python
import time
import gc
import board
import busio
import digitalio
import wiznet
from adafruit_wiznet5k.adafruit_wiznet5k import WIZNET5K
import adafruit_wiznet5k.adafruit_wiznet5k_socketpool as socketpool
import adafruit_ov2640
import adafruit_hcsr04

print("W6300 Object Detection Camera")

MY_MAC = "00:08:DC:03:04:05"
#MY_MAC = "00:01:02:03:04:05"

led = digitalio.DigitalInOut(board.LED)
led.direction = digitalio.Direction.OUTPUT
led.value = False

ethernetRst = digitalio.DigitalInOut(board.W5K_RST)
ethernetRst.direction = digitalio.Direction.OUTPUT

cs = digitalio.DigitalInOut(board.W5K_CS)

# Reset W6300
ethernetRst.value = False
time.sleep(1)
ethernetRst.value = True
time.sleep(1)

# SPI setup
spi_bus = wiznet.PIO_SPI(
    board.W5K_SCK,
    quad_io0=board.W5K_MOSI,
    quad_io1=board.W5K_MISO,
    quad_io2=board.W5K_IO2,
    quad_io3=board.W5K_IO3
)

# Initialize Ethernet
eth = WIZNET5K(spi_bus, cs, is_dhcp=True, mac=MY_MAC, debug=False)
ip_address = eth.pretty_ip(eth.ip_address)
print(f"IP Address: {ip_address}")

# Camera setup
print("Initializing camera...")
i2c = busio.I2C(board.GP9, board.GP8)

cam = adafruit_ov2640.OV2640(
    i2c,
    data_pins=[board.GP0, board.GP1, board.GP2, board.GP3,
              board.GP4, board.GP5, board.GP6, board.GP7],
    clock=board.GP10,
    vsync=board.GP12,
    href=board.GP11,
    reset=board.GP13,
    mclk_frequency=20_000_000,
)

# Configure camera
cam.size = adafruit_ov2640.OV2640_SIZE_SVGA
cam.colorspace = adafruit_ov2640.OV2640_COLOR_JPEG
cam.test_pattern = False
time.sleep(2)

print("Camera configured: SVGA JPEG")

# Ultrasonic sensor setup
sonar = adafruit_hcsr04.HCSR04(
    trigger_pin=board.GP27,
    echo_pin=board.GP26,
    timeout=0.5
)

# Frame buffer
frame_buffer = bytearray(40 * 1024)

# Detection threshold (20 cm)
DETECTION_THRESHOLD = 20.0

# Store the latest detected image and distance
latest_detection_image = None
current_distance = None
show_image = False
last_detection_time = 0
detection_cooldown = 1.0

print(f"\nβœ… Object Detection System Ready!")
print(f"   Connect to: http://{ip_address}")
print(f"   Detection distance: <{DETECTION_THRESHOLD}cm")



def measure_distance():
    """Measure distance using ultrasonic sensor"""
    try:
        distance = sonar.distance
        if 2 <= distance <= 400:
            return distance
    except RuntimeError:
        pass
    return None

def capture_image():
    """Capture and return JPEG image data"""
    try:
        jpeg_data = cam.capture(frame_buffer)
        if jpeg_data:
            return bytes(jpeg_data)
    except Exception as e:
        print(f"Capture error: {e}")
    return None

def send_html_response(conn, client_ip):
    """Send HTML page"""
    global current_distance, latest_detection_image, show_image

    # Handle None distance
    distance_str = f"{current_distance:.1f} cm" if current_distance is not None else "-- cm"

    # Check if we should show the image
    show_image = current_distance is not None and current_distance < DETECTION_THRESHOLD

    # Border color based on detection
    border_color = "red" if show_image else "#ccc"

    if show_image:
        text = f"""
         <img src="/latest.jpg" alt="Camera Image">
        """
    else:
        text = f"""
        <div id="placeholder">
            <div>
                <h3>No Object Detected</h3>
                <p>Image will appear when object is within {DETECTION_THRESHOLD}cm</p>
                <p>Current distance: {distance_str}</p>
            </div>
        </div>
        """

    html = f"""<!DOCTYPE html>
<html>
<head>
    <title>Object Detection Camera</title>
    <style>
        body {{ font-family: Arial, sans-serif; text-align: center; margin: 20px; }}
        h1 {{ color: #333; }}
        #distance {{
            font-size: 24px;
            font-weight: bold;
            padding: 10px;
            margin: 20px auto;
            width: 200px;
            border-radius: 10px;
            background: {'#ffcccc' if show_image else '#ccffcc'};
        }}
        img {{
            border: 3px solid {border_color};
            min-width: 60%;
            margin: 20px auto;
            display: block;
            min-height: 500px;
            background: #f0f0f0;
            transform: rotate(180deg);
        }}
        .status {{
            font-size: 20px;
            font-weight: bold;
            color: {'red' if show_image else 'green'};
            margin: 20px 0;
        }}
    </style>
</head>
<body>
    <h1>Object Detection Camera</h1>
    <p>IP: {ip_address}</p>

    <div id="distance">
        {distance_str}
    </div>

    <div class="status">
        {'🚨 OBJECT DETECTED!' if show_image else 'βœ… Monitoring...'}
    </div>
    """ + text + f"""
    <script>
        // Auto-refresh every 1.5 seconds
        setTimeout(function() {{
            location.reload();
        }}, 2000);
    </script>
</body>
</html>"""

    response = (f"HTTP/1.1 200 OK\r\n"
               f"Content-Type: text/html; charset=utf-8\r\n"
               f"Connection: close\r\n"
               f"Content-Length: {len(html)}\r\n"
               f"\r\n{html}").encode()

    try:
        conn.send(response)
        print(f"  Distance: {distance_str}")
        return True
    except Exception as e:
        print(f"  Failed to send HTML: {e}")
        return False

def send_image_response(conn):
    """Send JPEG image with 2048 byte chunks"""
    global latest_detection_image

    if latest_detection_image:
        image_length = len(latest_detection_image)

        response = (f"HTTP/1.1 200 OK\r\n"
                   f"Content-Type: image/jpeg\r\n"
                   f"Content-Length: {image_length}\r\n"
                   f"Cache-Control: no-cache\r\n"
                   f"Connection: close\r\n"
                   f"\r\n").encode()

        try:
            conn.send(response)

            # Send in 2048 byte chunks
            chunk_size = 2048
            for i in range(0, image_length, chunk_size):
                end = min(i + chunk_size, image_length)
                conn.send(latest_detection_image[i:end])

            print(f"  Image sent: {image_length/1024:.1f}KB")

        except Exception as e:
            print(f"  Image send error (client may have closed): {e}")
    else:
        try:
            response = b"HTTP/1.1 404 Not Found\r\nContent-Type: text/plain\r\n\r\nNo image available"
            conn.send(response)
        except Exception as e:
            print(f"  Could not send 404: {e}")

# Create server socket ONCE at startup
print("\n⏳ Creating server socket...")
pool = socketpool.SocketPool(eth)
server = pool.socket()
server.bind((ip_address, 80))
server.listen(1)
print(f"βœ… Server ready at http://{ip_address}")
print("Waiting for connections...")

last_dhcp_check = time.monotonic()
last_distance_check = time.monotonic()
connection_active = False

# Main loop - SINGLE SERVER SOCKET
try:
    while True:
        current_time = time.monotonic()

        # DHCP maintenance (every 30 seconds)
        if current_time - last_dhcp_check > 30:
            try:
                eth.maintain_dhcp_lease()
                print("  DHCP lease maintained")
            except Exception as e:
                print(f"  DHCP error: {e}")
            last_dhcp_check = current_time

        # Check distance regularly (every 0.5 seconds)

        if current_time - last_distance_check > 0.5:
            distance = measure_distance()
            current_distance = distance

            if distance and distance < DETECTION_THRESHOLD:
                if current_time - last_detection_time > detection_cooldown:
                    # Capture image
                    led.value = True
                    image_data = capture_image()

                    if image_data:
                        if image_data[0] == 0xFF and image_data[1] == 0xD8:
                            latest_detection_image = image_data
                            show_image = True
                            last_detection_time = current_time
                            print(f"🚨 Detected: {distance:.1f}cm")

                    time.sleep(0.1)
                    led.value = False
            elif distance is None or distance >= DETECTION_THRESHOLD:
                show_image = False
                latest_detection_image = None
                gc.collect()

            last_distance_check = current_time

        # Handle client connections with timeout
        try:
            server.settimeout(0.1)  # Short timeout to check regularly
        except:
            pass

        try:
            conn, addr = server.accept()
            client_ip = addr[0]
            if client_ip == "0.0.0.0" or addr[1] == 0:
                conn.close()
                continue

            if not connection_active:
                print(f"\nπŸ“‘ Client connected: {client_ip}")
                connection_active = True

            # Set timeout for receiving request
            try:
                conn.settimeout(1.0)
            except:
                break

            try:
                # Receive request
                data = conn.recv(1024)

                if data:
                    # Parse request
                    if b'GET /latest.jpg' in data:
                        send_image_response(conn)
                    else:
                        # Main page or any request
                        send_html_response(conn, client_ip)

            except Exception as e:
                # Timeout or error receiving
                pass

            # Close connection after handling
            conn.close()

        except Exception as e:
            if "timeout" not in str(e):
                # Reset connection flag if error (not timeout)
                connection_active = False
                print(e)

        # Small delay
        time.sleep(0.01)

except KeyboardInterrupt:
    print("\n\nπŸ›‘ Server stopped by user")

finally:
    led.value = False
    try:
        server.close()
    except:
        pass
    print("\nβœ… System stopped")
