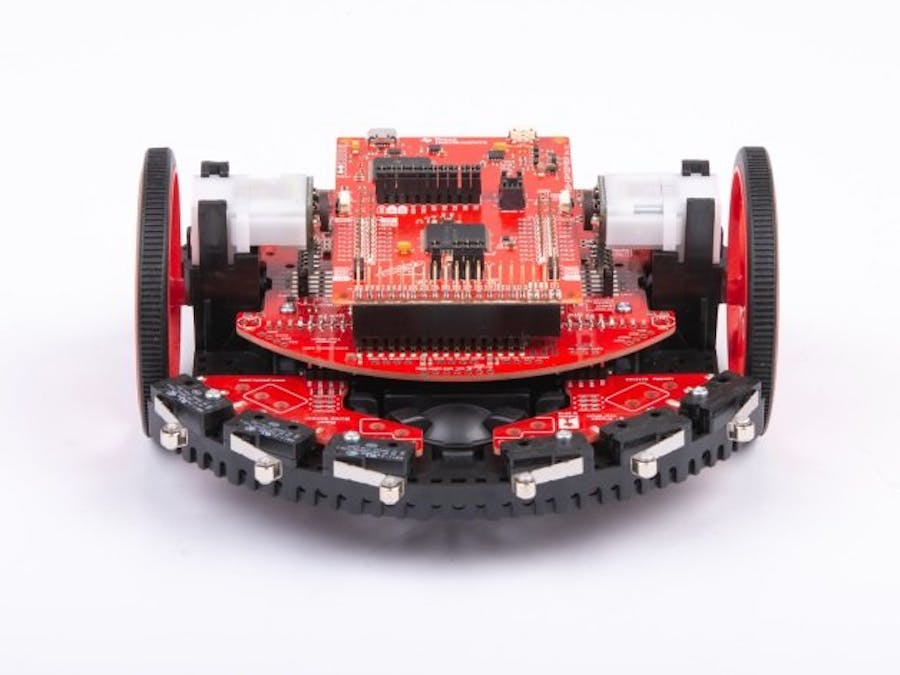

TI-RSLK MAX workshop for IEEE-HKN

Story

Participants in this workshop will get hands on experience building the TI-RSLK MAX robot platform, testing, customizing, and competing with it. It is a wheeled robotic vehicle using the TI SimpleLink MSP432 LaunchPad making it highly modular. Using Energia, TI's equivalent to simple Arduino-style scripting code, you'll come away with a full lab set up as well as teaching materials. This is a great low cost way to introduce the excitement of electronics and embedded systems in an accessible and fun way. Because the TI LaunchPad is open source and modular hardware, we can also add BoosterPack modules to augment our circuits. This workshop will focus on using the on board sensing that comes with the base TI-RSLK MAX kit. IR Reflectance, Bump Switches, and encoders.

For more Robotics learning check out the TI-RSLK MAX, a comprehensive open source curriculum and hardware bundle that teaches the fundamentals of embedded systems through the application of mechatronics. TI-RSLK provides an advanced stepping stone to Robotic systems knowledge but still accessible for beginners with full lectures and lab activities.

Prework

Before we begin, please ensure you:

1. Download and install the latest version of Energia.

You can also use the Installer which is a bit easier: https://drive.google.com/drive/folders/1GQOM5eYu4dDbBb-PDYlL-J0FALZwt9AW

Alternatively Energia can be downloaded from http://energia.nu/download/

a. Below the download links there are specific installation instructions for each operating system version. Please follow these instructions as you may also need to install drivers depending on your OS.

b. NOTE: In Windows, Energia must be installed to a path without spaces in order to function properly.

2. Create a myTI account at my.ti.com if you don't have one so you can access CCS Cloud. You can also use your TI account to order kits from the TI store, request samples of silicon devices, and access other features.

Lab 1 - Build the TI-RSLK MAX robot

Hardware Required

• TI-RSLK MAX kit
• 6x AA Batteries

In this lab we will put together our robot.

You also need a power source that we can equip to the robot to make it truly mobile. The TI-RSLK takes 6 standard AA batteries.

1. Follow these instructions to assemble your robot

http://www.ti.com/lit/pdf/SEKP164

TI-RSLK MAX is just a few components that come together quickly

1) Watch the assembly video and review the construction guide first before getting started: https://training.ti.com/ti-rslk-max-assembly-guide?cu=1137973

a. Note the chassis board should be pre-installed, so even though the video covers it you won’t need to put that on

b. Note the breadboard is not covered in the video, but you can use the picture below to see where they install. You don’t need to unstick the adhesive pad, just feed the screw through the adhesive to screw it into the standoffs

2) Verify the 5V jumper is removed on all the LaunchPads, they should be done at the factory but just verify as it will cause a catastrophic failure if not done so

3) Make sure you seat the motor mounts all the way so it is flush with the chassis. If you don’t do this then you could very easily bend and break the retaining tabs, which would stop you from fully inserting the motor until those broken tabs are removed and could cause some stall issues later down the line

Breadboard standoffs placed at blue circles

4) Use the online debug tool right after assembly: www.ti.com/rslkdebugtool

a. This lets you verify if everything is working correctly

b. Use Chrome or Firefox browser and install the browser extension + TI Cloud Agent local driver

c. If you have any problems with the dashboard (hardware not connected, etc) try to refresh the page and try again

d. It will download the test firmware each time, so make sure LaunchPad is connected to PC via USB cable when page is loading

e. The motors or light sensor won’t work until you flip the chassis board on/off switch ON, you should see Blue power LED to indicate it is on

f. To turn it off, flip on/off switch to OFF and hit the power button, you should see the Blue LED go off

3. Your robot is assembled and verified as functional. Hopefully it feels pretty stable and ready to roll.

Lab 2 - Energia Introduction

Hardware Required

• TI-RSLK MAX

Software Required

• Energia IDE
• Robot Library for TI-RSLK MAX

Energia IDE allows you to start rapid prototyping with the TI LaunchPad using Arduino style programming. This makes it really great at the beginning of a project to test out different community hardware solutions and integrate them into a custom application.

In this lab we are going to get our development environment set up. The first thing we can do is blink an LED to make sure we can program our microcontroller with our computer.

1. Open up the Energia IDE. Run the installer (or if you downloaded it directly, unzip the folder) and click the executable or app icon and it should start up.

2. First thing, make sure you select your board by going to Tools > Board and look for "LaunchPad with MSP432" on the menu. If your LaunchPad board is not present, go to the Boards Manager and install your LaunchPad board package. MSP432 boards should be the third option. Note: MSP432 EMT means Multitasking and has RTOS capability, but we don't need that right now.

3. If you properly installed your drivers, then you should see COM ports under Tools > Port. Select the port with UART capability if there are multiple options. You can verify the COM port in your computer's device manager.

4. Go to File > Examples > Basics > Blink. We will use the Green LED instead of the Red LED in our code in the case when the out of box code is a blinking Red LED. Uncomment the #define LED GREEN_LED line and comment out the RED_LED line.

Install robot library

1. We need to add the robot library to our Energia. Normally you can go to Sketch > Include Library > Library Manger...

However we need to use our special library for now. Download that from the hackster and import that into Energia

2. You can run the dancing robot example. This will give you a fun start to the robot programming.

3. Now we are ready to test the line following capability. Set up your black line on a white surface by printing out a track or making a tracking using black electrical tape.

4. Load in the line following example. It first does a calibration on the line by going forward and back. Then you can start the line detection.

Troubleshooting

Code not uploading?

• Check for errors in Energia debug window. The compiler will tell you what is happening. Errors are in red text.
• Sometimes your LaunchPad gets stuck or hung up on the previous code. Unplug your LaunchPad and plug it back in to perform a full reset. This is called a power on reset. Sometimes using the RESET button can work but taking away the power and letting the microcontroller fully reset is often best.
• If you have a failure to upload it could be your drivers are not properly installed. Energia will sometimes give the error “No unused FET Found” which means it can’t find a LaunchPad connected to your computer. Make sure you download the drivers for your operating system found on the Getting Started Guide.
• If you had no problem with the previous Blink example, your Energia should be correctly set up. Restart your LaunchPad and restart Energia IDE if you encounter any problems. Make sure to select the right serial port and board type under the Tools menu.

LED not lighting up?

• Make sure you properly uploaded the code and that you properly named your variables for the LED pins. There is very little chance that your LED is broken, but we can verify by blinking a different LED with the same code.
• Hit the reset button, sometimes this is needed for the LaunchPad to run the newly uploaded program.

Lab 3 - Basic Autonomous Robot

Hardware Required

• Assembled TI-RSLK MAX

Does it spin?

We will go ahead and test our robot out now with some sample code. Open up a new sketch by going to File > New. Paste in the sample code below and run it.

#include "Energia.h"
#include "SimpleRSLK.h"

bool hit_obstacle = false;
void waitBtnPressed() {
 while(digitalRead(LP_S2_PIN) == 1){
   digitalWrite(LP_RGB_LED_GREEN_PIN, HIGH);
   delay(500);
   digitalWrite(LP_RGB_LED_GREEN_PIN, LOW);
   delay(500);
 }
}
void checkCollision() {
 for(int x = 0;x<6;x++)
 {
   /* Check if bump switch was pressed
    *  Parameter:
    *    bump switch number -> 0-5
    *    Returns:
    *      true -> if specific switch was pressed
    *      false -> if specific switch was not pressed
    */
   if(isBumpSwitchPressed(x) == true) {
     hit_obstacle = true;
     Serial.println("Collision detected");
     disableMotor(BOTH_MOTORS);
     break;
   }
 }
}
void setup() {
 /* Set serial communication to 115200 baud rate for MSP432 */
 Serial.begin(115200);
 delay(500);
 /* Run setup code */
 setupRSLK();
 /* Initialize LED pins as outputs */
 pinMode(LED_FR_PIN, OUTPUT);
 pinMode(LED_FL_PIN, OUTPUT);
 pinMode(LED_BR_PIN, OUTPUT);
 pinMode(LED_BL_PIN, OUTPUT);
 pinMode(LP_RED_LED_PIN, OUTPUT);
 pinMode(LP_RGB_LED_RED_PIN, OUTPUT);
 pinMode(LP_RGB_LED_BLUE_PIN, OUTPUT);
 pinMode(LP_RGB_LED_GREEN_PIN, OUTPUT);
 /* Initialize LaunchPad buttons as inputs */
 pinMode(LP_S1_PIN, INPUT_PULLUP);
 pinMode(LP_S2_PIN, INPUT_PULLUP);
}
void loop() {
 Serial.println("Waiting until left button is pushed");
 /* Wait until button is pressed to start robot */
 waitBtnPressed();
 /* Wait two seconds before starting */
 delay(2000);
 digitalWrite(LP_RGB_LED_BLUE_PIN, HIGH);
/* Enables specified motor.
 *  Parameter:
 *   Motor your referencing -> LEFT_MOTOR  RIGHT_MOTOR  BOTH_MOTORS
 */
 enableMotor(BOTH_MOTORS);
/* Set direction of motor rotation.
 *  Parameter:
 *   Motor your referencing -> LEFT_MOTOR  RIGHT_MOTOR  BOTH_MOTORS
 *   Direction -> MOTOR_DIR_FORWARD  MOTOR_DIR_BACKWARD
 */
 setMotorDirection(LEFT_MOTOR,MOTOR_DIR_FORWARD);
 setMotorDirection(RIGHT_MOTOR,MOTOR_DIR_FORWARD);
/* Set speed of motor.
 *  Parameter:
 *   Motor your referencing -> LEFT_MOTOR  RIGHT_MOTOR  BOTH_MOTORS
 *   Speed -> 0 - 100
 */
 setMotorSpeed(BOTH_MOTORS,10);
 while(!hit_obstacle) {
   /* Move robot in place */
   /* Right turn in place */
   setMotorDirection(LEFT_MOTOR, MOTOR_DIR_BACKWARD);
   setMotorDirection(RIGHT_MOTOR, MOTOR_DIR_FORWARD);
   delay(1000);
   /* Left turn in place */
   setMotorDirection(LEFT_MOTOR, MOTOR_DIR_FORWARD);
   setMotorDirection(RIGHT_MOTOR, MOTOR_DIR_BACKWARD);
   delay(1000);
   /* 360 spin right */
   setMotorDirection(LEFT_MOTOR, MOTOR_DIR_FORWARD);
   setMotorDirection(RIGHT_MOTOR, MOTOR_DIR_BACKWARD);
   setMotorSpeed(BOTH_MOTORS,50);
   delay(800);
   setMotorSpeed(BOTH_MOTORS,10);
   /* 360 spin left */
   setMotorDirection(LEFT_MOTOR, MOTOR_DIR_BACKWARD);
   setMotorDirection(RIGHT_MOTOR, MOTOR_DIR_FORWARD);
   setMotorSpeed(BOTH_MOTORS,50);
   delay(800);
   setMotorSpeed(BOTH_MOTORS,10);
   /* Left turn in place */
   setMotorDirection(LEFT_MOTOR, MOTOR_DIR_BACKWARD);
   setMotorDirection(RIGHT_MOTOR, MOTOR_DIR_FORWARD);
   delay(500);
   /* Right turn in place */
   setMotorDirection(LEFT_MOTOR, MOTOR_DIR_FORWARD);
   setMotorDirection(RIGHT_MOTOR, MOTOR_DIR_BACKWARD);
   delay(1000);
   /* Left turn in place */
   setMotorDirection(LEFT_MOTOR, MOTOR_DIR_BACKWARD);
   setMotorDirection(RIGHT_MOTOR, MOTOR_DIR_FORWARD);
   delay(1000);
   /* 360 spin right */
   setMotorDirection(LEFT_MOTOR, MOTOR_DIR_FORWARD);
   setMotorDirection(RIGHT_MOTOR, MOTOR_DIR_BACKWARD);
   setMotorSpeed(BOTH_MOTORS,50);
   delay(800);
   setMotorSpeed(BOTH_MOTORS,10);
   /* 360 spin left */
   setMotorDirection(LEFT_MOTOR, MOTOR_DIR_BACKWARD);
   setMotorDirection(RIGHT_MOTOR, MOTOR_DIR_FORWARD);
   setMotorSpeed(BOTH_MOTORS,50);
   delay(800);
   setMotorSpeed(BOTH_MOTORS,10);
 }
}

This code let's your robot spin around in place to show the simple motor control we have. You will probably need to modify it as the surface the robot is on can effect it's turn speeds. Don't get too hung up on this part as we will add more layers of autonomy in the next lab. This just proves again that our motors do work and gives us a feel for the motor logic.

Does it navigate?

We will go ahead and test our robot out now with some sample code. Open up a new sketch by going to File > New. Paste in the sample code below and run it.

#include "Energia.h"
#include "SimpleRSLK.h"

/* Defines struct for state machine states */
typedef enum
{
   START = 0,
   WAIT,
   GO,
   GO2,
   BUMPED1a,
   BUMPED1b,
   DRIVE,
   STOP
} my_state_t;
/* Initialize state machine in START state */
my_state_t state = START;
/* Variable that will take the state machine to the STOP state */
bool done;
/* Initialize objects */
void setup() {
   /* Set serial communication to 115200 baud rate for MSP432 */
   Serial.begin(115200);
   delay(500);
   Serial.println("Initializing.....");
   setupRSLK();
   /* Initialize LED pins as outputs */
   pinMode(LED_FR_PIN, OUTPUT);
   pinMode(LED_FL_PIN, OUTPUT);
   pinMode(LED_BR_PIN, OUTPUT);
   pinMode(LED_BL_PIN, OUTPUT);
   pinMode(LP_RED_LED_PIN, OUTPUT);
   pinMode(LP_RGB_LED_RED_PIN, OUTPUT);
   pinMode(LP_RGB_LED_BLUE_PIN, OUTPUT);
   pinMode(LP_RGB_LED_GREEN_PIN, OUTPUT);
   /* Initialize LaunchPad buttons as inputs */
   pinMode(LP_S1_PIN, INPUT_PULLUP);
   pinMode(LP_S2_PIN, INPUT_PULLUP);
   Serial.println("Initializing System Complete.");
}
void loop() {
 // Emergency stop switch S2
 // Switch to state "STOP" if pressed
 if (digitalRead(LP_S2_PIN) == 0) state = STOP;
 //-----------------------------------
 //        Main State Machine
 //-----------------------------------
 switch (state) {
   case START:
           Serial.println("Enter START state");
           state = WAIT;
   break;
   case WAIT:
       Serial.println("Enter WAIT state");
       digitalWrite(LP_RGB_LED_GREEN_PIN, HIGH);
       delay(200);
       digitalWrite(LP_RGB_LED_GREEN_PIN, LOW);
       delay(200);
       if (digitalRead(LP_S1_PIN) == 0) {
           state = GO;
       }
   break;
   case GO:
       Serial.println("Enter GO state");
       /* Start running the motors */
       /* Enables specified motor.
        *  Parameter:
        *   Motor your referencing -> LEFT_MOTOR  RIGHT_MOTOR  BOTH_MOTORS
        */
       enableMotor(BOTH_MOTORS);
       setMotorDirection(BOTH_MOTORS, MOTOR_DIR_FORWARD);
       setMotorSpeed(BOTH_MOTORS, 25);
       state = GO2;
   break;
   case GO2:
       Serial.println("Enter GO2 state");
       /* Detect a bump and then switch to bump correction state */
       for(int x = 0;x<6;x++)
       {
           if(isBumpSwitchPressed(x) == true) state = BUMPED1a;
       }
       /* Continue to rotate until done condition is met */
       /* Certain distance traveled or other conditions can be set */
       if (getEncoderLeftCnt() > 50000) {
         done = 1;
       }
       if (done) state = STOP;
   break;
   case BUMPED1a:
       Serial.println("Enter BUMPED1a state");
       /* Stop the motors */
       setMotorSpeed(BOTH_MOTORS,0);
       /* Reverse the robot */
       setMotorDirection(BOTH_MOTORS, MOTOR_DIR_BACKWARD);
       setMotorSpeed(BOTH_MOTORS,25);
       delay(500);
       state = BUMPED1b;
   break;
   case BUMPED1b:
       Serial.println("Enter BUMPED1b state");
       /* Turn robot to avoid obstacle */
       setMotorSpeed(LEFT_MOTOR,0);
       setMotorSpeed(RIGHT_MOTOR,25);
       delay(100);
       state = DRIVE;
   break;
   case DRIVE:
       Serial.println("Enter DRIVE state");
       /* Put motors back to forward direction */
       setMotorDirection(BOTH_MOTORS, MOTOR_DIR_FORWARD);
       setMotorSpeed(BOTH_MOTORS, 25);
       state = GO2;
   break;
   case STOP:
       Serial.println("Enter STOP state");
       Serial.println("Press Reset to begin again");
       /* Stop all motors */
       disableMotor(BOTH_MOTORS);
   break;
 }
 delay(10);
}

This code will use a basic state machine to show the robot how to bump into walls and objects and avoid them.

Lab 4 - Wi-Fi + Energia

Hardware Required

• TI-RSLK MAX
• CC3100 SimpleLink Wi-Fi BoosterPack

Wi-Fi

Now we can add Wi-Fi. The CC3100 is TI's Wi-Fi adapter for microcontrollers. It's very easy to interface with using SPI and can be used with both TI LaunchPads and Arduinos because they both support the same programming language (Wiring). Writing a sketch that uses the CC3100 is also very easy as the web examples for both LaunchPad and Arduino will both work on this platform. You can get this board here: http://www.ti.com/tool/cc3100boost

Testing Local Wi-Fi Server Energia Remote Control

For the last part of the lab, we are going to use the Energia Wi-Fi remote example to show how to set up the LaunchPad as an access point and host websites directly on the microcontroller. For this part we don't need Wi-Fi access and can just use a local connection.

1. In Energia, import this example as a new project.

Note there are many other Wi-Fi examples in Energia, so be sure to check those out if you want to learn more. The Wi-Fi library is closely based on the Arduino Wi-Fi library APIs which makes it easy to interface with community software.

#include "SimpleRSLK.h"
#include "Wifi_Remote.h"

/*
* Robot Wifi Example
*
* This example will demonstrate controlling the remote via Wifi
* by Franklin S. Cooper Jr.
*/
String wifi_name = "rslk";
String wifi_password = "rslkwifi";
void setup()
{
 Serial.begin(115200);
 wifi_setup();
 setupRSLK();
 setMotorDirection(BOTH_MOTORS,MOTOR_DIR_FORWARD);
 setMotorSpeed(BOTH_MOTORS,50);
}
void loop()
{
 wifiLoop();
}
void custom_logic() {
	if (left_button_pressed)
       setMotorSpeed(RIGHT_MOTOR,70);
   else
       setMotorSpeed(RIGHT_MOTOR,50);
   if (right_button_pressed)
       setMotorSpeed(LEFT_MOTOR,70);
   else
       setMotorSpeed(LEFT_MOTOR,50);
   if (up_down_pressed) {
     enableMotor(BOTH_MOTORS);
     if(up_button_pressed)
       setMotorDirection(BOTH_MOTORS,MOTOR_DIR_FORWARD);
     if(down_button_pressed)
       setMotorDirection(BOTH_MOTORS,MOTOR_DIR_BACKWARD);
   }
   else
		  disableMotor(BOTH_MOTORS);
}

2. Change the name of your Robot's SSID to something unique if there are multiple robots nearby. This is the network you will connect to on your phone wi-fi after we program the robot and get ready to drive around.

In the wifiLoop() section is where we wait for a client to connect to the LaunchPad and then we serve up an HTML webpage.

3. Upload the code to the LaunchPad. When that is complete you can disconnect your LaunchPad robot from the PC.

4. Now unplug the LaunchPad from the USB cable and turn on the TI-RSLK MAX with the on/off switch. The LaunchPad green power LED and Chassis blue power LED should come on as well as the LEDs on the CC3100 BoosterPack. If the code is working properly it will start up in Access point mode with the name you picked and the Red LED on the LaunchPad should turn on when it is ready. When you see the Red LED, go to your phone or tablet or PC Wi-Fi and select that network with password "rslkwifi" unless you changed it in the code. When you are successfully connected, then you can go to a local page like 192.168.1.1 to access the web page with the arrows hosted on the robot's webserver. You may notice some slight lag in the beginning but this should go away. Press and hold the arrow to go back and forward and hold down left and forward to turn left and right and forward together to turn right and same for reverse.

5. Go ahead and do a one lap race around the room.

Challenge: Can you create custom features for your racer bot? You can use additional cloud services to add useful features. You can also add additional BoosterPacks to sense the environment or add other types of wireless connectivity.

Conclusion

That is a good sample of basic mechatronics prototyping with TI LaunchPad + Wi-Fi + Inputs & Outputs. We used off the shelf components and open source software to quickly build out and program a system. There is obviously a lot more to do with other cloud services that are accessible through Energia libraries. There are also many hardware combinations to try when connecting things wirelessly. You can learn more about the TI LaunchPad ecosystem at www.ti.com/launchpad and explore the Energia website for more ideas and help. www.energia.nu/reference/wifi Continue your training at http://training.ti.com where there are videos for TI LaunchPad and software tools.

TI has a robust ecosystem for IoT. Learn more about cloud services and reference designs at www.ti.com/iot
