Grove Mini Fan Controller + TI LaunchPad

Power a mini fan with PWM using Seeed Grove and TI LaunchPad.

BeginnerProtip905

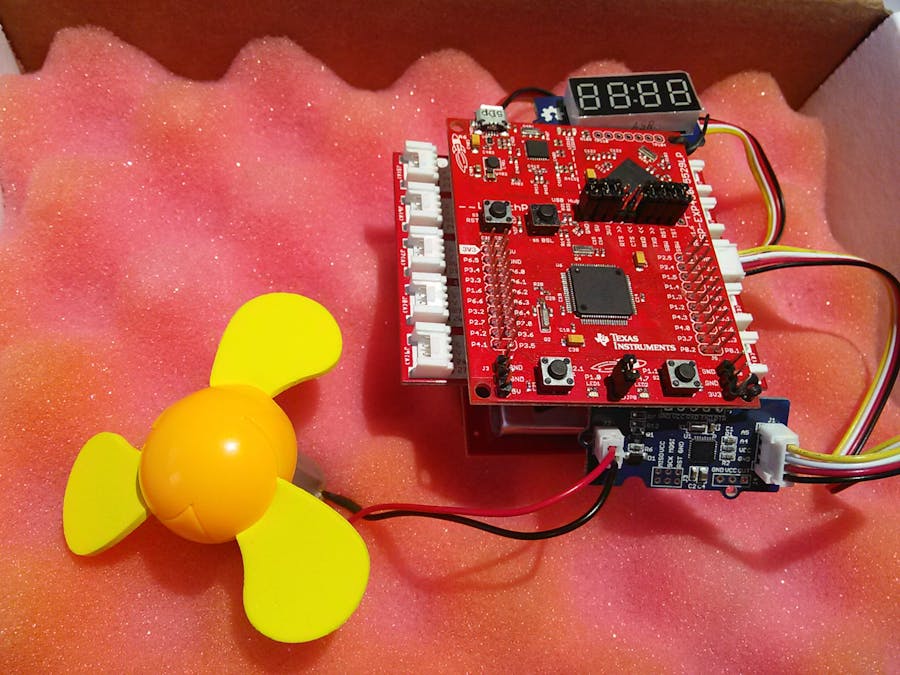

Grove Mini Fan Controller + TI LaunchPad

Things used in this project

Hardware components

Seeed Grove Mini Fan
×1
MSP-EXP430F5529LP MSP430 LaunchPad
Texas Instruments MSP-EXP430F5529LP MSP430 LaunchPad
×1
Seeed Grove Base Boosterpack
×1
Seeed Grove 4 Digit Display
×1

Software apps and online services

Energia
Texas Instruments Energia

Story

Read more

Code

Grove_MiniFan.ino

Arduino
/*
  Grove Mini Fan

  This example shows how to demo a fan controller

  Hardware Required:
  * TI LaunchPad
  * Grove Mini Fan
  * Grove 4 Digit Display
  * optional battery source

  This example code is in the public domain.

*/
#include "TM1637.h"
int speed = 0;    // how bright the LED is
int fadeAmount = 5;    // how many points to fade the LED by
#define CLK 9 //pins definitions for TM1637 and can be changed to other ports
#define DIO 10
TM1637 tm1637(CLK,DIO);

int8_t ZeroDisp[] = {
  0x00,0x00,0x00,0x00};

int8_t SpeedDisp[] = {
  0x00,0x00,0x00,0x00};

void setup()  {
  // declare pin 14 to be an output:
  pinMode(38, OUTPUT);
  tm1637.init();
  tm1637.set(BRIGHT_TYPICAL);//BRIGHT_TYPICAL = 2,BRIGHT_DARKEST = 0,BRIGHTEST = 7;
  tm1637.point(POINT_OFF);
  tm1637.display(ZeroDisp);
}

void loop()  {
  // set the speed of pin 38:
  analogWrite(38, speed);

  // change the speed for next time through the loop:
  speed = speed + fadeAmount;

  // reverse the direction of the fading at the ends of the fade:
  if (speed == 0 || speed == 255) {
    fadeAmount = -fadeAmount ;
  }

  if(speed < 100){
    SpeedDisp[0] = 0;
    SpeedDisp[1] = (speed / 100);
    SpeedDisp[2] = (speed / 10);
    SpeedDisp[3] = (speed % 10);
  }
  else if(speed < 200 && speed >= 100) {
    SpeedDisp[0] = 0;
    SpeedDisp[1] = (speed / 100);
    SpeedDisp[2] = ((speed - 100) / 10);
    SpeedDisp[3] = (speed % 10);
  }
  else if(speed >= 200) {
    SpeedDisp[0] = 0;
    SpeedDisp[1] = (speed / 100);
    SpeedDisp[2] = ((speed - 200) / 10);
    SpeedDisp[3] = (speed % 10);
  }
  tm1637.display(SpeedDisp);
  // wait for 300 milliseconds to see the changing speed effect
  delay(300);
}

TM1637.h

C/C++
//  Author:Frankie.Chu

//  Date:9 April,2012

//

//  This library is free software; you can redistribute it and/or

//  modify it under the terms of the GNU Lesser General Public

//  License as published by the Free Software Foundation; either

//  version 2.1 of the License, or (at your option) any later version.

//

//  This library is distributed in the hope that it will be useful,

//  but WITHOUT ANY WARRANTY; without even the implied warranty of

//  MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the GNU

//  Lesser General Public License for more details.

//

//  You should have received a copy of the GNU Lesser General Public

//  License along with this library; if not, write to the Free Software

//  Foundation, Inc., 51 Franklin St, Fifth Floor, Boston, MA  02110-1301  USA

//

//  Modified record:

//

/*******************************************************************************/



#ifndef TM1637_h

#define TM1637_h

#include <inttypes.h>

#include <Arduino.h>

//************definitions for TM1637*********************

#define ADDR_AUTO  0x40

#define ADDR_FIXED 0x44



#define STARTADDR  0xc0

/**** definitions for the clock point of the digit tube *******/

#define POINT_ON   1

#define POINT_OFF  0

/**************definitions for brightness***********************/

#define  BRIGHT_DARKEST 0

#define  BRIGHT_TYPICAL 2

#define  BRIGHTEST      7



class TM1637

{

  public:

    uint8_t Cmd_SetData;

    uint8_t Cmd_SetAddr;

    uint8_t Cmd_DispCtrl;

    boolean _PointFlag;     //_PointFlag=1:the clock point on

    TM1637(uint8_t, uint8_t);

    void init(void);        //To clear the display

    void writeByte(int8_t wr_data);//write 8bit data to tm1637

    void start(void);//send start bits

    void stop(void); //send stop bits

    void display(int8_t DispData[]);

    void display(uint8_t BitAddr,int8_t DispData);

    void clearDisplay(void);

    void set(uint8_t = BRIGHT_TYPICAL,uint8_t = 0x40,uint8_t = 0xc0);//To take effect the next time it displays.

    void point(boolean PointFlag);//whether to light the clock point ":".To take effect the next time it displays.

    void coding(int8_t DispData[]);

    int8_t coding(int8_t DispData);

  private:

    uint8_t Clkpin;

    uint8_t Datapin;

};

#endif

TM1637.cpp

C/C++
//  Author:Frankie.Chu

//  Date:9 April,2012

//

//  This library is free software; you can redistribute it and/or

//  modify it under the terms of the GNU Lesser General Public

//  License as published by the Free Software Foundation; either

//  version 2.1 of the License, or (at your option) any later version.

//

//  This library is distributed in the hope that it will be useful,

//  but WITHOUT ANY WARRANTY; without even the implied warranty of

//  MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the GNU

//  Lesser General Public License for more details.

//

//  You should have received a copy of the GNU Lesser General Public

//  License along with this library; if not, write to the Free Software

//  Foundation, Inc., 51 Franklin St, Fifth Floor, Boston, MA  02110-1301  USA

//

//  Modified record:

//

/*******************************************************************************/

#include "TM1637.h"

#include <Arduino.h>

static int8_t TubeTab[] = {0x3f,0x06,0x5b,0x4f,

                           0x66,0x6d,0x7d,0x07,

                           0x7f,0x6f,0x77,0x7c,

                           0x39,0x5e,0x79,0x71};//0~9,A,b,C,d,E,F

TM1637::TM1637(uint8_t Clk, uint8_t Data)

{

  Clkpin = Clk;

  Datapin = Data;

  pinMode(Clkpin,OUTPUT);

  pinMode(Datapin,OUTPUT);

}



void TM1637::init(void)

{

  clearDisplay();

}



void TM1637::writeByte(int8_t wr_data)

{

  uint8_t i,count1;

  for(i=0;i<8;i++)        //sent 8bit data

  {

    digitalWrite(Clkpin,LOW);

    if(wr_data & 0x01)digitalWrite(Datapin,HIGH);//LSB first

    else digitalWrite(Datapin,LOW);

    wr_data >>= 1;

    digitalWrite(Clkpin,HIGH);



  }

  digitalWrite(Clkpin,LOW); //wait for the ACK

  digitalWrite(Datapin,HIGH);

  digitalWrite(Clkpin,HIGH);

  pinMode(Datapin,INPUT);

  while(digitalRead(Datapin))

  {

    count1 +=1;

    if(count1 == 200)//

    {

     pinMode(Datapin,OUTPUT);

     digitalWrite(Datapin,LOW);

     count1 =0;

    }

    pinMode(Datapin,INPUT);

  }

  pinMode(Datapin,OUTPUT);



}

//send start signal to TM1637

void TM1637::start(void)

{

  digitalWrite(Clkpin,HIGH);//send start signal to TM1637

  digitalWrite(Datapin,HIGH);

  digitalWrite(Datapin,LOW);

  digitalWrite(Clkpin,LOW);

}

//End of transmission

void TM1637::stop(void)

{

  digitalWrite(Clkpin,LOW);

  digitalWrite(Datapin,LOW);

  digitalWrite(Clkpin,HIGH);

  digitalWrite(Datapin,HIGH);

}

//display function.Write to full-screen.

void TM1637::display(int8_t DispData[])

{

  int8_t SegData[4];

  uint8_t i;

  for(i = 0;i < 4;i ++)

  {

    SegData[i] = DispData[i];

  }

  coding(SegData);

  start();          //start signal sent to TM1637 from MCU

  writeByte(ADDR_AUTO);//

  stop();           //

  start();          //

  writeByte(Cmd_SetAddr);//

  for(i=0;i < 4;i ++)

  {

    writeByte(SegData[i]);        //

  }

  stop();           //

  start();          //

  writeByte(Cmd_DispCtrl);//

  stop();           //

}

//******************************************

void TM1637::display(uint8_t BitAddr,int8_t DispData)

{

  int8_t SegData;

  SegData = coding(DispData);

  start();          //start signal sent to TM1637 from MCU

  writeByte(ADDR_FIXED);//

  stop();           //

  start();          //

  writeByte(BitAddr|0xc0);//

  writeByte(SegData);//

  stop();            //

  start();          //

  writeByte(Cmd_DispCtrl);//

  stop();           //

}



void TM1637::clearDisplay(void)

{

  display(0x00,0x7f);

  display(0x01,0x7f);

  display(0x02,0x7f);

  display(0x03,0x7f);

}

//To take effect the next time it displays.

void TM1637::set(uint8_t brightness,uint8_t SetData,uint8_t SetAddr)

{

  Cmd_SetData = SetData;

  Cmd_SetAddr = SetAddr;

  Cmd_DispCtrl = 0x88 + brightness;//Set the brightness and it takes effect the next time it displays.

}



//Whether to light the clock point ":".

//To take effect the next time it displays.

void TM1637::point(boolean PointFlag)

{

  _PointFlag = PointFlag;

}

void TM1637::coding(int8_t DispData[])

{

  uint8_t PointData;

  if(_PointFlag == POINT_ON)PointData = 0x80;

  else PointData = 0;

  for(uint8_t i = 0;i < 4;i ++)

  {

    if(DispData[i] == 0x7f)DispData[i] = 0x00;

    else DispData[i] = TubeTab[DispData[i]] + PointData;

  }

}

int8_t TM1637::coding(int8_t DispData)

{

  uint8_t PointData;

  if(_PointFlag == POINT_ON)PointData = 0x80;

  else PointData = 0;

  if(DispData == 0x7f) DispData = 0x00 + PointData;//The bit digital tube off

  else DispData = TubeTab[DispData] + PointData;

  return DispData;

}
