Arduino UART Token-Based Star Network

Important Note: All comments, docstrings, and runtime messages in the source code are written in Portuguese.

This project implements a deterministic UART-based communication system between multiple Arduino nodes using a token-passing mechanism over a star topology.

A central node (ID 0) coordinates communication between peripheral routers:

• NORTE (NORTH)
• SUL (SOUTH)
• LESTE (EAST)
• OESTE (WEST)

Each router transmits only when it receives a TOKEN, ensuring collision-free communication.

All inter-router communication is mediated by the central node, meaning no direct router-to-router transmission occurs.

The project demonstrates several core embedded systems and networking concepts:

• Token-based medium access control over UART communication
• Star topology network with a centralized arbitrator
• Flit-based packet structure (ORIG / DEST / PAY)
• ACK-based reliable delivery with timeout and retransmission
• Buffer handling and flushing to prevent residual data corruption
• Multi-channel SoftwareSerial management on a single Arduino

How It Works

1. Central sends a TOKEN to the current node

2. The node replies with a 3-flit packet or NADA if it has nothing to send

3. Central forwards the packet to the destination node

4. Destination receives the packet and replies with ACK

5. Central forwards the ACK back to the origin

6. Central advances the token **only after successful delivery** or when the node reports NADA

7. When all nodes reply NADA, the session ends

Packet Structure

Each message is split into 3 flits, sent sequentially over UART:

| Flit | Format         | Description            |
|------|--------------|--------------------------|
| 1    | `ORIG:<name>` | Sender node name        |
| 2    | `DEST:<name>` | Destination node name   |
| 3    | `PAY:<text>`  | Message payload         |

Control Messages

| Message | Direction          | Meaning                         |
|--------|--------------------|----------------------------------|
| TOKEN  | Central → Node     | Node may now transmit            |
| NADA   | Node → Central     | Node has nothing to send         |
| ACK    | Both directions    | Packet received successfully     |

Example Communication Flow

Step-by-step

1. CENTRAL sends TOKEN to NORTE

2. NORTE transmits:

ORIG:NORTE
DEST:SUL
PAY:<message>

4. CENTRAL receives the packet

5. CENTRAL forwards the packet to SUL

6. SUL sends ACK to CENTRAL

7. CENTRAL sends ACK back to NORTE

8. CENTRAL passes the TOKEN to the next router

Reliable Delivery (Timeout + Immediate Retransmission)

If the destination router does not send an ACK:

• CENTRAL detects a timeout
• CENTRAL does not advance the token
• The origin does not receive an ACK and automatically retransmits the packet within the same token cycle

This guarantees that:

• No packet is lost
• Delivery is confirmed before progressing
• Communication remains deterministic

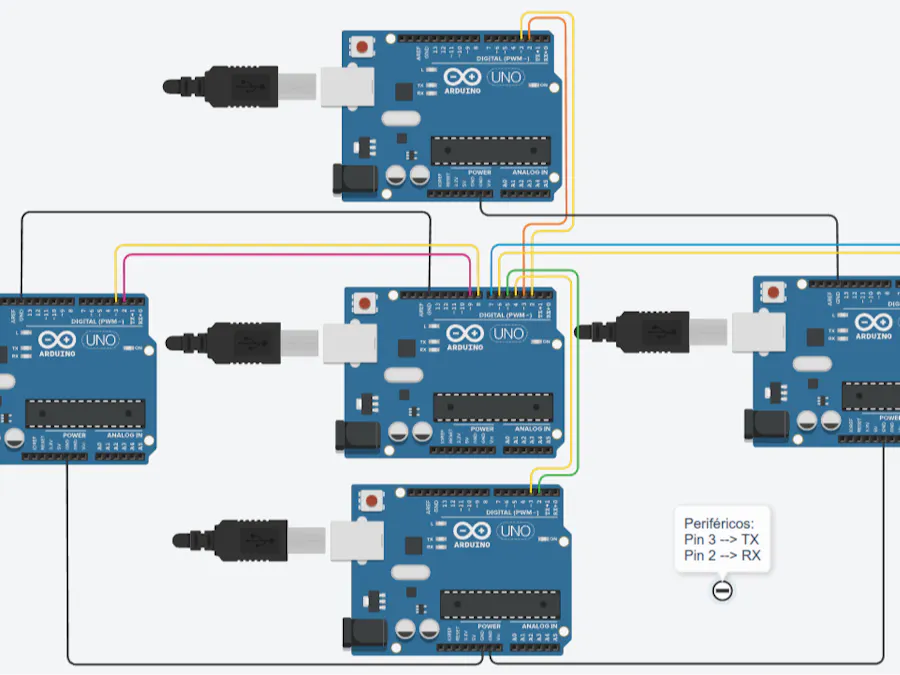

Wiring

Each peripheral node uses one dedicated TX pin and one dedicated RX pin on the Central Arduino via SoftwareSerial.

| Node  | D2 (RX) Connected To | D3 (TX) Connected To |
|-------|----------------------|----------------------|
| NORTH | Central TX (D3)      | Central RX (D2)      |
| SOUTH | Central TX (D5)      | Central RX (D4)      |
| EAST  | Central TX (D7)      | Central RX (D6)      |
| WEST  | Central TX (D9)      | Central RX (D8)      |

Note: Always connect GND between all boards sharing UART lines.

Timing Configuration

All timing constants must be consistent across Central and peripheral nodes.

A table is available on GitHub.

Peripheral Node Configuration

To configure a peripheral node, edit the following section at the top of its.ino file:

const char MEU_NOME[]    = "NORTE";   // This node's name
const char MEU_DESTINO[] = "SUL";   // Valid: SOUTH, EAST, WEST

const char* payloads[] = {
  "Message 1",
  "Message 2",
  "Message 3"
};

int totalPacotes = 3; // Must match the number of entries in payloads[]

Features

• Centralized token arbitration in star topology
• Reliable delivery with ACK and automatic retransmission on timeout
• Buffer handling and flushing to prevent residual data corruption
• Flit misalignment detection and automatic reset
• Nodes marked as finished after replying NADA; token skips them
• Session terminates cleanly when all nodes are done
• Per-node serial monitor output for easy debugging

Future Improvements

• Priority-based token scheduling
• Error detection (e.g., CRC)
• Fault tolerance (node failure handling, scalable networks)

Source Code

All source files are available on GitHub.
