Nodemcu AHT10 Temp/Humidity Measuring WLAN MQQT

Place it anywhere and get correct Data everytime. Perfect for Smarthome.

BeginnerShowcase (no instructions)5,394

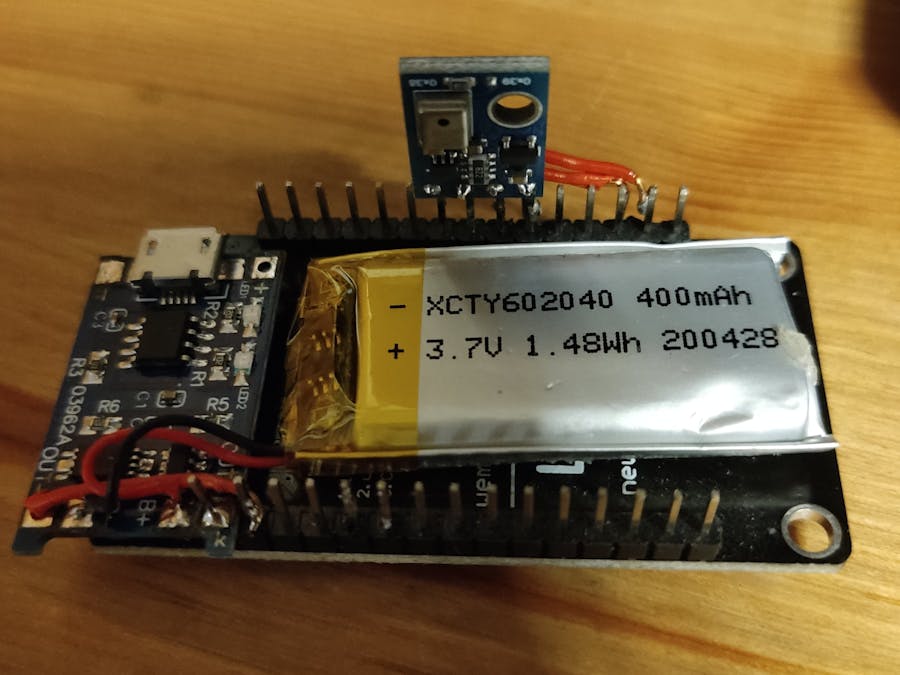

Nodemcu AHT10 Temp/Humidity Measuring WLAN MQQT

Things used in this project

Hardware components

NodeMCU ESP8266 Breakout Board
NodeMCU ESP8266 Breakout Board
×1
TP4056
×1
AHT10
×1
Wire, Hook Up
Wire, Hook Up
×1
Li-Ion Battery 1000mAh
Li-Ion Battery 1000mAh
×1
Solar Panel, 2.5 W
Solar Panel, 2.5 W
×1

Software apps and online services

Arduino IDE
Arduino IDE
MQTT
MQTT

Hand tools and fabrication machines

Soldering iron (generic)
Soldering iron (generic)
Solder Wire, Lead Free
Solder Wire, Lead Free

Story

Read more

Schematics

AHT10 Measuring with Backup and Solar



Code

AHT10 Measuring with Backup and Solar

C/C++
WLAN connection is established.
Connection to the MQTT broker is established.
Sensor data is being collected.
Sensor data is sent to the broker with the previously determined TOPIC.
The NodeMCU is put to sleep for 120 seconds and then carries out a reset.
#include <ESP8266WiFi.h>
#include <Ticker.h>
#include <AsyncMqttClient.h>
#include <Adafruit_AHTX0.h>

#define WIFI_SSID "YOUR SSID"
#define WIFI_PASSWORD "YOUR PW"
char wiFiHostname[ ] = "YOUR SENSORNAME";
#define FORCE_DEEPSLEEP

Adafruit_AHTX0 aht;
Adafruit_Sensor *aht_humidity, *aht_temp;

#define MQTT_HOST IPAddress(192, 168, XXX, XX)
#define MQTT_PORT 1883

// Temperature MQTT Topics
#define MQTT_PUB_TEMP "Bad/temperature"
#define MQTT_PUB_HUM "Bad/humidity"


AsyncMqttClient mqttClient;
Ticker mqttReconnectTimer;

WiFiEventHandler wifiConnectHandler;
WiFiEventHandler wifiDisconnectHandler;
Ticker wifiReconnectTimer;

unsigned long previousMillis = 0;   // Stores last time temperature was published
const long interval = 10000;        // Interval at which to publish sensor readings

void connectToWifi() {
  Serial.println("Connecting to Wi-Fi...");
  WiFi.begin(WIFI_SSID, WIFI_PASSWORD);
  wifi_station_set_hostname(wiFiHostname);
}

void onWifiConnect(const WiFiEventStationModeGotIP& event) {
  Serial.println("Connected to Wi-Fi.");
  Serial.println("Ready");
  Serial.print("IP address: ");
  Serial.println(WiFi.localIP());
  connectToMqtt();
}

void onWifiDisconnect(const WiFiEventStationModeDisconnected& event) {
  Serial.println("Disconnected from Wi-Fi.");
  mqttReconnectTimer.detach(); // ensure we don't reconnect to MQTT while reconnecting to Wi-Fi
  wifiReconnectTimer.once(2, connectToWifi);
}

void connectToMqtt() {
  Serial.println("Connecting to MQTT...");
  mqttClient.connect();
}

void onMqttConnect(bool sessionPresent) {
  Serial.println("Connected to MQTT.");
  Serial.print("Session present: ");
  Serial.println(sessionPresent);
}

void onMqttDisconnect(AsyncMqttClientDisconnectReason reason) {
  Serial.println("Disconnected from MQTT.");

  if (WiFi.isConnected()) {
    mqttReconnectTimer.once(2, connectToMqtt);
  }
}

void onMqttPublish(uint16_t packetId) {
  Serial.print("Publish acknowledged.");
  Serial.print("  packetId: ");
  Serial.println(packetId);
}

void setup() {
  Serial.begin(115200);
  while (!Serial)
    delay(10); // will pause Zero, Leonardo, etc until serial console opens
  Serial.println();

  if (!aht.begin()) {
    Serial.println("Failed to find AHT10/AHT20 chip");
    while (1) {
      delay(10);
    }
  }
  Serial.println("AHT10/AHT20 Found!");
  aht_temp = aht.getTemperatureSensor();
  aht_temp->printSensorDetails();

  aht_humidity = aht.getHumiditySensor();
  aht_humidity->printSensorDetails();

  wifiConnectHandler = WiFi.onStationModeGotIP(onWifiConnect);
  wifiDisconnectHandler = WiFi.onStationModeDisconnected(onWifiDisconnect);

  mqttClient.onConnect(onMqttConnect);
  mqttClient.onDisconnect(onMqttDisconnect);

  mqttClient.onPublish(onMqttPublish);
  mqttClient.setServer(MQTT_HOST, MQTT_PORT);
  // If your broker requires authentication (username and password), set them below
  mqttClient.setCredentials("Guru", "Enterprise1");

  connectToWifi();
}

void loop() {
  unsigned long currentMillis = millis();
  // Every X number of seconds (interval = 10 seconds)
  // it publishes a new MQTT message
  if (currentMillis - previousMillis >= interval) {
    // Save the last time a new reading was published
    previousMillis = currentMillis;

    sensors_event_t humidity;
    sensors_event_t temp;
    aht_humidity->getEvent(&humidity);
    aht_temp->getEvent(&temp);

    // Publish an MQTT message on topic esp/dht/temperature
    uint16_t packetIdPub1 = mqttClient.publish(MQTT_PUB_TEMP, 1, true, String(temp.temperature).c_str());
    Serial.printf("Publishing on topic %s at QoS 1, packetId: %i ", MQTT_PUB_TEMP, packetIdPub1);
    Serial.printf("Message: %.2f \n", temp.temperature);

    // Publish an MQTT message on topic esp/dht/humidity
    uint16_t packetIdPub2 = mqttClient.publish(MQTT_PUB_HUM, 1, true, String(humidity.relative_humidity).c_str());
    Serial.printf("Publishing on topic %s at QoS 1, packetId %i: ", MQTT_PUB_HUM, packetIdPub2);
    Serial.printf("Message: %.2f \n", humidity.relative_humidity);
    delay(200);
    Serial.println("gleich geh ich schlafen");
    ESP.deepSleep(120e6);
  }
}
