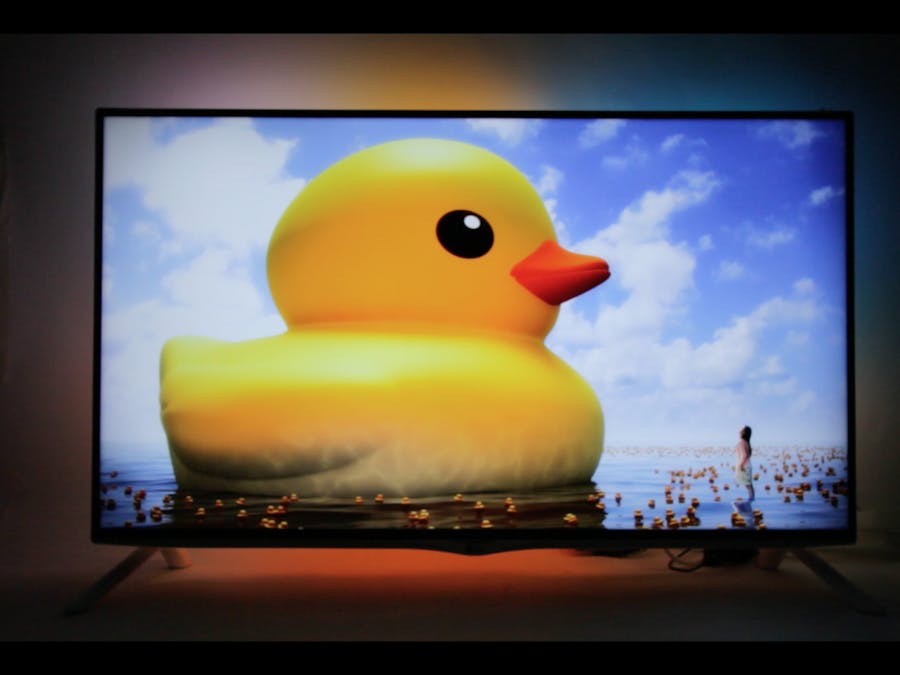

These days TV series are so cool it's a pity not to enhance the experience with an Ambient Light System.
This detailed tutorial will show you how easily is to create a smart home lighting system with UDOO X86 just like the one invented by Philips, called ambilight (without buy a TV Philips and without violate the copyright).
Boblight is a set of open source software tools that can be used to analyze the colors of the content, convert them in signals, transmit those signals to a LED strip placed around the screen and project the colors i see on TV, to the surrounding walls. And the best news is that you run everything on Kodi, a famous Open Source Software used to manage your media center or Home theater PC available for Windows, MacOS, Linux, Apple TV, Android. For this specific guide we used Windows OS.
How does BobLight work?
A video is played on your TV using Kodi.
BobLight uses a Kodi extension called “XBMC Boblight”. It converts in real-time the image displayed on the screen, in a very low resolution image and analyzes it.
Using a daemon (a program that runs in background) called “boblightd” the data is sent from the internal USB to the Arduino 101 compatible part of UDOO X86 which uses this information to control the color of the LED strip.
Windows recognizes this internal USB connection as serial port “COM” (usually as COM3), just like when you connect an Arduino 101 with your computer via USB.
To double check the port you can open the “Device Manager” window.
Just make sure that Kodi and UDOO X86 have the same BaudRate.
A prefix is also sent to be sure that the Arduino 101 mounted on UDOO X86 knows when to start projecting the colors behind the TV. The same prefix string must be defined in the BobLight config file and in your Arduino sketch.
Let’s start with the frame.
The LED strip could just be placed to the back of the TV with some tape, but if you want a more elegant and professional solution we suggest to create a frame where to fix the LED strip. Believe us,in this way the final result will be way more better.
To define the correct size of the frame you need to consider:
- LED brightness (the more bright are the LED the less you’ll need to cover the whole area);
- The resolution you want to obtain (the more LED you use the higher the resolution will be);
- Distance between the wall and your TV;
- Your TV design.
Keep in mind that the whole system may heat up, so the frame and the glue you’re going to apply must hold the hot temperature. For this reason we suggest to use a double-sided tape. for the frame we suggest to use aluminium.
To fix the to the TV we recommend using the “VESA Flat Display Mounting Interface” holes, also known as FDMI or more commonly VESA mount.
To mount the LED strip to the frame just go behind the TV and apply the strips in counterclockwise starting from 6 o'clock.
When you select the LED strips be careful not to buy multiple 1 meter-long strips to patch them together afterwards, look for a custom LED strip instead and your job will be way more smoother. Anyway, if you decided to follow the harder road make sure to spend more time on Boblight Config Maker (it’s available for Windows, Mac and Linux OS).
First of all, remember that thin cables are not your friends: LED strips are hungry for electricity, and you do not want to overcharge them.
Then heat up the LED strips connectors and applies tin on them. The same should be done for the ends of the heat shrink sleeves of the cables we want to connect.
Done this just heat up again the tin you applied to the connector and, gently, place the cable on the Frame.
The initial part of the LED strip must be connected to the Arduino 101 compatible part of UDOO X86 as shown below:
- Din, the LED strip Data pin must be connected to pin 9;
- +5v, must be connected to the positive power pole of the 5V power supply;
- GND, must be connected to the negative power pole of the 5V power supply and to a GND pin of the Arduino 101 part of UDOO X86.
To upload an Arduino sketch you need to install the Arduino IDE and, inside the software, the Arduino 101 board manager. Following this link you’ll find all the informations you need to upload the sketch.
The parameters that can be changed in the sketch to suit your needs are:
- DATAPIN 9 // Pin connected to the Din of the strip
- LEDCOUNT 80 // Number of LED used
- SHOWDELAY 200 // Delay in microseconds
- BAUDRATE 460800 // Serial port speed
- BRIGHTNESS 90 // Max Brightness %
Download the sketch here:
You’ll need to install the Adafruit_NeoPixel library as well (it’s used in the sketch). You can do it directly from the Arduino IDE using the Library Manager.
You can install Kodi for Windows here:
Now you need only 2 components to install.
XBMC Boblight addon
Install Kodi, open it and install the ‘XBMC Boblight’ add-on also used for the configuration. To do so go to:
Settings -> Add-ons -> Install from repository -> Kodi add-on repository -> Services -> XBMC Boblight and select “Install”.
We also need to install ‘boblightd’ (the daemon that communicates with the Kodi add-on). You can download the Windows 64bit version (the one that the UDOO X86 needs) here: http://download.udoo.org/files/tutorial/boblightd.zip
Unzip all the files here: "C:\boblightd\"
Once installed the boblightd daemon, you need to create a config file.
The boblightd config file defines the way boblightd and your Arduino communicates. In this way we’ll define the device and the communication type.
We can also define the LED colors we’re going to use. For every LED a corresponding area will be defined from the shape of a rectangle inside the display with specific dimensions and position.
To create the config file you can use the manual solution but we suggest to use the BoblightConfigTool you’ll find inside the archive, in this way you’ll save a lot of time. Remember to use the right parameters for the connected COM port and the other constants declared in the sketch.
Now the boblight.conf is created in the boblightd folder.
You can now start the daemon with the “start.bat” file.
Congratulations you set up everything. You just need to turn on the system.
To do so make sure that you already:
- uploaded the sketch on the Arduino 101 compatible part of UDOO X86;
- Powered up the LED strip with it’s own 5V power supply;
- Installed and booted the boblightd” and installed the “XBMC Boblight” on Kodi;
- Placed the “boblight.conf” in the boblightd folder;
- Started Kodi.
If the LED strip turns up and the Kodi boblight popup is shown, the system is ready and working.
Now you just need to select your favourite movie and have fun watching it.
Follow this link to find a video tutorial that sums up all the guide:
