Description
This PAW is a small utility board for your breadboard that have some of the most common things you need when building a microcontroller-based project on the breadboard. It's a small (2.5x1.5cm / 1x0.6”) PCB with a Power Led, a Reset button with a pullup and goes low when pressed, a Signal button with pulldown that goed high when pressed and two general Indicator Leds that are connected to ground via resistors.
Schematics

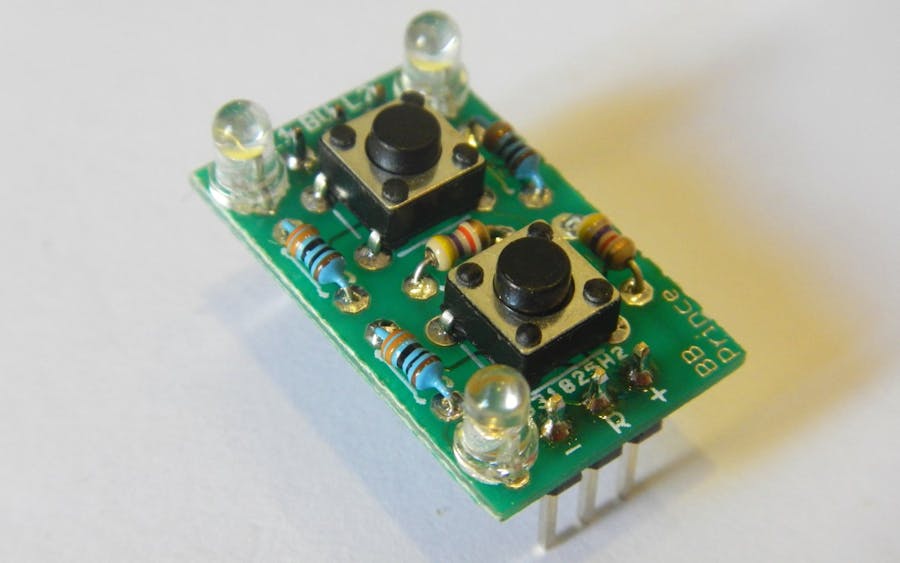

BB Prince - soldered and ready to use
