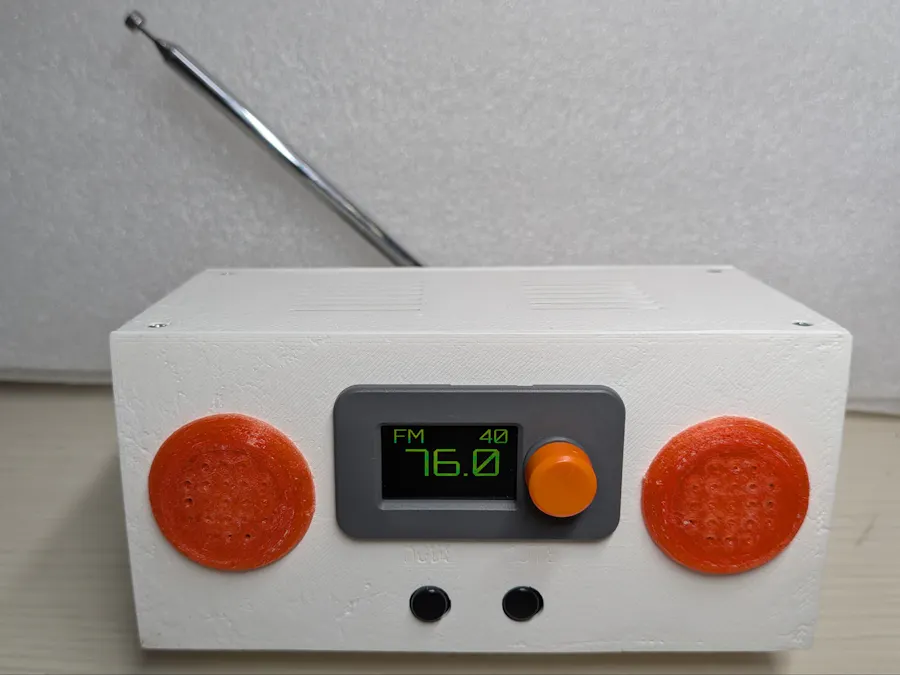

Desktop Radio Mini

// -------------------------------
// setup / loop
// -------------------------------
void setup() {
  Serial.begin(115200);
  Serial.println(F("Si4730 FM demo start"));

  // --- DIN METER 初期化 ---
  din_meter_init();
  si4730_initPins();

  // --- Si4730 を一旦リセット ---
  reset();

  Serial.println("Si4730 POWER ON");
  delay(1000);

  if (band == "FM") {
    fm_power_up();
    volume_set(nowvolume);
    fmfreq_set(prefmfreq);
  }
  else {
    am_power_up();
    volume_set(nowvolume);
    amfreq_set(preamfreq);
  }

  currentFreqFM = prefmfreq;
  targetFreqFM  = prefmfreq;

  currentFreqAM = preamfreq;
  targetFreqAM  = preamfreq;

  // --- Si4730 のバージョン読み取り ---
  get_rev();
  Serial.println("Si4730 STATUS/RESPONSE 読み取り開始");

  // --- エンコーダ初期位置 ---
  DinMeter.update();
  oldPosition = DinMeter.Encoder.read();

  // --- 初回画面描画（FM/AM 共通） ---
  redrawScreen();
}

void loop() {

  // ============================
  // ボタン更新（最優先）
  // ============================
  DinMeter.update();

  // 音量モード中は周波数処理を完全停止
  if (volumeMode) {
    return;
  }

  //void updateBandSwitch() {
  // ボタン押した瞬間
  if (DinMeter.BtnA.wasPressed()) {
    holdStart = millis();
    holdActive = true;
    previewShown = false;
    bandShouldSwitch = false;
  }

  // BtnA 長押し中
  if (holdActive && DinMeter.BtnA.isHolding()) {

    uint32_t held = millis() - holdStart;

    //
    if (held > 500 && !previewShown) {
      previewShown = true;
      bandShouldSwitch = true;

      DinMeter.Display.fillRect(0, 0, 120, 40, BLACK);
      DinMeter.Display.setTextSize(0);
      DinMeter.Display.setTextColor(ORANGE);

      if (band == "FM") {
      DinMeter.Display.drawString("AM", 50, 20);
      } else {
      DinMeter.Display.drawString("FM", 50, 20);
      }
    }

    //
    if (held > 1000 && bandShouldSwitch) {
      toggleBand();   // ★ AM/FM 切替
      redrawScreen();

      //
      holdActive = false;
      bandShouldSwitch = false;
      previewShown = false;
      return;
    }
  }

  // ボタンを離したとき
  if (DinMeter.BtnA.wasReleased()) {

  //
    if (bandShouldSwitch) {
      toggleBand();
      redrawScreen();
    }

    //
    holdActive = false;
    bandShouldSwitch = false;
    previewShown = false;
  }


  // 短押し → 音量調整モード
  if (DinMeter.BtnA.wasClicked()) {
    enterVolumeMode();
    return;
  }

  // ============================
  // エンコーダ処理
  // ============================
  static uint32_t lastRead = 0;
  if (millis() - lastRead < 2) return;
  lastRead = millis();

  long newPosition = DinMeter.Encoder.read();
  long diffPos = newPosition - oldPosition;

  // チャタリング完全除去
  if (abs(diffPos) == 1) return;
  if (diffPos % 2 != 0) return;

  //
  static int lastDir = 0;
  int dir = (diffPos > 0) ? 1 : -1;

  if (lastDir != 0 && dir != lastDir) {
    lastDir = dir;
    return;
  }
  lastDir = dir;

  // 回転速度 → ステップ可変
  static uint32_t lastRotateTime = 0;
  uint32_t now = millis();
  uint32_t diff = now - lastRotateTime;
  lastRotateTime = now;

  int stepFM = 1;
  int stepAM = 1;

  if (diff < 10) {
    stepFM = 10;
    stepAM = 5;
  }
  else if (diff < 20) {
    stepFM = 5;
    stepAM = 2;
  }

  // ============================
  // FM 周波数変更
  // ============================
  if (band == "FM" && (newPosition != oldPosition)) {

    int delta = diffPos / 2;
    targetFreqFM = prefmfreq - delta * (stepFM * 10);

    if (targetFreqFM < 7600)  targetFreqFM = 7600;     // 下限で止まる
    if (targetFreqFM > 10800) targetFreqFM = 10800;    // 上限で止まる

    prefmfreq = targetFreqFM;
    oldPosition = newPosition;
  }

  // ============================
  // AM 周波数変更
  // ============================
  else if (band == "AM" && (newPosition != oldPosition)) {

    int delta = diffPos / 2;
    targetFreqAM = preamfreq - delta * (stepAM * 9);

    // ★ ループではなくリミット固定に変更
    if (targetFreqAM < 531)  targetFreqAM = 531;     // 下限で止まる
    if (targetFreqAM > 1602) targetFreqAM = 1602;    // 上限で止まる

    preamfreq = targetFreqAM;
    oldPosition = newPosition;
  }

  // 画面表示
  if (band == "FM") {
    if (currentFreqFM != targetFreqFM) {

      if (currentFreqFM < targetFreqFM) currentFreqFM += 10;
      else if (currentFreqFM > targetFreqFM) currentFreqFM -= 10;

      //
      if (currentFreqFM > 10800) currentFreqFM = 10800;    // 上限で止まる
      if (currentFreqFM < 7600)  currentFreqFM = 7600;     // 下限で止まる

      char buf[10];
      dtostrf(float(currentFreqFM) / 100, 5, 1, buf);
      drawFreqSmooth(String(buf));

      if (currentFreqFM == targetFreqFM) fmfreq_set(currentFreqFM);
    }
  }

  else if (band == "AM") {
    if (currentFreqAM != targetFreqAM) {

      if (currentFreqAM < targetFreqAM) currentFreqAM += 9;
      else if (currentFreqAM > targetFreqAM) currentFreqAM -= 9;

      if (currentFreqAM < 531)  currentFreqAM = 531;     // 下限で止まる
      if (currentFreqAM > 1602) currentFreqAM = 1602;    // 上限で止まる

      char buf[10];
      dtostrf(float(currentFreqAM), 4, 0, buf);
      drawFreqSmooth(String(buf));

      if (currentFreqAM == targetFreqAM) amfreq_set(currentFreqAM);
    }
  }
}
