Automatic Door Opener with Presence Detection

A simple add-on to a regular door the provides automatic operation based on voice command, smartphone command or presence detection.

AdvancedFull instructions provided12 hours1,096

Runner Ups

Living in Motion

Automatic Door Opener with Presence Detection

Things used in this project

Hardware components

Particle Photon

Particle Argon

linear actuator

relay module - 2 channel

Relay Module - 1 channel

Drive Motor and wheel

Command strips

Rechargeable 6000 mAh 12VDC battery (optional)

Bike cable and sleeve

12V to 3.3V convertor

Mounting pins .25 x 3"

Panel Mount 12V power connector

USB-A to Micro-USB Cable

ac adaptor - usb

spring 0.02Dia .25 x 2.5

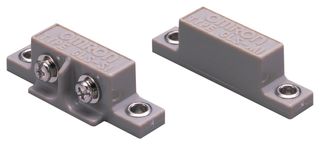

Switch Replacement Magnet, Omron Magnetic Proximity Sensor

Software apps and online services

Blynk

IFTTT Amazon Alexa service

Hand tools and fabrication machines

RAISE N2 3D Printer

Story

Our dogs go in an out of the house constantly. Unfortunately, we have no location available to install a dog door. They are Australian Shepards (very smart) so they have learned how to open the door themselves. The problem is the they don't remember to close the door! We would come home and the house would be freezing because the dogs left the door open. Current automatic door openers are very expensive and don't have the features I wanted so I built this one.

This solution costs under $100 to build.

The system uses a linear actuator that raises/lowers a drive wheel while a cable turns the door knob. A drive wheel is used to open/close the door. The product has a phone application that allows the user to fine tune the timing for door up/down delay and open/close amount. The door can also be controlled from the application.

IOS/Android Application

The "Shut Door" command will close the door when it was opened manually and not closed. The is also a magnetic switch on the door that will optionally automatically close the door when the dogs let themselves in/out.

The system can run using a 12V power adaptor or can use a battery that is charged every few weeks.

The door handle actuator uses a bike cable system.

The Bluetooth detection system uses a Particle Argon chipset. It detects the RSSI (signal strength) of specific Bluetooth UUID's. In this case I used "Tiles." These Tiles can be attached to the collar of your pet.

Here is the opening and closing with Alexa.

Opening

Closing

Components:

The Argon and Photon communicate via private publish/subscribe functions. The only issue with the bluetooth detection is that the door opens when the dogs are nearby but don't want to exit so I generally leave it off. You could also put all of the function on a single processor but I wanted to place the detector more optimally for outside detection.

The Alexa control is through a set of IFTTT "Triggers."

Schematics

Code

// This #include statement was automatically added by the Particle IDE.
#include <blynk.h>
SYSTEM_THREAD(ENABLED);
/*
 * Project AutoDoor
 * Description:
 * Author:Mark Lewis
 * Date: 10/1/2019
 */

char auth[] = "your_auth_token_here";

int rlBar = D0;
int ocWheel = D1;
int motorPower = D2;
int closeSensor = D4;
int DOWNTIME = 17000;
int OPENTIME = 3000;
int CLOSETIME = 4500;
int OFFSETTIME = 1000;
int lastData;
int oStatus;
int doorStatus = 0;
int autoDoor = 0;
int autoClose = 0;


BLYNK_WRITE(V0) {
  int blynkOpendoor = param[0].asInt();
    if (blynkOpendoor ==1){
        oDoor();
    }
}
BLYNK_WRITE(V1) {
  int blynkClosedoor = param[0].asInt();
    if (blynkClosedoor == 1){
        cDoor();
    }
}
BLYNK_WRITE(V2) {
  int blynkShutdoor = param[0].asInt();
    if (blynkShutdoor ==1){
        sDoor();
    }
}
BLYNK_WRITE(V3) {
  int blynkDowntime = param[0].asInt();
  DOWNTIME = (blynkDowntime *1000);
  EEPROM.put(30, DOWNTIME);
}
BLYNK_WRITE(V4) {
  int blynkOpentime = param[0].asInt();
  OPENTIME = (blynkOpentime * 1000);
  EEPROM.put(40, OPENTIME);
}
BLYNK_WRITE(V5) {
  int blynkClosetime = param[0].asInt();
  CLOSETIME = (blynkClosetime*1000);
  EEPROM.put(50, CLOSETIME);
}

BLYNK_WRITE(V6) {
  int blynkOffsettime = param[0].asInt();
  OFFSETTIME = (blynkOffsettime*1000);
  EEPROM.put(60, OFFSETTIME);
}
  BLYNK_WRITE(V7) {
  int blynkautoClose = param[0].asInt();
  autoClose = blynkautoClose;
  EEPROM.put(70, autoClose);
}
void setup() {

  pinMode(rlBar, OUTPUT);
  pinMode(ocWheel, OUTPUT);
  pinMode(motorPower, OUTPUT);
  pinMode(closeSensor,INPUT_PULLUP);

  Particle.function("openDoor", openDoor);
  Particle.function("closeDoor", closeDoor);
  Particle.function("shutDoor", shutDoor);
  Particle.function("lockDoor", lockDoor);
  Particle.function("unlockDoor", unlockDoor);
  Particle.subscribe("let_the_dog_out", myHandler);

  EEPROM.get(30, DOWNTIME);
  EEPROM.get(40, OPENTIME);
  EEPROM.get(50, CLOSETIME);
  EEPROM.get(60, OFFSETTIME);

  Blynk.begin(auth);
}

void loop() {

  Blynk.run();
  oStatus = digitalRead(closeSensor);
  if (autoClose ==1 && oStatus == 0) {
      sDoor();
      delay(CLOSETIME);
  }
}

void oDoor()  {
  Particle.publish("is_the_door_open","yes", MY_DEVICES);
  digitalWrite( rlBar, HIGH);
  delay (DOWNTIME);
  digitalWrite( ocWheel, HIGH);
  digitalWrite( motorPower, HIGH);
  delay (OPENTIME);
  digitalWrite( motorPower, LOW);
  doorStatus = 1;

}

void cDoor()  {
  Particle.publish("is_the_door_open","no", MY_DEVICES);
  digitalWrite( ocWheel, LOW);
  digitalWrite( motorPower, HIGH);
  delay (OFFSETTIME);
  digitalWrite( rlBar, LOW);
  delay (CLOSETIME);
  digitalWrite( motorPower, LOW);
  doorStatus = 0;
}
// used when the door has been opened manually
void sDoor()  {
  Particle.publish("is_the_door_open","no", MY_DEVICES);
  digitalWrite( rlBar, HIGH);
  delay (DOWNTIME);
  digitalWrite( ocWheel, LOW);
  digitalWrite( motorPower, HIGH);
  delay (OFFSETTIME);
  digitalWrite( rlBar, LOW);
  delay (CLOSETIME);
  digitalWrite( motorPower, LOW);
  doorStatus =0;
}
void lDoor(){
    autoDoor = 0;
}
void uDoor(){
    autoDoor = 1;
}

void myHandler(const char *event, const char *data)
{
    if (strcmp(data,"open")==0)  {
       if (autoDoor == 1){
           oDoor();
           delay (OPENTIME);
        }
   }
    if  (strcmp(data,"close")==0) {
       if (autoDoor == 1){
           cDoor();
           delay (CLOSETIME);
       }
   }
    if  (strcmp(data,"shut")==0) {
       sDoor();
       delay ((OPENTIME + CLOSETIME));
   }
}

//Invoked by alexa
int openDoor(String Command) {
    oDoor();
    return 1;
}
//Invoked by alexa
int closeDoor(String Command) {
    cDoor();
    return 1;
}
int shutDoor(String Command) {
    sDoor();
    return 1;
}
int lockDoor(String Command) {
    lDoor();
    return 1;
}
int unlockDoor(String Command) {
    uDoor();
    return 1;
}

/*
 * Project Detect
 * Description: Check the proximity of a Tile device. Send a message when the device arrives or leaves.
 * Author: Mark Lewis
 * Date: 11/2/2019
 */

#include "Particle.h"

// Enable thread (optional)
//SYSTEM_THREAD(ENABLED);

#define TILE_UUID      0xfeed
#define SCAN_TIMEOUT_10MS 800

int8_t lastRSSI;
int bestRSSI;
int THRESHOLD = -40;
int DELAYNUM = 6;
int DELAYTIME = 3000;
system_tick_t lastSeen = 0;
int doorStatus = 1;
int delayCount = 0;


// For logging
SerialLogHandler logHandler(115200, LOG_LEVEL_ERROR, {
    { "app", LOG_LEVEL_TRACE },
});


// Find advertising devices
void scanResultCallback(const BleScanResult *scanResult, void *context) {

    // Collect the uuids / Mac info
    BleUuid uuids[4];
    int uuidsAvail = scanResult->advertisingData.serviceUUID(uuids,sizeof(uuids)/sizeof(BleUuid));
    BleAddress addr = scanResult->address;

    // Loop over all available UUIDs
    for(int i = 0; i < uuidsAvail; i++){
        // Get only Tile UUID's and RSSI
        if( uuids[i].shorted() == TILE_UUID ) {
            Log.trace("UUID: %x", uuids[i].shorted());
            Log.trace("MAC: %02X:%02X:%02X:%02X:%02X:%02X", addr[0], addr[1], addr[2], addr[3], addr[4], addr[5]);
            Log.trace("RSSI: %dBm", scanResult->rssi);

            // you could descriminte here by specific tile UUID

            lastSeen = millis();
            lastRSSI = scanResult->rssi;

            //keep the best RSSI Value for the Tiles
            if (lastRSSI > bestRSSI){
                bestRSSI = lastRSSI;
            }

        }
    }
}

void doorOpen(){
        //open door if needed
    Serial.printlnf("Checking if door needs to be opened - Door Status= %i", doorStatus);
    if (doorStatus == 0){
           Serial.println("Sending Open Door Command");
           Particle.publish("let_the_dog_out","open");
    }
}

void doorClose(){
    // close door if needed
    Serial.printlnf("Checking if door needs to be closed - Door Status= %i", doorStatus);
    if (doorStatus == 1){
         Serial.println("Sending Open Door Command");
         Particle.publish("let_the_dog_out","close");
    }

}


// Track the open /close status so the system does not continually try to open a door already open
void myHandler(const char *event, const char *data){

    Log.trace(event);
    Log.trace(data);

    if (strcmp(data,"yes")==0){
        digitalWrite(D6, HIGH);
        digitalWrite(D5, LOW);
        doorStatus = 1;
        Log.trace("the door is open");
    }
     if (strcmp(data,"no")==0){
        digitalWrite(D5, HIGH);
        digitalWrite(D6, LOW);
        doorStatus = 0;
        Log.trace("the door is closed");
     }

}

void setup() {

    Particle.subscribe("is_the_door_open", myHandler);
    Serial.begin(9600);
    // Set LED pins
    pinMode(D7,OUTPUT);
    pinMode(D6,OUTPUT);
    pinMode(D5,OUTPUT);

    // Set timeout for BLE to 500ms
    BLE.setScanTimeout(SCAN_TIMEOUT_10MS);

}

void loop() {


    bestRSSI = -100; // Reset RSSI to a nominal value
    Log.trace("scan start.");
    BLE.scan(scanResultCallback, NULL);
    Serial.printlnf("Best RSSI = %i", bestRSSI);
    Serial.println();
    if (bestRSSI >= THRESHOLD){
        doorOpen();
        delayCount=0;
    }
    if (bestRSSI<= THRESHOLD){
        delayCount++;
        if (delayCount > DELAYNUM){ // delays "not found" for "x" number of cycles before closing door
            doorClose();
        }
    }
    Particle.process(); // good houskeeping only
    delay(DELAYTIME);


}
