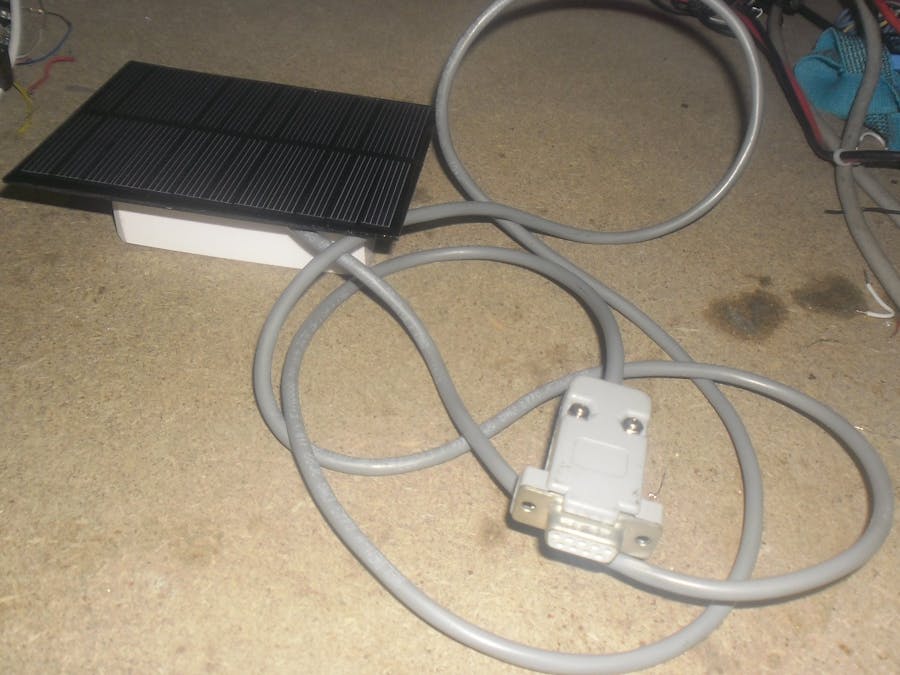

Indicador de Nivel de Gas

El mas reciente y sofisticado dispositivo solar e inalámbrico para medición de nivel de líquidos en tanques estacionarios.

IntermediateOver 1 day30
Indicador de Nivel de Gas

Things used in this project

Hardware components

STMicroelectronics stm8L151
×1
Bluetooth Low Energy (BLE) Module (Generic)
×1
celda solar
×1
hall rotatory
×1

Software apps and online services

NG_App

Story

Read more

Code

INDICADOR DE NIVEL DE GAS

C/C++
INDICADOR DE NIVEL DE GAS
// MAIN.C file
#include <stm8l15x.h>
#include "stm8l15x_clk.h"
#include "stm8l15x_pwr.h"
#include "stm8l15x_usart.h"
#include "stm8l15x_adc.h"
#include "stm8l15x_i2c.h"
#include "math.h"

#define Mag 0x3C
/*12-bit ADC=4096
8-bit read address   0x3D
8-bit write address  0x3C
*/
#define TIMEOUT_MAX    0x3000
//uint8_t GetData=100;
uint16_t RBuffer[2] = {0x00, 0x00};
uint16_t TimeOut;
int16_t Mx=0,My=0,Mz=0;
float Angx,Angy,Angz;

void delay(unsigned long i)
{
  unsigned int j;
  for(j=0;j<(i*10);j++){;}
}

void Init_Usart(void)
{
	/*_____________________Clock Conf______________________*/
  CLK_DeInit();
  CLK_HSICmd(ENABLE);  //highSpeedInternal
  CLK_SYSCLKSourceConfig(CLK_SYSCLKSource_HSI);
  CLK_SYSCLKDivConfig(CLK_SYSCLKDiv_1);

  CLK_HaltConfig(CLK_Halt_BEEPRunning, DISABLE);
  CLK_HaltConfig(CLK_Halt_FastWakeup, DISABLE);
  CLK_HaltConfig(CLK_Halt_SlowWakeup, ENABLE);
  PWR_UltraLowPowerCmd(ENABLE);

  /*_____________________Uart Conf________________________*/
  USART_DeInit(USART1);

  GPIO_ExternalPullUpConfig(GPIOC,GPIO_Pin_2,ENABLE ); //Set the USART RX and USART TX at high level
  GPIO_ExternalPullUpConfig(GPIOC,GPIO_Pin_3,ENABLE);
  CLK_PeripheralClockConfig(CLK_Peripheral_USART1, ENABLE);// Enable USART clock

  USART_Init(USART1,
             9600,
             USART_WordLength_8b,
             USART_StopBits_1,
             USART_Parity_No,
             USART_Mode_Rx|USART_Mode_Tx);
             USART_ITConfig(USART1, USART_IT_RXNE, ENABLE);

  USART_Cmd(USART1, ENABLE);
  //enableInterrupts();
}

void Init_Adc(void)
{
	CLK_PeripheralClockConfig(CLK_Peripheral_ADC1,ENABLE);
  GPIO_Init(GPIOA,GPIO_Pin_6,GPIO_Mode_In_FL_No_IT);
  ADC_DeInit(ADC1);
  ADC_Init(ADC1,ADC_ConversionMode_Continuous,ADC_Resolution_8Bit,ADC_Prescaler_2);
  ADC_SamplingTimeConfig(ADC1,ADC_Group_SlowChannels,ADC_SamplingTime_4Cycles);
  ADC_VrefintCmd(ENABLE);
  ADC_Cmd(ADC1,ENABLE);
  ADC_ChannelCmd(ADC1,ADC_Channel_0,ENABLE);
  ADC_SoftwareStartConv(ADC1);
}

uint8_t I2C_WriteDR(uint32_t Addr,uint32_t Register,uint8_t Data)
{
  // Enable the I2C peripheral
  I2C_GenerateSTART(I2C1, ENABLE);

    // Test on EV5 and clear it
  TimeOut = TIMEOUT_MAX;
  while (!I2C_GetFlagStatus(I2C1, I2C_FLAG_SB))
  {
    if (TimeOut-- == 0){return 0;}
  }
  // Disable Acknowledgement
  I2C_AcknowledgeConfig(I2C1, DISABLE);

  // Transmit the slave address and enable writing operation
  I2C_Send7bitAddress(I2C1, Addr, I2C_Direction_Transmitter);

  // Test on EV6 and clear it
  TimeOut = TIMEOUT_MAX;
  while (!I2C_GetFlagStatus(I2C1, I2C_FLAG_ADDR))
  {
    if (TimeOut-- == 0){return 0;}
  }

  // Read status register 2 to clear ADDR flag
  I2C1->SR2;

  // Test on EV8 and clear it
  TimeOut = TIMEOUT_MAX;
  while (!I2C_GetFlagStatus(I2C1, I2C_FLAG_TXE))
  {
    if (TimeOut-- == 0){return 0;}
  }

  // Transmit the Register for w operations
  I2C_SendData(I2C1, Register);

  // Test on EV8 and clear it
  TimeOut = TIMEOUT_MAX;
  while ((!I2C_GetFlagStatus(I2C1, I2C_FLAG_TXE)) || (!I2C_GetFlagStatus(I2C1, I2C_FLAG_BTF)))
  {
    if (TimeOut-- == 0){return 0;}
  }

	// Transmit the Data for w operations
	I2C_SendData(I2C1, Data);

  // Test on EV8 and clear it
  TimeOut = TIMEOUT_MAX;
  while ((!I2C_GetFlagStatus(I2C1, I2C_FLAG_TXE)) || (!I2C_GetFlagStatus(I2C1, I2C_FLAG_BTF)))
  {
    if (TimeOut-- == 0){return 0;}
  }

  // End the configuration sequence
  I2C_GenerateSTOP(I2C1, ENABLE);

  // Return the read value
  return 0;
}

uint8_t I2C_ReadDR(uint32_t Addr,uint32_t Register)
{
  uint8_t tmp = 0;

  // Enable the I2C peripheral
  I2C_GenerateSTART(I2C1, ENABLE);

    // Test on EV5 and clear it
  TimeOut = TIMEOUT_MAX;
  while (!I2C_GetFlagStatus(I2C1, I2C_FLAG_SB))
  {
    if (TimeOut-- == 0){return 0;}
  }
  // Disable Acknowledgement
  I2C_AcknowledgeConfig(I2C1, DISABLE);

  // Transmit the slave address and enable writing operation
  I2C_Send7bitAddress(I2C1, Addr, I2C_Direction_Transmitter);

  // Test on EV6 and clear it
  TimeOut = TIMEOUT_MAX;
  while (!I2C_GetFlagStatus(I2C1, I2C_FLAG_ADDR))
  {
    if (TimeOut-- == 0){return 0;}
  }

  // Read status register 2 to clear ADDR flag
  I2C1->SR2;

  // Test on EV8 and clear it
  TimeOut = TIMEOUT_MAX;
  while (!I2C_GetFlagStatus(I2C1, I2C_FLAG_TXE))
  {
    if (TimeOut-- == 0){return 0;}
  }

  // Transmit the first address for r/w operations
  I2C_SendData(I2C1, Register);

  // Test on EV8 and clear it
  TimeOut = TIMEOUT_MAX;
  while ((!I2C_GetFlagStatus(I2C1, I2C_FLAG_TXE)) || (!I2C_GetFlagStatus(I2C1, I2C_FLAG_BTF)))
  {
    if (TimeOut-- == 0){return 0;}
  }

  // Regenerate a start condition
  I2C_GenerateSTART(I2C1, ENABLE);

  // Test on EV5 and clear it
  TimeOut = TIMEOUT_MAX;
  while (!I2C_GetFlagStatus(I2C1, I2C_FLAG_SB))
  {
    if (TimeOut-- == 0){return 0;}
  }

  // Transmit the slave address and enable writing operation
  I2C_Send7bitAddress(I2C1, Addr, I2C_Direction_Receiver);

  // Test on EV6 and clear it
  TimeOut = TIMEOUT_MAX;
  while (!I2C_GetFlagStatus(I2C1, I2C_FLAG_ADDR))
  {
    if (TimeOut-- == 0){return 0;}
  }

    // Read status register 2 to clear ADDR flag
  I2C1->SR2;

  // Test on EV7 and clear it
  TimeOut = TIMEOUT_MAX;
  while (!I2C_GetFlagStatus(I2C1, I2C_FLAG_RXNE))
  {
    if (TimeOut-- == 0){return 0;}
  }

  // End the configuration sequence
  I2C_GenerateSTOP(I2C1, ENABLE);

  // Load the register value
  tmp = I2C_ReceiveData(I2C1);

  // Enable Acknowledgement
  I2C_AcknowledgeConfig(I2C1, ENABLE);

  // Return the read value
  return tmp;

}

void Init_Mag(void)
{
	GPIO_Init(GPIOC, GPIO_Pin_1, GPIO_Mode_Out_OD_HiZ_Fast);
  GPIO_Init(GPIOC, GPIO_Pin_0, GPIO_Mode_Out_OD_HiZ_Fast);
  CLK_PeripheralClockConfig(CLK_Peripheral_I2C1, ENABLE);
	I2C_DeInit(I2C1);
  I2C_Init(I2C1, 1000, 0, I2C_Mode_I2C, I2C_DutyCycle_2, I2C_Ack_Enable,I2C_AcknowledgedAddress_7bit);
  I2C_Cmd(I2C1, ENABLE);

  I2C_WriteDR(Mag,0x00,0x78);//=75Hz, or 0x70 = 15 (Default)
	I2C_WriteDR(Mag,0x01,0x00);
	I2C_WriteDR(Mag,0x02,0x00);
}

uint16_t ArcTang(uint16_t y,uint16_t x)
{
	uint16_t z=y/x;
	uint16_t at=0;
	at=z-((z^3)/3)+((z^5)/5)-((z^7)/7)+((z^9)/9)-((z^1)/1)+((z^13)/13)-((z^15)/15)+((z^17)/17)-((z^19)/19)+((z^21)/21);
	return 57.3*at;//180/pi=57.3
}

uint8_t Lectura(void)
{
	uint8_t Ang=0;
	return 190;
	RBuffer[0]=I2C_ReadDR(Mag,0x03);
	RBuffer[1]=I2C_ReadDR(Mag,0x04);
	Mx=((RBuffer[1]&0x00ff) | ((RBuffer[0]<<8)&0xff00));

	RBuffer[0]=I2C_ReadDR(Mag,0x07);
	RBuffer[1]=I2C_ReadDR(Mag,0x08);
	My=((RBuffer[1]&0x00ff) | ((RBuffer[0]<<8)&0xff00));

	/*RBuffer[0]=I2C_ReadDR(Mag,0x05);
	RBuffer[1]=I2C_ReadDR(Mag,0x06);
	Mz=((RBuffer[1]&0x00ff) | ((RBuffer[0]<<8)&0xff00));*/

	Ang=ArcTang(100,100);

}

//arc tan (x) = x - x^3/3 + x^5/5 - x^7/7 + ...
/*int16_t _atan2(float y, float x)
{
  #define fp_is_neg(val) ((((uint8_t*)&val)[3] & 0x80) != 0)
  float z = y / x;
  int16_t zi = abs(int16_t(z * 100));
  int8_t y_neg = fp_is_neg(y);
  if ( zi < 100 )
	{
    if (zi > 10) z = z / (1.0f + 0.28f * z * z);
    if (fp_is_neg(x))
	  {
      if (y_neg) z -= PI;
      else z += PI;
    }
  }
	else
	{
    z = (PI / 2.0f) - z / (z * z + 0.28f);
    if (y_neg) z -= PI;
  }
  z *= (180.0f / PI * 10);
  return z;
}*/

int Conex(void)
{
  int i=0,n=0,p=0;//T/2=delay(1000);
	for(i=0;i<5;i++)
	{
		if(GPIO_ReadInputDataBit(GPIOD, GPIO_Pin_0)){p++;}
		if(!GPIO_ReadInputDataBit(GPIOD, GPIO_Pin_0)){n++;}
		delay(500);
	}
  if( ((p-n)>2)|((n-p)>2) ){return 1;}
	else{return 0;}
}

int main()
{
	GPIO_Init (GPIOD,GPIO_Pin_0,GPIO_Mode_In_FL_IT);
	GPIO_Init (GPIOB,GPIO_Pin_7,GPIO_Mode_Out_PP_Low_Fast);
	GPIO_ResetBits(GPIOB,GPIO_Pin_7);
	GPIO_Init (GPIOB,GPIO_Pin_4,GPIO_Mode_Out_PP_Low_Fast);
	GPIO_ResetBits(GPIOB,GPIO_Pin_4);

	PWR_PVDLevelConfig(PWR_PVDLevel_3V05);
  PWR_PVDITConfig(ENABLE);
  PWR_PVDCmd(ENABLE);

	Init_Usart();
	//Init_Adc();
	Init_Mag();
	//enableInterrupts();	problemas!

	while(1)
	{
		if(PWR_GetFlagStatus(PWR_FLAG_PVDOF)==RESET)
    {
      delay(1000);
		  while(PWR_GetFlagStatus(PWR_FLAG_PVDOF)==RESET)
		  {
			  GPIO_SetBits(GPIOB,GPIO_Pin_7);
		    if(Conex())
		    {
		      while(GPIO_ReadInputDataBit(GPIOD, GPIO_Pin_0))
			    {
				    GPIO_SetBits(GPIOB,GPIO_Pin_4);
			      if(USART_GetITStatus(USART1,USART_IT_RXNE)==SET)
			      {
              if(USART_ReceiveData8(USART1)=='0')
				      {
					      /*if(ADC_GetConversionValue(ADC1)<=250)
							  {USART_SendData8(USART1,ADC_GetConversionValue(ADC1));}
							  else{USART_SendData8(USART1,250);}*/
								USART_SendData8(USART1,Lectura());
				      }
              USART_ClearITPendingBit(USART1,USART_IT_RXNE);
			      }
			    }
					GPIO_ResetBits(GPIOB,GPIO_Pin_4);
	      }
		  }
    }
    else
    {
     GPIO_ResetBits(GPIOB,GPIO_Pin_7);
		 GPIO_ResetBits(GPIOB,GPIO_Pin_4);
    }
	}
  return 1;
}

/*
INTERRUPT_HANDLER(EXTIE_F_PVD_IRQHandler,5)
{
  // In order to detect unexpected events during development,
  //  it is recommended to set a breakpoint on the following instruction.

  if (PWR_PVDGetITStatus() != RESET)
  {

    if (PWR_GetFlagStatus(PWR_FLAG_PVDOF) != RESET)
    {// Falling Direction Detected
      GPIO_ResetBits(GPIOB,GPIO_Pin_7);
    }
    else
    {// Rising Direction Detected
      GPIO_SetBits(GPIOB,GPIO_Pin_7);
    }
  }
	PWR_PVDClearITPendingBit();
}*/

INDICADOR DE NIVEL DE GAS

C/C++
INDICADOR DE NIVEL DE GAS
No preview (download only).
