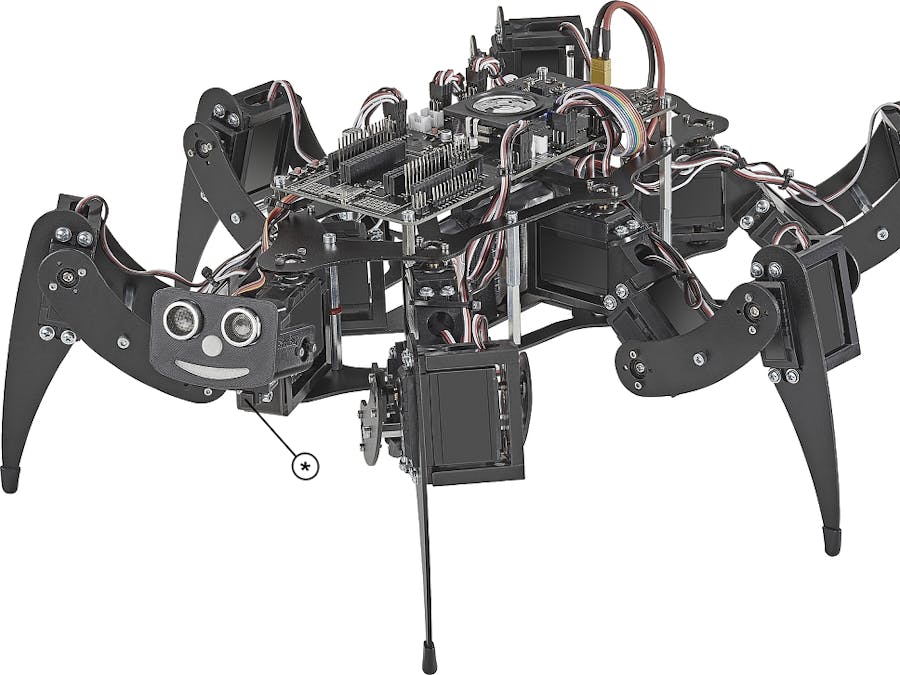

Robobug / Hexapod Walking and Avoiding Obstacles

By mounting Arduino Uno on MAKERFACTORY Robobug it can walk autonomously and avoid obstacles using ultrasonic sensor.

AdvancedFull instructions provided5 hours8
Robobug / Hexapod Walking and Avoiding Obstacles

Things used in this project

Hardware components

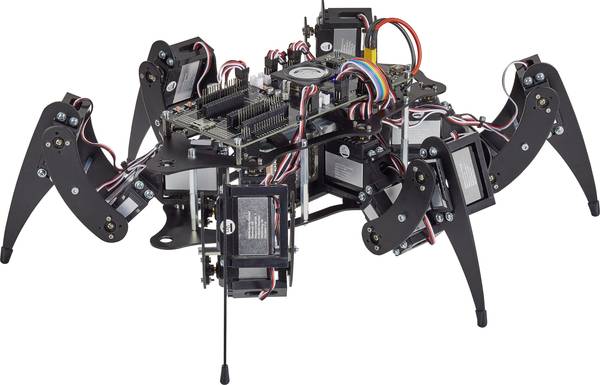

MAKERFACTORY RoboBug assembly kit
MAKERFACTORY RoboBug assembly kit
×1

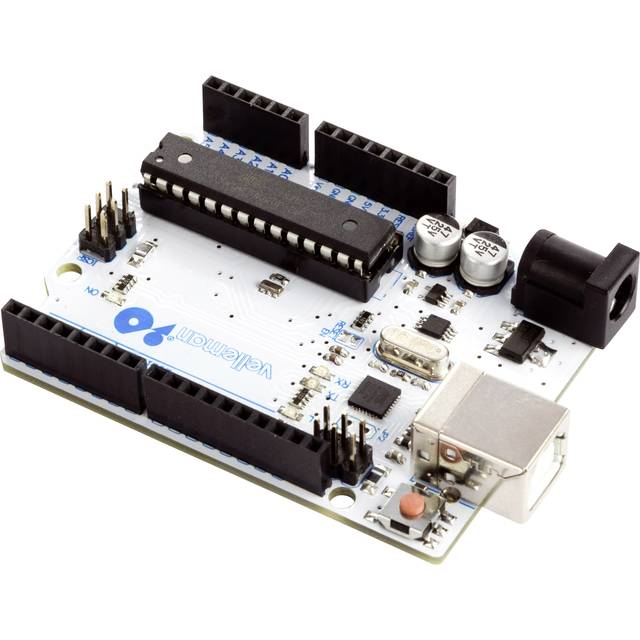

MAKERFACTORY Arduino UNO compatible
MAKERFACTORY Arduino UNO compatible
×1

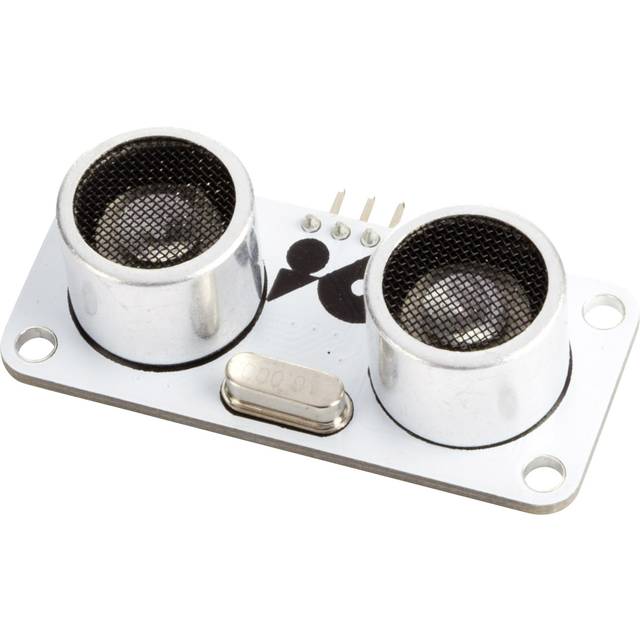

MAKERFACTORY ULTRASONIC SENSOR HC-SR05
MAKERFACTORY ULTRASONIC SENSOR HC-SR05
×1
MAKERFACTORY Robot Servo MF-06
MAKERFACTORY Robot Servo MF-06
×1
MAKERFACTORY Robot servo SERVO MF-05
MAKERFACTORY Robot servo SERVO MF-05
×1

Software apps and online services

Arduino IDE
Arduino IDE

Hand tools and fabrication machines

3D Printer (generic)
3D Printer (generic)

Story

Read more

Custom parts and enclosures

PAN and TILT unit for Robobug

with these stl-files you can print the 3 parts needed for building the movable head

Schematics

Wiring diagram of ultrasonic sensor with Arduino UNO

the wiring for ultrasonic sensor is quite easy. just use jump wires to connect and fix the loose wires by cable ties

Code

C Program for Robobug avoiding obstaclesC/C++

C/C++
user program suitable for further extensions or adaption Arduino UNO, which can be plugged on the Hexpod controller board
/******************************************************************
Created with PROGRAMINO IDE for Arduino
Project     : MAKERFACTORY Ultrasonic Demo (Snoopy Logic)
Author      : UlliS

Description :
The demo shows how the MAKERFACTORY can avoid obstacles with
the Pan & Tilt unit and an ultrasonic sensor HC-SR04.

Userboard is ARDUINO UNO
---------------------------
- IR Daten      7
- SU1           6 Pan
- SU2           5 Tilt
- SU3           9 +/- WS2812
- A0            US Trigger
- A1            US Echo
- A4            free
- A5            free
- 10            free

******************************************************************/

#include <Adafruit_NeoPixel.h> // https://github.com/adafruit/Adafruit_NeoPixel
#ifdef __AVR__
    #include <avr/power.h>
#endif

#include <Servo.h>

// Arduino
#define ARDUINO
#include <Hexapod_Lib.h>

/******************************************************************************
WS2812 RGB-LED
******************************************************************************/
// WS2812/13 (Neopixel) smart RGB LED
#define WS2812_PIN      SU3

// Parameter 1 = number of pixels in strip
// Parameter 2 = Arduino pin number (most are valid)
// Parameter 3 = pixel type flags, add together as needed:
// NEO_KHZ800  800 KHz bitstream (most NeoPixel products w/WS2812 LEDs)
// NEO_KHZ400  400 KHz (classic 'v1' (not v2) FLORA pixels, WS2811 drivers)
// NEO_GRB     Pixels are wired for GRB bitstream (most NeoPixel products)
// NEO_RGB     Pixels are wired for RGB bitstream (v1 FLORA pixels, not v2)
// NEO_RGBW    Pixels are wired for RGBW bitstream (NeoPixel RGBW products)

Adafruit_NeoPixel pixel = Adafruit_NeoPixel(1, WS2812_PIN, NEO_GRB + NEO_KHZ800);

/******************************************************************************
HC-SR04 ULTRASONIC SENSOR
******************************************************************************/
// pins for ultrasonic sensor
#define SR04_TRG_PIN    A0
#define SR04_ECHO_PIN   A1

/******************************************************************************
SERVO PAN & TILT
******************************************************************************/
// declare your servo as an object
#define SERVO_PAN_PIN   SU2
#define SERVO_TILT_PIN  SU1
Servo servo_pan;
Servo servo_tilt;

#define PAN_CENTER      100 // lower value scanner more left
#define TILT_CENTER     95  // lower value scanner more up

#define PAN_SCANDEG 30
#define PAN_LEFTMAX (PAN_CENTER - PAN_SCANDEG)
#define PAN_RIGHTMAX (PAN_CENTER + PAN_SCANDEG)
#define COLLISION_THRESH 60 // threshold for obstacles (in cm)
#define COLLISION_THRESH_FREE 30 // threshold for obstacles + cm
#define BASIC_DELAY 1500
#define MIN_RND_DELAY 500
#define MAX_RND_DELAY 2000
#define MOVE_SPEED 20

int pos = 0;

/******************************************************************************
SETUP
******************************************************************************/
void setup()
{
    // WS2812 RGB-LED
    pixel.begin();  // this initializes the NeoPixel library.
    WS2812_SET_RGB(255,255,255);

    // high-Z for the audio output
    pinMode(PA_PIN,INPUT);
    digitalWrite(PA_PIN,LOW);

    // switches T1 and T2
    pinMode(T1,INPUT);
    pinMode(T2,INPUT);

    // HC-SR04
    pinMode(SR04_TRG_PIN, OUTPUT);
    pinMode(SR04_ECHO_PIN, INPUT);

    // open serial communications and wait for port to open:
    Serial.begin(SERIAL_STD_BAUD);
    while(!Serial);

    // set the data rate for the SoftwareSerial port (User-Board to Locomotion-Controller)
    SERIAL_CMD.begin(SERIAL_CMD_BAUD);

    // reset the Locomotion-Controller
    ROBOT_RESET();
    delay(250);
    ROBOT_RESET();
    delay(150);
    ROBOT_RESET();

    // wait for Boot-Up
    delay(1500);
    ROBOT_INIT();

    // pan & tilt servos
    servo_pan.attach(SERVO_PAN_PIN);
    servo_tilt.attach(SERVO_TILT_PIN);
    servo_pan.write(PAN_CENTER);
    servo_tilt.write(TILT_CENTER);

    // rnd init
    randomSeed(analogRead(0));

    // RBG LED
    for(int i = 0; i < 765; i++)
    {
        WS2812_ColorSweep(i);
        delay(5);
    }
    WS2812_SET_RGB(0,255,0); // green

    // print a hello world over the USB connection
    Serial.println("> Hello here is the MAKERFACTORY Robobug");
}

/******************************************************************************
MAIN LOOP
******************************************************************************/
void loop()
{

    // start demo
    if(!digitalRead(T1))
    {
        delay(50);
        if(!digitalRead(T1))
        {
            MSound(1, 100, 1000);
            move_init();

            // turn center to left (soft start up)
            for (pos = PAN_CENTER; pos >= PAN_LEFTMAX; pos -= 1)
            {
                // in steps of 1 degree
                servo_pan.write(pos);
                delay(20);
            }


            while(1)
            {
                // forward
                move_fwd(100);

                // scanner turn to full right
                for (pos = PAN_LEFTMAX; pos <= PAN_RIGHTMAX; pos += 1)
                {
                    WS2812_SET_RGB(0,0,255); // blue
                    while (SR04_DISTANCE() < COLLISION_THRESH)
                    {
                        WS2812_SET_RGB(255,0,0); // red
                        if (pos <= PAN_CENTER) // obstacle left
                        {
                            // turn right
                            while (SR04_DISTANCE() < COLLISION_THRESH + COLLISION_THRESH_FREE)
                            {
                                checktonear(); // check min. distance
                                turn_right(BASIC_DELAY+random(MIN_RND_DELAY, MAX_RND_DELAY)); // rnd delay for better escape behavior
                            }
                            // forward
                            move_fwd(100);
                        }
                        else if (pos > PAN_CENTER) // obstacle right
                        {
                            // turn left
                            while (SR04_DISTANCE() < COLLISION_THRESH + COLLISION_THRESH_FREE)
                            {
                                checktonear(); // check min. distance
                                turn_left(BASIC_DELAY+random(MIN_RND_DELAY, MAX_RND_DELAY)); // rnd delay for better escape behavior
                            }
                            // forward
                            move_fwd(100);
                        }
                    }

                    // sweep servo
                    servo_pan.write(pos);
                }

                // forward
                move_fwd(100);

                // scanner turn to full left
                for (pos = PAN_RIGHTMAX; pos >= PAN_LEFTMAX; pos -= 1)
                {
                    WS2812_SET_RGB(0,255,0); // green
                    while (SR04_DISTANCE() < COLLISION_THRESH)
                    {
                        WS2812_SET_RGB(255,0,0); // red
                        if (pos <= PAN_CENTER) // obstacle left
                        {
                            // turn right
                            while (SR04_DISTANCE() < COLLISION_THRESH + COLLISION_THRESH_FREE)
                            {
                                checktonear(); // check min. distance
                                turn_right(BASIC_DELAY+random(MIN_RND_DELAY, MAX_RND_DELAY)); // rnd delay for better escape behavior
                            }
                            // forward
                            move_fwd(100);
                        }
                        else if (pos > PAN_CENTER) // obstacle right
                        {
                            // turn left
                            while (SR04_DISTANCE() < COLLISION_THRESH + COLLISION_THRESH_FREE)
                            {
                                checktonear(); // check min. distance
                                turn_left(BASIC_DELAY+random(MIN_RND_DELAY, MAX_RND_DELAY)); // rnd delay for better escape behavior
                            }
                            // forward
                            move_fwd(100);
                        }
                    }

                    // sweep servo
                    servo_pan.write(pos);

                }
            }
        }
    }
}


/******************************************************************************
MOVE
******************************************************************************/
void move_init()
{
    // basic robot movement parameter
    ROBOT_PWR_ON();
    delay(1000);
    ROBOT_SPEED(MOVE_SPEED);
    ROBOT_HEIGHT(35);
}

void checktonear()
{
    // min. distance, too close to the obstacle
    if (SR04_DISTANCE()<COLLISION_THRESH_FREE) // backward, to near
    {
        move_bwd(BASIC_DELAY+random(MIN_RND_DELAY, MAX_RND_DELAY));
    }
}

void move_fwd(int t)
{
    // [lateral],[move],[turn]
    // move = 0 -> max speed forward

    //-----------------------
    // lateral [0 to 255]
    //-----------------------
    // 128  = stop
    // 0    = full speed left
    // 255  = full speed right

    //-----------------------
    // move [0 to 255]
    //-----------------------
    // 128  = stop
    // 0    = full speed forward
    // 255  = full speed backward

    //-----------------------
    // turn [0 to 255]
    //-----------------------
    // 128  = stop
    // 0    = full speed left
    // 255  = full speed right

    SendData(CMD_REG_WALK, 128, 0, 128, 0);
    delay(t);
}

void move_bwd(int t)
{
    // [lateral],[move],[turn]
    // move = 255 -> max speed backward

    //-----------------------
    // lateral [0 to 255]
    //-----------------------
    // 128  = stop
    // 0    = full speed left
    // 255  = full speed right

    //-----------------------
    // move [0 to 255]
    //-----------------------
    // 128  = stop
    // 0    = full speed forward
    // 255  = full speed backward

    //-----------------------
    // turn [0 to 255]
    //-----------------------
    // 128  = stop
    // 0    = full speed left
    // 255  = full speed right

    SendData(CMD_REG_WALK, 128, 255, 128, 0);
    delay(t);
}

void turn_left(int t)
{
    // [lateral],[move],[turn]
    // turn = 0 -> max speed left

    //-----------------------
    // lateral [0 to 255]
    //-----------------------
    // 128  = stop
    // 0    = full speed left
    // 255  = full speed right

    //-----------------------
    // move [0 to 255]
    //-----------------------
    // 128  = stop
    // 0    = full speed forward
    // 255  = full speed backward

    //-----------------------
    // turn [0 to 255]
    //-----------------------
    // 128  = stop
    // 0    = full speed left
    // 255  = full speed right

    ROBOT_TRANSLATE_MODE(128,128,60,128);
    SendData(CMD_REG_WALK, 128, 128, 25, 0);
    delay(t);
    ROBOT_TRANSLATE_MODE(128,128,128,128);
}

void turn_right(int t)
{
    // [lateral],[move],[turn]
    // turn = 255 -> max speed right

    //-----------------------
    // lateral [0 to 255]
    //-----------------------
    // 128  = stop
    // 0    = full speed left
    // 255  = full speed right

    //-----------------------
    // move [0 to 255]
    //-----------------------
    // 128  = stop
    // 0    = full speed forward
    // 255  = full speed backward

    //-----------------------
    // turn [0 to 255]
    //-----------------------
    // 128  = stop
    // 0    = full speed left
    // 255  = full speed right

    ROBOT_TRANSLATE_MODE(128,128,60,128);
    SendData(CMD_REG_WALK, 128, 128, 230, 0);
    delay(t);
    ROBOT_TRANSLATE_MODE(128,128,128,128);
}

void stop_move(int t)
{
    // [lateral],[move],[turn]
    // all = 128 -> stop

    //-----------------------
    // lateral [0 to 255]
    //-----------------------
    // 128  = stop
    // 0    = full speed left
    // 255  = full speed right

    //-----------------------
    // move [0 to 255]
    //-----------------------
    // 128  = stop
    // 0    = full speed forward
    // 255  = full speed backward

    //-----------------------
    // turn [0 to 255]
    //-----------------------
    // 128  = stop
    // 0    = full speed left
    // 255  = full speed right

    SendData(CMD_REG_WALK, 128, 128, 128, 0);
    delay(t);
}

/******************************************************************************
HC-SR04 FUNCTIONS
******************************************************************************/
int SR04_DISTANCE()
{
    long duration = 0;
    int distance  = 0;

    // AVG value (2 samples)
    for (int i = 0; i < 2; i++)
    {
        // Clears the trigPin
        digitalWrite(SR04_TRG_PIN, LOW);
        delayMicroseconds(2);

        // Sets the trigPin on HIGH state for 10 micro seconds
        digitalWrite(SR04_TRG_PIN, HIGH);
        delayMicroseconds(10);
        digitalWrite(SR04_TRG_PIN, LOW);

        // Reads the echoPin, returns the sound wave travel time in microseconds
        duration = pulseIn(SR04_ECHO_PIN, HIGH);

        // Calculating the avg distance
        distance += duration*0.034/2;
        delay(5);

    }

    return round(distance/2); // cm

}

/******************************************************************************
WS2812 RGB-LED FUNCTIONS
******************************************************************************/
void WS2812_ColorSweep(int i)
{
    // WS2812 color change
    // Farbwerte mit Vorbesetzung, begonnen wird mit rot
    static int red   = 255;
    static int green = 0;
    static int blue  = 0;

    if (i < 255)      // Phase 1: von rot nach grn
    {
        red--;       // red down
        green++;     // green up
        blue = 0;    // blue low
    }
    else if (i < 510) // Phase 2: von grn nach blau
    {
        red = 0;     // red low
        green--;     // green down
        blue++;      // blue up
    }
    else if (i < 766) // Phase 3: von blau nach rot
    {
        red++;       // red up
        green = 0;   // green low
        blue--;      // blue down
    }

    pixel.setPixelColor(0, pixel.Color(red, green, blue));
    pixel.show();
}

void WS2812_SET_RGB(byte r, byte g, byte b)
{
    // WS2812 color change
    pixel.setPixelColor(0, pixel.Color(r, g, b));
    pixel.show();
}
