Smart Home Automation

To build a simple smart home automation system using the Bolt WiFi module to control appliance

IntermediateShowcase (no instructions)2 hours323

Things used in this project

Hardware components

Jumper wires (generic)

Male/Female Jumper Wires

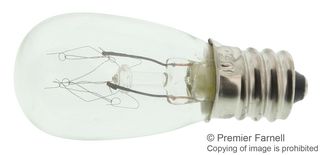

Incandescent Lamp, 230 V

Relay Module (Generic)

USB-A to Mini-USB Cable

Bolt IoT Bolt WiFi Module

Software apps and online services

Bolt IoT Bolt Cloud

Bolt IoT Android App

Story

Imagine coming home after a long day at work, and with a simple tap on your smartphone, you can illuminate your living room with the perfect lighting. This is the vision behind our Smart Home Automation (Lamp) project. We aim to create a convenient and energy-efficient way to control the lighting in your home, making your life more comfortable and sustainable.

Instructions:

1) Set up your Bolt WiFi module and connect it to your WiFi network following the manufacturer's instructions.

2) Connect the relay module to the Bolt module using jumper wires:

Connect the VCC of the relay module to the 5V pin of the Bolt module.
Connect the GND of the relay module to the GND pin of the Bolt module.
Connect the IN1 (or equivalent) pin of the relay module to any GPIO pin on the Bolt module (e.g., GPIO0).

3) Connect your appliance (e.g., a lamp) to the relay module. The appliance should be connected to the COM and NO (normally open) terminals of the relay.

4) Write Python code to control the relay module.

Code

Smart Home Automation

import json
import time
from boltiot import Bolt

API_KEY = ""
DEVICE_ID = ""

mybolt = Bolt(API_KEY, DEVICE_ID)

def turn_appliance_on():
    mybolt.digitalWrite("0", "HIGH")  # Turn the appliance on

def turn_appliance_off():
    mybolt.digitalWrite("0", "LOW")   # Turn the appliance off

while True:
    print("1. Turn On\n2. Turn Off\n3. Quit")
    choice = input("Enter your choice: ")

    if choice == "1":
        turn_appliance_on()
        print("Appliance turned on.")
    elif choice == "2":
        turn_appliance_off()
        print("Appliance turned off.")
    elif choice == "3":
        print("Exiting...")
        break
    else:
        print("Invalid choice. Please enter 1, 2, or 3.")
