BME280 Thingspeak Particle Bridge

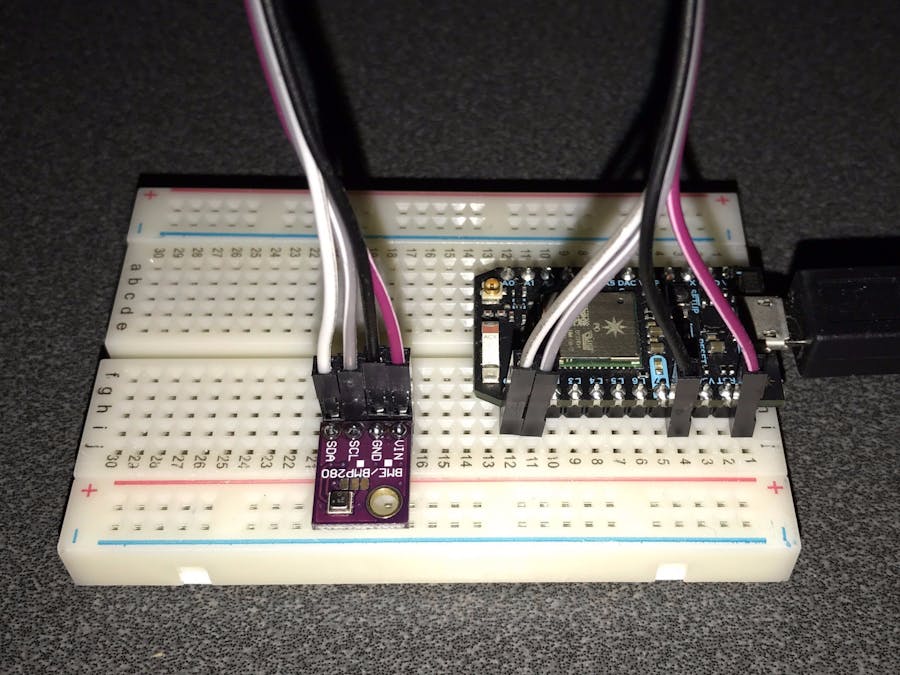

Basic Particle with BME280 I2C sensor to Thingspeak Bridge. 8 channels including 3 analogs are sent every 15 seconds.

BeginnerShowcase (no instructions)2 hours1,109
BME280 Thingspeak Particle Bridge

Things used in this project

Story

Read more

Schematics

ASCIICAD

Code

Thingspeak json

JSON
{
    "event": "thingSpeakWrite_",
    "url": "https://api.thingspeak.com/update",
    "requestType": "POST",
    "form": {
        "api_key": "{{k}}",
        "field1": "{{1}}",
        "field2": "{{2}}",
        "field3": "{{3}}",
        "field4": "{{4}}",
        "field5": "{{5}}",
        "field6": "{{6}}",
        "field7": "{{7}}",
        "field8": "{{8}}",
        "latitude": "{{a}}",
        "longitude": "{{o}}",
        "elevation": "{{e}}",
        "status": "{{s}}"
    },
    "mydevices": true,
    "noDefaults": true,
    "location": true
}

Particle Code

Arduino
// This #include statement was automatically added by the Particle IDE.
#include "Adafruit_BME280/Adafruit_BME280.h"

/***************************************************************************
  This is a library for the BME280 humidity, temperature & pressure sensor

  Designed specifically to work with the Adafruit BME280 Breakout
  ----> http://www.adafruit.com/products/2650

  These sensors use I2C or SPI to communicate, 2 or 4 pins are required
  to interface.

  Adafruit invests time and resources providing this open source code,
  please support Adafruit andopen-source hardware by purchasing products
  from Adafruit!

  Written by Limor Fried & Kevin Townsend for Adafruit Industries.
  BSD license, all text above must be included in any redistribution

  This file was modified by Markus Haack (https://github.com/mhaack)
  in order to work with Particle Photon & Core.
 ***************************************************************************/


#define BME_SCK D4
#define BME_MISO D3
#define BME_MOSI D2
#define BME_CS D5

#define SEALEVELPRESSURE_HPA (1013.25)

//This Sketch measure differential pressure across the air filter in the house HVAC

/*                                    +-----+
 *                          +----------| USB |----------+
 *                          |          +-----+       *  |
 *                          | [ ] VIN           3V3 [ ] |
 *                          | [ ] GND           RST [ ] |
 *                          | [ ] TX           VBAT [ ] |
 *                          | [ ] RX  [S]   [R] GND [ ] |
 *                          | [ ] WKP            D7 [*] |
 *                          | [ ] DAC +-------+  D6 [*] |
 *                          | [ ] A5  |   *   |  D5 [*] |
 *                          | [ ] A4  |Photon |  D4 [*] |P1 PWR
 *                          | [ ] A3  |       |  D3 [*] |P2 PWR
 *                          | [ ] A2  +-------+  D2 [*] |
 *                      P1  | [*] A1             D1 [*] |SCL BME 0x76
 *                      P2  | [*] A0             D0 [*] |SDA BME 0x76
 *                          |                           |
 *                           \    []         [______]  /
 *                            \_______________________/
 *
 *
 */

/*
   This sample code demonstrates the normal use of a BME280 connected to Thingspeak
*/


Adafruit_BME280 bme; // I2C
//Adafruit_BME280 bme(BME_CS); // hardware SPI
//Adafruit_BME280 bme(BME_CS, BME_MOSI, BME_MISO,  BME_SCK);

Timer timer(10000, checkEnvironment); // call this function every 10 seconds
Timer timer2(10000, serialDebug); // call this function every 10 seconds
Timer timer3(15000, updateThingspeak);

//global Vars

int caladdress = 0;
double bme280temp = 0;
double bme280baro = 0;
double bme280humidity = 0;
double bme280altitude = 0;
float analog1 = 0;
float analog2 = 0;
float analog3 = 0;
int count = 0;



const String key = "YOUR_KEY_HERE"; //thingspeak write key

//ApplicationWatchdog wd(5000, System.reset); //5 second application watchdog
SYSTEM_MODE(SEMI_AUTOMATIC);



ApplicationWatchdog wd(60000, System.reset);


void setup() {
  Serial.begin(230400);
  Serial.println(F("BME280 test"));

  /*if (!bme.begin(0x76)) {  //0x76 is the i2c address of the sensor
    Serial.println("Could not find a valid BME280 sensor, check wiring!");
    while (1);
  }*/


  Particle.publish("DEBUG", "starting...");

  if (bme.begin(0x76)) {  //0x76 is the i2c address of the sensor
    Particle.publish("DEBUG", "starting the environment timer...");
    timer.start(); //initialize timer
    timer2.start();//initialize timer2
    timer3.start();//initialize timer2
  }
  else {
    Particle.publish("WARN", "Could not find a valid BMP280 sensor, check wiring!");
  }

  Particle.publish("DEBUG", "started!");

  Particle.connect();
  Particle.variable("bme280temp", bme280temp);
  Particle.variable("bme280hum", bme280humidity);
  Particle.variable("bme280bar", bme280baro);
  Particle.variable("bme280alt", bme280altitude);

  }

void loop() {
    digitalWrite(D7,!digitalRead(D7)); //blink D7
    wd.checkin(); //watchdog checkin

    if (System.buttonPushed() > 2000) { //trigger a wifi disconnect if you hold for over 2 seconds.
        //RGB.color(255, 255, 0); // YELLOW
        if (Particle.connected() == false) {  //if not connected, delay, 5000ms before attempting reconnect.  without delay was causing gps to fail.
            Serial.println("Connecting to wifi");
		    Particle.connect();
		    delay(1000);
        } else {
            //Particle.disconnect();
            WiFi.off();
            delay(1000);
        }
    }
    analog1 = analogRead(A0);
    analog2 = analogRead(A1);
    analog3 = analogRead(A2);
}



void serialDebug() {
    Serial.print("Temperature = ");
    Serial.print(bme.readTemperature());
    Serial.println(" *C");

    Serial.print("Pressure = ");

    Serial.print(bme.readPressure() / 100.0F);
    Serial.println(" hPa");

    Serial.print("Approx. Altitude = ");
    Serial.print(bme.readAltitude(SEALEVELPRESSURE_HPA));
    Serial.println(" m");

    Serial.print("Humidity = ");
    Serial.print(bme.readHumidity());
    Serial.println(" %");

    Serial.println();
}

void checkEnvironment() {

  Particle.publish("RSSI", String(WiFi.RSSI()));
  //Particle.publish("DEBUG", "checking the environment...");

  //read sensor
  bme280temp = cToF(bme.readTemperature());
  bme280baro = pToHg(bme.readPressure());
  bme280altitude = bme.readAltitude(SEALEVELPRESSURE_HPA);
  bme280humidity = bme.readHumidity();

  //publish data

  //commented out to not overload particle publish.  only 4 allowed in a burst
  //Particle.publish("environment/temperature2", String(bme280temp));
  //Particle.publish("environment/pressure2", String(bme280baro));
  //Particle.publish("environment/altitude2", String(bme280altitude));
  //Particle.publish("environment/humidity2", String(bme280humidity));
}

float cToF(float c) {
  return c * 9/5 + 32;
}

float pToHg(float p) {
  return p/3389.39;
}

/*******************************************************************************
 * Function Name  : updateThingspeak
 * Description    : sends variables to ts
 * Input          : doorstatus global variables
 * Output         : sends data to ts
 * Return         : void

 *******************************************************************************/
bool updateThingspeak()
{
    //delay (2000);
    count++;
    Serial.print("Updating Thingspeak:");
    Serial.print(count);

    int rssival = WiFi.RSSI();
    //sprintf(publishString,"%d",rssival);
    //bool success = Particle.publish("RSSI",publishString);

    //sprintf(publishString, "%1.4f", checkbattery());

      bool success = Particle.publish("thingSpeakWrite_All", +
     "{ \"1\": \"" + String(rssival) + "\"," +
       "\"2\": \"" + String(bme280temp) + "\"," +
       "\"3\": \"" + String(bme280humidity) + "\"," +
       "\"4\": \"" + String(bme280baro) + "\"," +
       "\"5\": \"" + String(bme280altitude) + "\"," +
       "\"6\": \"" + String(analog1) + "\"," +
       "\"7\": \"" + String(analog2) + "\"," +
       "\"8\": \"" + String(analog3) + "\"," +
       "\"k\": \"" + key + "\" }", 60, PRIVATE);
    return success; //if sent, then turn of the send flag, otherwise let it try again.

}

Credits

John R McAlpine V Mac

John R McAlpine V Mac

12 projects • 49 followers
www.MACSBOOST.com Assistant Teaching Professor at UNC Charlotte MEGR3171 Instrumentation, Motorsports Research
Thanks to Hans and Robert Mawrey.
