Interfacing LCD to Arduino

LCD display partition using arduino Uno.

BeginnerProtip7,334

Things used in this project

Hardware components

Arduino UNO

DIYables USB Cable 2.0 Type A/B for Arduino Uno

DIYables STEM V3 Board, Compatible with Arduino Uno R3

Alternative to Uno R3: DIYables STEM V3 works like the Uno R3.

DIYables STEM V4 IoT

Alternative to Uno R4 WiFi: DIYables STEM V4 IoT works like the Uno R4 WiFi.

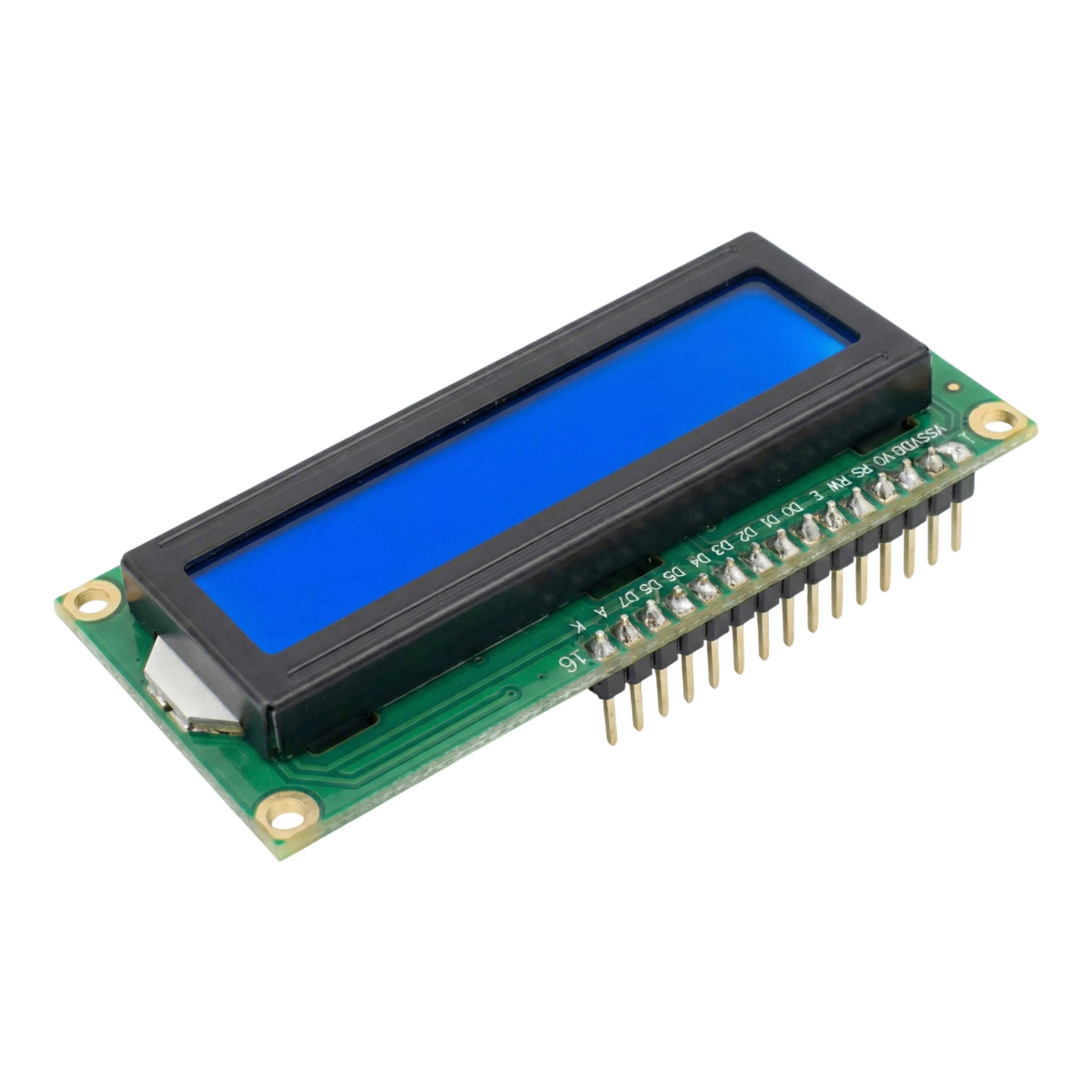

DIYables LCD Display 1602

DIYables Potentiometer

DIYables Angle Sensor Potentiometer Module with Knob

DIYables Jumper Wires

DIYables Breadboard

DIYables Prototype Expansion Board for Arduino Uno

Optional

DIYables Starter Kit

Optional

DIYables Arduino Uno Case

DIYables Breadboard Shield for Arduino

DIYables STEM V3 Starter Kit - Fully Compatible with Arduino Uno R3

DIYables STEM V4 IoT Starter Kit - Fully Compatible with Arduino UNO R4 WiFi

Story

Learn more about LCD on this tutorial

Real time work

Code

Untitled file

#include <LiquidCrystal.h>

const int rs = 12, en = 11, d4 = 5, d5 = 4, d6 = 3, d7 = 2;
LiquidCrystal lcd(rs, en, d4, d5, d6, d7);


void setup() {
  // set up the LCD's number of columns and rows:
  lcd.begin(16, 2);
}

void loop() {
        lcd.setCursor(0, 0);
        lcd.print("Pannu");

        lcd.setCursor(7, 0);
        lcd.print("Saad");

        lcd.setCursor(0, 1);
        lcd.print("Junayed");

        lcd.setCursor(7, 1);
        lcd.print("Fariha");
        delay(1000);
      }
