M5stack AI-8850 LLM Accleration M.2 Module

The M5Stack LLM-8850 Card represents a significant upgrade to the Raspberry Pi 5's capabilities, transforming the popular single-board computer into a viable platform for running large language models and complex AI workloads locally without cloud dependency. This M.2 form factor acceleration module delivers genuine performance improvements that make local AI inference practical rather than theoretical.

HARDWARE ARCHITECTURE

The LLM-8850 integrates an Axera AX8850 SoC featuring a neural processing unit capable of 24 TOPS at INT8 precision. This NPU performance difference becomes apparent during actual inference workloads, not just on specification sheets. The system also includes an octa-core ARM Cortex-A55 processor running at 1.7 GHz, which handles general compute operations while the dedicated NPU accelerates AI inference tasks. Memory configuration provides 8GB of LPDDR4x operating at 4266 Mbps, which is sufficient for loading and running reasonable model sizes without excessive disk swapping. A 32 Mbit QSPI NOR flash stores the bootloader firmware, while model storage and system operations utilize the host Raspberry Pi's storage subsystem.

The integrated video processing unit offers substantial capabilities for multimedia applications. It supports H.264 and H.265 encoding at 8K resolution up to 30 frames per second, with decoding performance reaching 60 frames per second at the same resolution. More impressively, the VPU can process up to 16 simultaneous channels of 1080p video streams in parallel, which opens possibilities for multi-camera security systems, surveillance monitoring, and video analysis applications.

Thermal management employs an active cooling solution with a micro turbine fan and aluminum alloy heatsink fins. An onboard embedded controller manages fan speed dynamically based on temperature and current draw curves, ensuring the fan operates efficiently rather than continuously at maximum speed. During extended inference sessions the cooling system activates appropriately, maintaining near-quiet operation during lighter workloads while preventing thermal throttling that traditionally limited long-running AI tasks on compact hardware platforms.

RASPBERRY PI 5 SETUP

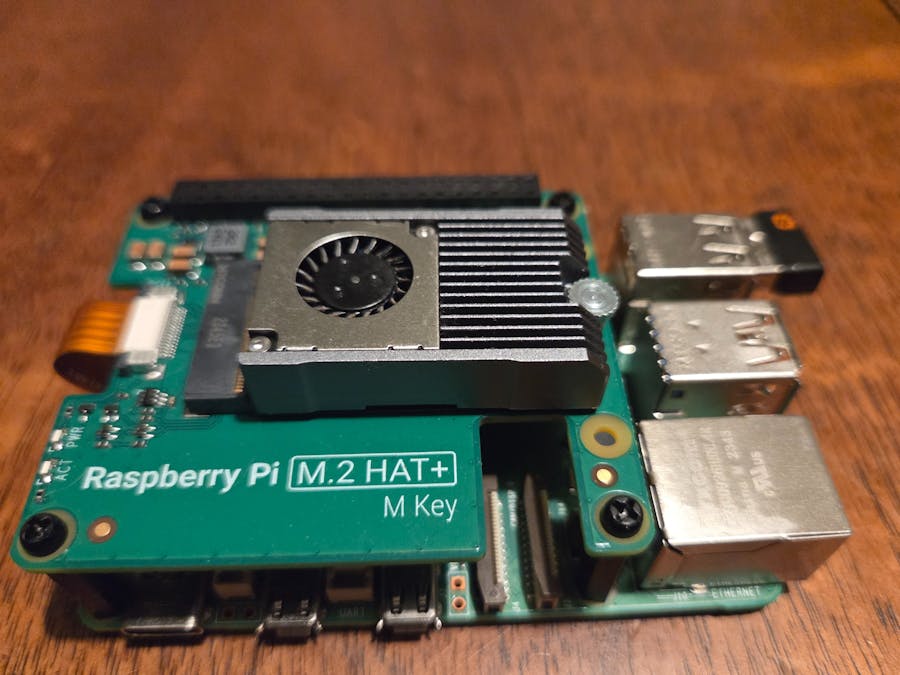

Raspberry Pi 5 integration requires the M.2 HAT+ expansion board since the Pi 5 lacks native M.2 connectivity. It is critical to use the official Raspberry Pi M.2 HAT for this setup. Third-party M.2 expansion boards will underpower the LLM-8850 card and result in hardware errors, system instability, and potential damage to components. Only the official Raspberry Pi M.2 HAT provides adequate power delivery and proper electrical specifications required for reliable operation of the acceleration card.

Installation is straightforward but requires attention to power management. The Raspberry Pi 5 must be completely powered down and disconnected before installation begins, as hot-plugging these components risks hardware damage. Physical installation involves securing the expansion board to the GPIO header, inserting the LLM-8850 card into the M.2 slot, and fastening it with provided hardware. Care should be taken not to overtighten mounting screws while ensuring sufficient contact for reliable operation.

Power requirements are critical and specific. The system needs a DC 5V at 3A power adapter, and importantly, it must not be a Power Delivery adapter. PD adapters can cause compatibility issues that manifest as intermittent operation or card dropouts during high-load scenarios. The combined Raspberry Pi 5 and LLM-8850 card system requires the full 15W power budget, particularly when the NPU is actively processing AI workloads.

Software compatibility is intentionally limited to Linux distributions. Supported operating systems include Ubuntu 20.04, 22.04, and 24.04, along with Debian 12. Windows, macOS, WSL, and virtualization environments are not supported. This Linux-only approach aligns with the AXCL Runtime architecture, which provides C and Python programming interfaces for card interaction and model management. AXCL Runtime installation follows standard Linux package procedures. After installing drivers from M5Stack, developers can access the card through either C or Python APIs. The Python interface is particularly approachable, with straightforward initialization, model loading, and inference execution patterns. Complete setup instructions, example code, and detailed documentation are available in the official M5Stack documentation at https://docs.m5stack.com/en/guide/ai_accelerator/overview.

SUPPORTED AI MODELS

The model support ecosystem covers a broad range of AI workloads. YOLO v8 and v11 provide state-of-the-art object detection capabilities suitable for computer vision applications. CLIP support enables vision-language tasks including image-to-text matching, text-based image search, and zero-shot image classification. Whisper integration delivers high-quality automatic speech recognition with multi-language support and strong performance in noisy acoustic environments, making it suitable for voice assistant applications and meeting transcription.

For large language model applications, the card supports Llama 3.2, InternVL3, and Qwen3. Llama 3.2 serves as a general-purpose language model capable of text generation, question answering, and language understanding tasks. InternVL3 provides multimodal capabilities that process both visual and textual inputs simultaneously, enabling applications requiring joint vision-language understanding. Qwen3 is optimized specifically for edge device deployment, offering efficient inference even within the resource constraints of embedded systems.

Inference performance is reasonable for local deployment scenarios. The 24 TOPS NPU delivers response times that are practical for interactive applications, though it won't match dedicated GPU server performance. The significant advantage comes from eliminating network latency entirely, with data processing occurring entirely on-device. This local processing approach provides substantial privacy benefits since sensitive data never leaves the device.

ADVANTAGES OF LOCAL AI PROCESSING

Privacy and security considerations are fundamental advantages of local AI processing. All computation occurs on-device, ensuring data never leaves local control. This becomes critical when processing sensitive information or when organizations prefer not to transmit data to third-party cloud services. The attack surface is significantly reduced compared to cloud-based API solutions.

Latency improvements are substantial, as eliminating network round trips enables truly instant responses, which proves essential for interactive applications and robotics systems requiring real-time decision making. Real-time processing becomes genuinely real-time rather than dependent on network conditions.

Reliability benefits from complete offline operation. System functionality is not affected by cloud service outages, API rate limiting, or network connectivity issues. The system operates as long as adequate power is available, making it suitable for deployment in environments with unreliable or absent internet connectivity.

Cost considerations involve trading upfront hardware investment against ongoing operational expenses. For deployments involving multiple units or high inference volumes, the economics become favorable quickly. Horizontal scaling doesn't increase per-unit API costs, which becomes advantageous as deployment scales.

TECHNICAL SPECIFICATIONS

Hardware specifications include the Axera AX8850 SoC, NPU delivering 24 TOPS at INT8 precision, eight-core Cortex-A55 CPU at 1.7 GHz, 8GB LPDDR4x memory at 4266 Mbps, 32 Mbit QSPI NOR flash for boot operations, VPU supporting 8K encode and decode, active cooling with intelligent fan control, and M.2 M-KEY 2242 form factor packaging.

Compatibility extends to Raspberry Pi 5, RK3588 single-board computers, and x86 PC platforms. Supported operating systems are Ubuntu 20.04, 22.04, and 24.04, plus Debian 12. Connection methods include direct PCIe insertion or PCIe-to-M.2 adapters. Power requirements specify a 5V 3A adapter that does not use Power Delivery protocols. Software ecosystem centers on AXCL Runtime with C and Python programming interfaces, supporting models including YOLO v8 and v11, CLIP, Whisper, Llama 3.2, InternVL3, and Qwen3.

CONCLUSION

The M5Stack LLM-8850 Card successfully transforms the Raspberry Pi 5 into a platform capable of running modern AI models locally without overwhelming the hardware. The combination of 24 TOPS NPU performance, 8GB memory capacity, and support for popular models creates genuine utility for both prototyping and production deployment scenarios. Whether developing edge AI terminals, robotics systems, smart devices, or industrial monitoring solutions, having local compute capability provides architectural options that cloud APIs cannot match.

For complete hardware specifications, detailed setup guides, API documentation, and additional resources, refer to the official M5Stack documentation: https://docs.m5stack.com/en/ai_hardware/LLM-8850_Card and https://docs.m5stack.com/en/guide/ai_accelerator/overview.
