Random Light Display

A simple Arduino circuit which picks random lights, and turns them on and then off.

BeginnerProtip7,722

Things used in this project

Hardware components

LED (generic)

As many or as few Leds can be used, but the more there are the better the end result looks

Arduino UNO Wifi Rev.2

Switch Sealing Boot, Button Operators

any other button works, though the wiring may vary based on the button

9V battery (generic)

9V Battery Clip

Jumper wires (generic)

Male/Female Jumper Wires

Software apps and online services

Arduino IDE

Story

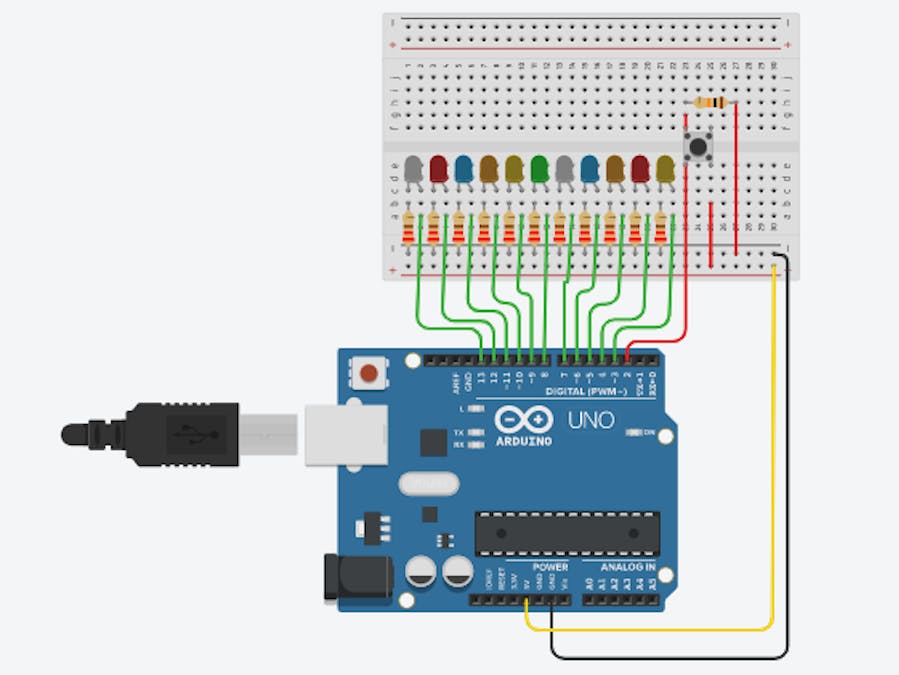

This circuit is quite a simple one, and shouldn't be hard to replicate either. so the basic function of it is to pick a random light from the selected leds, and turn it on for a random amount of time, before turning it off and selecting another light. this process will run through ten times, turning on and off ten different lights before turning off. H e r eis a link to the basic circuit design, which includes a final copy of the code and should function how the final product will. H e r eis a basic flowchart explaining the code's process and how it works.

Code

Random Light Display

void setup () {
  for (int i = 0; i > 13; i++) {
    pinMode(i, OUTPUT) ; // setup all of the neccesary LED pins
  }
  pinMode(2, INPUT) ; // setup the button pin
  Serial.begin(9600) ;  // setup the serial for debugging
}
void LightSequence() {
  int randomNum = random(10, 14) ; // pick random light to turn on.
  // the lowest variable is the lowest light that turns on, and the highest is
  // the one above the higheest light, so that can be adjusted for more or
  // less lights
  Serial.println(randomNum); // print the chosen light in the serial
  digitalWrite(randomNum, HIGH) ; // turn on the randomly chosen light
  int randomTime = random(500, 3000) ; // pick a random amount of time to wait, the lowest being the minimum and the highest being the maxium
  Serial.println(randomTime); // print the chosen time in the serial
  delay(randomTime) ;  //wait the random time
  digitalWrite(randomNum, LOW) ; // turn off the light
}
void LightDisplay(){
  LightSequence() ; // trigger a random light, and wait for it to turn off
  LightSequence() ; // repeat ten times, meaning ten lights will turn off and on
  LightSequence() ;
  LightSequence() ;
  LightSequence() ;
  LightSequence() ;
  LightSequence() ;
  LightSequence() ;
  LightSequence() ;
  LightSequence() ;
  Serial.println("End"); //print end in the serial to show when the sequence has ended
}
void loop () {
  int button = digitalRead(2) ; //setup the button's value to be used
  if (button == 1) { //when the button is pressed
    LightDispay() ; //trigger the light sequence of ten lights
  }
}
