Project #30 - UNIHIKER - Ambient Light - Mk11

BeginnerFull instructions provided1 hour53

Things used in this project

Hardware components

DFRobot UNIHIKER K10

DFRobot Gravity: Analog Ambient Light Sensor For Arduino

DFRobot Lithium Ion Battery - 1000mAh

SparkFun Switch

DFRobot USB 3.1 Cable A to C

Software apps and online services

Arduino IDE

Story

Project #30 - UNIHIKER - Ambient Light - Mk11

https://www.donluc.com/?p=4407

https://www.facebook.com/share/p/1BX9c3qX69/

https://youtu.be/rmtXrJNkVz4

https://www.facebook.com/share/p/1FAmknDpJN/

https://learn.dfrobot.com/makelog-314970.html

#DonLucElectronics #DonLuc #Light #UNIHIKER #Display #IoT #Project #DFRobot #Fritzing #Programming #Electronics #Microcontrollers #Consultant

LITE-ON Technology - Ambient Light Sensor

The LTR-303ALS-01 is a low voltage I2C digital light sensor [ALS] in a low cost miniature chipled lead-free surface mount package. This sensor converts light intensity to a digital output signal capable of direct I2C interface. It provides a linear response over a wide dynamic range from 0.01 lux to 64k lux and is well suited to applications under high ambient brightness.

Gravity: Analog Ambient Light Sensor

This Gravity: Analog ambient light sensor can assist you in detecting light density and provide an analog voltage signal to the controller as feedback. Additionally, you have the ability to trigger other components within your project by setting voltage thresholds.

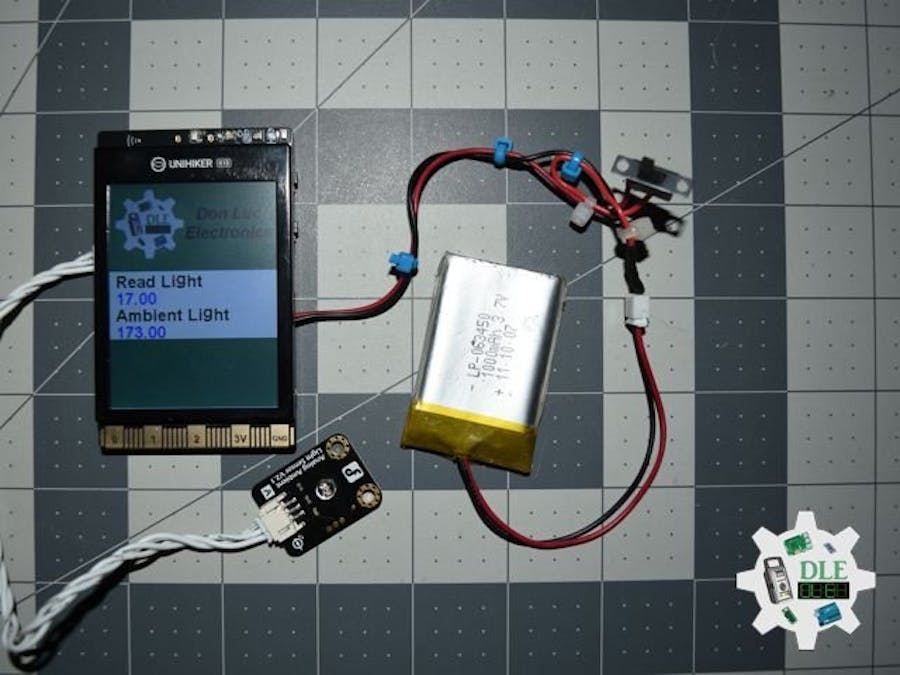

DL2504Mk06

1 x UNIHIKER K10

1 x Gravity: Analog Ambient Light Sensor

1 x Lithium Ion Battery - 1000mAh

1 x Switch

1 x USB 3.1 Cable A to C

DL2504Mk06p

DL2504Mk06p.mp

People can contact us: http://www.donluc.com/?page_id=1927

Electronics, IoT, Teacher, Instructor, R&D and Consulting

Programming Language
Microcontrollers (PIC, Arduino, Raspberry Pi, Arm, Silicon Labs, Espressif, Etc...)
IoT
Wireless (Radio Frequency, Bluetooth, WiFi, Etc...)
Robotics
Automation
Camera and Video Capture Receiver Stationary, Wheel/Tank and Underwater Vehicle
Unmanned Vehicles Terrestrial and Marine
Machine Learning
Artificial Intelligence (AI)
RTOS
Sensors, eHealth Sensors, Biosensor, and Biometric
Research & Development (R & D)
Consulting
Etc...

Luc Paquin – Curriculum Vitae - 2025

https://www.donluc.com/luc/

Web:https://www.donluc.com/

Facebook:https://www.facebook.com/neosteam.labs.9/

YouTube: https://www.youtube.com/@thesass2063

Twitter:https://twitter.com/labs_steam

Pinterest:https://www.pinterest.com/NeoSteamLabs/

Instagram:https://www.instagram.com/neosteamlabs/

Patreon:https://patreon.com/DonLucElectronics59

DFRobot: https://learn.dfrobot.com/user-10186.html

Elecrow:https://www.elecrow.com/share/sharepj/center/no/760816d385ebb1edc0732fd873bfbf13

TikTok:https://www.tiktok.com/@luc.paquin8

Twitch: https://www.twitch.tv/lucpaquin

Hackster:https://www.hackster.io/luc-paquin

LinkedIn:https://www.linkedin.com/in/jlucpaquin/

Don Luc

Code

DL2504Mk06p

/****** Don Luc Electronics © ******
Software Version Information
Project #30 - UNIHIKER - Ambient Light - Mk11
DL2504Mk06p.mp
DL2504Mk06
1 x UNIHIKER K10
1 x Gravity: Analog Ambient Light Sensor
1 x Lithium Ion Battery - 1000mAh
1 x Switch
1 x USB 3.1 Cable A to C
*/

// Include the Library Code
// Unihiker K10
#include "unihiker_k10.h"
// Arduino Image Cache
#include "arduino_image_cache.h"

// Create an object
// UNIHIKER K10
UNIHIKER_K10 k10;
// Screen
uint8_t screen_dir=2;

// Software Version Information 30-09
// Main program start
void setup() {

  // Begin
  k10.begin();
  // Init Screen
  k10.initScreen(screen_dir);
  // Canvas
  k10.creatCanvas();

}
// Loop
void loop() {

  // Draw Bitmap
  k10.canvas->canvasDrawBitmap(0,0,240,320,image_data1);
  // Text Read Light
  k10.canvas->canvasText("Read Light (lx)", 6, 0x330000);
  // Read Light
  k10.canvas->canvasText(k10.readALS(), 7, 0x0000FF);
  // Text Ambient Light
  k10.canvas->canvasText("Ambient Light (lx)", 8, 0x330000);
  // Ambient Light
  k10.canvas->canvasText(analogRead(P0), 9, 0x0000FF);
  // Update Canvas
  k10.canvas->updateCanvas();

}
