Project #30 - UNIHIKER - AI Motion - Mk12
AI Motion Sensing
DL2505Mk02
DL2505Mk02p
Electronics, IoT, Teacher, Instructor, R&D and Consulting
Follow Us
Luc Paquin – Curriculum Vitae - 2025
Don Luc

Published May 13, 2025 © CC BY

Project #30 - UNIHIKER - AI Motion - Mk12

BeginnerFull instructions provided1 hour59

Things used in this project

Hardware components

DFRobot UNIHIKER K10

DFRobot Lithium Ion Battery - 1000mAh

SparkFun Switch

DFRobot USB 3.1 Cable A to C

Software apps and online services

Arduino IDE

Story

Project #30 - UNIHIKER - AI Motion - Mk12

https://www.donluc.com/?p=4432

https://youtu.be/fFuG_gtjEf0

https://www.facebook.com/share/p/16UU1X39qw/

https://www.facebook.com/share/p/16Fikju97U/

https://learn.dfrobot.com/makelog-314975.html

#DonLucElectronics #DonLuc #AIMotion #UNIHIKER #Display #IoT #Project #DFRobot #Fritzing #Programming #Electronics #Microcontrollers #Consultant

AI Motion Sensing

AI Motion Sensing scan text for clues that hint at AI involvement. They analyze sentence structure, predictability, and writing patterns using machine learning models trained on both human-written and AI-generated text. Some even go a step further by checking metadata or comparing content to known AI outputs.

Sets the motion detection sensitivity, the larger the setting value, the more sensitive the detection of motion, the range is 0-100. If you do not set the sensitivity when using motion detection, the default is 50.

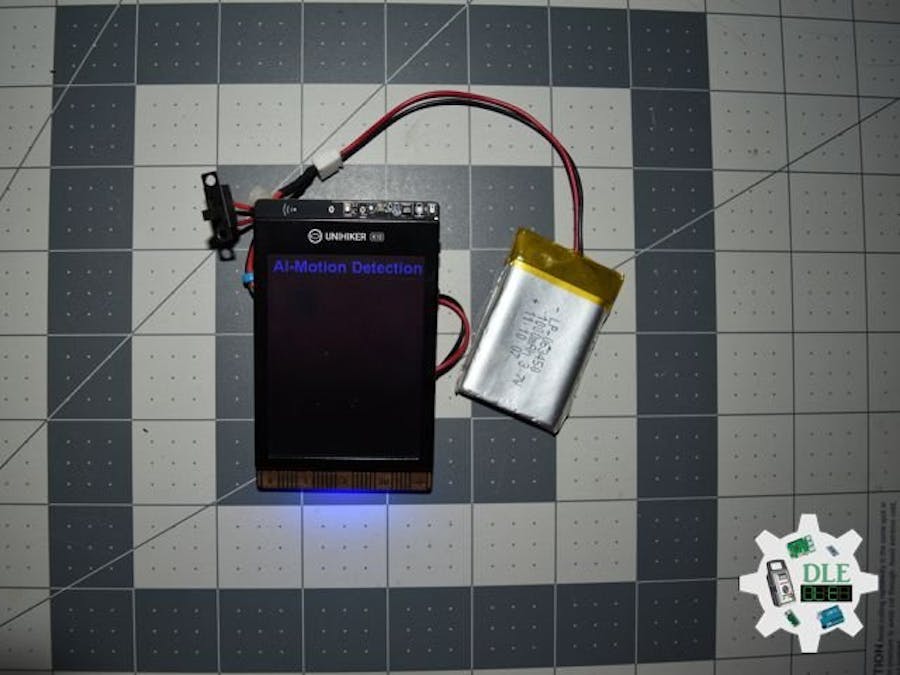

DL2505Mk02

1 x UNIHIKER K10

1 x Lithium Ion Battery - 1000mAh

1 x Switch

1 x USB 3.1 Cable A to C

DL2505Mk02p

DL2505Mk02p.mp

People can contact us:http://www.donluc.com/?page_id=1927

Electronics, IoT, Teacher, Instructor, R&D and Consulting

Programming Language
Microcontrollers (PIC, Arduino, Raspberry Pi, Arm, Silicon Labs, Espressif, Etc...)
IoT
Wireless (Radio Frequency, Bluetooth, WiFi, Etc...)
Robotics
Automation
Camera and Video Capture Receiver Stationary, Wheel/Tank and Underwater Vehicle
Unmanned Vehicles Terrestrial and Marine
Machine Learning
Artificial Intelligence (AI)
RTOS
Sensors, eHealth Sensors, Biosensor, and Biometric
Research & Development (R & D)
Consulting
Etc...

Luc Paquin – Curriculum Vitae - 2025

https://www.donluc.com/luc/

Web:https://www.donluc.com/

Facebook: https://www.facebook.com/neosteam.labs.9/

YouTube:https://www.youtube.com/@thesass2063

Twitter:https://twitter.com/labs_steam

Pinterest:https://www.pinterest.com/NeoSteamLabs/

Instagram:https://www.instagram.com/neosteamlabs/

Patreon:https://patreon.com/DonLucElectronics59

DFRobot:https://learn.dfrobot.com/user-10186.html

Elecrow:https://www.elecrow.com/share/sharepj/center/no/760816d385ebb1edc0732fd873bfbf13

TikTok:https://www.tiktok.com/@luc.paquin8

Twitch:https://www.twitch.tv/lucpaquin

Hackster:https://www.hackster.io/luc-paquin

LinkedIn:https://www.linkedin.com/in/jlucpaquin/

Don Luc

Code

DL2505Mk02p.mp

/****** Don Luc Electronics © ******
Software Version Information
Project #30 - UNIHIKER - Ambient Light - Mk12
DL2505Mk02p.mp
DL2505Mk02
1 x UNIHIKER K10
1 x Lithium Ion Battery - 1000mAh
1 x Switch
1 x USB 3.1 Cable A to C
*/

// Include the Library Code
// Unihiker K10
#include "unihiker_k10.h"
// AT Recognition
#include "AIRecognition.h"

// Create an object
UNIHIKER_K10  k10;
// Screen
uint8_t screen_dir=2;
// AI Recognition
AIRecognition ai;

// Main program start
void setup() {

  // Begin
  k10.begin();
  // Init Screen
  k10.initScreen(screen_dir);
  // Init AI
  ai.initAi();
  // Init Camera Imager
  k10.initBgCamerImage();
  // Set Camera Imager
  k10.setBgCamerImage(false);
  // Canver
  k10.creatCanvas();
  // Switch AI Mode
  ai.switchAiMode(ai.NoMode);
  // Set Camera Image
  k10.setBgCamerImage(true);
  // Caver Text
  k10.canvas->canvasText("AI-Motion Detection", 1, 0x0000FF);
  // Switch AI Mode
  ai.switchAiMode(ai.Move);
  // Set Detection Threshold
  ai.setMotinoThreshold(30);
  // RGB
  k10.rgb->write(-1, 0x0000FF);

}
// Loop
void loop() {

  // Detect Content AI Recognition
  if (ai.isDetectContent(AIRecognition::Move)) {

    k10.rgb->write(-1, 0xFF0000);

  } else {

     k10.rgb->write(-1, 0x0000FF);

  }

}

Credits

Luc Paquin

44 projects • 4 followers

Teacher, Instructor, E-Mentor, R&D and Consulting -Programming Language -Microcontrollers -IoT -Robotics -Machine Learning -AI -Sensors
