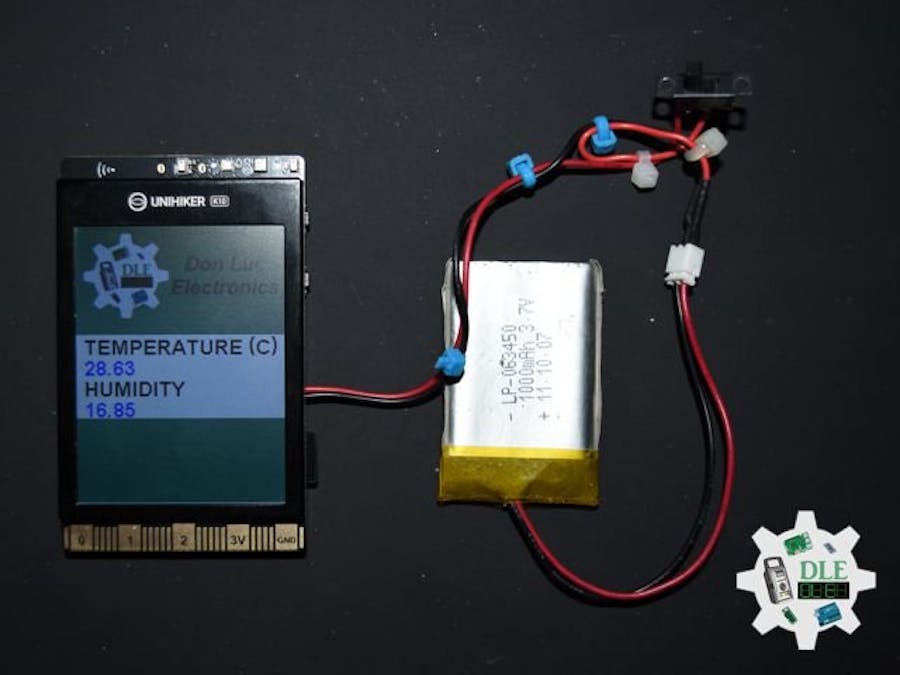

Project #30 - UNIHIKER - AHT20 - Mk09

BeginnerFull instructions provided1 hour106

Things used in this project

Hardware components

DFRobot UNIHIKER K10

DFRobot Lithium Ion Battery - 1000mAh

SparkFun Switch

DFRobot USB 3.1 Cable A to C

Software apps and online services

Arduino IDE

Story

Project #30 - UNIHIKER - AHT20 - Mk09

https://www.donluc.com/?p=4377

https://youtu.be/tU1lvjOKMfg

https://learn.dfrobot.com/makelog-314959.html

#DonLucElectronics #DonLuc #AHT20 #UNIHIKER #Display #IoT #Project #DFRobot #Fritzing #Programming #Electronics #Microcontrollers #Consultant

AHT20 - Temperature and Humidity Sensor

The AHT20 is a high-precision but low-cost temperature and humidity sensor, which is equipped with an improved MEMS semiconductor capacitive humidity sensor element. It features standard I2C interface and a wide voltage supply of 2 Volt - 5 Volt. And with simple peripheral circuit, it performs stably even in harsh environments in the measuring range of -40 - +85 Celsius. This sensor can be widely used for measuring the environmental temperature and humidity of home electronic equipment, the temperature and humidity of automobiles and so on.

DL2504Mk03

1 x UNIHIKER K10

1 x Lithium Ion Battery - 1000mAh

1 x Switch

1 x USB 3.1 Cable A to C

DL2504Mk03p

DL2504Mk03p.mp

People can contact us:http://www.donluc.com/?page_id=1927

Electronics, IoT, Teacher, Instructor, R&D and Consulting

Programming Language
Microcontrollers (PIC, Arduino, Raspberry Pi, Arm, Silicon Labs, Espressif, Etc...)
IoT
Wireless (Radio Frequency, Bluetooth, WiFi, Etc...)
Robotics
Automation
Camera and Video Capture Receiver Stationary, Wheel/Tank and Underwater Vehicle
Unmanned Vehicles Terrestrial and Marine
Machine Learning
Artificial Intelligence (AI)
RTOS
Sensors, eHealth Sensors, Biosensor, and Biometric
Research & Development (R & D)
Consulting
Etc...

Luc Paquin – Curriculum Vitae - 2025

https://www.donluc.com/luc/

Web:https://www.donluc.com/

Facebook:https://www.facebook.com/neosteam.labs.9/

YouTube:https://www.youtube.com/@thesass2063

Twitter:https://twitter.com/labs_steam

Pinterest:https://www.pinterest.com/NeoSteamLabs/

Instagram:https://www.instagram.com/neosteamlabs/

Patreon:https://patreon.com/DonLucElectronics59

DFRobot:https://learn.dfrobot.com/user-10186.html

Elecrow:https://www.elecrow.com/share/sharepj/center/no/760816d385ebb1edc0732fd873bfbf13

TikTok: https://www.tiktok.com/@luc.paquin8

Twitch:https://www.twitch.tv/lucpaquin

Hackster: https://www.hackster.io/luc-paquin

LinkedIn:https://www.linkedin.com/in/jlucpaquin/

Don Luc

Code

DL2504Mk03p.mp

/****** Don Luc Electronics © ******
Software Version Information
Project #30 - UNIHIKER - AHT20 - Mk09
DL2504Mk03p.mp
DL2504Mk03
1 x UNIHIKER K10
1 x Lithium Ion Battery - 1000mAh
1 x Switch
1 x USB 3.1 Cable A to C
*/

// Include the Library Code
// Unihiker K10
#include "unihiker_k10.h"
// Arduino Image Cache
#include "arduino_image_cache.h"

// Create an object
// UNIHIKER K10
UNIHIKER_K10 k10;
// Screen
uint8_t screen_dir=2;
// AHT20
AHT20 aht20;

// Software Version Information 30-09
// Main program start
void setup() {

  // Begin
  k10.begin();
  // Init Screen
  k10.initScreen(screen_dir);
  // Canvas
  k10.creatCanvas();

}
// Loop
void loop() {

  // Draw Bitmap
  k10.canvas->canvasDrawBitmap(0,0,240,320,image_data1);
  // Text TEMPERATURE (C)
  k10.canvas->canvasText("TEMPERATURE (C)", 6, 0x330000);
  // Text AHT20 TempC
  k10.canvas->canvasText(aht20.getData(AHT20::eAHT20TempC), 7, 0x0000FF);
  // Text HUMIDITY
  k10.canvas->canvasText("HUMIDITY", 8, 0x330000);
  // Text AHT20 HumiRH
  k10.canvas->canvasText(aht20.getData(AHT20::eAHT20HumiRH), 9, 0x0000FF);
  // Update Canvas
  k10.canvas->updateCanvas();

}
