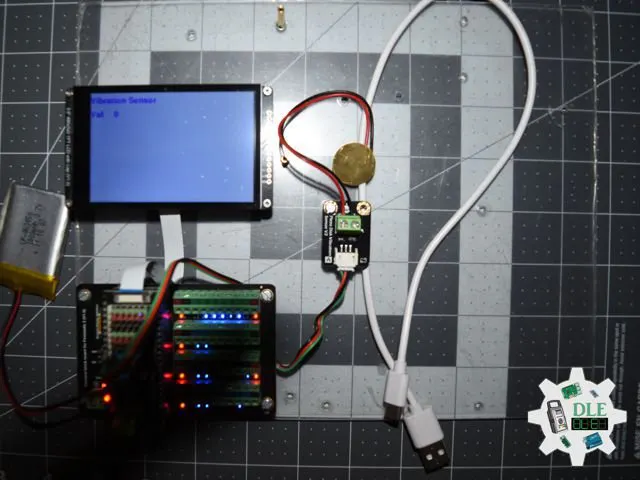

Project #28 – Sensors – Piezo Disk Vibration – Mk30

Project #28 – Sensors – Piezo Disk Vibration – Mk30

BeginnerFull instructions provided1 hour9
Project #28 – Sensors – Piezo Disk Vibration – Mk30

Things used in this project

Hardware components

DFRobot FireBeetle 2 ESP32-E
×1
DFRobot Fermion: 3.5” 480x320 TFT LCD Capacitive
×1
DFRobot GDL Line 10 CM
×1
Gravity: Digital Piezo Disk Vibration Sensor
DFRobot Gravity: Digital Piezo Disk Vibration Sensor
×1
DFRobot Gravity: IO Shield for FireBeetle 2
×1
DFRobot Terminal Block Board for FireBeetle 2 ESP32-E IoT
×1
DFRobot Lithium Ion Battery - 1000mAh
×1
DFRobot USB 3.0 to Type-C Cable
×1

Software apps and online services

Arduino IDE
Arduino IDE

Story

Read more

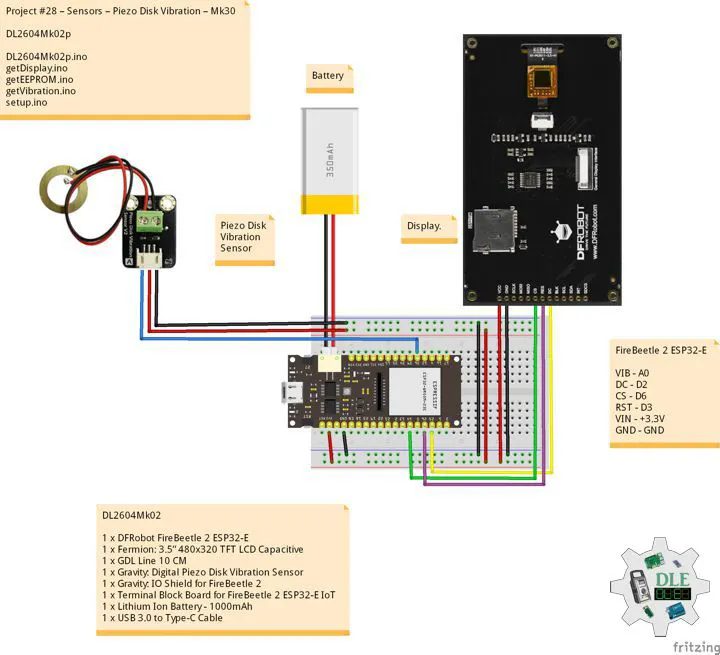

Schematics

Fritzing

Code

DL2604Mk02p.ino

Arduino
/****** Don Luc Electronics © ******
Software Version Information
Project #28 – Sensors – Piezo Disk Vibration – Mk30
28-30
DL2604Mk02p.ino
DL2604Mk02
1 x DFRobot FireBeetle 2 ESP32-E
1 x Fermion: 3.5” 480x320 TFT LCD Capacitive
1 x GDL Line 10 CM
1 x Gravity: Digital Piezo Disk Vibration Sensor
1 x Gravity: IO Shield for FireBeetle 2
1 x Terminal Block Board for FireBeetle 2 ESP32-E IoT
1 x Lithium Ion Battery - 1000mAh
1 x USB 3.0 to Type-C Cable
*/

// Include the Library Code
// EEPROM Library to Read and Write EEPROM with Unique ID for Unit
#include "EEPROM.h"
// DFRobot Display GDL API
#include <DFRobot_GDL.h>

// Vibration Sensor
int iVibration = A0;
int iVal;

// Defined ESP32
#define TFT_DC  D2
#define TFT_CS  D6
#define TFT_RST D3

/*dc=*/ /*cs=*/ /*rst=*/
// DFRobot Display 320x480
DFRobot_ILI9488_320x480_HW_SPI screen(TFT_DC, TFT_CS, TFT_RST);

// Software Version Information
// EEPROM Unique ID Information
#define EEPROM_SIZE 64
String uid = "";

// Software Version Information
String sver = "28-30";

void loop() {

  // Vibration Sensor
  isVibration();

  // isDisplay Vibration
  isDisplayVibration();

  // Delay 1 Second
  delay( 1000 );

}

getDisplay.ino

Arduino
// DFRobot Display 320x480
// DFRobot Display 320x480 - UID
void isDisplayUID(){

  // DFRobot Display 320x480
  // Text Display
  // Text Wrap
  screen.setTextWrap(false);
  // Rotation
  screen.setRotation(3);
  // Fill Screen => black
  screen.fillScreen(0x0000);
  // Text Color => white
  screen.setTextColor(0xffff);
  // Font => Free Sans Bold 12pt
  screen.setFont(&FreeSansBold12pt7b);
  // TextSize => 1.5
  screen.setTextSize(1.5);
  // Don Luc Electronics
  screen.setCursor(0, 30);
  screen.println("Don Luc Electronics");
  // Tilt Switch
  screen.setCursor(0, 60);
  screen.println("Vibration Senson");
  // Version
  screen.setCursor(0, 90);
  screen.println("Version");
  screen.setCursor(0, 120);
  screen.println( sver );
  // EEPROM
  screen.setCursor(0, 150);
  screen.println("EEPROM");
  screen.setCursor(0, 180);
  screen.println( uid );

}
// isDisplay Vibration
void isDisplayVibration(){

  // DFRobot Display 320x480
  // Text Display
  // Text Wrap
  screen.setTextWrap(false);
  // Rotation
  screen.setRotation(3);
  // Fill Screen => white
  screen.fillScreen(0xffff);
  // Text Color => blue
  screen.setTextColor(0x001F);
  // Font => Free Sans Bold 12pt
  screen.setFont(&FreeSansBold12pt7b);
  // TextSize => 1.5
  screen.setTextSize(1.5);
  // Vibration Senso
  screen.setCursor(0, 30);
  screen.println("Vibration Sensor");
  // Vibration Sensor
  screen.setCursor(0, 70);
  screen.print( "Val: " );
  screen.setCursor(70, 70);
  screen.println( iVal );

}

getEEPROM.ino

Arduino
// isUID EEPROM Unique ID
void isUID()
{

  // Is Unit ID
  uid = "";
  for (int x = 0; x < 7; x++)
  {
    uid = uid + char(EEPROM.read(x));
  }

}

getVibration.ino

Arduino
// Vibration Sensor
// is Vibration
void isVibration(){

  // Vibration Sensor
  // iVal
  iVal = analogRead( iVibration );

}

setup.ino

Arduino
// Setup
void setup()
{

  // Delay
  delay( 100 );

   // EEPROM Size
  EEPROM.begin(EEPROM_SIZE);

  // EEPROM Unique ID
  isUID();

  // Delay
  delay(100);

  // DFRobot Display 320x480
  screen.begin();

  // Delay
  delay( 100 );

  // DFRobot Display 320x480 - UID
  // Don Luc Electronics
  // Version
  // EEPROM
  isDisplayUID();

  // Delay 5 Second
  delay( 5000 );

}
