Published October 22, 2025 © CC BY

Project #16: Sound – Mini MP3 Player – Mk26

BeginnerFull instructions provided1 hour44

Things used in this project

Hardware components

SparkFun RedBoard Qwiic

Elecrow Mini MP3 Player

Speaker

USB Battery Pack

SparkFun USB-A to Micro-B Cable

Software apps and online services

Arduino IDE

Story

Project #16: Sound – Mini MP3 Player – Mk26

#DonLucElectronics #DonLuc #MiniMP3Player #IoT #Project #Fritzing #Programming #Electronics #Microcontrollers #Consultant

Mini MP3 Player

Mini MP3 Player is a compact and inexpensive MP3 module that can be connected directly to the speaker. The module can be used alone with a battery power supply, speaker, and keypad, or through the serial port control, as the Arduino UNO compatible board or any microcontroller with a serial port module. The module itself perfectly integrated hardware decodes MP3, WAV, and WMA's. The software supports TF card drivers to support FAT16, FAT32 file systems. This can be done by the simple serial command that plays the specified music, as well as how to play music and other functions, easy to use, stable and reliable.

Play next MP3 every 8 second.

1.mp3 - William Shakespeare

2.mp3 - Albert Einstein

3.mp3 - Luc Paquin

4.mp3 - Carl Sagan

5.mp3 - Dalek

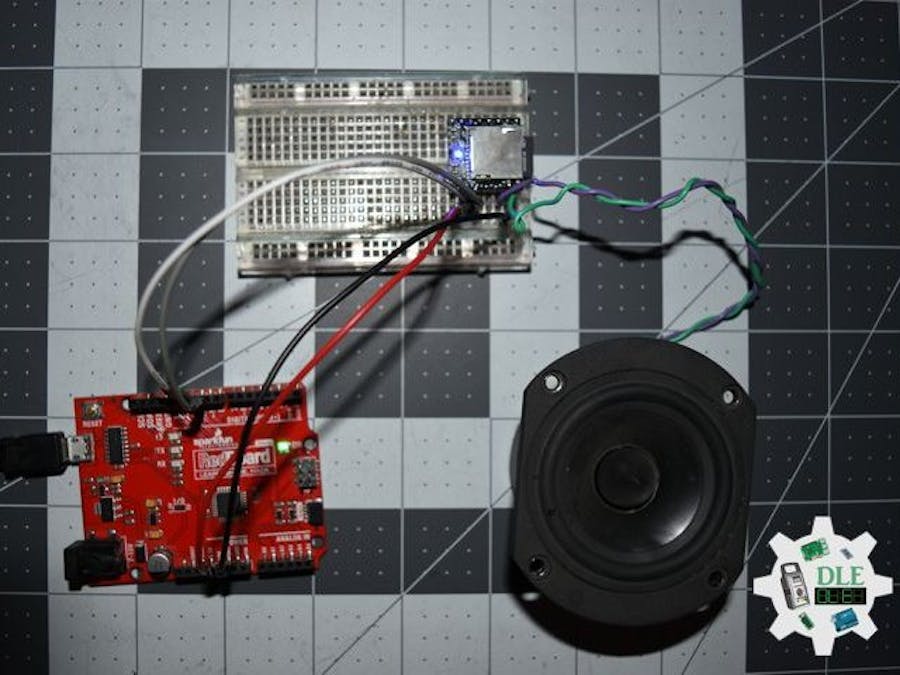

DL2510Mk02

1 x SparkFun RedBoard Qwiic

1 x Mini MP3 Player

1 x Speaker

1 x USB Battery Pack

1 x USB-A to Micro-B Cable

DL2510Mk02p

DL2510Mk02p.ino

getEEPROM.ino

getMiniMP3.ino

setup.ino

People can contact us:http://www.donluc.com/?page_id=1927

Consultant, R&D, Electronics, IoT, Teacher and Instructor

Programming Language
Microcontrollers (PIC, Arduino, Raspberry Pi, Arm, Silicon Labs, Espressif, Etc...)
IoT
Wireless (Radio Frequency, Bluetooth, WiFi, Etc...)
Robotics
Automation
Camera and Video Capture Receiver Stationary, Wheel/Tank, Underwater and UAV Vehicle
Unmanned Vehicles Terrestrial, Marine and UAV
Machine Learning
Artificial Intelligence (AI)
RTOS
Sensors, eHealth Sensors, Biosensor, and Biometric
Research & Development (R & D)
Consulting
Etc...

Luc Paquin – Curriculum Vitae - 2025

https://www.donluc.com/luc/

Web:https://www.donluc.com/

Facebook:https://www.facebook.com/neosteam.labs.9/

YouTube:https://www.youtube.com/@thesass2063

Twitter:https://twitter.com/labs_steam

Pinterest:https://www.pinterest.com/NeoSteamLabs/

Instagram:https://www.instagram.com/neosteamlabs/

DFRobot:https://learn.dfrobot.com/user-10186.html

Elecrow:https://www.elecrow.com/share/sharepj/center/no/760816d385ebb1edc0732fd873bfbf13

TikTok:https://www.tiktok.com/@luc.paquin

Hackster:https://www.hackster.io/luc-paquin

LinkedIn:https://www.linkedin.com/in/jlucpaquin/

Don Luc

Code

/****** Don Luc Electronics © ******
Software Version Information
Project #16: Sound – Mini MP3 Player – Mk26
16-26
DL2509Mk02p.ino
DL2509Mk02
1 x SparkFun RedBoard Qwiic
1 x Mini MP3 Player
1 x Speaker
1 x USB Battery Pack
1 x USB-A to Micro-B Cable
*/

// Include the Library Code
// EEPROM Library to Read and Write EEPROM
// with Unique ID for Unit
#include "EEPROM.h"
// Arduino
#include "Arduino.h"
// Software Serial
#include "SoftwareSerial.h"
// DFRobot DFPlayer Mini
#include "DFRobotDFPlayerMini.h"

// Software Serial RX, TX
SoftwareSerial mySoftwareSerial(10, 11);
// DFRobot DFPlayer Mini
DFRobotDFPlayerMini myDFPlayer;

// EEPROM Unique ID Information
String uid = "";

// Software Version Information
String sver = "16-26";

void loop() {

  // isMP3
  isMP3();

}

// Mini MP3
// isSetupMP3
void isSetupMP3(){

  // Mini MP3
  myDFPlayer.begin(mySoftwareSerial);

  // Set volume value. From 0 to 30
  myDFPlayer.volume(20);

  // Play the first MP3
  myDFPlayer.play(1);

}
// isMP3
void isMP3(){

  // Timer
  static unsigned long timer = millis();

  // isMp3
  if (millis() - timer > 8000) {

    // Time
    timer = millis();

    // Play next mp3 every 8 second
    myDFPlayer.next();

  }

  myDFPlayer.available();

}

Credits

Luc Paquin

45 projects • 4 followers

Teacher, Instructor, E-Mentor, R&D and Consulting -Programming Language -Microcontrollers -IoT -Robotics -Machine Learning -AI -Sensors
