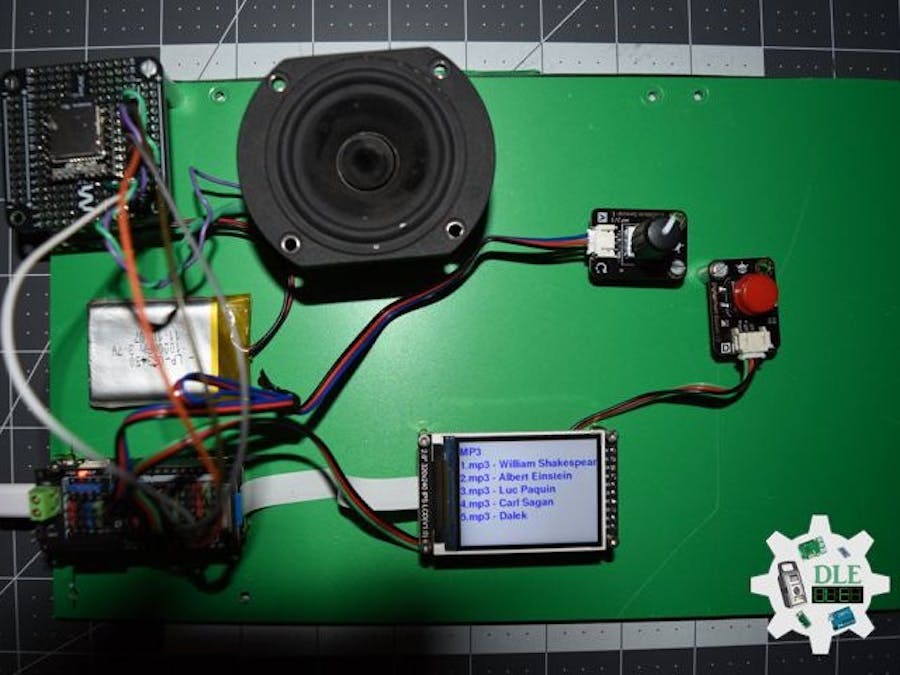

Project #16: Sound – ESP32 – Mk27

// DFRobot Display 240x320
// DFRobot Display 240x320 - UID
void isDisplayUID(){

  // DFRobot Display 240x320
  // Text Display
  // Text Wrap
  screen.setTextWrap(false);
  // Rotation
  screen.setRotation(3);
  // Fill Screen => black
  screen.fillScreen(0x0000);
  // Text Color => white
  screen.setTextColor(0xffff);
  // Font => Free Sans Bold 12pt
  screen.setFont(&FreeSansBold12pt7b);
  // TextSize => 1.5
  screen.setTextSize(1.5);
  // Don Luc Electronics
  screen.setCursor(0, 30);
  screen.println("Don Luc Electronics");
  // SD
  screen.setCursor(0, 60);
  screen.println("GDFPlayer Mini");
  // Version
  screen.setCursor(0, 90);
  screen.println("Version");
  screen.setCursor(0, 120);
  screen.println( sver );
  // EEPROM
  screen.setCursor(0, 150);
  screen.println("EEPROM");
  screen.setCursor(0, 180);
  screen.println( uid );

}
// isDisplayMP3
void isDisplayMP3(){

  // DFRobot Display 240x320
  // Text Display
  // Text Wrap
  screen.setTextWrap(false);
  // Rotation
  screen.setRotation(3);
  // Fill Screen => white
  screen.fillScreen(0xffff);
  // Text Color => blue
  screen.setTextColor(0x001F);
  // Font => Free Sans Bold 12pt
  screen.setFont(&FreeSansBold12pt7b);
  // TextSize => 1.5
  screen.setTextSize(1.5);
  // Geiger
  screen.setCursor(0, 30);
  screen.println("MP3");
  // 1.mp3 - William Shakespeare
  screen.setCursor(0, 60);
  screen.println("1.mp3 - William Shakespeare");
  // 2.mp3 - Albert Einstein
  screen.setCursor(0, 90);
  screen.println( "2.mp3 - Albert Einstein" );
  // 3.mp3 - Luc Paquin
  screen.setCursor(0, 120);
  screen.println( "3.mp3 - Luc Paquin" );
// 4.mp3 - Carl Sagan
  screen.setCursor(0, 150);
  screen.println( "4.mp3 - Carl Sagan" );
 // 5.mp3 - Dalek
  screen.setCursor(0, 180);
  screen.println( "5.mp3 - Dalek" );

}

// EEPROM
// isUID EEPROM Unique ID
void isUID() {

  // Is Unit ID
  uid = "";
  for (int x = 0; x < 7; x++)
  {
    uid = uid + char(EEPROM.read(x));
  }

}

// Mini MP3
// isSetupMP3
void isSetupMP3(){

  // Mini MP3
  // isACK
  // doReset
  myDFPlayer.begin(FPSerial, true, true);

  // Set serial communictaion time out 500ms
  myDFPlayer.setTimeOut(500);

}
// isMP3
void isMP3(){

  // Volume Potentiometer
  iValV = analogRead(iVolPot);

  // Mapping function
  iValV = map(iValV, 0, 4095, 0, 30);

  // Set volume value. From 0 to 30
  myDFPlayer.volume( iValV );

  // iValR
  iValR = digitalRead(iButR);

  // Check high iButR is pressed down.
  if (iValR == HIGH) {

    // Play next mp3
    myDFPlayer.next();

  }

}

// Setup
void setup()
{

  // Delay
  delay( 100 );

  // EEPROM Size
  EEPROM.begin(EEPROM_SIZE);

  // EEPROM Unique ID
  isUID();

  // Delay
  delay( 100 );

  // FPSerial
  // rx
  // tx
  FPSerial.begin(9600, SERIAL_8N1, D7, D5);

  // Delay
  delay( 100 );

  // Button R
  pinMode(iButR, INPUT);

  // Delay
  delay(100);

  // isSetupMP3
  isSetupMP3();

  // Delay
  delay(100);

  // DFRobot Display 240x320
  screen.begin();

  // Delay
  delay(100);

  // DFRobot Display 240x320 - UID
  // Don Luc Electronics
  // Version
  // EEPROM
  isDisplayUID();

  // Delay 5 Second
  delay( 5000 );



}
