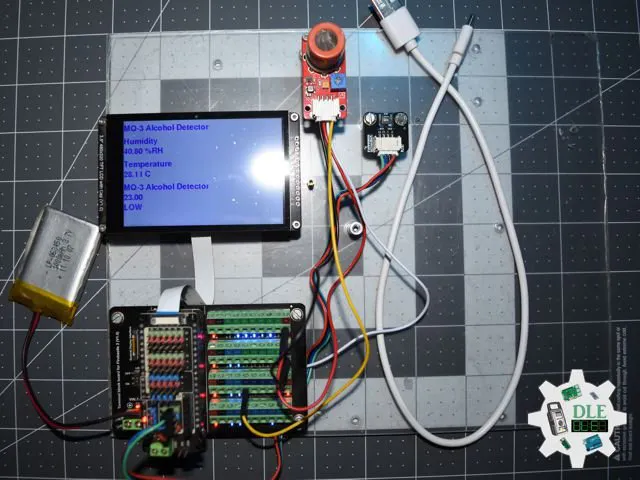

Project #15: Environment - MQ-3 Alcohol Detector - Mk41

Project #15: Environment - MQ-3 Alcohol Detector - Mk41

BeginnerFull instructions provided1 hour9
Project #15: Environment - MQ-3 Alcohol Detector - Mk41

Things used in this project

Hardware components

DFRobot FireBeetle 2 ESP32-E
×1
DFRobot Fermion: 3.5” 480x320 TFT LCD Capacitive
×1
DFRobot GDL Line 10 CM
×1
MQ-3 Alcohol Detector
×1
DFRobot Gravity: AHT20 Temperature and Humidity Sensor
×1
DFRobot Gravity: IO Shield for FireBeetle 2
×1
DFRobot Terminal Block Board for FireBeetle 2 ESP32-E IoT
×1
DFRobot Lithium Ion Battery - 1000mAh
×1
DFRobot USB 3.0 to Type-C Cable
×1

Software apps and online services

Arduino IDE
Arduino IDE

Story

Read more

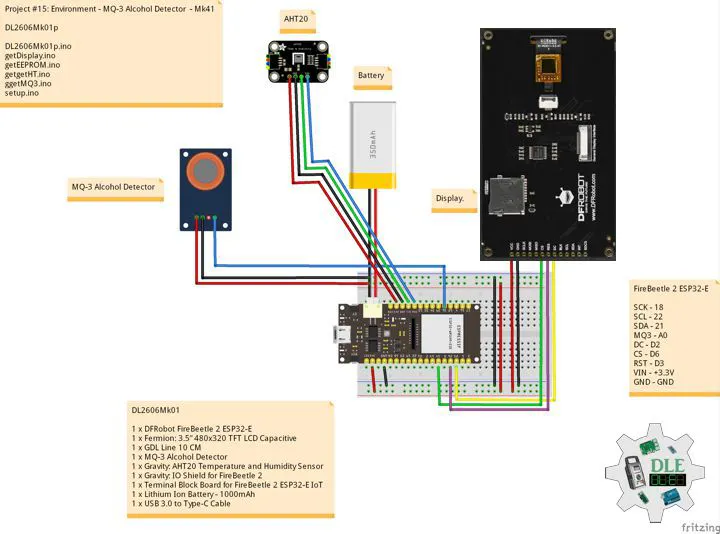

Schematics

Fritzing

Code

DL2606Mk01p.ino

Arduino
/****** Don Luc Electronics © ******
Software Version Information
Project #15: Environment - MQ-3 Alcohol Detector - Mk41
15-41
DL2606Mk01p.ino
DL2606k01
1 x DFRobot FireBeetle 2 ESP32-E
1 x Fermion: 3.5” 480x320 TFT LCD Capacitive
1 x GDL Line 10 CM
1 x MQ-3 Alcohol Detector
1 x Gravity: AHT20 Temperature and Humidity Sensor
1 x Gravity: IO Shield for FireBeetle 2
1 x Terminal Block Board for FireBeetle 2 ESP32-E IoT
1 x Lithium Ion Battery - 1000mAh
1 x USB 3.0 to Type-C Cable
*/

// Include the Library Code
// EEPROM Library to Read and Write EEPROM with Unique ID for Unit
#include "EEPROM.h"
// DFRobot Display GDL API
#include <DFRobot_GDL.h>
// AHT20 Humidity and Temperature Sensor
#include <DFRobot_AHT20.h>
// MQ-3 Alcohol Detector
#include <MQ3.h>

// MQ-3 Alcohol Detector
int iMQ3 = A0;
float iValMQ3 = 0;
// Value Limit
int iValLim = 400;
String sVal = "";

// AHT20 Humidity and Temperature Sensor
DFRobot_AHT20 aht20;
// AHT20 Humidity and Temperature Sensor
float h = 0;
float t = 0;

// Defined ESP32
#define TFT_DC  D2
#define TFT_CS  D6
#define TFT_RST D3

/*dc=*/ /*cs=*/ /*rst=*/
// DFRobot Display 320x480
DFRobot_ILI9488_320x480_HW_SPI screen(TFT_DC, TFT_CS, TFT_RST);

// Software Version Information
// EEPROM Unique ID Information
#define EEPROM_SIZE 64
String uid = "";

// Software Version Information
String sver = "15-41";

void loop() {

  // isMQ3
  isMQ3();

  // AHT20 Humidity and Temperature Sensor
  isHT();

  // isDisplay MQ-3 Alcohol Detector
  isDisplayMQ3();

  // Delay 2 Second
  delay( 2000 );

}

getDisplay.ino

Arduino
// DFRobot Display 320x480
// DFRobot Display 320x480 - UID
void isDisplayUID(){

  // DFRobot Display 320x480
  // Text Display
  // Text Wrap
  screen.setTextWrap(false);
  // Rotation
  screen.setRotation(3);
  // Fill Screen => black
  screen.fillScreen(0x0000);
  // Text Color => white
  screen.setTextColor(0xffff);
  // Font => Free Sans Bold 12pt
  screen.setFont(&FreeSansBold12pt7b);
  // TextSize => 1.5
  screen.setTextSize(1.5);
  // Don Luc Electronics
  screen.setCursor(0, 30);
  screen.println("Don Luc Electronics");
  // Tilt Switch
  screen.setCursor(0, 60);
  screen.println("MQ-3 Alcohol Detector");
  // Version
  screen.setCursor(0, 90);
  screen.println("Version");
  screen.setCursor(0, 120);
  screen.println( sver );
  // EEPROM
  screen.setCursor(0, 150);
  screen.println("EEPROM");
  screen.setCursor(0, 180);
  screen.println( uid );

}
// isDisplay MQ3
void isDisplayMQ3(){

  // DFRobot Display 320x480
  // Text Display
  // Text Wrap
  screen.setTextWrap(false);
  // Rotation
  screen.setRotation(3);
  // Fill Screen => white
  screen.fillScreen(0xffff);
  // Text Color => blue
  screen.setTextColor(0x001F);
  // Font => Free Sans Bold 12pt
  screen.setFont(&FreeSansBold12pt7b);
  // TextSize => 1.5
  screen.setTextSize(1.5);
  // Vibration Senso
  screen.setCursor(0, 30);
  screen.println("MQ-3 Alcohol Detector");
  // Humidity
  screen.setCursor(0, 70);
  screen.println("Humidity");
  screen.setCursor(0, 100);
  screen.print( h );
  screen.setCursor(65, 100);
  screen.println( "%RH" );
  // Temperature
  screen.setCursor(0, 140);
  screen.println("Temperature");
  screen.setCursor(0, 170);
  screen.print( t );
  screen.setCursor(65, 170);
  screen.println( "C" );
  // MQ-3 Alcohol Detector
  screen.setCursor(0, 210);
  screen.println("MQ-3 Alcohol Detector");
  screen.setCursor(0, 240);
  screen.println( iValMQ3 );
  screen.setCursor(0, 270);
  screen.println( sVal );

}

getEEPROM.ino

Arduino
// isUID EEPROM Unique ID
void isUID()
{

  // Is Unit ID
  uid = "";
  for (int x = 0; x < 7; x++)
  {
    uid = uid + char(EEPROM.read(x));
  }

}

getHT.ino

Arduino
// AHT20 Humidity and Temperature Sensor
void isHT(){

  if(aht20.startMeasurementReady(true)){

    // Humidity
    h = aht20.getHumidity_RH();

    // Temperature
    t = aht20.getTemperature_C();

   }

}

getMQ3.ino

Arduino
// MQ-3 Alcohol Detector
// isMQ3
void isMQ3(){

  // iValMQ3
  iValMQ3 = analogRead( iMQ3 );

  // Value Limit
  if (iValMQ3 > iValLim) {

    sVal = "HIGH";

  } else {

    sVal = "LOW";

  }

}

setup.ino

Arduino
// Setup
void setup()
{

  // Delay
  delay( 100 );

   // EEPROM Size
  EEPROM.begin(EEPROM_SIZE);

  // EEPROM Unique ID
  isUID();

  // Delay
  delay(100);

  // DFRobot Display 320x480
  screen.begin();

  // Delay
  delay( 100 );

  // AHT20 Humidity and Temperature Sensor
  aht20.begin();

  // Delay
  delay( 100 );

  // DFRobot Display 320x480 - UID
  // Don Luc Electronics
  // Version
  // EEPROM
  isDisplayUID();

  // Wait for the sensor to heat up for 20 seconds
  delay( 20000 );

}
