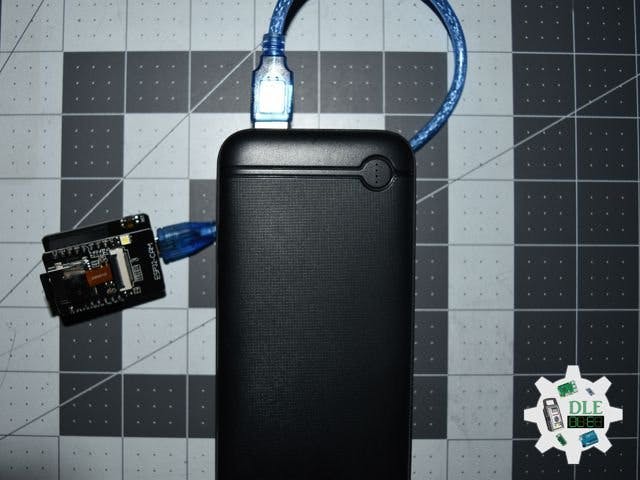

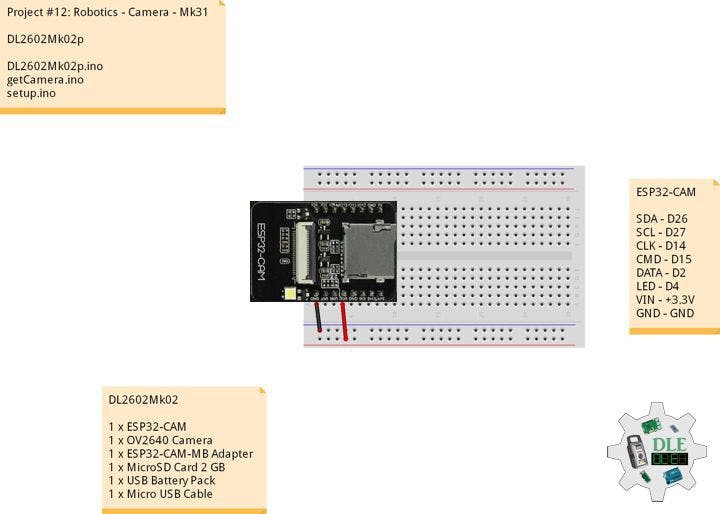

Project #12: Robotics - Camera - Mk31

// Camera
// Camera Setup
void isCameraSetup(){

  // Disable brownout detector
  WRITE_PERI_REG(RTC_CNTL_BROWN_OUT_REG, 0);

  // Camera Config
  camera_config_t config;
  config.ledc_channel = LEDC_CHANNEL_0;
  config.ledc_timer = LEDC_TIMER_0;
  config.pin_d0 = Y2_GPIO_NUM;
  config.pin_d1 = Y3_GPIO_NUM;
  config.pin_d2 = Y4_GPIO_NUM;
  config.pin_d3 = Y5_GPIO_NUM;
  config.pin_d4 = Y6_GPIO_NUM;
  config.pin_d5 = Y7_GPIO_NUM;
  config.pin_d6 = Y8_GPIO_NUM;
  config.pin_d7 = Y9_GPIO_NUM;
  config.pin_xclk = XCLK_GPIO_NUM;
  config.pin_pclk = PCLK_GPIO_NUM;
  config.pin_vsync = VSYNC_GPIO_NUM;
  config.pin_href = HREF_GPIO_NUM;
  config.pin_sccb_sda = SIOD_GPIO_NUM;
  config.pin_sccb_scl = SIOC_GPIO_NUM;
  config.pin_pwdn = PWDN_GPIO_NUM;
  config.pin_reset = RESET_GPIO_NUM;
  config.xclk_freq_hz = 20000000;
  config.pixel_format = PIXFORMAT_JPEG;
  config.grab_mode = CAMERA_GRAB_LATEST;

  // Camera Config
  if(psramFound()){

    // FRAMESIZE_ + QVGA|CIF|VGA|SVGA|XGA|SXGA|UXGA
    config.frame_size = FRAMESIZE_UXGA;
    config.jpeg_quality = 10;
    config.fb_count = 2;

  } else {

    config.frame_size = FRAMESIZE_SVGA;
    config.jpeg_quality = 12;
    config.fb_count = 1;

  }

  // Delay
  delay( 100 );

  // Init Camera
  esp_err_t err = esp_camera_init(&config);
  if (err != ESP_OK) {

    // Camera init failed;
    return;

  }

  // Delay
  delay(500);

  if(!SD_MMC.begin()){

    // SD Card Mount Failed
    return;

  }

  // Card Type
  uint8_t cardType = SD_MMC.cardType();
  if(cardType == CARD_NONE){

    // No SD Card attached
    return;

  }

  // Camera
  camera_fb_t * fb = NULL;

  // Take Picture with Camera
  fb = esp_camera_fb_get();
  if(!fb) {

    // Camera capture failed
    return;

  }

  // Initialize EEPROM with predefined size
  EEPROM.begin(EEPROM_SIZE);
  pictureNumber = EEPROM.read(0) + 1;

  // Path where new picture will be saved in SD Card
  String path = "/picture" + String(pictureNumber) +".jpg";

  // Camera
  fs::FS &fs = SD_MMC;
  File file = fs.open(path.c_str(), FILE_WRITE);
  if(!file){

    // Failed to open file in writing mode

  }
  else {

    // Payload (image), payload length
    file.write(fb->buf, fb->len);
    EEPROM.write(0, pictureNumber);
    EEPROM.commit();

  }

  // Close
  file.close();
  esp_camera_fb_return(fb);

  // Turns off the ESP32-CAM white on-board LED (flash) connected to GPIO 4
  pinMode(4, OUTPUT);
  digitalWrite(4, LOW);
  rtc_gpio_hold_en(GPIO_NUM_4);

  delay(2000);
  // Going to sleep now
  delay(2000);
  esp_deep_sleep_start();
  // This will never be printed

}

// Setup
void setup()
{

  // Delay
  delay( 100 );

  // Camera Setup
  isCameraSetup();

  // Delay 1 Second
  delay( 1000 );

}
