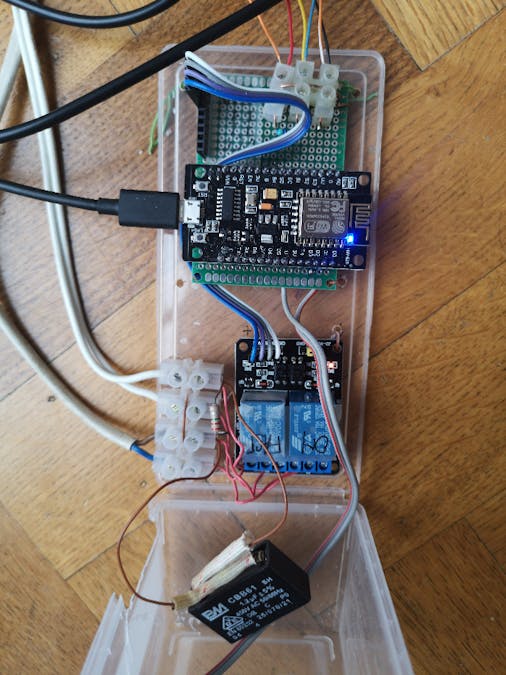

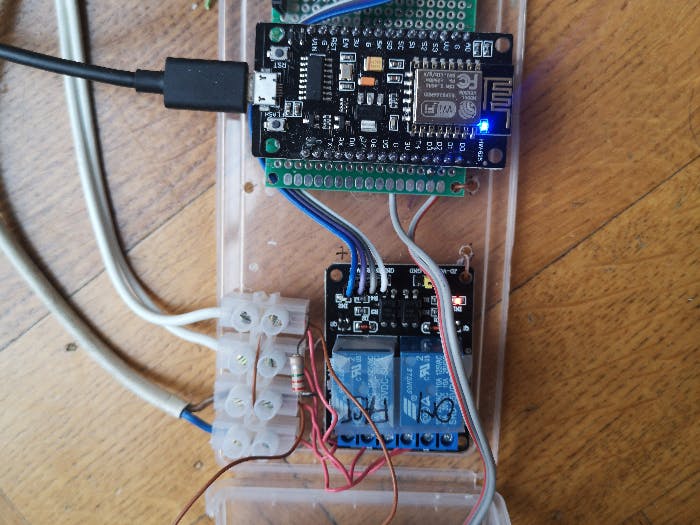

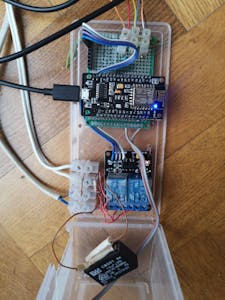

Differential Circulator with NodeMCU

/*
//
//  version nodemcu 2020 01 12
//  https://randomnerdtutorials.com/esp8266-ds18b20-temperature-sensor-web-server-with-arduino-ide/
//
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!! my nodeMCU use  ESP8266
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
*
// https://www.vultr.com/docs/using-screen-on-ubuntu-14-04
ctrl-A \
screen /dev/ttyUSB0 115200


 ADDED  <pgmspace.h>
 * /home/luc/arduino-1.8.9/hardware/tools/avr/avr/include/avr/pgmspace.h
 * /home/luc/Dropbox/arduino_ino/libraries/OneWire/OneWire.h
 *
 * warning: 'bool HTTPClient::begin(String)' is deprecated
(declared at
/home/luc/.arduino15/packages/esp8266/hardware/esp8266/2.6.3/libraries/
ESP8266HTTPClient/src/ESP8266HTTPClient.h:155) [-Wdeprecated-declarations]
*
* https://arduino-esp8266.readthedocs.io/en/latest/esp8266wifi/readme.html#enable-wi-fi-diagnostic

https://makeradvisor.com/esp32-vs-esp8266/

* Rcuprer automatiquement des redmarrages en boucle du ESP8266
* https://www.sigmdel.ca/michel/program/esp8266/arduino/watchdogs2_fr.html
*
*/
//______________________________________________________________________
const char FileName[]="=== V 001.78 DifferentialTemp_nodeMCU03-SRV-OTA.ino";
const char HostName[]="VertCirc";
//______________________________________________________________________

#include <Arduino.h>
#include <OneWire.h>
#include <DallasTemperature.h>

//#include <ESP8266WiFi.h>
// <ESP8266WiFi.h>  // official arduino  //https://randomnerdtutorials.com/esp32-esp8266-input-data-html-form/#more-88796
// <ESP8266wifi.h>  // is  Jonas Ekstrand.

#ifdef ESP32
  #include <WiFi.h>
  #include <AsyncTCP.h>
  #include <SPIFFS.h>
#else  //my nodemcu with ESP8266
  #include <ESP8266WiFi.h>
  #include <ESPAsyncTCP.h>
  #include <Hash.h>
  #include <FS.h>
#endif
#include <ESPAsyncWebServer.h>    // my nodemcu with ESP8266
//https://techtutorialsx.com/2017/12/01/esp32-arduino-asynchronous-http-webserver/

#include <ESP8266HTTPClient.h>


//  OTA
// https://projetsdiy.fr/arduinoota-ota-mise-jour-sans-fil-ide-arduino-programmes-esp8266/
//debug by ota:
// https://www.fais-le-toi-meme.fr/fr/electronique/tutoriel/esp8266-arduinoota-mise-a-jour-logiciel-esp8266-wifi
#include <ESP8266mDNS.h>
#include <WiFiUdp.h>
#include <ArduinoOTA.h>
//
///////////////////////////////////////////////////////////
//set relay output wire
#define RELAY_ON   D5 // 14  // D5 GPIO14  relayboard in1
#define RELAY_FAST D6 // 12  // D6 GPIO12  relayboard in2
#define ENABLE LOW      //relay is reverse logic: active on low
#define DISABLED HIGH

///////////////////////////////////////////////////////////
// led
#define LED_ON     0
#define LED_OFF    1
//status led : ON if auto mode
#define pinled LED_BUILTIN  // D0 ;  //  GPIO16 ;
///////////////////////////////////////////////////////////
// button
// https://www.baldengineer.com/detect-short-long-button-press.html
#define PRESSED     LOW
#define NOT_PRESSED HIGH
const unsigned long shortPress = 50;
const unsigned long longPress = 500;
typedef struct Buttons {
    const byte pin = D1 ;  // D1 =GPIO5
    const int debounce = 20;
    unsigned long counter=0;
    bool prevState = NOT_PRESSED;
    bool currentState;
} Button;
Button button;

//
// https://randomnerdtutorials.com/esp32-esp8266-input-data-html-form/#more-88796
//
#if defined(ESP8266)   // my NodeMCU  use this
	//ESP8266WebServer server(80);
	AsyncWebServer server(80);
#endif

#if defined(ESP32)
	WebServer server(80);
#endif

///////////////////////////////////////////////////////////
// temperature sensors
#define TEMPERATURE_PRECISION 12 //9..12
#define ONE_WIRE_BUS 4  // D2 = GPIO4  Data wire ONE_WIRE_BUS
// arrays to hold device addresses
#define iMaxCntDev 2   //max devs expected. limit mem used  real count will be in

byte iCntDev  ;                    //physical dev count
DeviceAddress probes[iMaxCntDev];  // table holding dev adress
float probeTemp[iMaxCntDev];       // table holding measures
OneWire myOneWireDev(ONE_WIRE_BUS);// Setup a myOneWireDev instance to communicate with any OneWire devices (not just Maxim/Dallas temperature ICs)
DallasTemperature mySensors(&myOneWireDev);// Pass our myOneWireDev reference to Dallas Temperature.

///////////////////////////////////////////////////////////
// wifi
char ssid[] = "BRG-FLOOR0-2G";  // your network SSID (name) "BRG-FLOOR0-2G" "BRG-FLOOR0-TPLINK"
char password[] = "0499185306";       // your network password

const char* PARAM_idelayMeasures = "idelayMeasures";
const char* PARAM_idelayRelays = "idelayRelays";
const char* PARAM_idelaySendData = "idelaySendData";
const char* PARAM_idelayRstDelta	 = "idelayRstDelta";

const char* PARAM_TempFanSLOW = "TempFanSLOW";
const char* PARAM_TempFanFAST = "TempFanFAST";
const char* PARAM_mode = "mode";
const char* PARAM_state = "state";

String  GETdata ;  //will contains line send to server

/*
 *
 *     function submitMessage() {
      alert("Saved value to ESP SPIFFS");
      setTimeout(function(){ document.location.reload(false); }, 500);

 * */
// https://www.w3schools.com/html/tryit.asp
//  definition of the html page site
//  https://www.w3schools.com/code/tryit.asp?filename=GDSIWKZTNCZ2

// <input type="submit" method="POST" VALUE=">> Rechercher <<">
// <input type="submit" value="" onclick="submitMessage()">
//  https://www.w3schools.com/get?  TempFanSLOW= &Def_TempFanSLOW=_TempFanSLOW


const char index_html[] PROGMEM = R"rawliteral(

<!DOCTYPE HTML><html><head>
<title>Vertical Circulator Parameters</title>
<meta name="viewport" content="width=device-width, initial-scale=1">
<META HTTP-EQUIV="Refresh" CONTENT="60">
<script>function submitMessage(){setTimeout(function(){ document.location.reload(false); }, 500);}</script>
<style>table, th, td {border: 1px solid black;border-collapse: collapse;} </style>
</head><body>
%FileName%
<table>
  <tr>
    <th>Temp up</th>
    <th>Temp down</th>
    <th>Delta</th>
  </tr>
 <br>
  <tr>
    <td>%temp01%</td>
    <td>%temp02%</td>
    <td>%delta%</td>
    </tr>
</table>
<br>
<form action="/get" target="hidden-form">
<b>State  %state%</b>

<b>Mode %mode%  ( loop: AUTO -> FanSLOW -> FanFAST -> FanOFF )</b>
<br><input type="number " name="mode">
<input type="submit" value="Step to next" onclick="submitMessage()">
</form><br>

<form action="/get" target="hidden-form">
<b>TempFanSLOW (Now %TempFanSLOW% deg) (0 to force MAN): <input type="number " name="TempFanSLOW"></b>
<br>
<input type="radio" name="Def_TempFanSLOW" VALUE="setdef_TempFanSLOW" >Set default
<input type="radio" name="Def_TempFanSLOW" VALUE="setval_TempFanSLOW" checked >Set value
<input type="submit" value="Submit" onclick="submitMessage()">
</form><br>

<form action="/get" target="hidden-form">
<b>TempFanFAST (Now %TempFanFAST% deg): <input type="number " name="TempFanFAST"></b>
<br>
<input type="radio" name="Def_TempFanFAST" VALUE="setdef_TempFanFAST" >Set default
<input type="radio" name="Def_TempFanFAST" VALUE="setval_TempFanFAST" checked >Set value
<input type="submit" value="Submit" onclick="submitMessage()">
</form><br>

<form action="/get" target="hidden-form">
idelayMeasures (Current %idelayMeasures% sec): <input type="number " name="idelayMeasures">
<br>
<input type="radio" name="Def_idelayMeasures" VALUE="setdef_idelayMeasures" >Set default
<input type="radio" name="Def_idelayMeasures" VALUE="setval_idelayMeasures" checked >Set value
<input type="submit" value="Submit" onclick="submitMessage()">
</form><br>

<form action="/get" target="hidden-form">
idelayRelays (Current %idelayRelays% sec ): <input type="number " name="idelayRelays">
<br>
<input type="radio" name="Def_idelayRelays" VALUE="setdef_idelayRelays" >Set default
<input type="radio" name="Def_idelayRelays" VALUE="setval_idelayRelays" checked >Set value
<input type="submit" value="Submit" onclick="submitMessage()">
</form><br>

<form action="/get" target="hidden-form">
idelaySendData (Current  %idelaySendData% sec ): <input type="number " name="idelaySendData">
<br>
<input type="radio" name="Def_idelaySendData" VALUE="setdef_idelaySendData" >Set default
<input type="radio" name="Def_idelaySendData" VALUE="setval_idelaySendData" checked >Set value
<input type="submit" value="Submit" onclick="submitMessage()">
</form><br>

<form action="/get" target="hidden-form">
idelayRstDelta (Current %idelayRstDelta% sec ): <input type="number " name="idelayRstDelta">
<br>
<input type="radio" name="Def_idelayRstDelta" VALUE="setdef_idelayRstDelta" >Set default
<input type="radio" name="Def_idelayRstDelta" VALUE="setval_idelayRstDelta" checked >Set value
<input type="submit" value="Submit" onclick="submitMessage()">
</form>

<iframe style="display:none" name="hidden-form"></iframe>
</body></html>)rawliteral";

//______________________________________________________________________

bool  bFastON;  //set true if FastOn, lock to avoid useless switch
bool Op_StateAUTO= true;   // auto: true , man: false // 0 (nu), 1 FanSLOW, 2 FanFast, 3 FanOFF
byte Op_Mode = 1 ; // 0 (nu), 1 FanSLOW, 2 FanFast, 3 FanOFF

unsigned long  previousCPdelayMeasures=0  ; // to avoid millis rollover
unsigned long  previousCPdelayRelays=0  ; // to avoid millis rollover
unsigned long  previousCPdelaySendData=0  ; // to avoid millis rollover
unsigned long  previousCPdelayResetMaxDelta=0  ; // to avoid millis rollover

float TempDelta ;
float maxDelta = 0;
//______________________________________________________________________
//parameters  ..
//______________________________________________________________________
/*
             0 ...........|.................|................ delta temp
                          |                 |
Limits              TempFanSLOW       TempFanFAST
Fan:            OFF       |     SLOW        |      FAST
                          |                 |
*/
float TempFanSLOW_def = 7.11  ;                      //limit start delta fan normal (capacitor limited) speed
float TempFanFAST_def  =                 8.22;   //limit start fan fast
long int idelayMeasures_def      = 31000 ;   // def val
long int idelayRelays_def        = 72000 ;   // relays cntrl
long int idelaySendData_def      = 73000 ;   // send data  10 sec
long int idelayRstDelta_def      =300000 ;   // 5 mins   1800000 ; // 30 mins // reset max delta

bool Op_StateAUTO_def= true;   // auto: true , man: false // 0 (nu), 1 FanSLOW, 2 FanFast, 3 FanOFF
byte Op_Mode_def = 0 ;    // 0 (nu), 1 FanSLOW, 2 FanFast, 3 FanOFF


float TempFanSLOW ;
float TempFanFAST ;
long int idelayMeasures ;
long int idelayRelays   ;
long int idelaySendData  ;
long int idelayRstDelta;

//==========================

void notFound(AsyncWebServerRequest *request) {
  request->send(404, "text/plain", "Not found");
}
//==========================
//______________________________________________________________________
void LedBlink(int c=2, int ms=500){
	int i=0 , st;
	st= digitalRead(pinled);
	for (i; i<=c; i++)  {
		digitalWrite(pinled,LED_ON );   // turn the LED on
		delay(ms);
		digitalWrite(pinled, LED_OFF);    // turn the LED off
		delay(ms);
		}
	digitalWrite(pinled, st);
}
//______________________________________________________________________
void setup(void) {
	byte i ;
	Serial.begin(115200); // start serial port
	pinMode(pinled, OUTPUT);
	pinMode(button.pin, INPUT_PULLUP);
	delay(1000);
	Serial.println("");
	Serial.println(FileName);

	#ifdef ESP32  // Initialize SPIFFS
    if(!SPIFFS.begin(true)){
		Serial.println("An Error has occurred while mounting SPIFFS");
		return;
		}
	#else   //  ESP8266
	if(!SPIFFS.begin()){
		Serial.println("An Error has occurred while mounting SPIFFS");
		return;
		}
	#endif

	Serial.println(">>>InitWifiCx");	InitWifiCx();
	Serial.println(">>>InitParams");	InitParams();
	Serial.println(">>>MonParams"); 	MonParams();

	pinMode(RELAY_ON, OUTPUT); // set relays out pins
	pinMode(RELAY_FAST, OUTPUT);

	digitalWrite(RELAY_ON, DISABLED); // relay to off
	digitalWrite(RELAY_FAST, DISABLED);

	mySensors.begin();   // Start up the sensor library
	iCntDev=mySensors.getDeviceCount();

	// locate devices on the bus
	Serial.print(F("Locating devices...")); Serial.print(F("Found ")); Serial.print(iCntDev, DEC);	 Serial.println(" devices.");
	Serial.print(F("Set to maximum "));Serial.print(iMaxCntDev, DEC);  Serial.println(" devices ! (See iMaxCntDev)");
	Serial.print(F("ONE_WIRE_BUS bus on pin "));Serial.print(ONE_WIRE_BUS, DEC);  Serial.println("");
	Serial.print(F("Parasite power is: "));// report parasite power requirements
	if (mySensors.isParasitePowerMode()) Serial.println("ON"); else Serial.println("OFF");

	for( i = 0 ; i < iCntDev; i++){  // print infos for each device
		if (!mySensors.getAddress(probes[i], i)) Serial.println("Unable to find address for Device ");
		Serial.print(F("Device ")); Serial.print(i);
		Serial.print(F(", address: ")); printAddress(probes[i]);
		// set the resolution to 12 bit per device
		mySensors.setResolution(probes[i], TEMPERATURE_PRECISION);
		Serial.print(F(", resolution: ")); int res = mySensors.getResolution(probes[i]); Serial.print(res, DEC);
    Serial.println();
	}
	GetTemps();
	PrtDataToMon();
	DriveRelays();

	//  OTA _____________________________________________________________________
	// https://www.fais-le-toi-meme.fr/fr/electronique/tutoriel/esp8266-arduinoota-mise-a-jour-logiciel-esp8266-wifi
	// Port defaults to 8266
	// ArduinoOTA.setPort(8266);
	// Hostname defaults to esp8266-[ChipID]
	ArduinoOTA.setHostname(HostName);

	// No authentication by default
	// ArduinoOTA.setPassword("admin");
	// Password can be set with it's md5 value as well
	// MD5(admin) = 21232f297a57a5a743894a0e4a801fc3
	// ArduinoOTA.setPasswordHash("21232f297a57a5a743894a0e4a801fc3");

  ArduinoOTA.onStart([]() {
    String type;
    if (ArduinoOTA.getCommand() == U_FLASH) {
      type = "sketch";
    } else { // U_FS
      type = "filesystem";
    }
    // NOTE: if updating FS this would be the place to unmount FS using FS.end()
    Serial.println("Start updating " + type);
  });
  ArduinoOTA.onEnd([]() {
	LedBlink(20,100);
    Serial.println(F("\nEnd"));

  });
  ArduinoOTA.onProgress([](unsigned int progress, unsigned int total) {
    Serial.printf("Progress: %u%%\r", (progress / (total / 100)));
  });
  ArduinoOTA.onError([](ota_error_t error) {
    Serial.printf("Error[%u]: ", error);
    if (error == OTA_AUTH_ERROR) {      Serial.println("Auth Failed");
    } else if (error == OTA_BEGIN_ERROR) {      Serial.println("Begin Failed");
    } else if (error == OTA_CONNECT_ERROR) {      Serial.println("Connect Failed");
    } else if (error == OTA_RECEIVE_ERROR) {      Serial.println("Receive Failed");
    } else if (error == OTA_END_ERROR) {      Serial.println("End Failed");
    }
  });

  ArduinoOTA.begin();

//  OTA _____________________________________________________________________

	LedBlink(5);
	Serial.println(" ============ End setup()");
    } //end  setup(void)
//______________________________________________________________________
void loop(void){
	unsigned long CPdelayMeasures = millis();
	unsigned long CPdelayRelays = millis();
	unsigned long CPdelaySendData = millis();
	unsigned long CPdelayResetMaxDelta = millis();

	ArduinoOTA.handle();

	//keysacn();

	if ((unsigned long)(CPdelayMeasures - previousCPdelayMeasures) >= idelayMeasures) {
	Serial.print(F("1.idelayMeasures ")); Serial.println(idelayMeasures/1000);
	GetTemps(); //get t and fill maxDelta, TempDelta
	PrtDataToMon();
	previousCPdelayMeasures=CPdelayMeasures;
	}

	if ((unsigned long)(CPdelayRelays - previousCPdelayRelays) >= idelayRelays) {
	Serial.print(F("2.idelayRelays ")); Serial.println(idelayRelays/1000);
	DriveRelays();
	//SendData();
	previousCPdelayRelays=CPdelayRelays;
	}

	if ((unsigned long)(CPdelaySendData - previousCPdelaySendData) >= idelaySendData) {
	Serial.print(F("3.idelaySendData ")); Serial.println(idelaySendData/1000);
	//SendData();
	//PrtDataToMon();
	previousCPdelaySendData=CPdelaySendData;
	}

	if ((unsigned long)(CPdelayResetMaxDelta - previousCPdelayResetMaxDelta) >= idelayRstDelta) {
	Serial.print(F("4.idelayRstDelta ")); Serial.println(idelayRstDelta/1000);
	maxDelta = 0;
	previousCPdelayResetMaxDelta=CPdelayResetMaxDelta;
	}

	}
//______________________________________________________________________
void GetTemps(){ //get t and fill maxDelta, TempDelta
	//Serial.println(F("GetTemps"));
	mySensors.requestTemperatures();
	for(byte i = 0 ; i < iCntDev; i++){  //The loop that goes through the sensors
		float fMes ;
		//Serial.print(F("Device ")); Serial.print(i);
		//Serial.print(F(", ")); printAddress(probes[i]);
		//Serial.print(F(": "));
		probeTemp[i] = printTemperature(probes[i]) ;
		//Serial.print(fMes);
		//Serial.println(" C ");
		} //for loop

	if (probeTemp[0]>probeTemp[1]) {TempDelta=(probeTemp[0]-probeTemp[1]);}else{TempDelta=(probeTemp[1]-probeTemp[0]); }
	if (TempDelta>maxDelta ){ maxDelta=TempDelta;}
}
//______________________________________________________________________
void DriveRelays(){ //drive relays
// replace call proc by mode and state ?
if (TempFanSLOW ==0) {  //force manual, probably no sensors
	Op_StateAUTO=false;
	}
		if (Op_StateAUTO) {
			//  AUTO
			//if (Op_StateAUTO) { Serial.print(F(" MAN"));   else  {  Serial.print(F(" AUTO"));  }
			digitalWrite(pinled,LED_OFF);
			if (TempDelta > TempFanFAST){FanFAST();	Op_Mode=2;	}
			else if (TempDelta > TempFanSLOW){ FanSLOW();Op_Mode=1;		}
			else if (TempDelta <= TempFanSLOW){FanOFF(); Op_Mode=3;		}
		}
		else {  // MAN
			digitalWrite(pinled,LED_ON);
			LedBlink(15,100);
			switch(Op_Mode) {// Op_StateAUTO  0 ignore  1 FanSLOW, 2 FanFast 3 FanOFF
				case 0 : FanSLOW();break;  //for man loop
				case 1 : FanSLOW();break;
				case 2 : FanFAST();break;
				case 3 : FanOFF(); break;
				}

			}
}  // DriveRelays
//______________________________________________________________________
void SendData(){ //send data via index.php
float fMes0,fMes1;
String Link, getData  ;
WiFiClient client;
HTTPClient http;    //Declare object of class HTTPClient
// build a HTTP request
if (WiFi.status() == WL_CONNECTED) {
	fMes0=probeTemp[0] ;
	fMes1=probeTemp[1] ;
	// String GETdata="GET /esp8266/index.php/?t0=" + String(fMes0)
	GETdata="?t0=" + String(fMes0)
	+ "&t1="+ fMes1
	+ "&TD="+  String(TempDelta)
	+ "&mTD="+ String(maxDelta)
	+ "&Md="+  String(Op_Mode )
	//+ "&St="+  sState
	+ "&St="+  	String(Op_StateAUTO)

	+ "&ti="+  millis();
	+ " HTTP/1.1";
	//echo to sermon
	Link = "http://192.168.0.11/esp8266/index.php" + GETdata;
	Serial.print(F("===> GETdata: "));	Serial.println(Link);
	http.begin(client,Link);     //Specify request destination
	int httpCode = http.GET();            //Send the request

	Serial.println("=response");
	String payload = http.getString();    //Get the response payload
	Serial.println(httpCode);   //Print HTTP return code
	Serial.println(payload);    //Print request response payload
	Serial.println("=end response");
	http.end();  //Close connection
	}
else {
	Serial.println("WiFiStatus != WL_CONNECTED");
	}
}
//______________________________________________________________________
void PrtDataToMon(){

	//  (Limits: ON >5.10, FAST >6.30) Delta: 7.12 (max: 7.19), State AUTO, Mode 2 FAST
	//  Device 0, 2888DA7997040306: 24.44 C
	//  Device 1, 286E6D4692020290: 17.31 C

	Serial.print(F("PrtDataToMon > (Limits: ON >"));Serial.print(TempFanSLOW);Serial.print(F(", FAST >"));	Serial.print(TempFanFAST);Serial.print(")");
	Serial.print(F(" Delta: "));Serial.print(TempDelta);Serial.print(F(" (max: "));Serial.print(maxDelta);Serial.print(F(")"));

	Serial.print(F(", ")); if (Op_StateAUTO) {Serial.print(F("AUTO"));}  else  {Serial.print(F("MAN"));}

	Serial.print(F(", Mode ")) ; Serial.print(Op_Mode);
	switch (Op_Mode) {  //Op_Mode: 0 Auto, 1 FanSLOW, 2 FanFast, 3 FanOFF
		case 0: Serial.println(F(" -nu-")); break;
		case 1: Serial.println(F(" SLOW")); break;
		case 2: Serial.println(F(" FAST")); break;
		case 3: Serial.println(F(" OFF")); break;
		}
	for(byte i = 0 ; i < iCntDev; i++){
			Serial.print(F("Device ")); Serial.print(i);
			Serial.print(F(", ")); printAddress(probes[i]);
			Serial.print(F(": "));
			Serial.print(probeTemp[i])  ;
			Serial.println(" C ");
			}
	Serial.println("PrtDataToMon <");
	}
//______________________________________________________________________
void printAddress(DeviceAddress deviceAddress) {
// function to print a device address

  for (uint8_t i = 0; i < 8; i++)
  {
    // zero pad the address if necessary
    if (deviceAddress[i] < 16) Serial.print(F("0"));
    Serial.print(deviceAddress[i], HEX);
  }
    }
//______________________________________________________________________
float printTemperature(DeviceAddress deviceAddress) {
// function to print the temperature for a device

  float tempC = mySensors.getTempC(deviceAddress);
  //Serial.print(tempC);
  //Serial.println(" C ");
return tempC;
  //Serial.print(" Temp F: ");
  //Serial.print(DallasTemperature::toFahrenheit(tempC));
    }
//______________________________________________________________________
void printResolution(DeviceAddress deviceAddress) {
// function to print a device's resolution
  Serial.print("Resolution: ");
  Serial.print(mySensors.getResolution(deviceAddress));
  Serial.println();
    }
//______________________________________________________________________
void printData(DeviceAddress deviceAddress) {
// main function to print information about a device
  //Serial.print("Device Address: ");
  printAddress(deviceAddress);
  Serial.print(F(" "));
  printTemperature(deviceAddress);
  Serial.println();
    }
//______________________________________________________________________
void keysacn(){
	//https://www.baldengineer.com/detect-short-long-button-press.html
    // check the button
    button.currentState = digitalRead(button.pin);
    // has it changed?
    if (button.currentState != button.prevState) {
        delay(button.debounce);
        //Serial.println(F("   After debounce"));
        // update status in case of bounce
        button.currentState = digitalRead(button.pin);
        if (button.currentState == PRESSED) {
            // a new press event occured
            // record when button went down
            //Serial.println(F("   pressed"));
            button.counter = millis();
        }
        if (button.currentState == NOT_PRESSED) {
			//Serial.println(F("   no longer pressed"));
            // but no longer pressed, how long was it down?
            unsigned long currentMillis = millis();
            if ((currentMillis - button.counter >= shortPress) && !(currentMillis - button.counter >= longPress)) {
                // short press detected.
                handleShortPress();
            }
            if ((currentMillis - button.counter >= longPress)) {
                // the long press was detected
                handleLongPress();
            }
        }
        // used to detect when state changes
        button.prevState = button.currentState;
    }
    }
//______________________________________________________________________
void handleShortPress() {
	 // auto: false , man: true // 0 (nu), 1 FanSLOW, 2 FanFAST, 3 FanOFF
	Serial.print(F(" >>> ShortPress entry "));
	Serial.print(Op_StateAUTO);Serial.print(F(" "));
	Serial.println(Op_Mode);
	Op_Mode=Op_Mode+1;
	if (Op_Mode<=3) {
		if (Op_StateAUTO) {
			Op_StateAUTO = false ;
			Op_Mode=1;
			}
		else {
			Op_StateAUTO = false ;
			}
		}

	if (Op_Mode==4) {      // set AUTO
		Op_StateAUTO = true ;
		Op_Mode = 0;
		//MonParams();
        }
	//PrtDataToMon();
	DriveRelays();
	}
//______________________________________________________________________
void handleLongPress() {   //set to auto, slow
	handleShortPress();
	/*
	Serial.println(F("   >>> Long Press"));
	Op_StateAUTO=true ;
	Op_Mode = 1;
	PrtDataToMon();
	SendData();
	DriveRelays();
	* */
    }
//______________________________________________________________________
void FanSLOW()  {// relay is activated when DO is DISABLED  LOW !
// fan low speed
	//Serial.println("FanSLOW");
	bFastON=false;
	//Op_Mode =1 ;  // when in auto: 0 ignore  1 FanSLOW, 2 FanFast   3 FanOFF
	digitalWrite(RELAY_ON, ENABLE);
	digitalWrite(RELAY_FAST, DISABLED);
    }
//______________________________________________________________________
void FanFAST(){// relay is activated when DO is DISABLED !
// fan high speed
	//Serial.println("FanFAST");
	if (!bFastON) {
		bFastON=true;
		//Op_Mode =2 ;  // when in auto: 0 ignore  1 FanSLOW, 2 FanFast   3 FanOFF
		digitalWrite(RELAY_ON, DISABLED);//cut power
		delay(2000);//wait for discharge of limiting condo
		digitalWrite(RELAY_FAST, ENABLE);//bypass limiting condo
		digitalWrite(RELAY_ON, ENABLE);//power
		}
    }
//______________________________________________________________________
void FanOFF() {// relay is activated when DO is DISABLED !
//fan off
	//Serial.println("FanOFF");
	bFastON=false;
	//Op_Mode =3  ;  // when in auto: 0 ignore  1 FanSLOW, 2 FanFast   3 FanOFF
	digitalWrite(RELAY_ON, DISABLED);
	delay(2000); //wait for discharge of limiting condo // TODO  use millis  !
	digitalWrite(RELAY_FAST, DISABLED);
    }
//______________________________________________________________________
void printWifiStatus(){
	// print the SSID of the network you're attached to
	Serial.print(F("Connected to WiFi SSID: "));
	Serial.print(WiFi.SSID());
	Serial.print(F(", ip: "));
	Serial.print(WiFi.localIP());
	Serial.print(F(" MAC: "));
	Serial.println(WiFi.macAddress());

	long rssi = WiFi.RSSI();
	Serial.print(F(", signal (RSSI): "));
	Serial.print(rssi); Serial.print(F(" dBm"));
	}
//______________________________________________________________________
void InitWifiCx(){
	WiFi.mode(WIFI_OFF);        //Prevents reconnection issue (taking too long to connect)
	delay(1000);
	WiFi.mode(WIFI_STA);        //This line hides the viewing of ESP as wifi hotspot

	WiFi.begin(ssid, password);
	Serial.println("");
	// if (WiFi.waitForConnectResult() != WL_CONNECTED) {
	int i=0;
	while(WiFi.status() != WL_CONNECTED) {
		delay(500);
		Serial.print(i++);
		}
	// you're connected now, so print out the data
	Serial.println("");
	printWifiStatus();
	Serial.println();

	//  set server to response
	//code based on
	// https://techtutorialsx.com/2017/12/01/esp32-arduino-asynchronous-http-webserver/
	// https://github.com/me-no-dev/ESPAsyncWebServer/blob/master/src/StringArray.h
	//
	// Send web page with input fields to client  start server
	server.on("/", HTTP_GET, [](AsyncWebServerRequest *request){
		GetTemps();
		request->send_P(200, "text/html", index_html, processor);
		});

	// Send a GET request to <ESP_IP>/get?inputString=<inputMessage>
	//  https://www.w3schools.com/get?TempFanSLOW=&Def_TempFanSLOW=_TempFanSLOW
	server.on("/get", HTTP_GET, [] (AsyncWebServerRequest *request) {
	    String inputMessage;
	    // GET inputInt value on <ESP_IP>/get?inputInt=<inputMessage>
	    // GET TempFanSLOW value on <ESP_IP>/get?TempFanSLOW=<inputMessage>
	    // http://192.168.0.22/get?idelayMeasures=70000
	    if (request->hasParam(PARAM_idelayMeasures)) {
			int paramsNr = request->params();
		    for(int i=0;i<paramsNr;i++){
		        AsyncWebParameter* p = request->getParam(i);
		        if (p->name()=="Def_idelayMeasures" ) { // search for &Def_idelayMeasures=
					if (p->value()=="setdef_idelayMeasures") {  // if set, use def value, ignore other option: handled by else part
						FileWrite(SPIFFS, "/idelayMeasures.txt", (String(idelayMeasures_def)).c_str()  ) ;
						idelayMeasures=idelayMeasures_def;
						}
					else {
						inputMessage=atoi((request->getParam(0)->value()).c_str()) * 1000;
						//Serial.print("inputMessage =");Serial.print(inputMessage);Serial.println("<");
						if (inputMessage.toInt() > 0) {
							FileWrite(SPIFFS, "/idelayMeasures.txt", inputMessage.c_str());
							idelayMeasures=atol(inputMessage.c_str() );
							}
						}
					}
		    }	//  end for(int i=0;i<paramsNr;i++)

		    }
		else if (request->hasParam(PARAM_idelayRelays)) {
			/*
			inputMessage = request->getParam(PARAM_idelayRelays)->value();
			inputMessage=(inputMessage.toInt())*1000;
			FileWrite(SPIFFS, "/idelayRelays.txt", inputMessage.c_str());
			idelayRelays = atol(inputMessage.c_str());
			*/

			int paramsNr = request->params();
		    for(int i=0;i<paramsNr;i++){
		        AsyncWebParameter* p = request->getParam(i);
		        if (p->name()=="Def_idelayRelays" ) {
					if (p->value()=="setdef_idelayRelays") {
						FileWrite(SPIFFS, "/idelayRelays.txt", (String(idelayRelays_def)).c_str()  ) ;
						idelayRelays=idelayRelays_def;
						}
					else {
						//inputMessage=(request->getParam(0)->value()) *1000 ;
						inputMessage=request->getParam(0)->value()   ;
						inputMessage=(atoi(inputMessage.c_str())) * 1000;

						if (inputMessage.toInt() > 0) {
							FileWrite(SPIFFS, "/idelayRelays.txt", inputMessage.c_str());
							idelayRelays=(float)atof( inputMessage.c_str()  );
							}
						}
					}
		    }	//  end for(int i=0;i<paramsNr;i++)


			}
		else if (request->hasParam(PARAM_idelaySendData)) {
			/*
			inputMessage = request->getParam(PARAM_idelaySendData)->value();
			inputMessage=(inputMessage.toInt())*1000;
			FileWrite(SPIFFS, "/idelaySendData.txt", inputMessage.c_str());
			idelaySendData = atol(inputMessage.c_str());
			*/

			int paramsNr = request->params();
		    for(int i=0;i<paramsNr;i++){
		        AsyncWebParameter* p = request->getParam(i);
		        if (p->name()=="Def_idelaySendData" ) {
					if (p->value()=="setdef_idelaySendData") {
						FileWrite(SPIFFS, "/idelaySendData.txt", (String(idelaySendData_def)).c_str()  ) ;
						idelaySendData=idelaySendData_def;
						}
					else {
						//inputMessage=(request->getParam(0)->value()) *1000 ;
						inputMessage=request->getParam(0)->value()   ;
						inputMessage=(atoi(inputMessage.c_str())) * 1000;
						if (inputMessage.toInt() > 0) {
						FileWrite(SPIFFS, "/idelaySendData.txt", inputMessage.c_str());
						idelaySendData=(float)atof( inputMessage.c_str()  );
						}
						}
					}
		    }	//  end for(int i=0;i<paramsNr;i++)


			}
		else if (request->hasParam(PARAM_idelayRstDelta)) {
			/*
			inputMessage = request->getParam(PARAM_idelayRstDelta)->value();
			inputMessage=(inputMessage.toInt())*1000;
			FileWrite(SPIFFS, "/idelayRstDelta.txt", inputMessage.c_str());
			idelayRstDelta= atol(inputMessage.c_str());
			*/
			int paramsNr = request->params();
		    for(int i=0;i<paramsNr;i++){
		        AsyncWebParameter* p = request->getParam(i);
		        if (p->name()=="Def_idelayRstDelta" ) {
					if (p->value()=="setdef_idelayRstDelta") {
						FileWrite(SPIFFS, "/idelayRstDelta.txt", (String(idelayRstDelta_def)).c_str()  ) ;
						idelayRstDelta=idelayRstDelta_def;
						}
					else {
						//inputMessage=(request->getParam(0)->value()) *1000 ;
						inputMessage=request->getParam(0)->value()   ;
						inputMessage=(atoi(inputMessage.c_str())) * 1000;
						if (inputMessage.toInt() > 0) {
						FileWrite(SPIFFS, "/idelayRstDelta.txt", inputMessage.c_str());
						idelayRstDelta=(float)atof( inputMessage.c_str()  );
						}
						}
					}
		    }	//  end for(int i=0;i<paramsNr;i++)














			}
	    else if (request->hasParam(PARAM_TempFanSLOW)) {  // has received TempFanSLOW=12.34 &Def_TempFanSLOW=setval_TempFanSLOW
			/*
			https://www.w3schools.com/get?TempFanSLOW=00&Def_TempFanSLOW=setdef_TempFanSLOW
			<input type="radio"
			name="Def_TempFanSLOW" VALUE="setdef_TempFanSLOW">Set def
			<input type="radio"
			name="Def_TempFanSLOW" VALUE="setval_TempFanSLOW" checked>Set val

			//  https://forum.arduino.cc/index.php?topic=590802.0
			int paramsNr = request->params();
			Serial.println(paramsNr);
			int paramsNr = request->params();
			for(int i=0;i<paramsNr;i++){

			AsyncWebParameter* p = request->getParam(i);
			Serial.print("Param name: ");
			Serial.println(p->name());
			Serial.print("Param value: ");
			Serial.println(p->value());
			Serial.println("------");
			}
			*/
			/*
			TempFanSLOW=12.34 &Def_TempFanSLOW=setval_TempFanSLOW
			TempFanSLOW=78.91 &Def_TempFanSLOW=setdef_TempFanSLOW
			*/
			int paramsNr = request->params();
		    for(int i=0;i<paramsNr;i++){
		        AsyncWebParameter* p = request->getParam(i);
		        /*
		        Serial.print("Param name: ");  Serial.println(p->name());
		        Serial.print("Param value: ");  Serial.println(p->value());
		        Serial.println("------");
		        */
		        if (p->name()=="Def_TempFanSLOW" ) {
					if (p->value()=="setdef_TempFanSLOW") {
						FileWrite(SPIFFS, "/TempFanSLOW.txt", (String(TempFanSLOW_def)).c_str()  ) ;
						TempFanSLOW=TempFanSLOW_def;
						}
					else {
						inputMessage=request->getParam(0)->value();
						if (inputMessage!=0) {
						//inputMessage = request->getParam(PARAM_TempFanSLOW)->value();
						FileWrite(SPIFFS, "/TempFanSLOW.txt", inputMessage.c_str());
						TempFanSLOW=(float)atof( inputMessage.c_str()  );
						}
						}
					}
		    }	//  end for(int i=0;i<paramsNr;i++)
			}
		else if (request->hasParam(PARAM_TempFanFAST)) {
			int paramsNr = request->params();
		    for(int i=0;i<paramsNr;i++){
		        AsyncWebParameter* p = request->getParam(i);
		        if (p->name()=="Def_TempFanFAST" ) {
					if (p->value()=="setdef_TempFanFAST") {
						FileWrite(SPIFFS, "/TempFanFAST.txt", (String(TempFanFAST_def)).c_str()  ) ;
						TempFanFAST=TempFanFAST_def;
						}
					else {
						inputMessage=request->getParam(0)->value();
						if (inputMessage!=0) {
						FileWrite(SPIFFS, "/TempFanFAST.txt", inputMessage.c_str());
						TempFanFAST=(float)atof( inputMessage.c_str()  );
						}
						}
					}
		    }	//  end for(int i=0;i<paramsNr;i++)
			}

		else if (request->hasParam(PARAM_mode)) {
			handleShortPress();
			//inputMessage = request->getParam(PARAM_mode)->value();
			//inputMessage = String(Op_Mode);
			//FileWrite(SPIFFS, "/mode.txt", inputMessage.c_str());
			//Op_Mode=atol( inputMessage.c_str()  );
			}



		else    { inputMessage = "No message sent";
			}
	    Serial.println(inputMessage);
	    request->send(200, "text/text", inputMessage);
		}
	);  // server.on(
	server.onNotFound(notFound);
	server.begin();
 }
//______________________________________________________________________
String FileRead(fs::FS &fs, const char * path){
  //Serial.printf("FileRead(): Reading file: %s\r\n", path);
  //Serial.printf("FileRead(): Reading file: %s ", path);
  File file = fs.open(path, "r");
  if(!file || file.isDirectory()){
    //Serial.println("- empty file or failed to open file");
    return String();
  }
  //Serial.print("- read from file:");
  String fileContent;
  while(file.available()){
    fileContent+=String((char)file.read());
  }
  //Serial.println(fileContent);
  return fileContent;
}
//______________________________________________________________________
void FileWrite(fs::FS &fs, const char * path, const char * message){
  Serial.printf("Writing file: %s", path);
  File file = fs.open(path, "w");
  if(!file){
    Serial.print(F("- failed to open file for writing"));
    return;
  }
  if(file.print(message)){
    Serial.print(F("- file written"));
  } else {
    Serial.print(F("- write failed"));
  }
  Serial.println(F(""));
}
//______________________________________________________________________
String processor(const String& var){   // Replaces placeholder with stored values
  //pass param 'id' return value or null (?)
  //Serial.println("==processor");
  //Serial.println(var);
//GetTemps();   //  THIS CRASH WITH WDT   !  too much calls   :)
// / TIMINGS
  if(var == "idelayMeasures"){
    //return FileRead(SPIFFS, "/idelayMeasures.txt");
    return String(idelayMeasures/1000);  }
  else  if(var == "idelayRelays"){
    //return FileRead(SPIFFS, "/idelayRelays.txt");
    return String(idelayRelays/1000);  }
  else  if(var == "idelaySendData"){
    //return FileRead(SPIFFS, "/idelaySendData.txt");
    return String(idelaySendData/1000);  }
...

This file has been truncated, please download it to see its full contents.
