Building a Complete Smart Home Ecosystem with XIAO Gadget

Seeed Studio has been on a roll this year, releasing a dizzying array of "XIAO Gadgets." To be honest, even as a long-time maker, looking at the catalog can be overwhelming. It begs the question: Do these things actually work together? And do I really need a millimeter-wave radar in my bedroom, or is that just marketing hype?

To answer these questions—and to cure my own "Smart Home OCD"—I decided to stop theorizing. I took a large board and physically mapped out a digital ecosystem. I wanted to see what happens when commercial gadgets and my own "hand-rolled" DIY sensors try to talk to each other under the command of Home Assistant.

Here is the unvarnished truth about what I built, what worked, and what frustrated me.

The Brain: The "Too Simple" Experience of Home Assistant Green

Every smart home needs a conductor. In the past, running Home Assistant meant tinkering with Raspberry Pis, SD card corruption, or wrestling with Docker containers—a massive barrier to entry.

For this project, I used the Home Assistant Green. As someone used to debugging Linux, it felt almost uncomfortably simple. You plug in the Ethernet, power it up, and it just starts finding things. It acts as the "brainstem" of this demo board. It’s not flashy, but it effortlessly ingested every data stream I threw at it—from the soil sensors to the DIY buttons. If you are tired of maintaining a server and just want to focus on automation logic, this little box saves a lot of headaches.

The Living Room: The Truth About "Bill Anxiety"

When planning the "Living Room" section, I wanted to tackle a real problem: Energy Management. We all dread the utility bill, but we rarely know which appliance is the villain.

To visualize this, I deployed the XIAO 2-Channel Wi-Fi AC Energy Meter and the Relay.

The Energy Meter acts like a forensic auditor for your house. I wired it to monitor the main load of the demo board, and seeing the power consumption curve draw itself in real-time is genuinely satisfying.

It gives you a tangible sense of your "carbon footprint." The Relay, which I used to toggle a fan and an MP3 player here, is powerful enough in the real world to control space heaters or AC units.

But, a serious word of caution: While these devices are brilliant for catching "energy vampires, " installing them is not for the faint of heart. You are dealing with high-voltage mains electricity (110V/220V). If you are a renter trying to audit your landlord's electricity claims, this is a godsend tool—but if you aren't comfortable with electrical wiring, please do not touch this. Safety comes first.

A crucial safety note before you try this yourself: Since these devices interface directly with 220V household mains electricity, extreme caution is required. Always ensure the power is completely disconnected before wiring anything, and if you aren't comfortable working with high voltage, please consult a professional.

The Bedroom: Is mmWave Radar Just a Gimmick?

Bedroom automation has always been annoying. Traditional PIR motion sensors have a major flaw: if you lie still to read a book, the sensor thinks you're gone and turns off the lights. It’s infuriating.

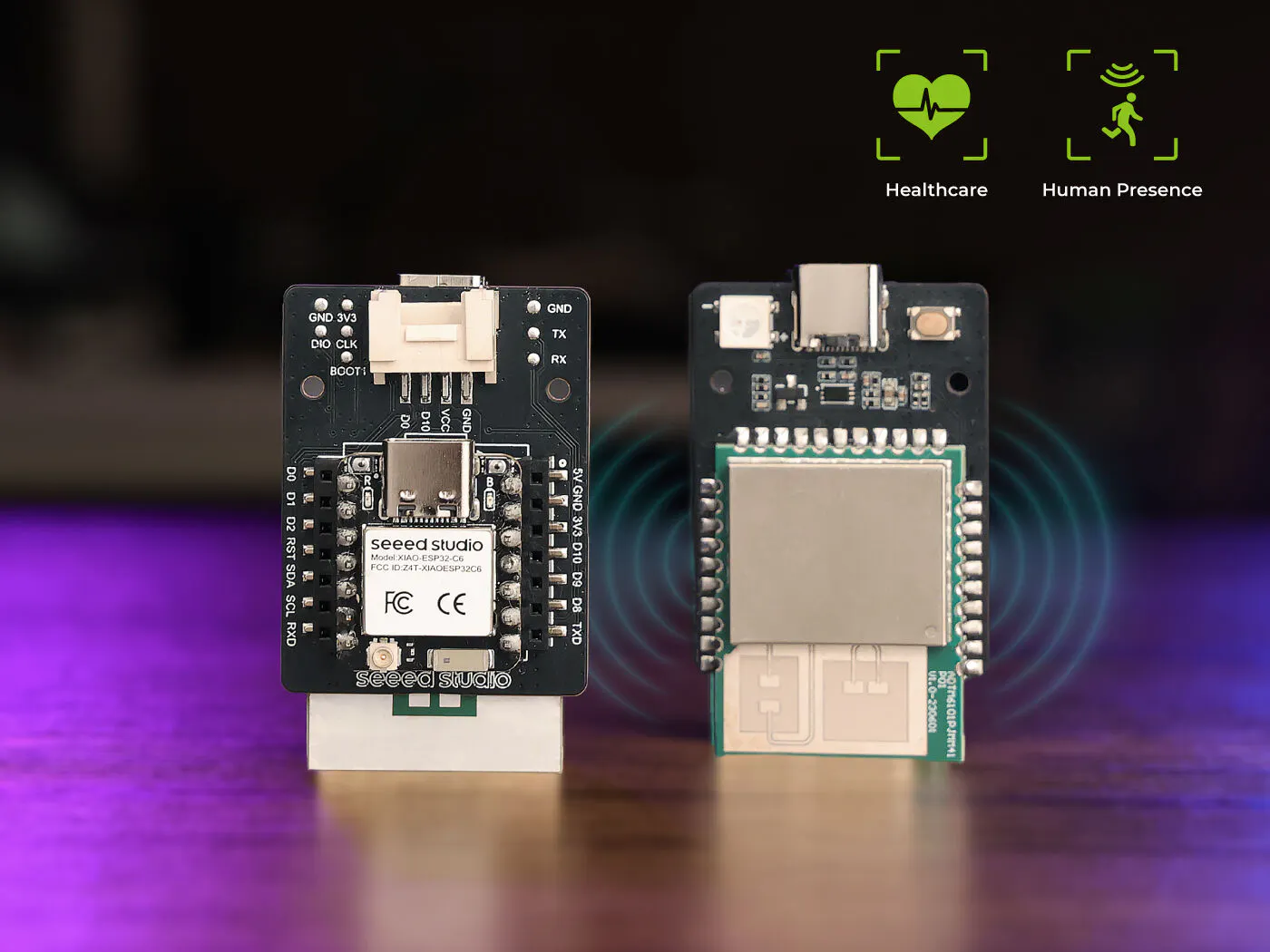

So, I tested the XIAO 60GHz mmWave Sensor.

The verdict? It is significantly smarter than a PIR sensor. It doesn't just look for motion; it detects "presence" by monitoring tiny movements like breathing and heart rate. As long as you are breathing, the lights stay on.

However, it’s not magic. In my testing, the "people counting" feature is still a bit finicky and can sometimes pick up "ghost targets" (like a fluttering curtain). Also, I paired this with a XIAO ESP32-S3 Sense to act as a security camera. While the camera is an incredible value (it’s the size of a thumb!), be warned: it runs hot. Like, don't-touch-it-while-it's-running hot. It works great, just give it some airflow.

The Balcony: Letting Plants Speak for Themselves

I am a notorious "Plant Killer." I either forget to water them, or I drown them.

For the "Balcony" zone, I used a XIAO ESP32-C6 with a soil moisture sensor. But I didn't want a dashboard full of confusing voltage numbers. Thanks to the flexibility of ESPHome, I programmed the sensor to report qualitative states: "Wet, " "Moist, " or "Dry."

Crucially, the device is smart about battery life. It sleeps most of the time and only reports frequently when the soil gets dry and the situation is urgent. It runs for about three weeks on a battery—not eternal, but certainly better than coming home to a withered plant.

The Bedroom: Setting the Mood

Lighting is crucial for comfort. For the "Bedroom, " I utilized the XIAO LED Driver Board connected to an RGB strip. This demonstrates how we can move beyond simple on/off switches to create ambient lighting that adjusts color and brightness based on the time of day or user mood.

The heart of this setup is the LED driver board itself—a compact yet powerful bridge between the microcontroller and your lighting. It is a versatile solution supporting both 5V and 12V LED strips, including popular addressable RGB LEDs such as the NeoPixel WS2812, WS2813, and WS2815. Fully compatible with all XIAO boards, it unlocks smart control and automation through platforms like WLED and Home Assistant (specifically when paired with the XIAO ESP32 Series).

Beyond just connectivity, the board ensures stability; it features an onboard level shifter and flexible power options that not only power the MCU but also ensure stable current delivery for LED strips of varying lengths. This comprehensive protection and flexibility mean that if you want to design unique atmospheric lighting effects for your home, this board allows you to fully customize and build your own setup safely and reliably.

The Visual Hub: Beautiful, But Painfully Slow

To avoid constantly pulling out my phone, I mounted the reTerminal E1002—a 7.3-inch full-color e-Paper display.

I have to admit, the aesthetics are unbeatable. It looks like an oil painting on the wall. I flashed it with ESPHome to serve as the central dashboard, showing weather, air quality, and whole-house status.

But here is the trade-off you need to know: The refresh rate is slow. A full-screen refresh takes over 20 seconds. If you want a screen that shows a clock ticking seconds or real-time power fluctuations, do not buy this. You will go crazy waiting for it to update. However, as a static "Information Radiator" that blends into your home decor without emitting blue light, it is perfect.

DIY Smart Home Devices: The Maker's Playground

One of the strongest features of the XIAO ecosystem is its flexibility, which addresses a common problem in smart home design: sometimes, the device you need simply doesn't exist, or the commercial options are prohibitively expensive. This is where the Maker spirit takes over.

The combination of Home Assistant and open-source hardware support from companies like Seeed Studio has democratized smart home creation. You no longer need to rely solely on off-the-shelf products. With just a few dollars for a development board and a small budget for sensors or actuators, paired with the power of ESPHome, you can "hand-craft" your own custom monitoring or control devices. This setup empowers everyone to be a creator within their own smart home.

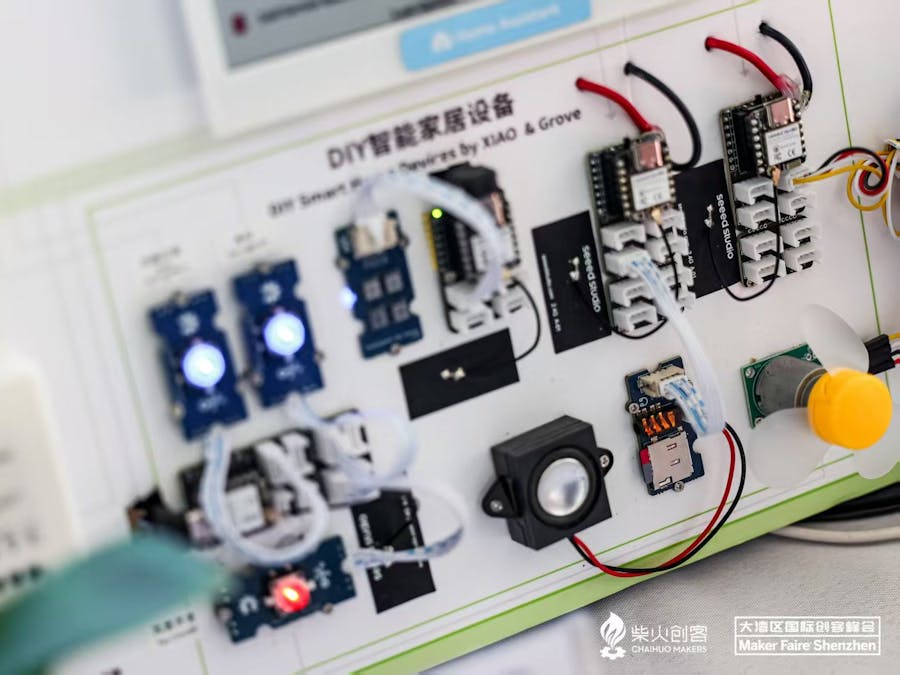

To demonstrate this potential, I created a dedicated "DIY Smart Home Devices" section on the display board. I utilized the XIAO ESP32-C3 and XIAO ESP32-C6 to build a variety of custom devices, including:

• A Custom Remote Control: For tactile management of scenes.
• A Gas Detector: For specialized safety monitoring.
• A Smart Fan: Integrating standard hardware into the smart network.
• An MP3 Player: For custom audio alerts or music.

These projects showcase the limitless possibilities of using Seeed Studio XIAO and Grove modules to build exactly what you need, exactly how you want it.

The Automation Logic

This is where the magic happens. I didn't want generic automations; I wanted precise control over my media and environment. Using Home Assistant's automation engine, I mapped the DIY buttons to specific actions:

1. The Media Controller (IoT Button)I configured a single "IoT Button" to act as a complete media controller for the house:

• Single Press: Toggles the music Play/Pause. Perfect for when the phone rings.
• Double Press: Skips to the Next Track.
• Long Press: Returns to the Previous Track.

2. Climate Control (Red Button)I dedicated a Red Button to environmental control. A simple press toggles the Fan On or Off. This is much faster than unlocking a phone to change a setting.

3. Lighting Control (Blue Buttons)For lighting, I used a two-button logic to mimic and enhance traditional switches:

• Blue Button 1: Turns the light On. If pressed again, it cycles through different light effects (like breathing or color shifts).
• Blue Button 2: Acts as the "Kill Switch, " turning the light Off immediately.

The Verdict

This demo board isn't just a collection of parts; it's a prototype of a responsive home.

Is it perfect? No. The mmWave sensor needs fine-tuning, the e-Paper screen tests my patience, and the high-voltage wiring gave me anxiety. But the ability to weave these distinct devices into a cohesive system that actually solves my problems (like keeping the lights on while I read) is incredibly rewarding.

If you want to replicate this setup, or if you just want to copy my ESPHome configurations (including the bilingual dashboards I designed), I have open-sourced everything. Don't be intimidated by the hardware—grab a soldering iron (or just some Grove cables) and start building.

👉 Project Repository: [https://github.com/limengdu/Smart-Home-Demo-Project] (If this honest breakdown helped you, a Star on the repo is always appreciated!)
