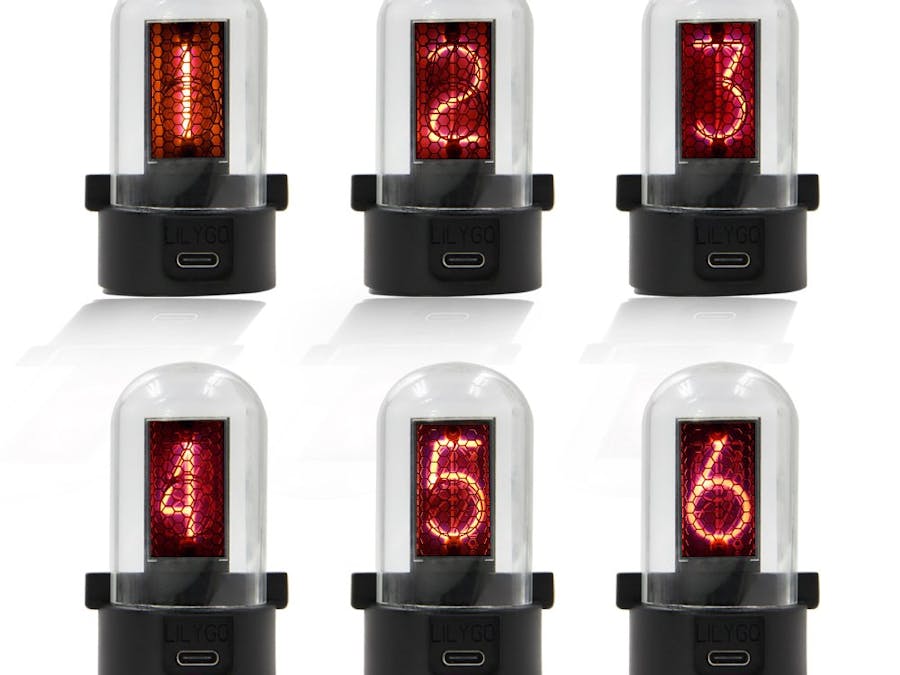

This is a 16:9 1.14-inch IPS screen, which is made by adding a cylindrical glass tube to simulate the appearance of a Nixie tube.
It is based on the LILYGO TTV product motherboard with a 16:9 1.14-inch IPS screen, which is made by adding a cylindrical glass tube to simulate the appearance of a Nixie tube.
You can learn to develop the simulation Nixie tube interface, dot matrix interface and other interesting interfaces through the built-in RTC clock circuit of this product.
The product continues the infrared receiving function of T-TV,
Infrared remote control can be carried out through the standard infrared remote control.
You can use your imagination DIY your own Nixie clock or add supported sensors to get data on the rooms you place, humidity, temperature, brightness, also You can use ESP32- to connect to the Internet to get the data you want.
First, go to GitHub and download the code for T_NixieTube
In the coding part you will need to install some library to run the code.
Use the Arduino IDE to open the sample file in the document
Then you can use infrared remote control to display the image
If you want to show more images, you can find or make your own 135*240 images.Use the ImageConverter tool to generate the header file and add it to your code.
Use your imagination to make your own display!
Please refer to the following items for more example.
