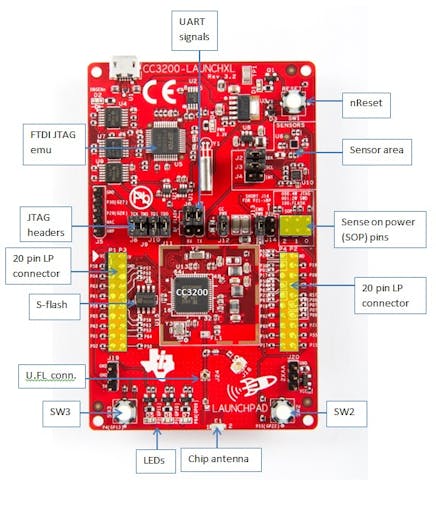

The LaunchPad CC3200 manufactured by Texas, is equipped with two sensors that use I2C communication, an accelerometer and a temperature sensor , as shown in the image below.
The sensors's addresses is 0x41 for the temperature sensor and 0x18 for the accelerometer .
Sending Multiple Sensor Data to Taurus PlatformTo send data to the platform, you should follow a pattern of URLs to do certain actions.
To send data to a number of registered sensors on the platform through a single HTTP request send the URL below:
Where , in brackets describes the identifiers of the sensors and the data sent by following the following analogy:
www.taurussystem.com/ws/webresources/SetSensor?key=SERIAL&&load=(IDSENSOR1,SENSOR1VALUE*IDSENSOR2,SENSOR2VALUE*IDSENSOR3,SENSOR3VALUE*IDSENSOR4,SENSOR4VALUE*IDSENSOR5,SENSOR5VALUE)
Remember to change the SERIAL word to the serial of your registered SERIAL.
To require a serial send an e- mail to alfatech@inatel.br.
Platform address: www.taurussystem.com

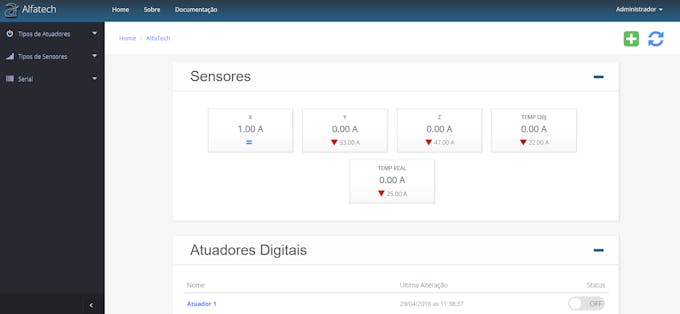

Platform ViewThe sensor data will be sent the platform and appear as follows :
Soon more tutorials.
Great Regards!
